High density SMD4040 RGB LED strip, 24V, IP00
5m roll–8mm width - 3oz fcp
5 year warranty
61 Item Items
Same Day Dispatch
Warning: Last items in stock!
|CIE Colour Space||3 SDCM|
|Number of LEDs per meter||120|
|LED Strip Efficiency||83 Lm/w|
|Width of strip||8mm|
|FCP copper content||3 ounce double layer|
|Cutting length||Every 6 LEDs (50mm)|

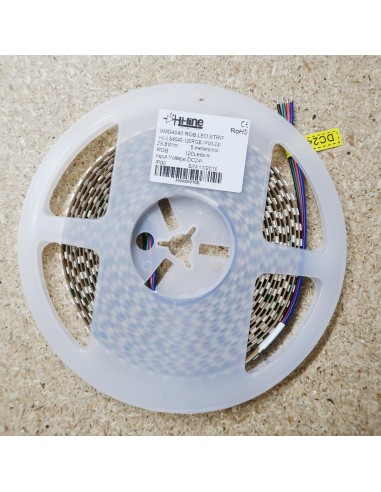

|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|
High density 24V RGB LED strip powered by 120 x SMD4040 LED chips per meter, only 8mm wide uses 3 oz quality FCP
28.8W/m – 24V DC – 5m roll – 120 LEDs/m – IP00 (Non-Waterproof) – 4-wire cable (15cm on each side of the strip roll)

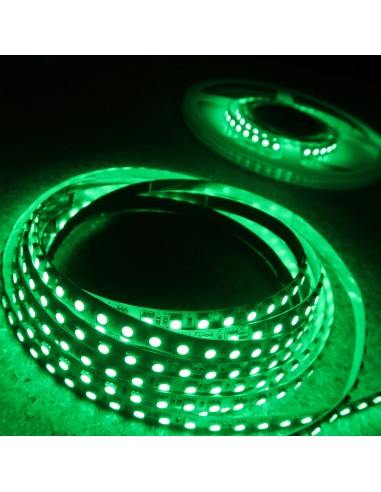

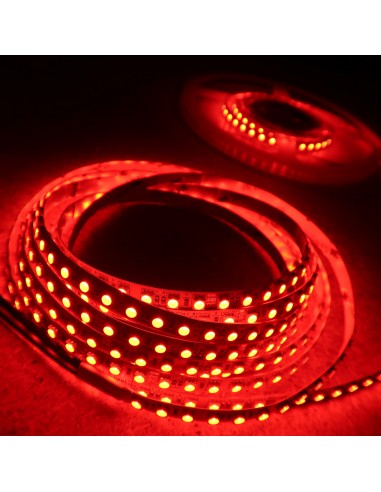

The RGB LED strips are powered by high-quality RGB SMD4040 LED chips which generate a brightness of 2400Lm/m and vivid colours.
The strip can be cut every 6 LEDs (50mm). The width of the LED strip is 8mm.
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 4-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The RGB LED strip comes with a 15cm wire ending (4-core) on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Lutron, Fibaro, Rako or ANY common anode LED controller available on the market. We do also supply ZigBee controllers for Google home and Amazon Alexa.
The stated price is for 1 x 5-meter roll RGB LED strip with 600 SMD4040 LEDs – IP00 (Non-Waterproof), 24V DC.
Note that, for driving RGB LED Strips, you will have to combine the LED Driver with a RGB/RGBW LED Controller.
In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
