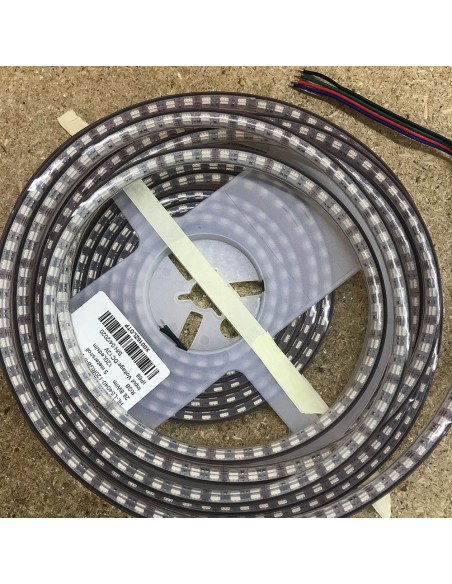

12V IP68 High Density RGB LED strip 120 LEDs per meter - 5m roll

HL-LS4040-120RGB-IP68-12V

New product

12V IP68 High density SMD4040 RGB LED strip

120 LEDs/m–28.8W/m–2400Lm/m

5m roll–8mm width - 3oz fcp

3 year warranty

More details

27 Items

Same Day Dispatch

£ 70,00

Add to wishlist

Data sheet

LED Chip SMD4040
CIE Colour Space 3 SDCM
Voltage 12V DC
Colour RGB
Power 28.8 W/m
Brightness 2400 Lm/m
Number of LEDs per meter 120
LED Strip Efficiency 83 Lm/w
Rating IP68 (Underwater waterproof)
Width of strip 10mm
Width of PCB 8mm
FCP copper content 3 ounce double layer
Cutting length Every 3 LEDs (25mm)
LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

IP68 High density 12V RGB LED strip powered by 120 x SMD4040 LED chips per meter, only 10mm wide uses 3 oz quality FCP

28.8W/m – 12V DC – 5m roll – 120 LEDs/m – IP68 – 4-wire cable (15cm on each side of the strip roll)

The RGB LED strips are powered by high-quality RGB SMD4040 LED chips which generate a brightness of 2400Lm/m and vivid colours.

The strip can be cut every 3 LEDs (25mm). The width of the LED strip is 10mm (FCP 8mm).

Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD4040 chips running warm at 28.8 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

3-year warranty

______________________________

The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 4-core cable.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

_____________________________

The RGB LED strip comes with a 15cm wire ending (4-core) on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of this IP68 RGB LED strip solder-free connector is currently NOT available.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

All Hi-Line RGB and RGBW LED strips are fully compatible with Lutron, Fibaro, Rako or ANY common anode LED controller available on the market. We do also supply ZigBee controllers for Google home and Amazon Alexa.

______________________________

The stated price is for 1 x 5-meter roll RGB LED strip with 600 SMD4040 LEDs – IP68 (waterproof), 12V DC.

______________________________

Note that, for driving RGB LED Strips, you will have to combine the LED Driver with a RGB/RGBW LED Controller. In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
