12V high Density RGB LED strip 28.8W/m 120 x SMD4040 / meter | IP00 | 5m roll
12V High density SMD4040 RGB LED strip
120 LEDs/m | 28.8W/m | 2400Lm/m
5m roll | 8mm width-3 oz FCP - IP00
5 year warranty

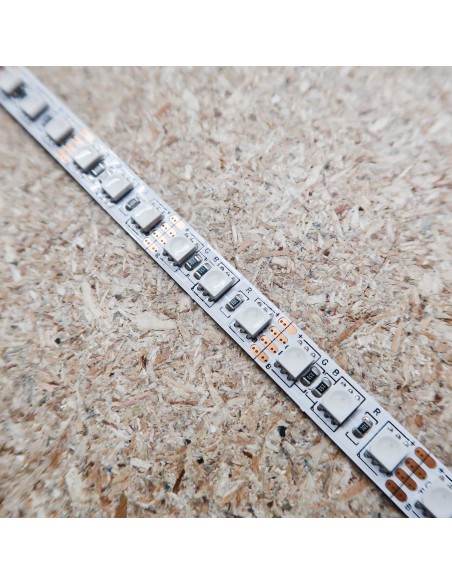

High density 12 Volts RGB LED strip powered by 120 x SMD4040 LED chips per meter, only 8mm wide uses 3 oz quality FCP
28.8W/m – 12V DC – 5m roll – 120 LEDs/m – IP00 (Non-Waterproof) – 4-wire cable (15cm on each side of the strip roll)

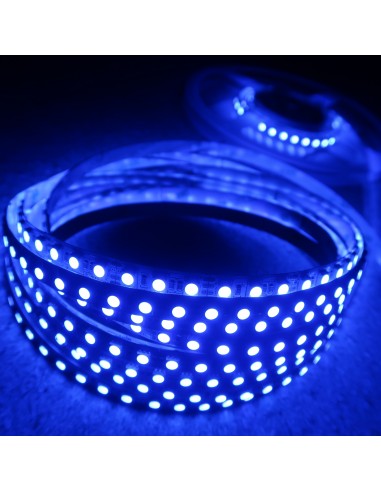

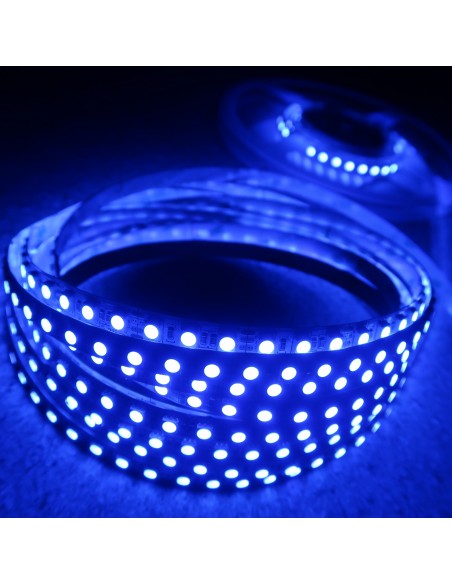

The RGB LED strips are powered by high-quality quad SMD4040 LED chips which generate a brightness of 2400Lm/m and vivid colours.
The wavelength of R,G,B is as below:
The strip can be cut every 3 LEDs (25mm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 4-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

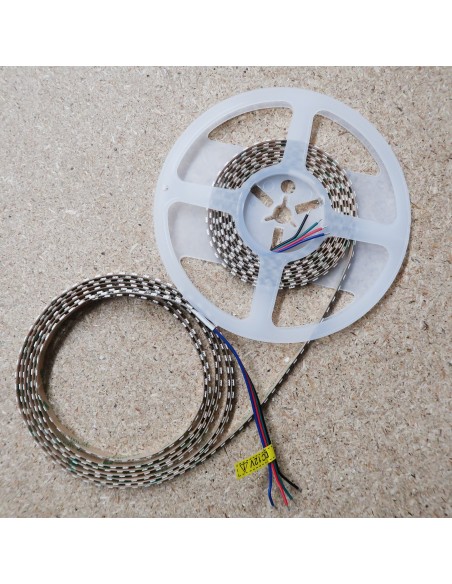

The RGB LED strip comes with a 15cm wire ending (4-core) on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of this LED strip. No connectors are currently available.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Lutron, Fibaro, Rako or ANY common anode LED controller available on the market.
The stated price is for 1 x 5-meter roll RGB LED strip with 600 SMD4040 LEDs – IP00 (Non-Waterproof), 12V DC.
Note that, for driving RGB LED Strips, you will have to combine the LED Driver with a RGB/RGBW LED Controller.
In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
- 2400 Lm/m
- CIE Colour Space
- 3 SDCM
- Cutting length
- Every 3 LEDs (25mm)
- FCP copper content
- 3 ounce double layer
- LEDs per meter
- LED Chip
- SMD 4040
- LED Strip Length
- 5 meter roll
- 28.8 Watts per Metre
- IP00 (Non-waterproof)
- 12V DC
- Voltage Type
- Constant Voltage
- 5 Years
- Width of strip
