IP65 End-Exit power connector kit for Single colour 10x20mm LED Neon Flex
- End-Exit power connector kit for single colour Neon Flex.
- Fits 10x20mm single colour Neon Flex

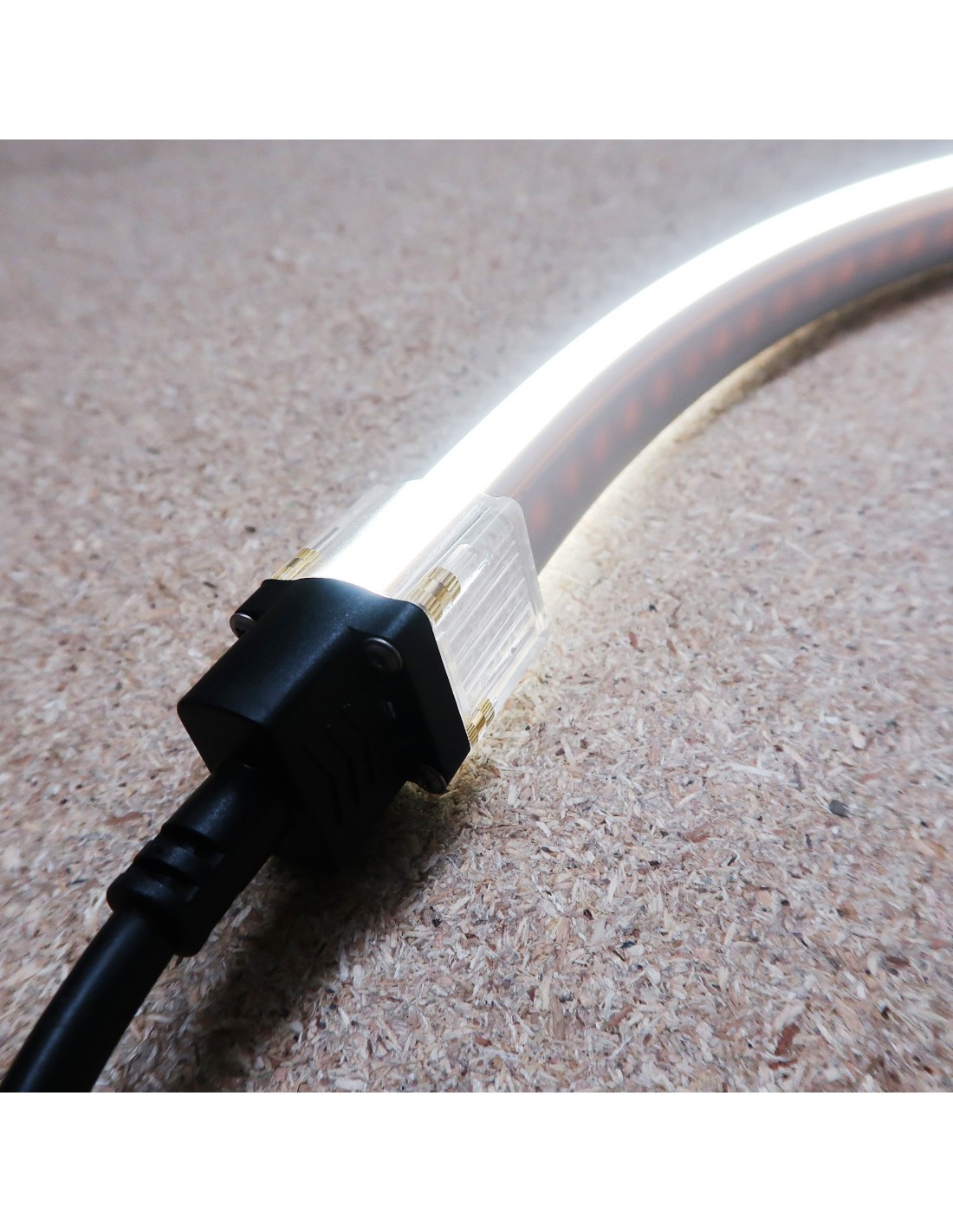

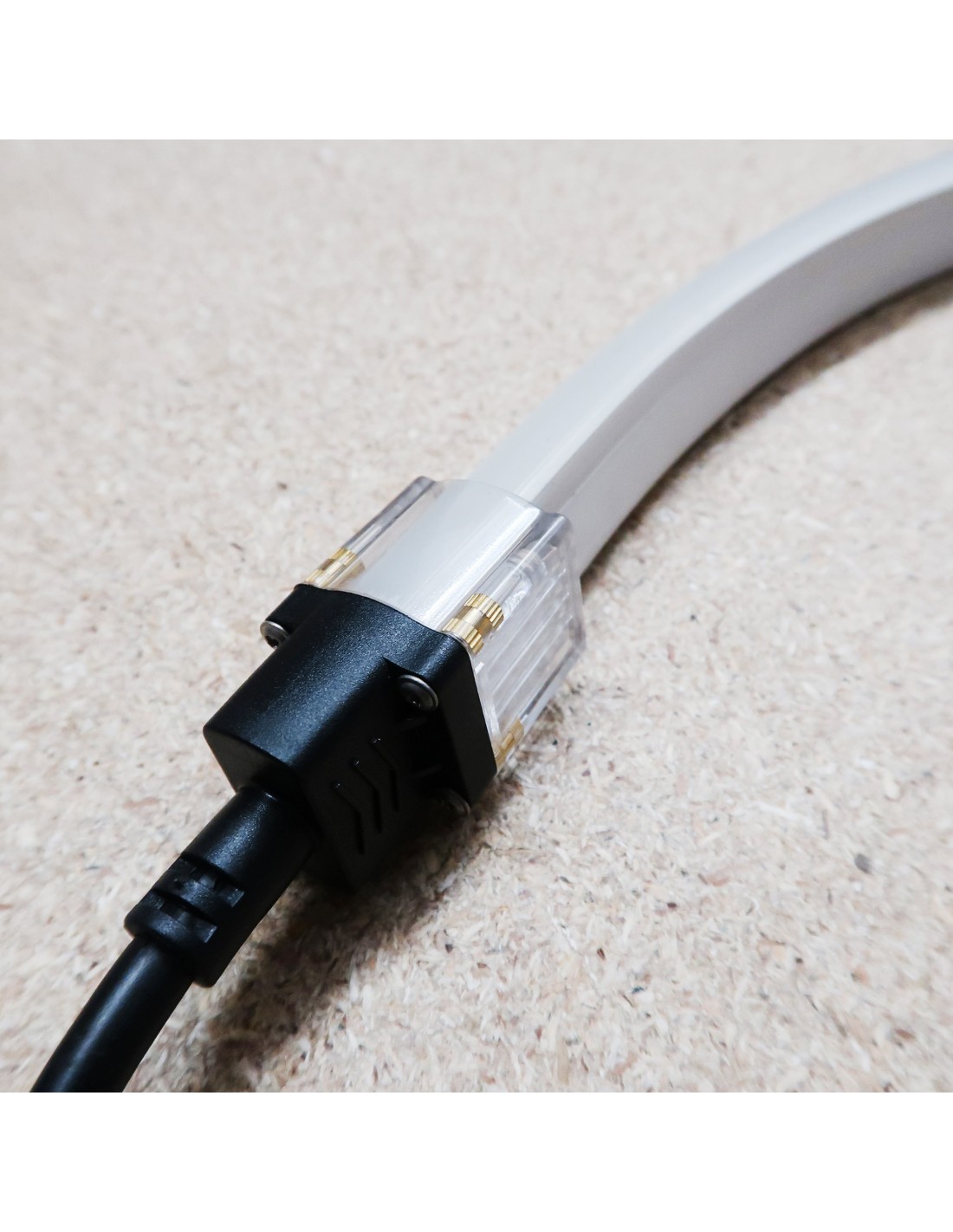

The HL-PWR-IP68-END-EXIT power connector kit fits onto one end of any 10x20mm single colour LED Neon Flex to provide a fully sealed connection (rated IP65).
The supplied screws secures the cap in place, for rigid protection. Included sealant can then be applied for water protection.

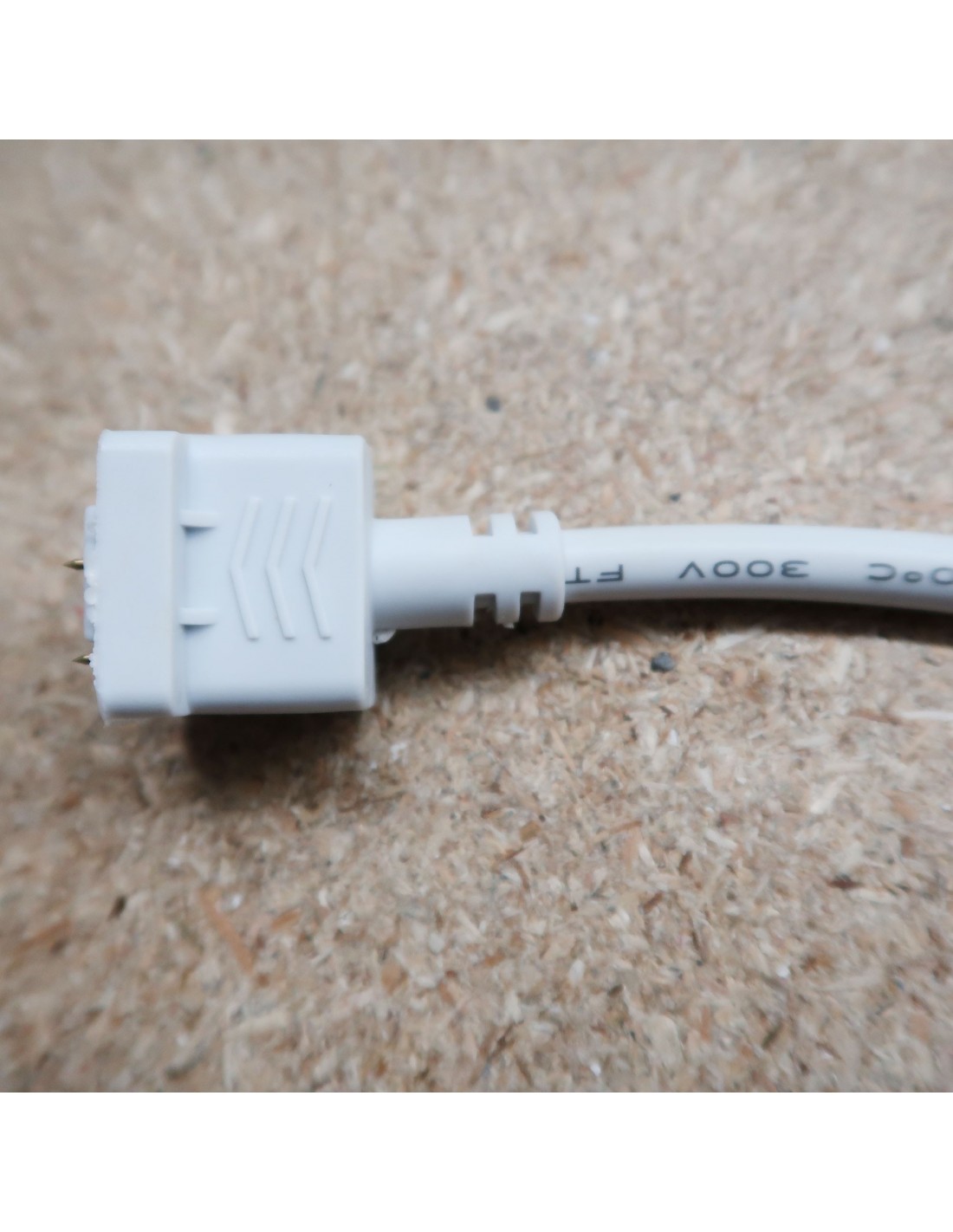

The cable attached to the plug end exits linear from the back.

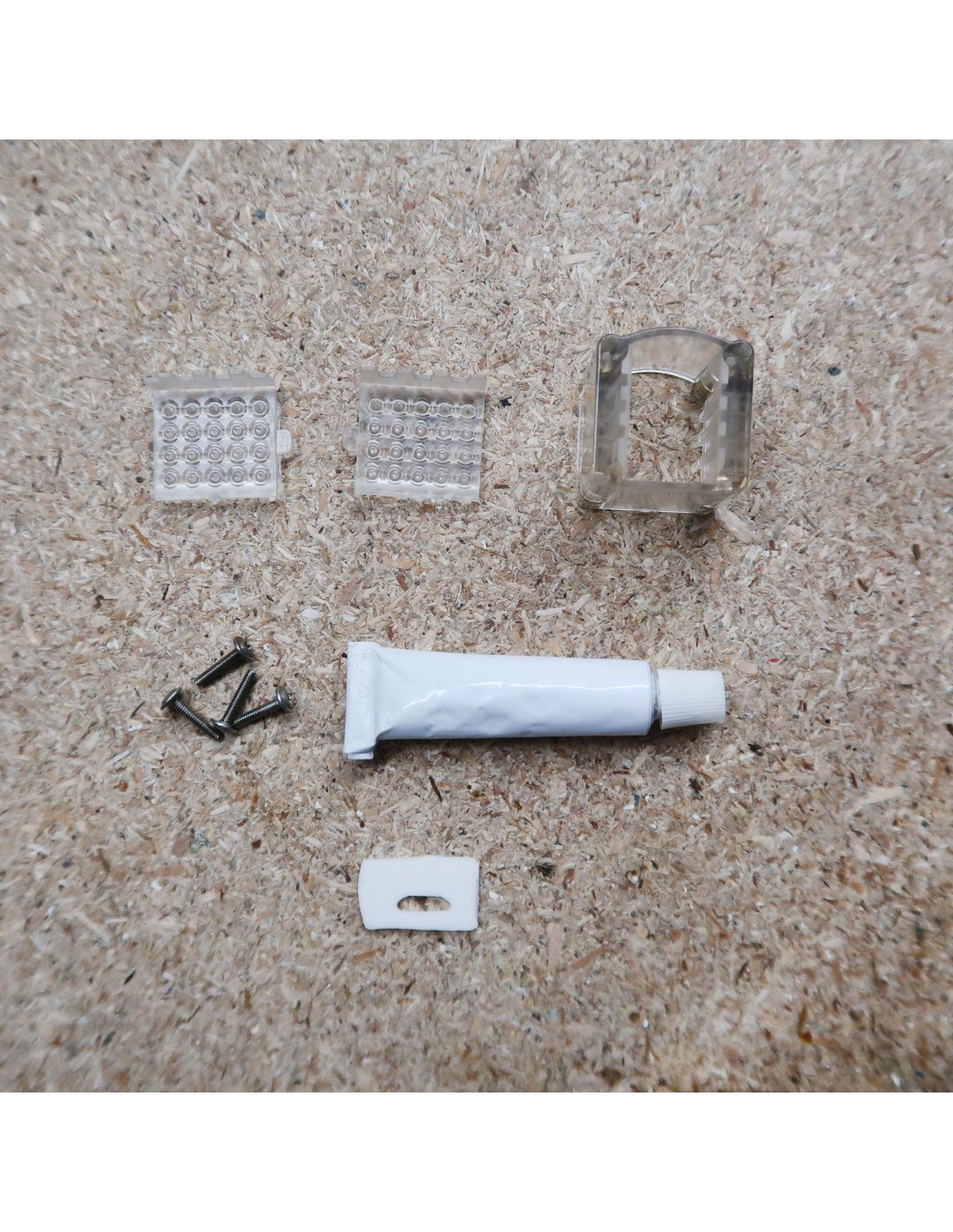

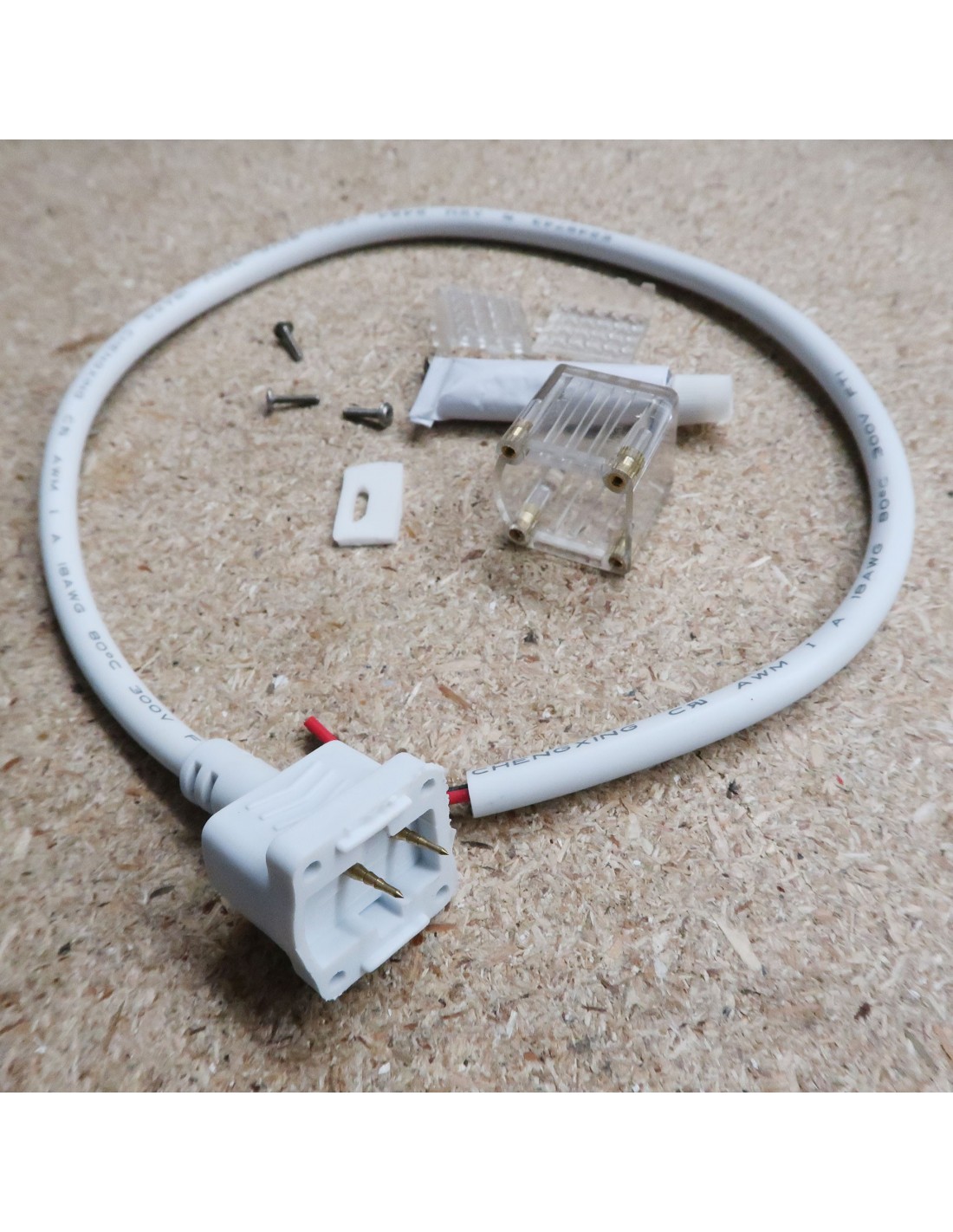

Included in the kit:
1 x 510 mm Connector Cable
1 x Plastic Connector Cap
2 x Transparent grip pieces (one for each side of the flex, applied prior to sliding over the case)
4 x screws
1 x IP65 sealant
Plastic Connector measures 2.6cm H x 2.4cm W x 2.3cm L
When the connector end of the tail is attached to the plastic connector, the length of the connection end becomes 4.3cm
IMPORTANT: PLEASE READ.
The Pins of this power connector should go under the Neon flex FCP (notice the lip, which slides into the centre hole of strip)
All colours should operate perfectly before “closing” the connector parts.
If it is your first time installing Neon Flex power connectors, we must stress the importance of testing a sample piece of cable before installing your run. This is because installation can be tricky and you may risk destroying the strip's circuit board.
We therefore suggest that you should purchase 1m of extra Neon Flex strictly for this purpose, playing with several connector types if necessary, until you have a firm understanding and are happy with the results. We won’t accept product returns as a result of failed trials on complete runs.
Please see our help page for more information HERE.
- IP Rating
- IP65 (Splashproof)
