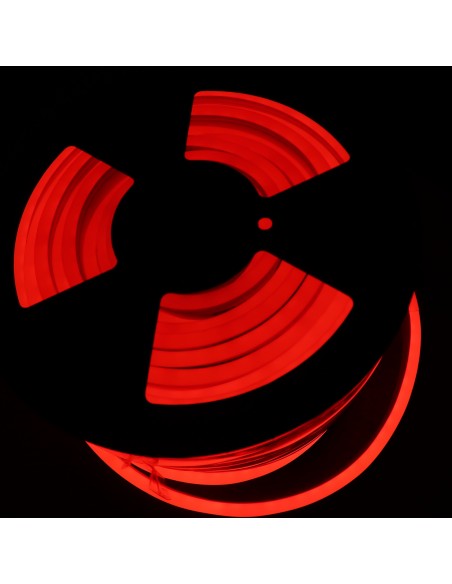

Red LED Neon Flex | 24V | IP65/IP67 | 10x20mm (Sold Per Metre)
Key Features:
- Colour: Red
- Neon Flex
- Voltage: 24V DC
- LEDs per meter: 72
- Power: 4.27 Watts per Metre
- Flex width: 10mm
- Warranty: 3 Year Warranty
Important Product Details
Red LED neon flex 24V IP65/IP67 horizontally bendable 10mm wide x 20mm height (Sold per meter)
LED Neon flex powered by Red colour SMD2835 LED chips
10mm wide x 20mm height

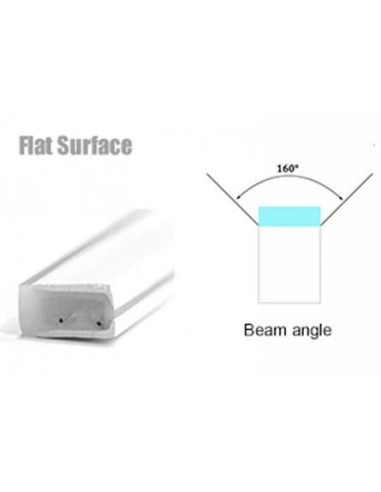

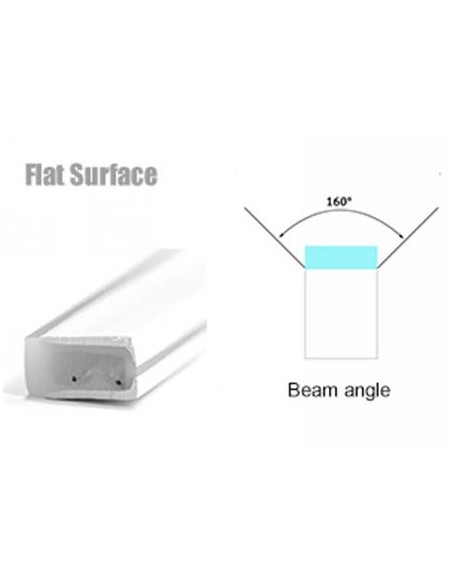

Flat design for architectural lighting. Sits flush along edges and provides a 160 degree beam angle.
4.27 W/m – 24V DC – 72 LEDs/m – splash-proof IP65/IP67 – 2 wire
Wavelength 625nm, light output 53 lm/m

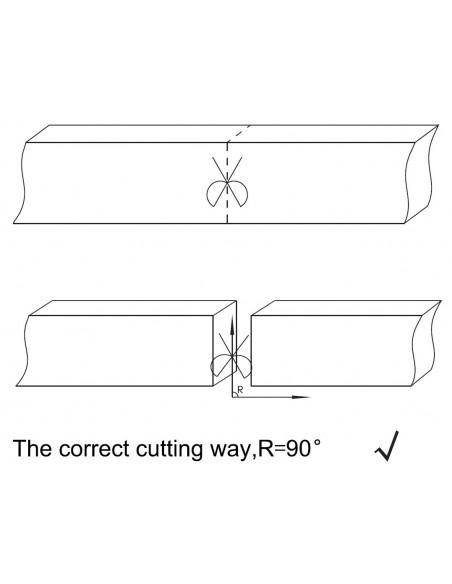

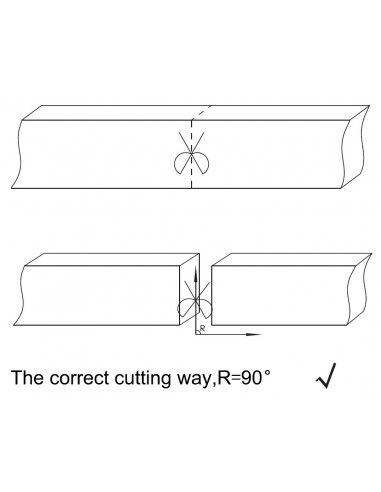

LED Neon flex can be cut at every 8.33cm
Saunas and Steam Rooms:
If you require LEDs for saunas and steam rooms, please refer to our range of IP68 LED strips, designed to withstand temperatures of up to 110 degrees Celsius.
For more information on using Neon Flex for underwater usage, please see our FAQ page.
Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.
Returns are not accepted, due to specialised lengths being cut, unless it's a complete 50m reels). Faulty returns will be accepted.
Also, if connectors are required, these need to be purchased separately. You will only receive tail ends when you purchase a 50m roll.
If purchasing a 50 metre roll, please avoid testing the entire length for long periods - you will risk burning out the chips.
3 year warranty
The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

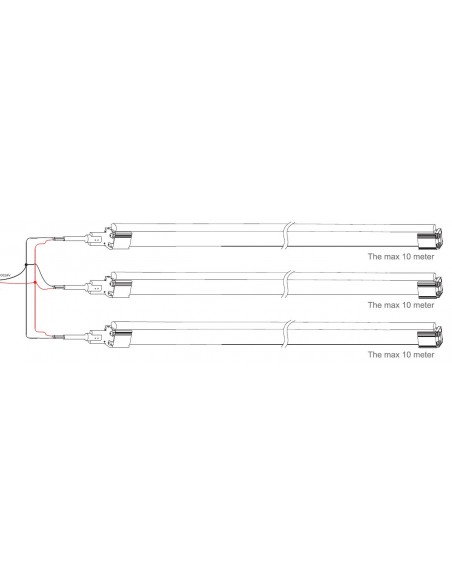

Please do NOT connect more than 10 meters of LED flex in series. A LED flex of more than 10 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.
Please note that 20m of this product can be installed in a single run only with 24V power fed from both sides in parallel. Alternatively you may power RGBW LED Neon flex (24V DC) in the middle of the run (leaving 10 meters LED flex to the left and 10 meters to the right). NOTE: If powering from both ends, one connector must be our "reverse" style, which can be found HERE!
All Hi-Line LED neon flex are PWM dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.
LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.
The stated price is for 1m LED Flex in Red powered by 72 x SMD2835 LEDs – IP65/IP67, 24V DC.
Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length
To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.
Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.
For further assistance, please visit out support page or contact us.
- Brand
- Hi-Line
- Brightness
- 53 lm/m
- Colour
- Red
- Cutting length
- Every 8.33 cm
- LEDs per meter
- 72 (SMD)
- LED Chip
- SMD 2835
- LED Neon Flex Beam Angle
- 160°
- LED Neon Flex Type
- Flat Surface - Horizontal Bend
- Minimum Bend Diameter (Horizontal)
- 40mm
- Neon Flex Height
- 20mm
- Neon Flex Width
- 10mm
- Power
- 4.27 Watts per Metre
- IP Rating
- IP65 / IP67
- Voltage
- 24V DC
- Voltage Type
- Constant Voltage
- Warranty
- 3 Years
- Wavelength
- 625nm
- Neon Flex Length (m)
- Sold per metre
