RGB Circular 360° LED Neon Flex 24V 17 w/m IP65/68 18mm (Sold Per Metre)

HL-RGB-24V-IP65-360NF

New product

RGB Circular 360° LED neon flex tube

108 LEDs/m – 17 w/m (R/G & B together)

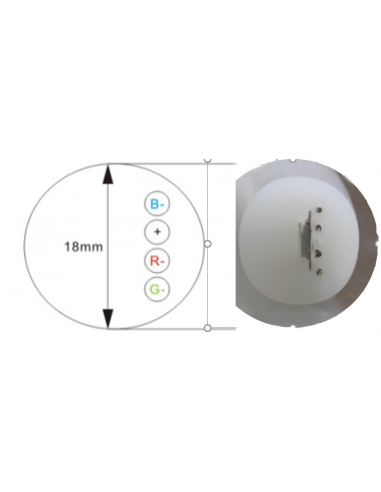

Diameter: 18mm

3 year warranty

More details

100 Items

Same Day Dispatch

£ 26,40

£ 26,40 per meter

Add to wishlist

Data sheet

LED Chip SMD 5050
Voltage 24V DC
Colour RGB
Power 17 w/m
Rating IP65 (Splashproof)
Cutting length Every 8.33 cm
Minimum Bend Diameter (Horizontal) 80mm
Voltage Type Constant Voltage
LED Neon Flex Type Circular (dia:18mm)
LED Neon Flex Beam Angle 360°
Warranty 3 Years
Brand Hi-Line

More info

RGB Circular 360° LED Neon Flex tube 24V 17 w/m IP65 18mm (Sold Per Metre)


LED Neon flex tube powered by RGB colour SMD5050 LED chips

17 w/m – 24V DC – 108 LEDs/m – splash-proof IP65 – 4 wire

Light output: Red 109 lm/m, Green 294 lm/m, Blue 41 lm/

LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.

If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.

3 year warranty

______________________________



The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.

_____________________________


All Hi-Line LED neon flex are PWM dimmable.
Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.

LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of colour changing RGB LED controllers including wireless RF, DMX512, ZigBee and DALI to choose from.

______________________________

The stated price is for 1m Circular 360° LED Flex in RGB powered by 108 x SMD5050 LEDs – IP65/IP68, 24V DC. (no accessories included)

______________________________



Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length

To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.

Note: for installing RGB colour LED neon flex tube, you just need the flex, power connector, LED driver and RGB controller. The LED driver 24V is not required to be dimmable because brightness control (dimming) and colour adjustment is done through the controller.

For further assistance, please visit out support page or contact us.
