This ultrathin 27-key RF remote controller is mainly used with SPI pixel LED controllers. It allows installers to configure pixel length (1–1024), chip type and RGB/RGBW channel order directly from the remote. Operating at 2.4GHz, it provides stable wireless performance with a working range of up to 30 metres. Powered by a CR2032 battery, it features an LED indicator for clear operation feedback. (Model reference: R9)

Compatibility
Works with RGB or RGBW LED controllers and SPI digital LED controllers for addressable strips. Supports a wide range of common SPI chip types.

Control & Functions

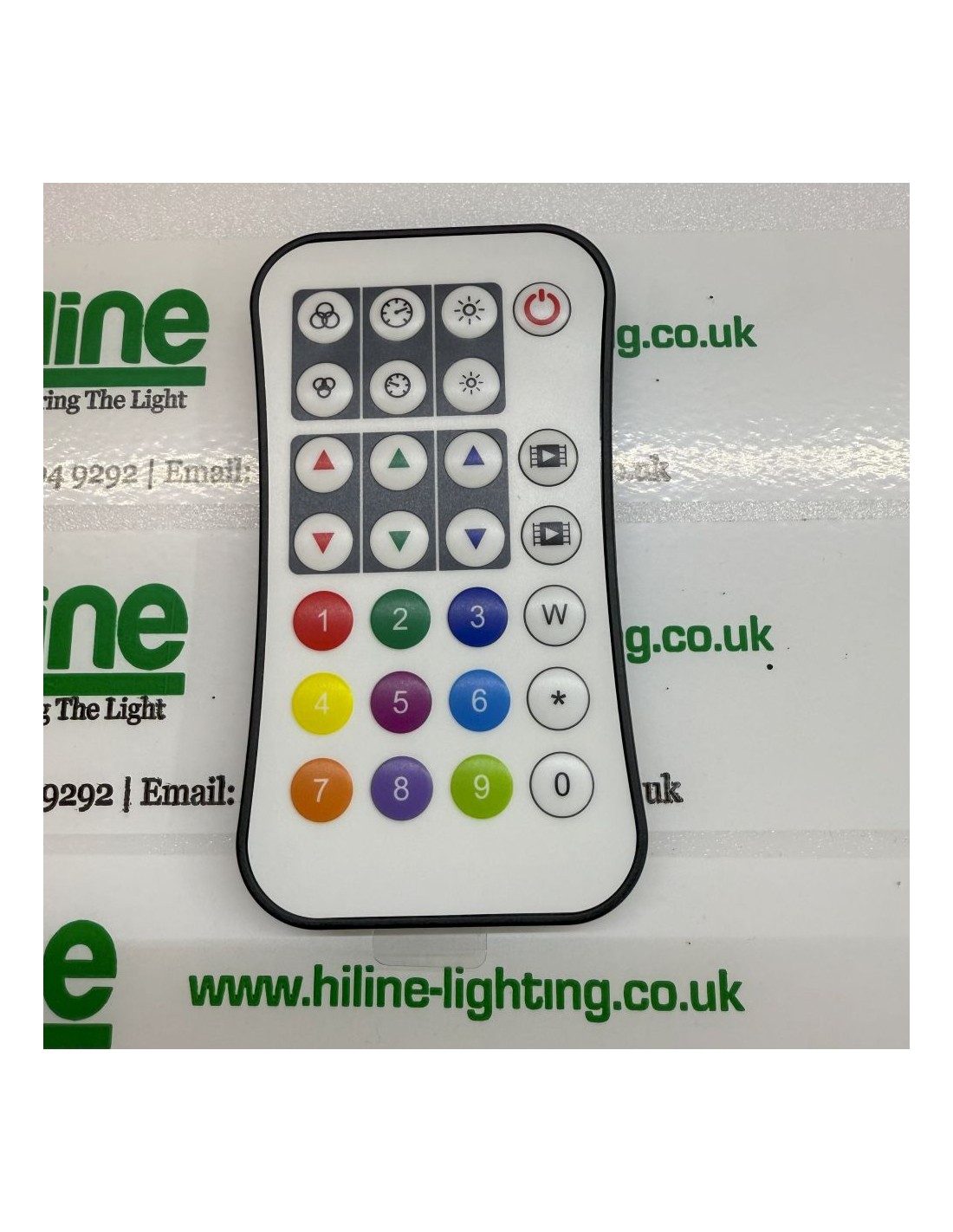

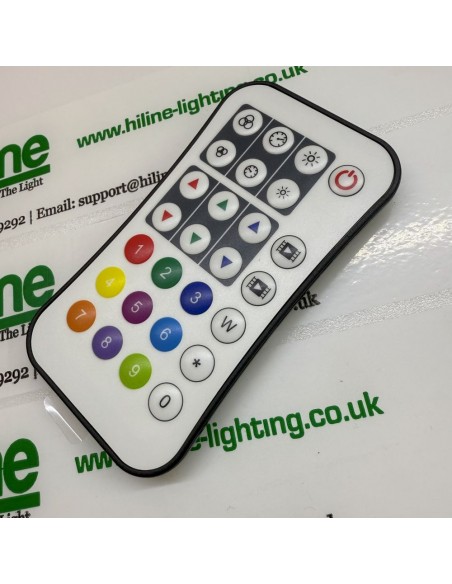

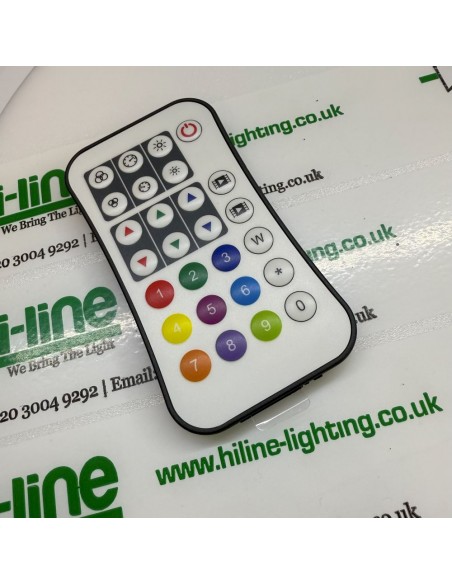

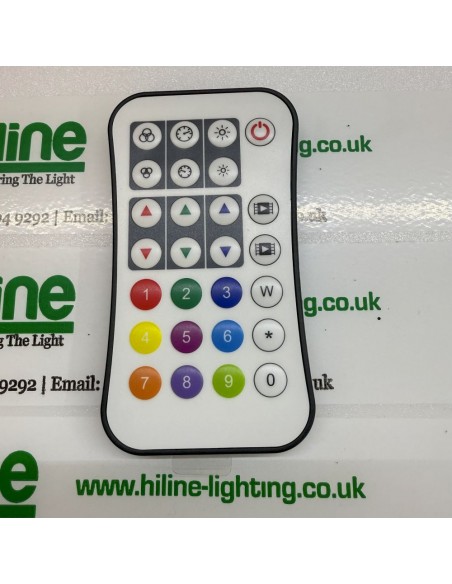

On/Off, mode selection, speed up/down, brightness up/down, quick colour keys, white adjustment and scene save/recall are available from the keypad. For RGBW, the dedicated W key adjusts the white channel. Pairing can be carried out using the controller’s Match key or by power-restart matching.

Pairing & Deleting
Match: press the controller’s Match key, then the remote’s on/off key; or power cycle the controller and press the on/off key three times within a few seconds.
Delete: hold the controller’s Match key for around 5 seconds; or power cycle and press the on/off key five times to clear matches.

Power & Mounting

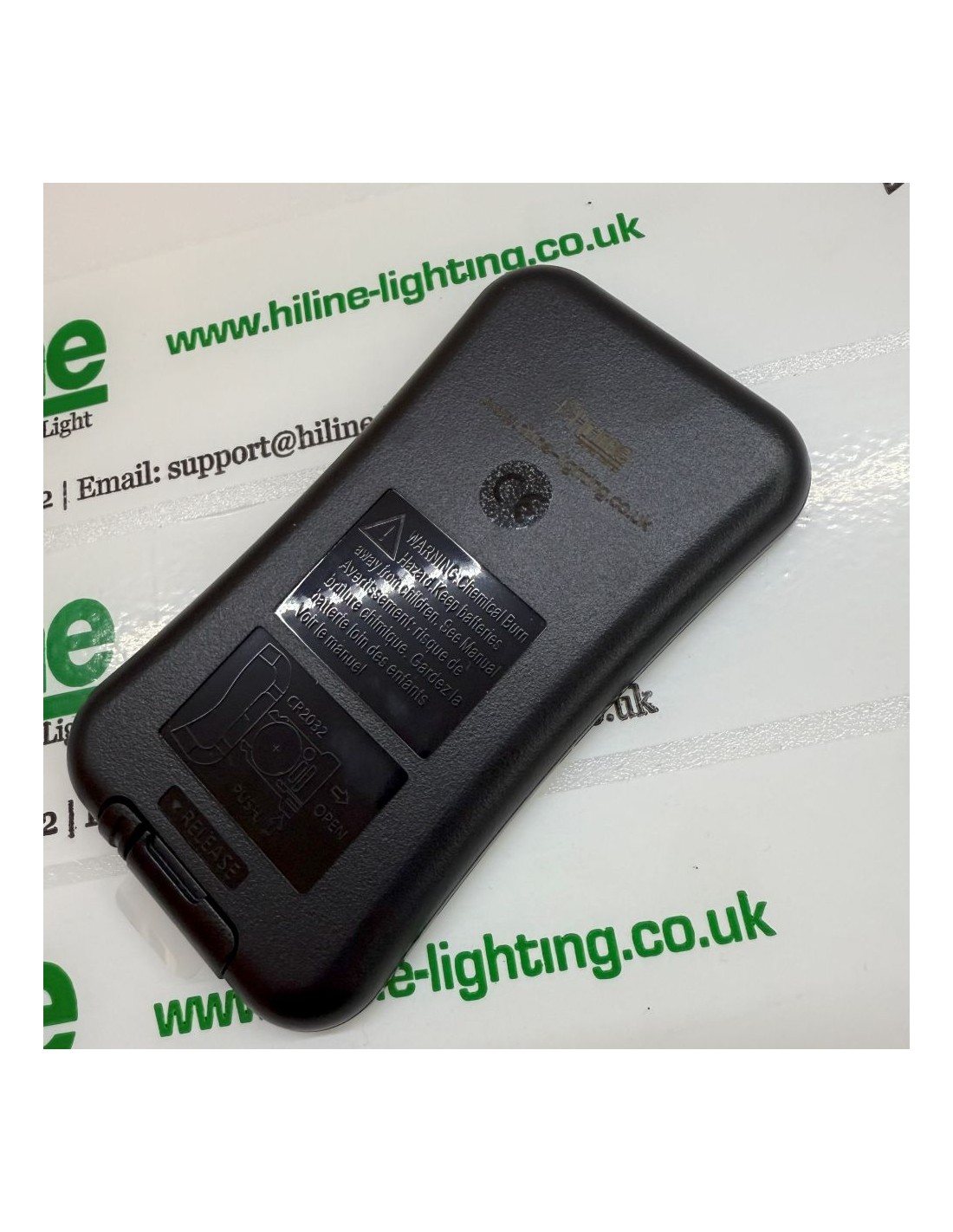

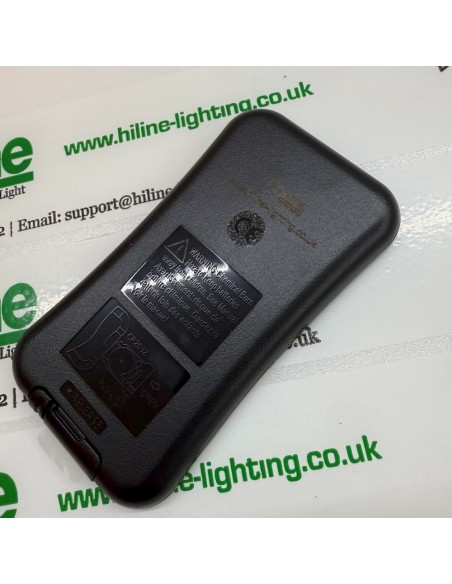

Powered by a CR2032 coin cell. Optional wall back-holder can be fixed with screws or adhesive.

Warranty
Standard 3-year warranty with optional extension to 5 years on request.

Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the “Related Products” tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the “Product Specification” tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the “Attachments” tab is located in the same area. To refine your search within any product category, the “REFINE BY” filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Technical Specifications

Model Reference: R9
Control Type: RF handheld for SPI/RGB/RGBW
Keys: 27
Wireless Signal: 2.4GHz RF
Remote Distance: up to 30m (barrier-free space)
Working Voltage: 3V (CR2032 coin cell)
Working Current: < 5mA
Standby Current: < 3µA
Standby Time: up to 1 year (typical)
Operating Temperature: −30°C to +55°C
Dimensions: 114 × 65 × 20 mm (approx.)
Weight (gross): 0.058 kg (approx.)
Compliance: CE, RoHS, RED
Typical Use: SPI pixel controllers; RGB/RGBW LED controllers
