SPI Pixel LED Wall Panel Controller – RF 2.4GHz Touch Panel for Addressable LED Strips

SPI Pixel LED RF Touch Wall Panel Controller for Addressable LED Strips | HL-TWS

Product Reference
HL-TWS

Product Summary
RF wireless glass touch wall panel designed to control addressable pixel LED strip systems. Works together with compatible SPI controllers such as HL-WT-SPI (recommended), HL-DS-WP, and HL-DS-L. This unit is only the wall control panel and requires a compatible SPI controller to operate LED strips.

HL-TWS – RF Wireless Touch Wall Panel for Pixel LED Systems

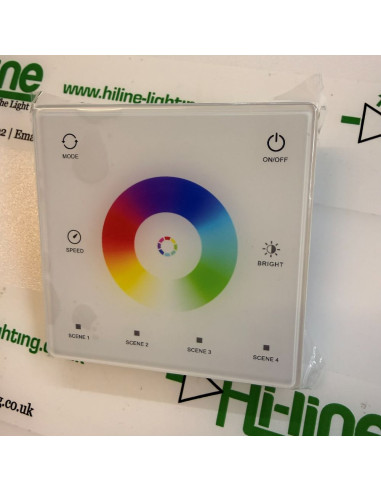

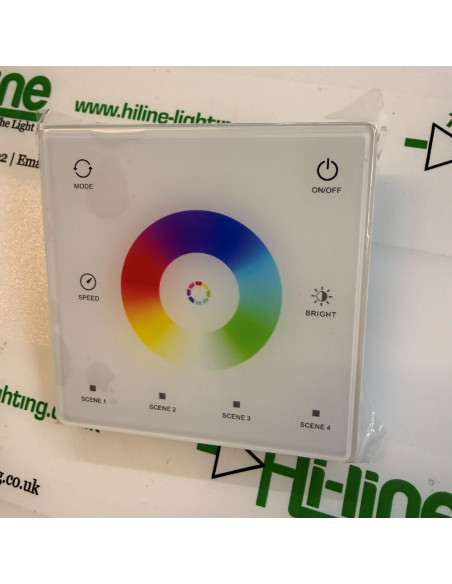

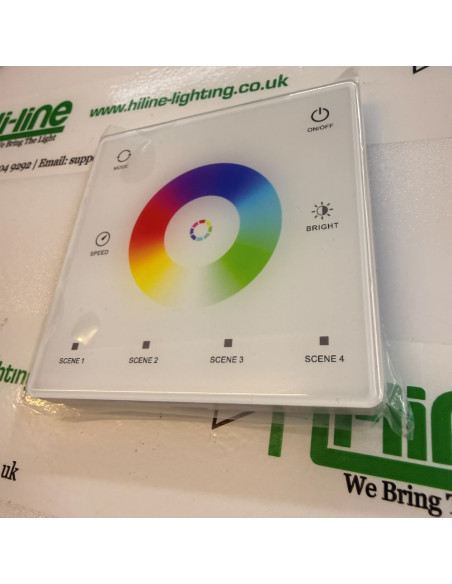

The HL-TWS is a modern glass touch wall panel designed for controlling addressable SPI pixel LED strip systems using reliable 2.4GHz RF wireless communication.

This panel allows users to control lighting effects, colour modes, brightness, and animation speed directly from a wall-mounted touch interface.

It is designed for use with digital addressable LED strip systems where individual LED pixels create dynamic lighting effects such as chasing patterns, colour flow effects, and animated lighting scenes.

Important – Controller Required

HL-TWS is only the wall control panel.

It does not connect directly to LED strips and cannot operate LED strips on its own.

A compatible SPI LED controller is required to receive the RF signal from the wall panel and generate the SPI data signal for the LED strip.

Compatible controllers include:

HL-WT-SPI – Recommended controller for simple RF wireless pixel LED installations.

HL-DS-WP – SPI pixel LED controller compatible with RF wireless control.

HL-DS-L – DMX512 to SPI controller used in more advanced lighting control systems.

For most installations we recommend using HL-WT-SPI, as it provides a straightforward and reliable RF wireless control system for pixel LED strips.

Matching controllers can be found under the Related Products tab on this page.

Typical System Setup

Wall Panel
HL-TWS RF Touch Panel

RF Wireless Signal

SPI Controller
HL-WT-SPI (recommended)

SPI Data Signal

Addressable Pixel LED Strip

Compatible Pixel LED Strip Types

The system is designed for SPI digital pixel LED strips including many common IC types used in addressable lighting systems such as:

WS2811
WS2812
WS2813
WS2815
SK6812
UCS1903
UCS2903
GS8206
TM1814B

and many other SPI pixel IC types supported by compatible controllers.

You can explore compatible pixel LED strips here:
https://www.hiline-lighting.co.uk/gb/117-pixel-led-strip

Remote Control Compatibility

The system can also operate together with the HL-R9 RF remote control, allowing both a wall panel and handheld remote to operate the same lighting controller.

This gives installers flexibility to provide fixed wall control and mobile remote operation.

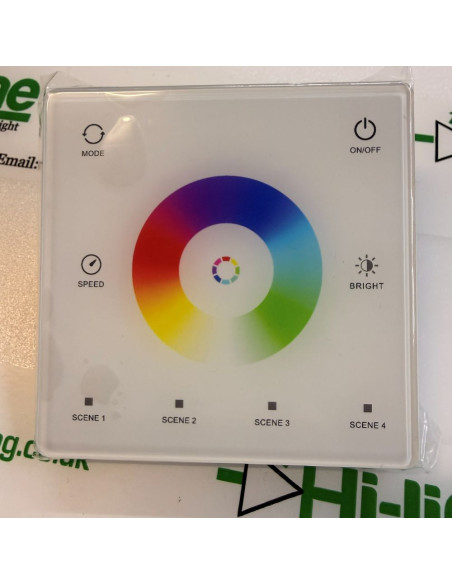

Touch Control Functions

Power on / off
Effect mode selection
Brightness adjustment
Animation speed control
Colour selection
Scene recall depending on controller configuration

Installation Guidance

The wall panel communicates wirelessly with the controller using RF 2.4GHz communication.

The LED controller must be installed close to the LED strip and connected according to the LED strip power and SPI signal requirements.

The controller receives commands from the wall panel and generates the SPI data signal required by the addressable LED strip.

When connecting pixel LED strips always follow the direction arrows printed on the strip. The arrow indicates the direction of the data signal.

The arrow must point away from the controller and towards the LED strip, otherwise the pixels will not operate correctly.

Technical Specifications

Product Reference: HL-TWS
Control Type: RF wireless touch wall panel
Communication: 2.4GHz RF
Application: Addressable SPI pixel LED strip systems
Compatible Controllers: HL-WT-SPI (recommended), HL-DS-WP, HL-DS-L
Compatible Remote: HL-R9 RF remote
Control Functions: On/Off, brightness, colour modes, animation speed, dynamic effects
Mounting: Wall mounted touch panel
Operating Temperature: −30°C to +55°C
RF Distance: up to 30m open space

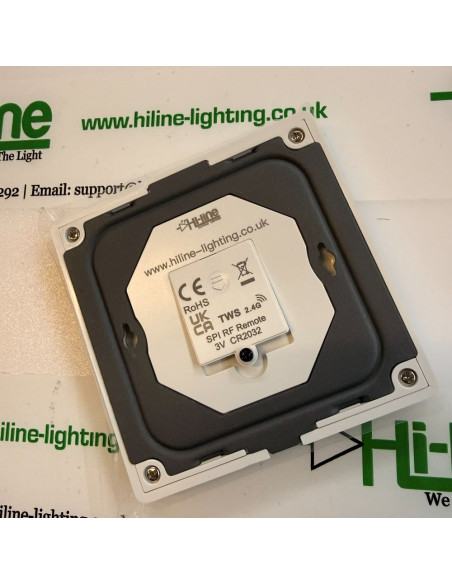

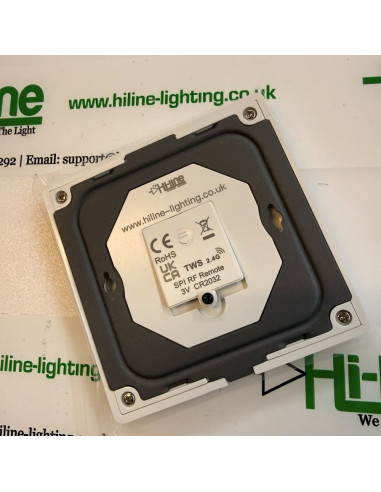

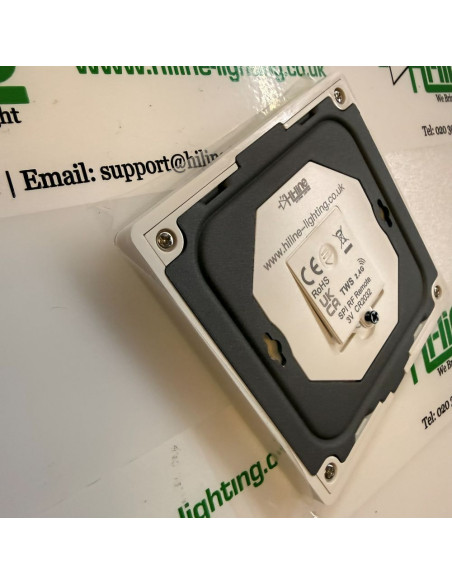

Power Supply: internal battery powered control panel
