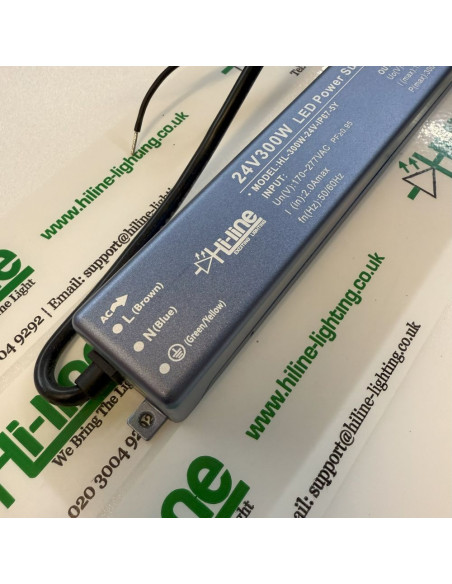

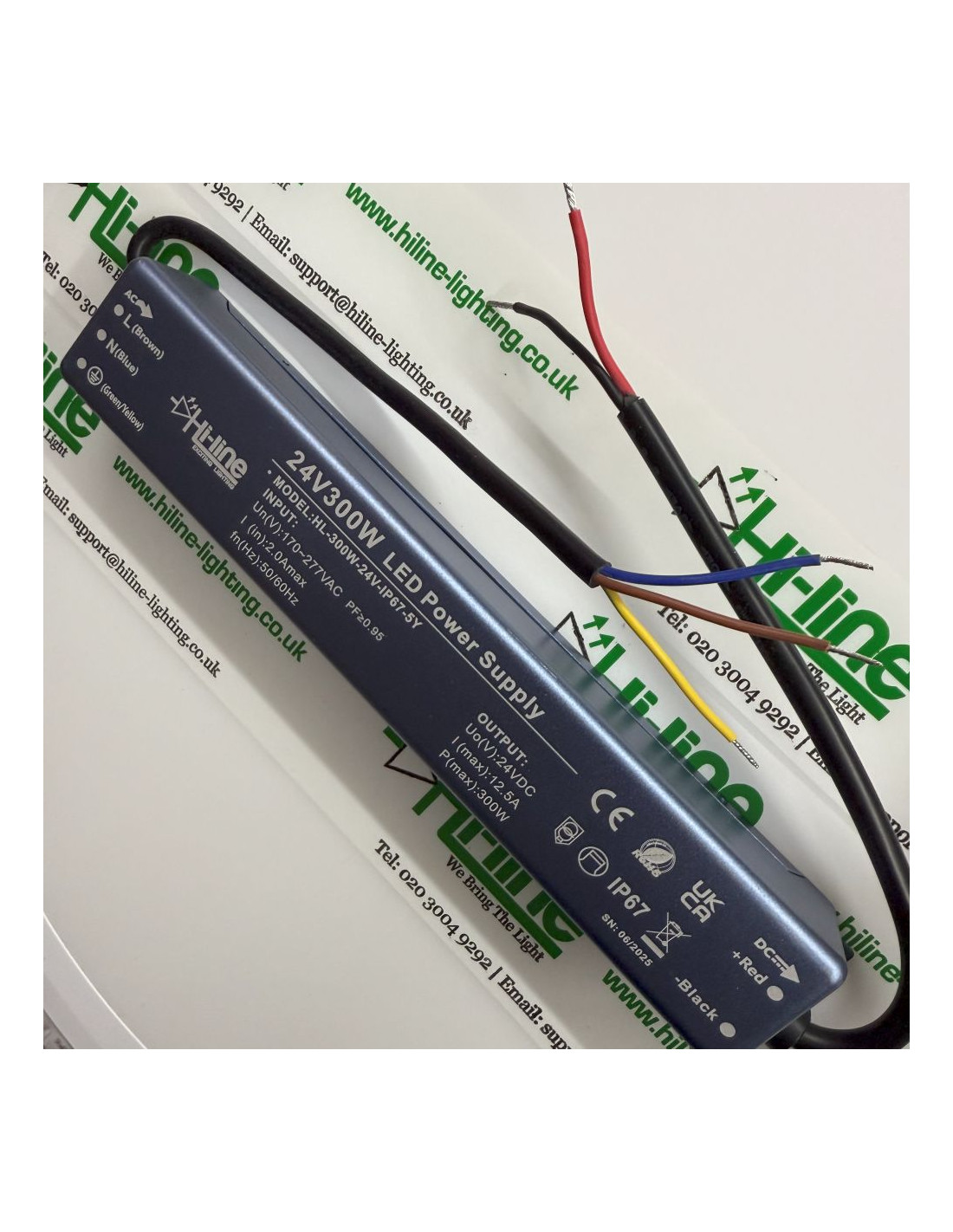

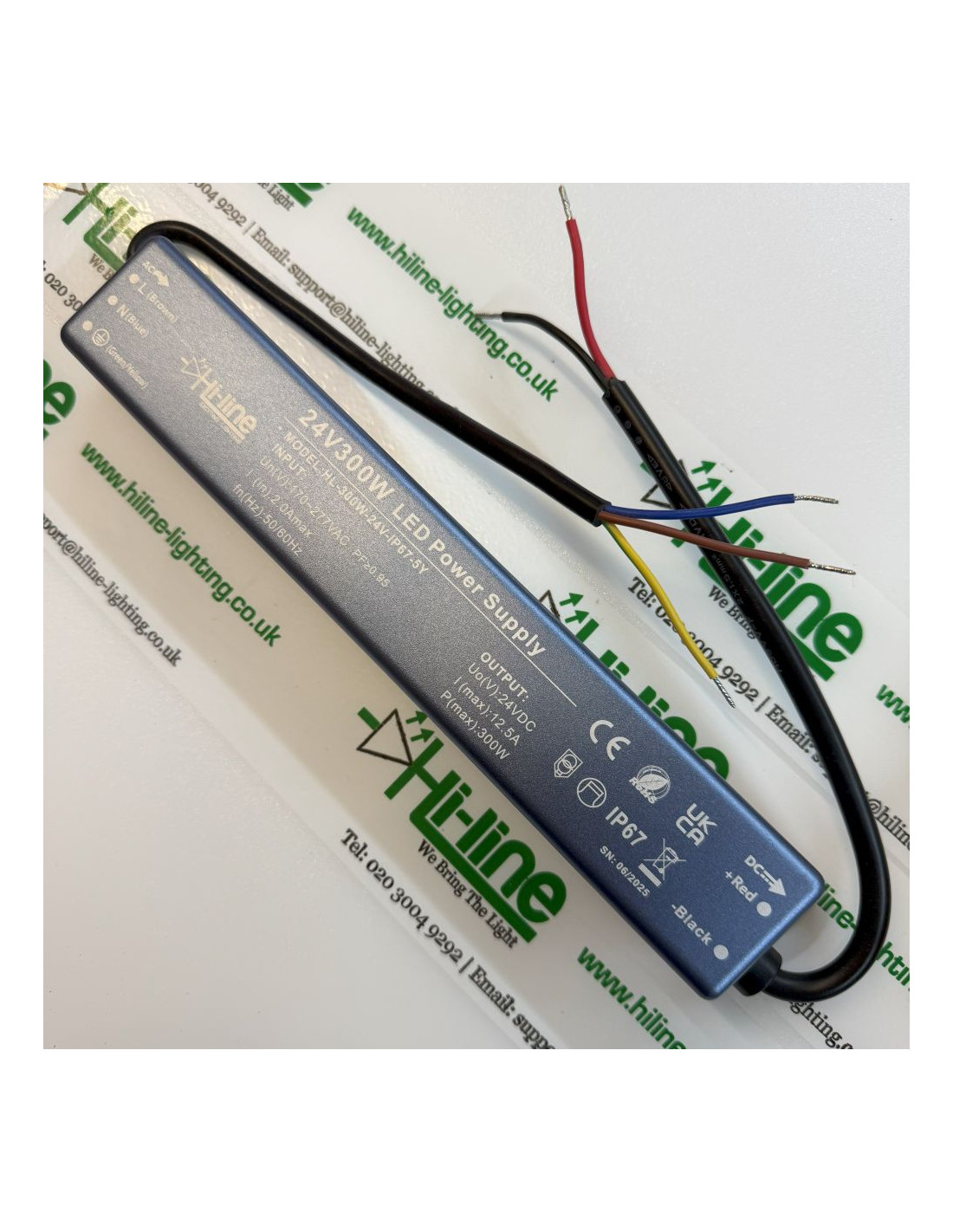

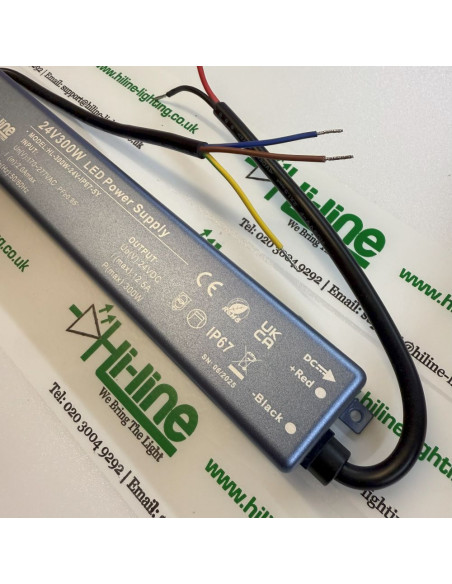

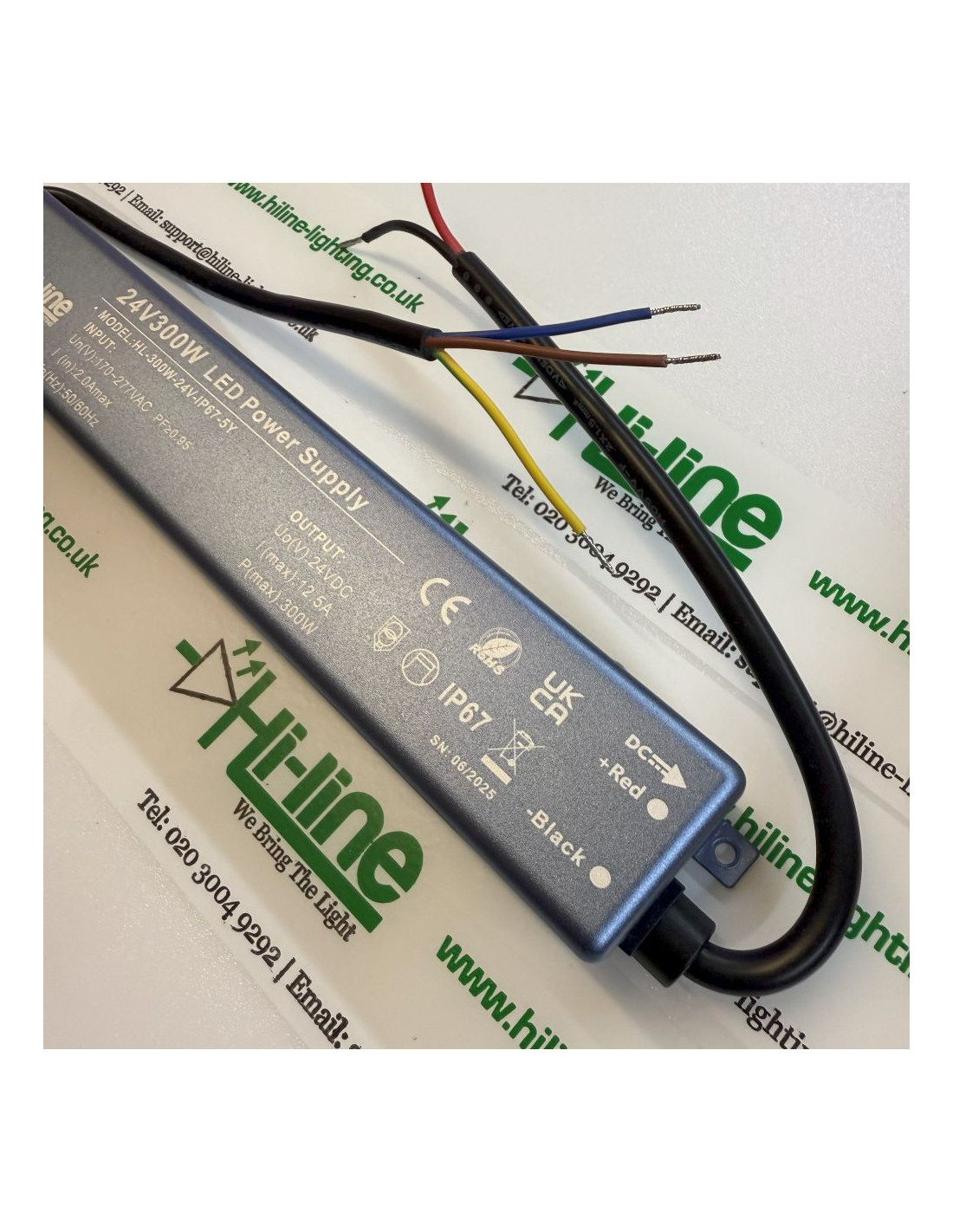

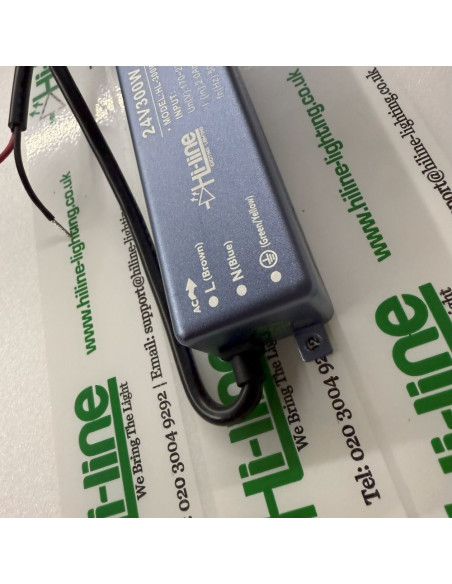

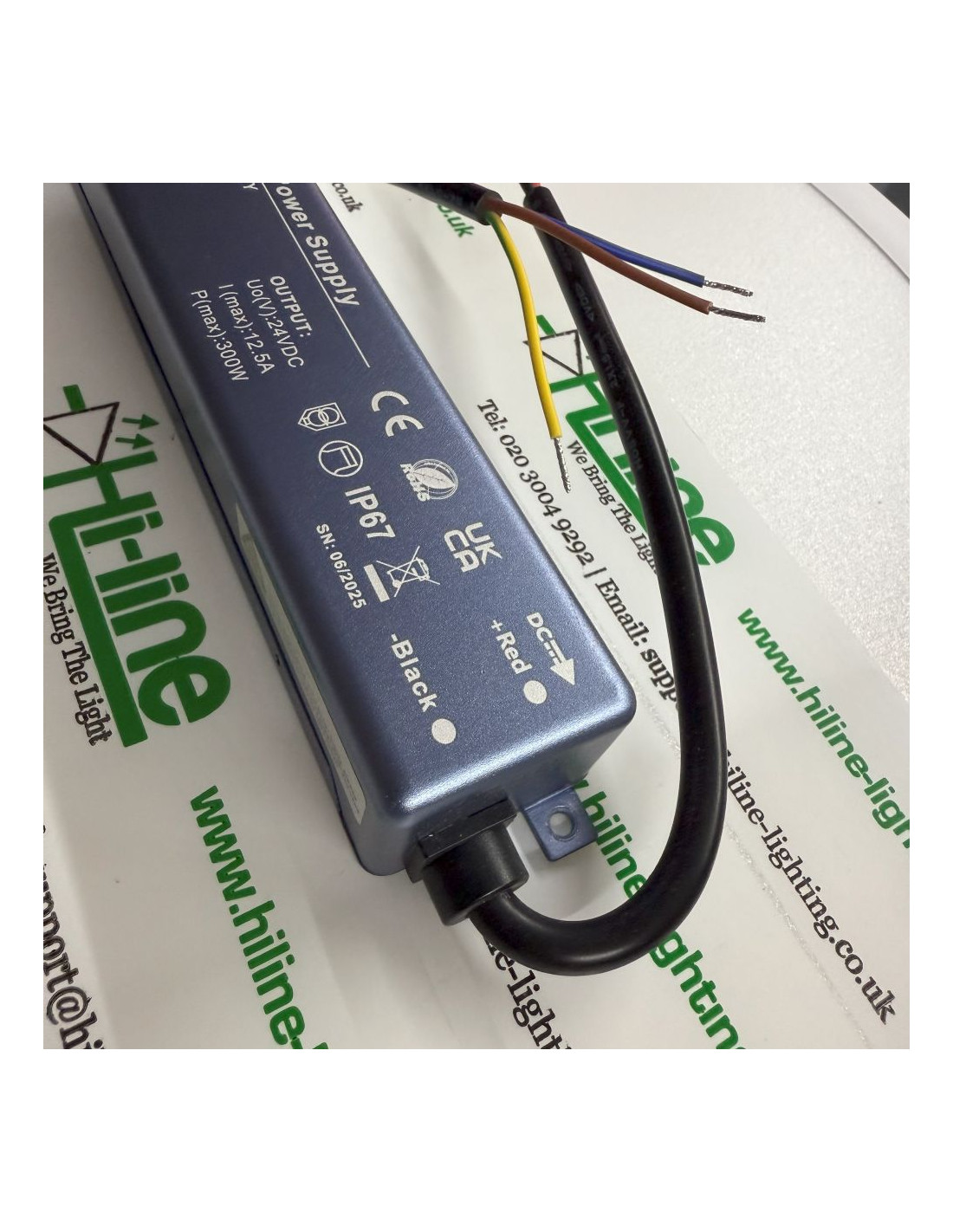

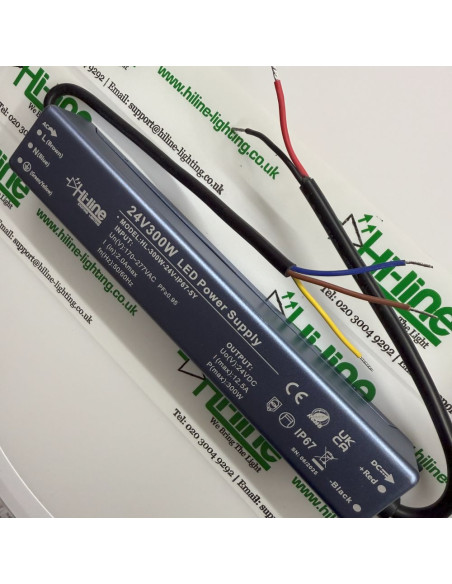

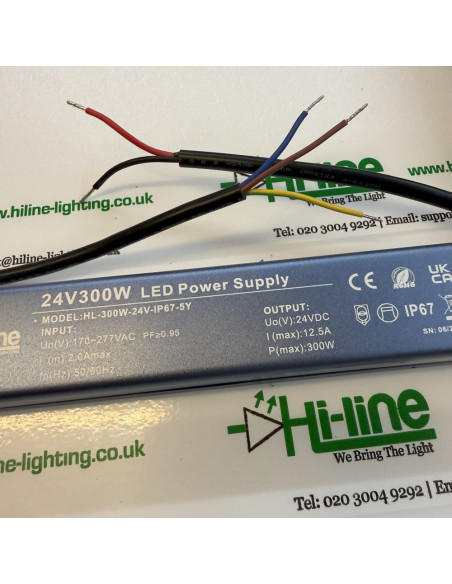

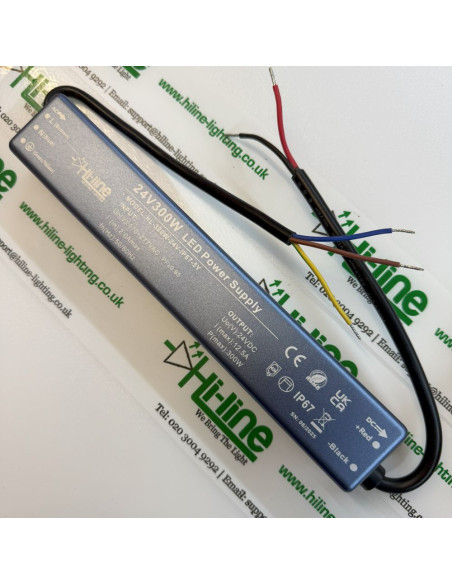

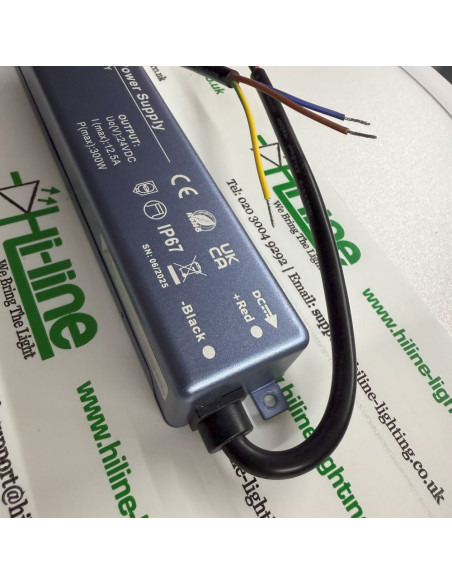

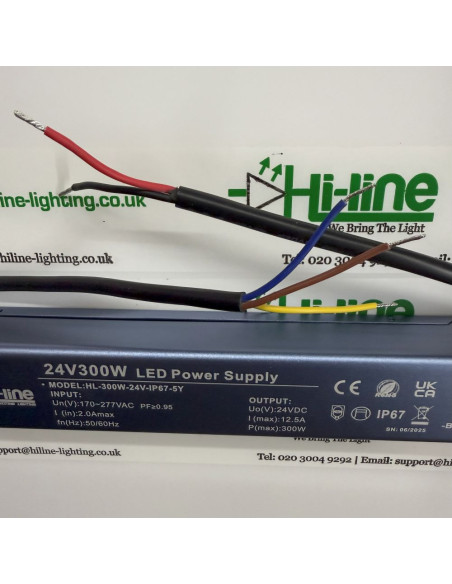

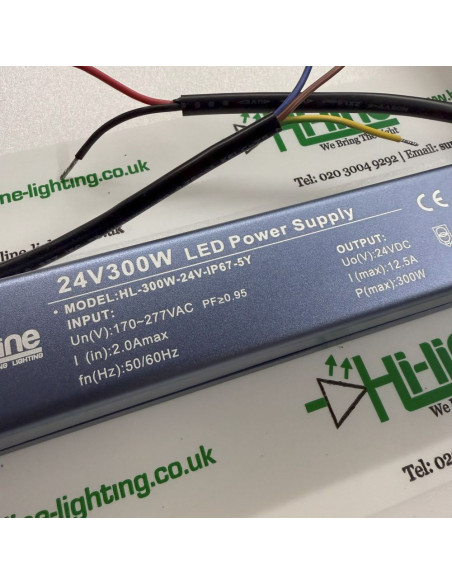

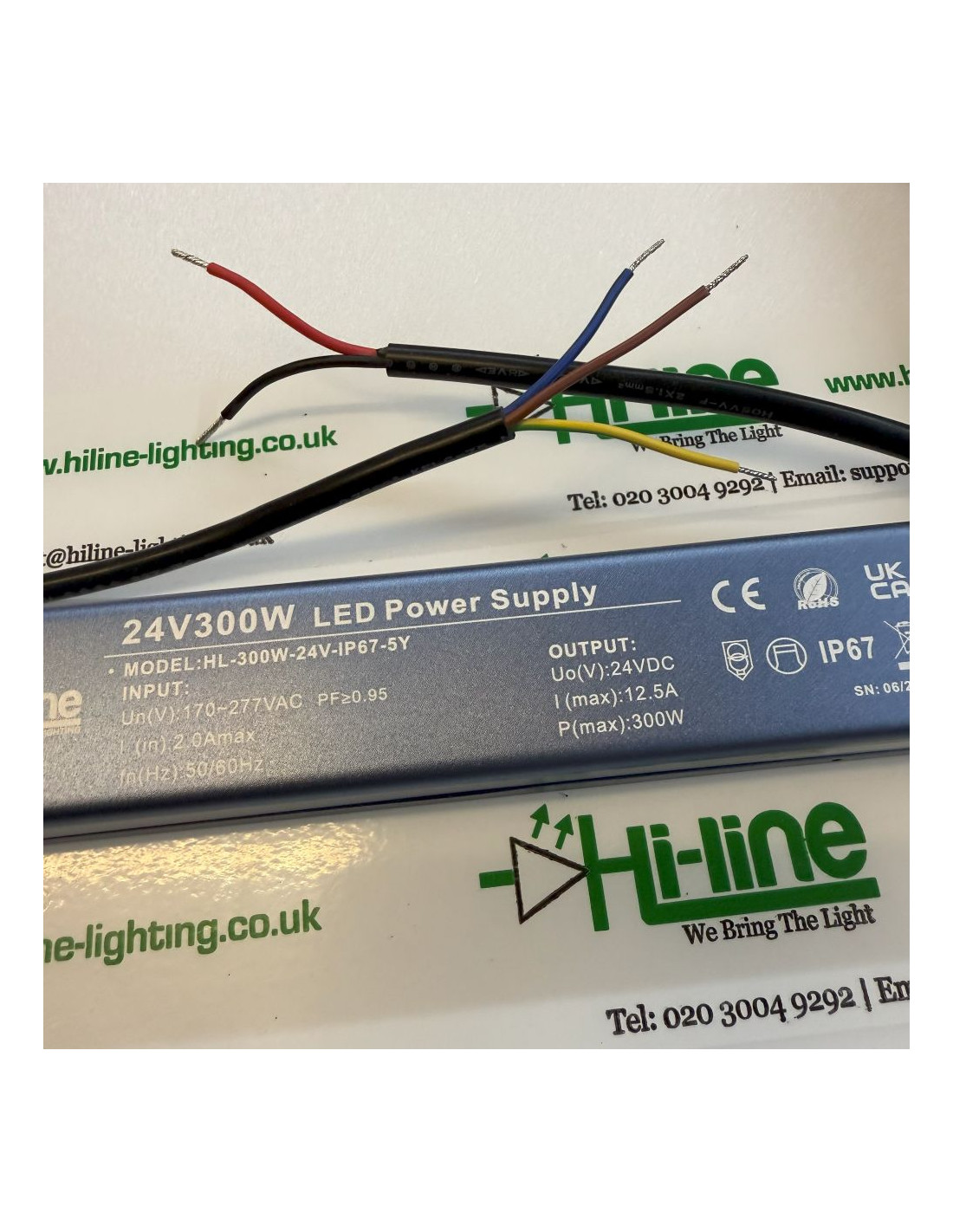

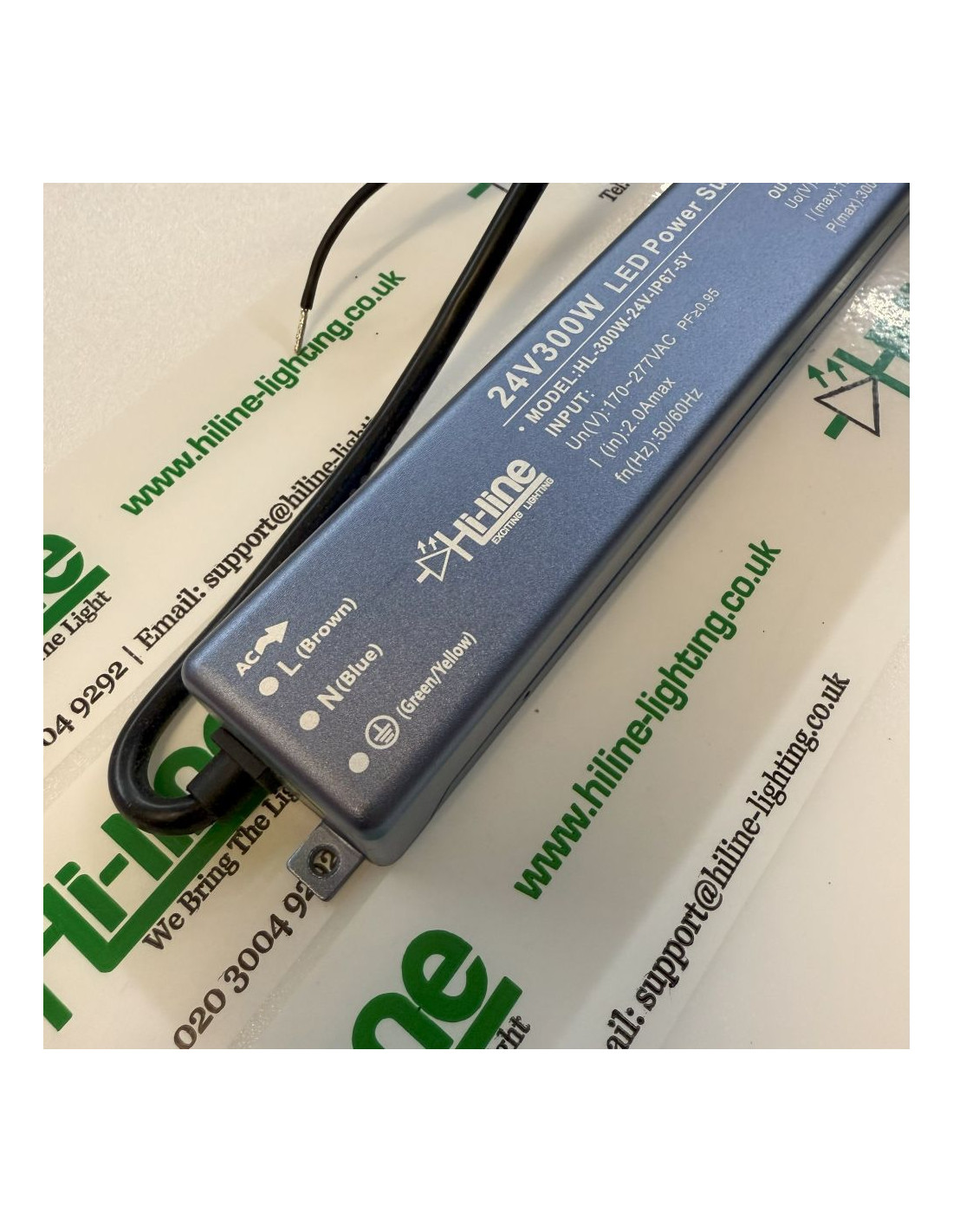

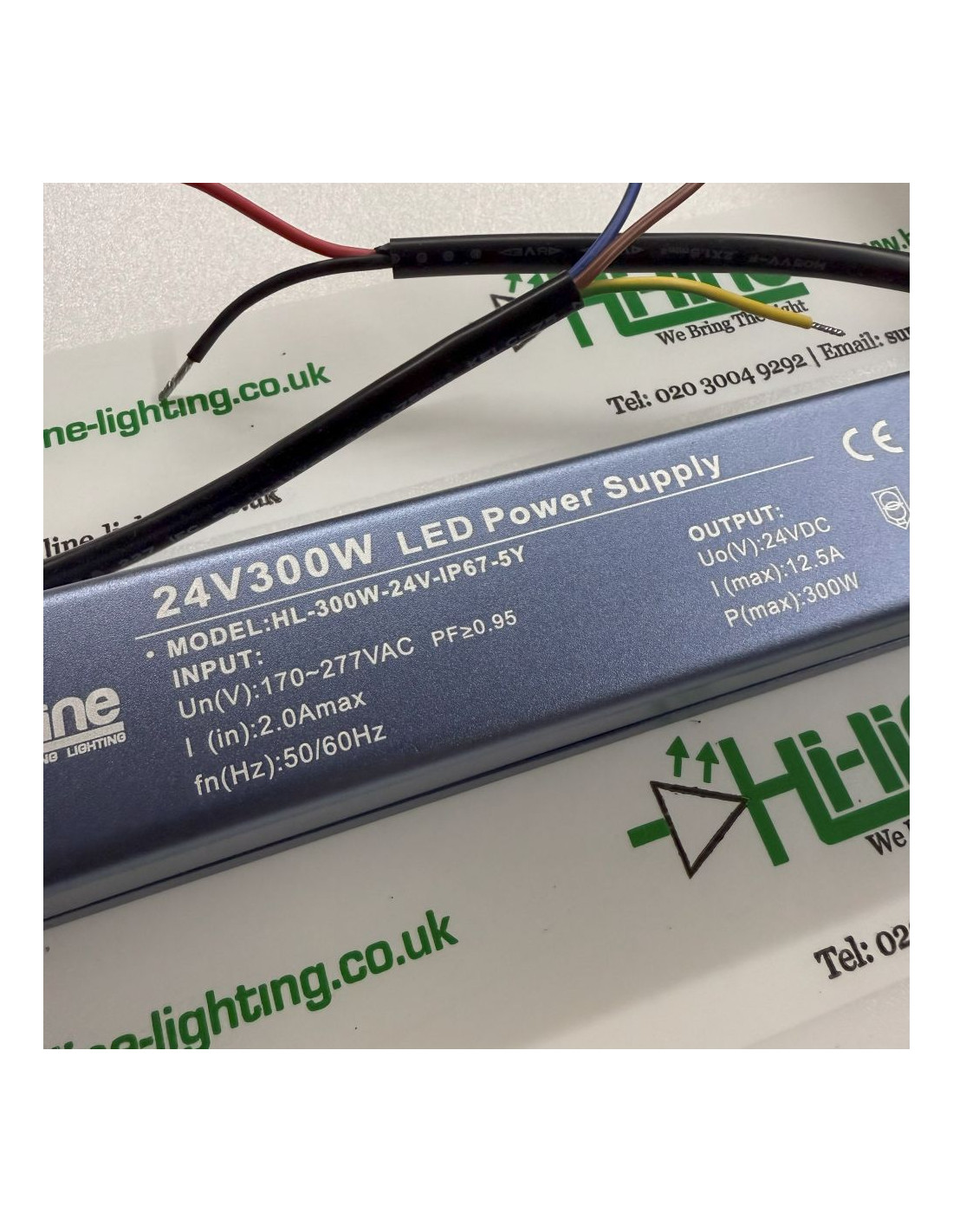

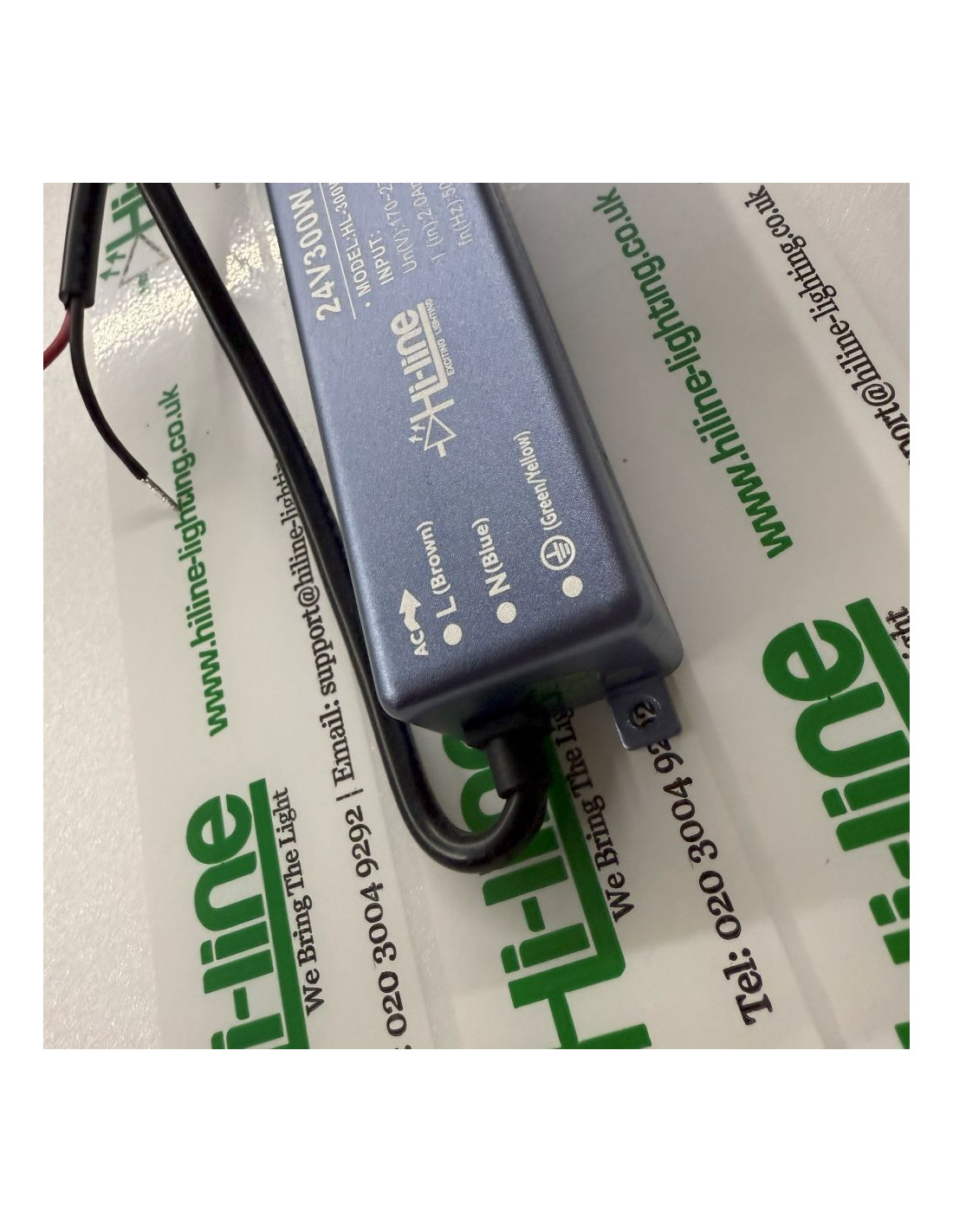

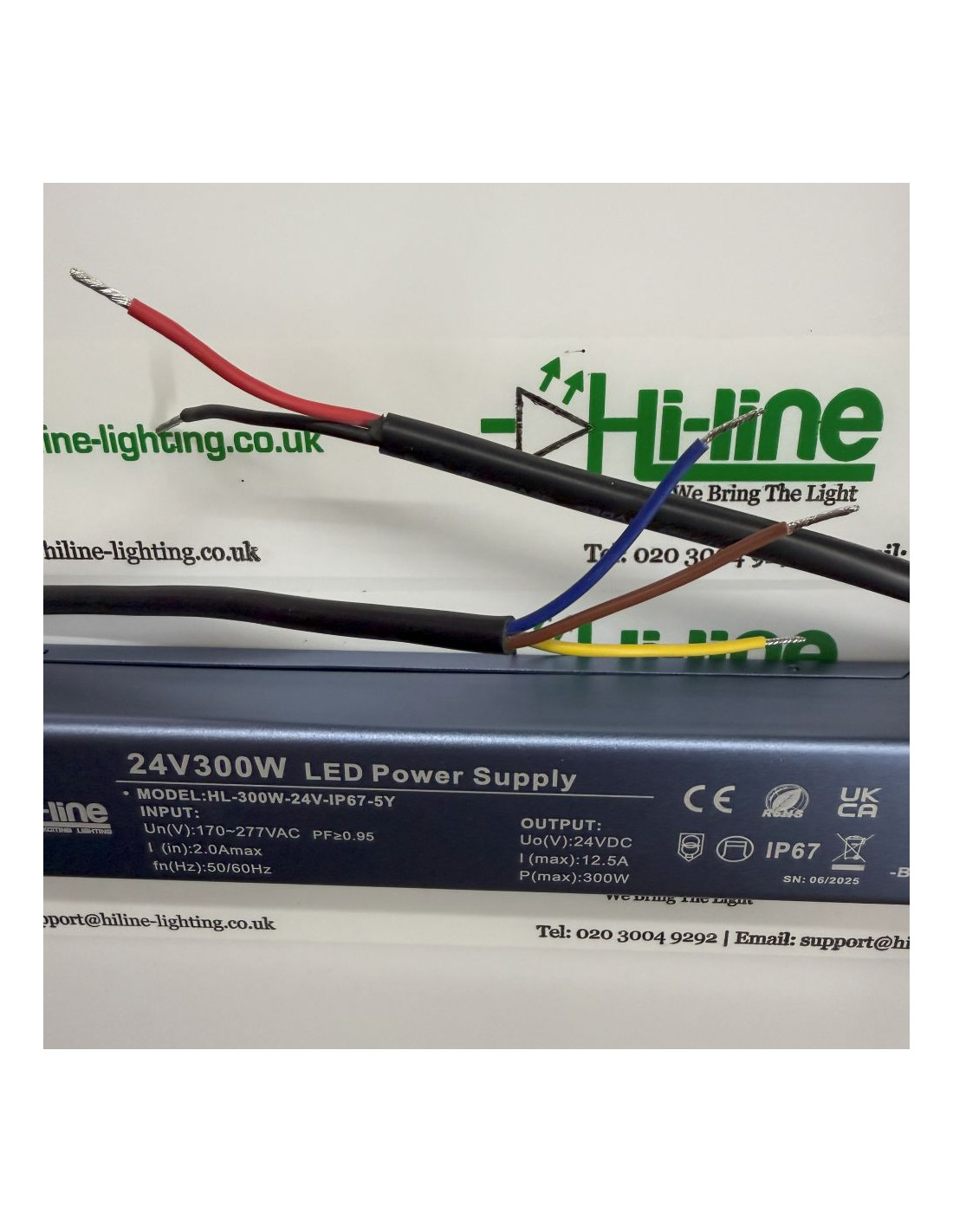

LED-Driver "Premium Series" 300W 24V IP67

HL-300W-24V-IP67-5Y

New product

LED Driver 300W/24V IP67

Suitable for LED Strips

Input: 85~265V AC

Output: 24V / 12.50 Amps

Constant Voltage Type

5 Years Warranty

More details

18 Items

Same Day Dispatch

£ 89,20 excl. VAT

Add to wishlist

Data sheet

Voltage 24V DC
Power 300 W
Rating IP67 (Waterproof)
Type non-dimmable
Voltage Type Constant Voltage
Warranty 5 Years
Brand Hi-Line

More info

Premium Series of constant voltage LED drivers with high power factor & efficiency.

This is a highly specified switch mode power supply using the best electronic components in the market.

Non-Dimmable LED Driver suitable for LED Strips of total power consumption up to 300W.

It is recommended to calculate 20% more than the tape power consumption.

LED Driver 300W/24V Suitable for LED Strips

Input: 85~265V AC (50/60Hz)

Output: 24V / 12.5 Amps

Rating: IP67 (Waterproof)

Power factor: >0.98

Efficiency: 92%

Ripple: <2%

Dimensions: L250*W90*H48 mm

Weight: 1.8Kg

SELV, CE & RoHS certified

Warranty offered for premium series of LED drivers is 5 Years

___________________________

Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller.

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
