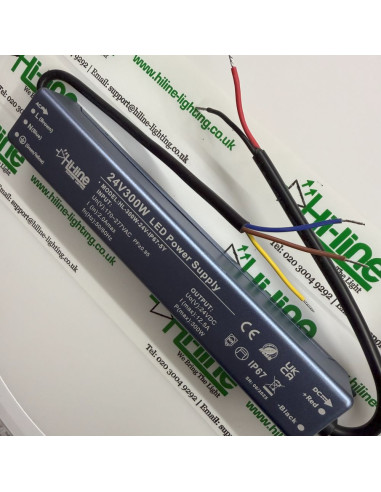

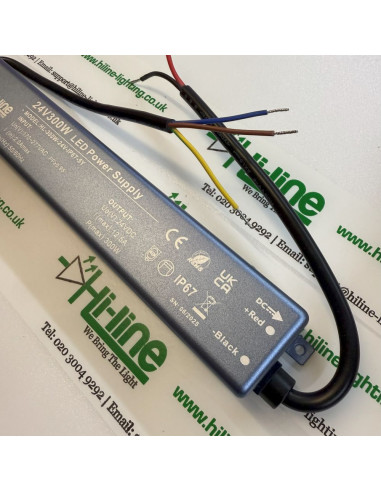

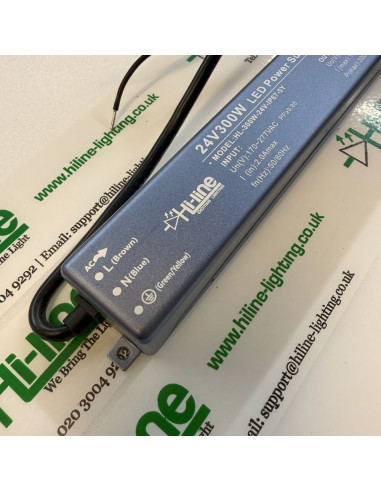

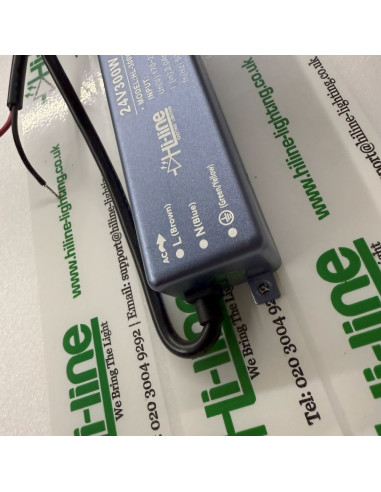

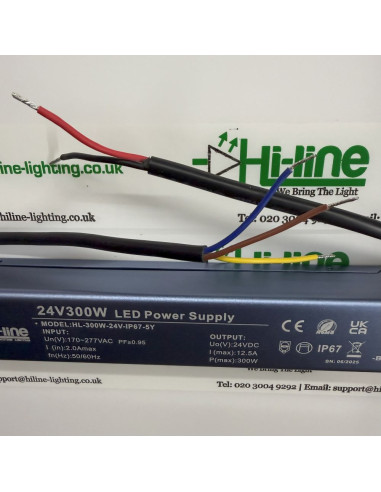

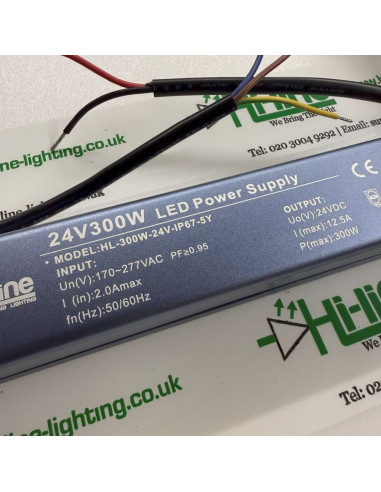

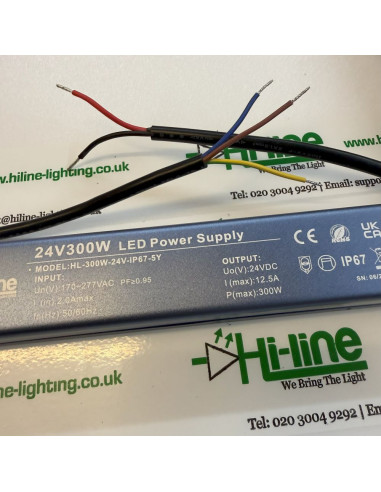

LED Driver | 24V | 300W | Constant Voltage | IP67 | EC Series
Key Features:
- LED Driver
- Power: 300W / 24V
- IP67
- Suitable for LED Strips
- Input: 190~250V AC
- Output: 24V / 12.50 Amps
- Constant Voltage Type
- 3 Years Warranty
Important Product Details
High Efficiency 24 Volts Constant Voltage LED Driver 100 Watt IP67 (EC Series) - 3 Years Warranty
Non-Dimmable LED Driver suitable for LED Strips of total power consumption up to 300W.
It is recommended to calculate 20% more than the tape power consumption.
Note: This is an economy series driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases.
To learn more about In-rush current, visit out support page HERE
LED Driver 300W/24V Suitable for LED Strips
Input: 190~250V AC (50/60Hz)
Output: 24V / 12.5 Amps
Rating: IP67 (Waterproof)
Power factor: >0.56
Efficiency: 90%
Ripple: <2%
Dimensions: L229*W73*H33 mm
Weight: 986g
SELV, UKCA, CE & RoHS certified
Warranty offered for premium series of LED drivers is 3 Years
Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller.
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.
For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
- Brand
- Hi-Line
- Power
- 300 W
- IP Rating
- IP67 (Waterproof)
- Type
- non-dimmable
- Voltage
- 24V DC
- Voltage Type
- Constant Voltage
- Warranty
- 3 Years
