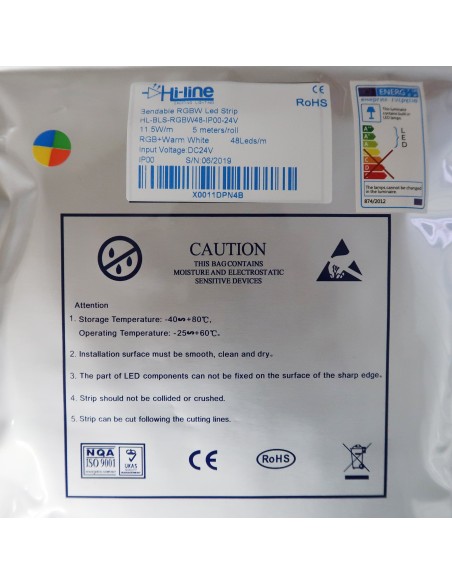

Bendable RGBW LED strip RGB+Warm White IP00 24V 5m roll
Bendable RGBW LED Strip
RGB+2700K, 24V, IP00 (Non-Waterproof)
48 LEDs/m–11.5 W/m–960 lm/m

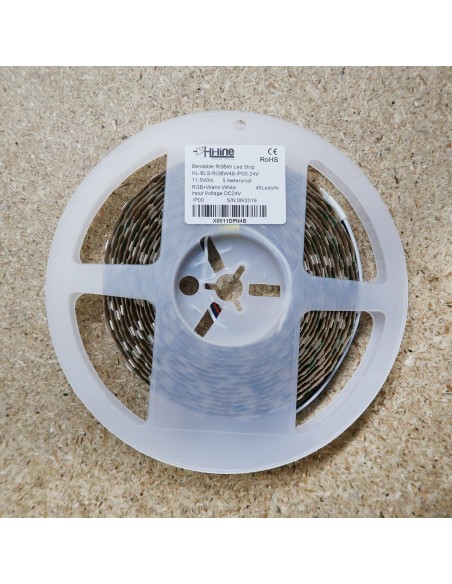

5m roll–12mm width
Perfect for sign makers, cove lighting and furniture manufacturers
5 year warranty
Commercial Quality Bendable RGBW LED Strip - 4in1 x 48 LEDs/m–11.5 W/m–960 lm/m
4in1 quad LED chip RGB + warm white 2700K, 24V, IP00 (Non-Waterproof)

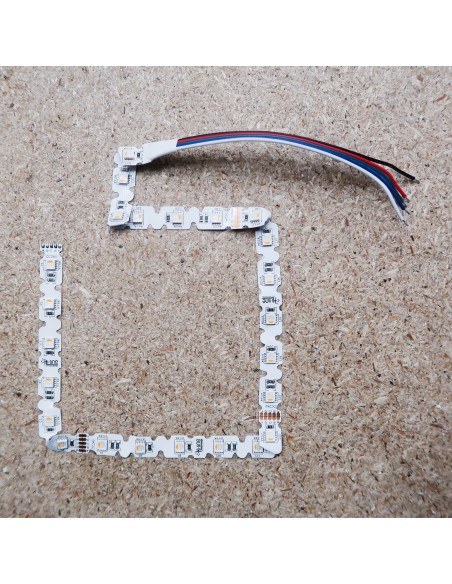

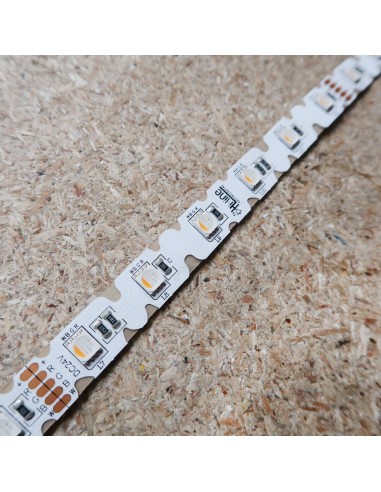

This LED strip is flexible and bendable, so that any shape or letters can be formed in minutes. With this strip, LED lighting can be also easily installed into panels or back trays just by bending and folding the strip without the need for connections or soldering.
11.5 w/m – 24V DC – 5m roll – 48 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

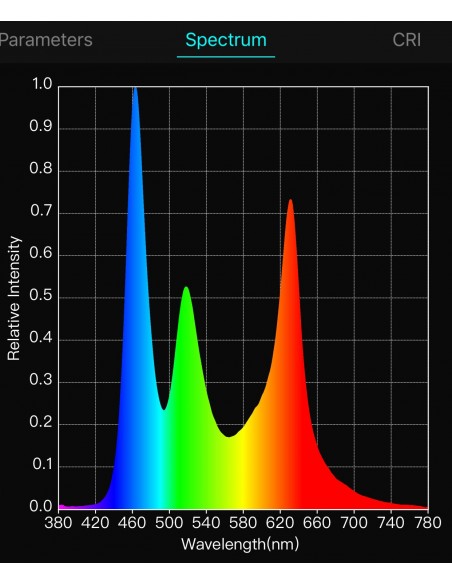

This high brightness RGBW LED strip is powered by high quality SMD2835 LED chips which generate a brightness of 20Lm per chip or 960 Lm/m (All c colours together).

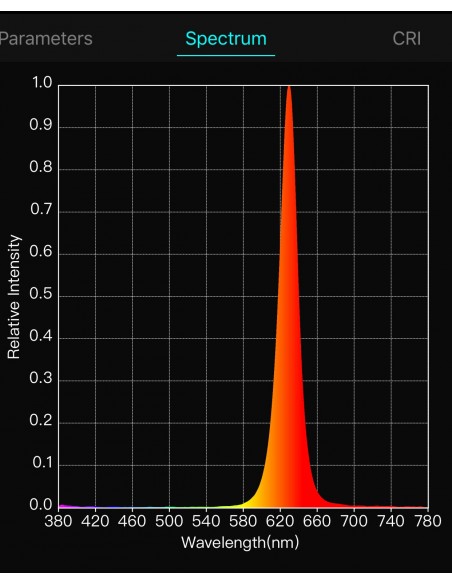

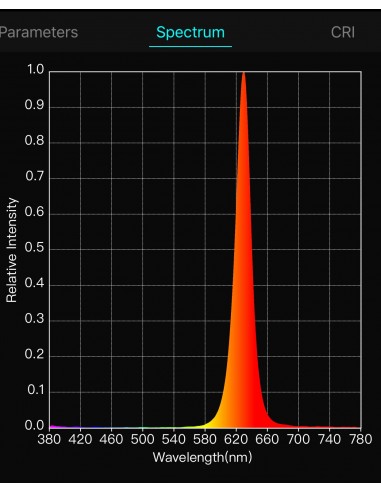

Red LED channel: wavelength 625nm

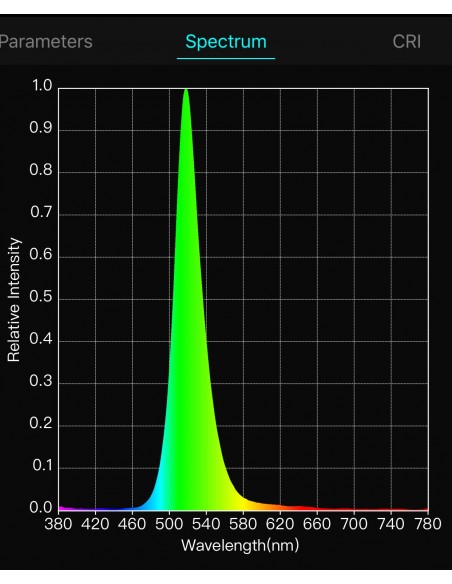

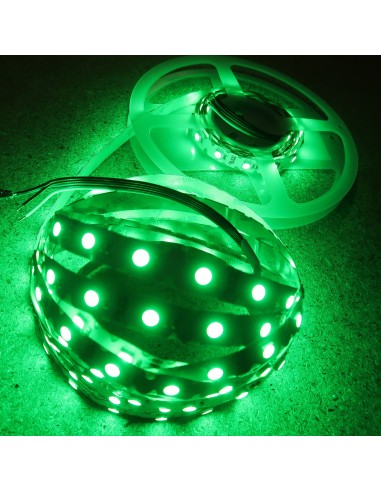

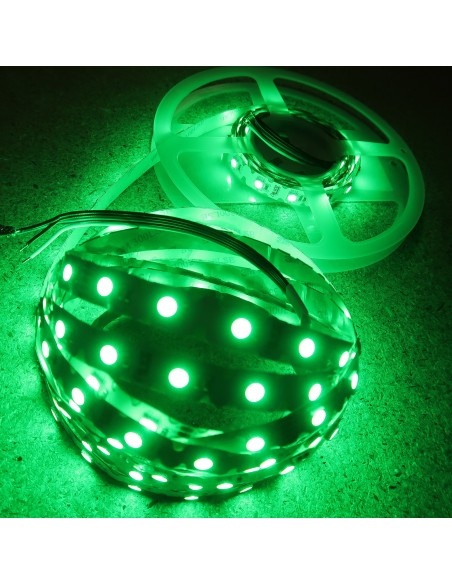

Green LED channel: wavelength 525nm

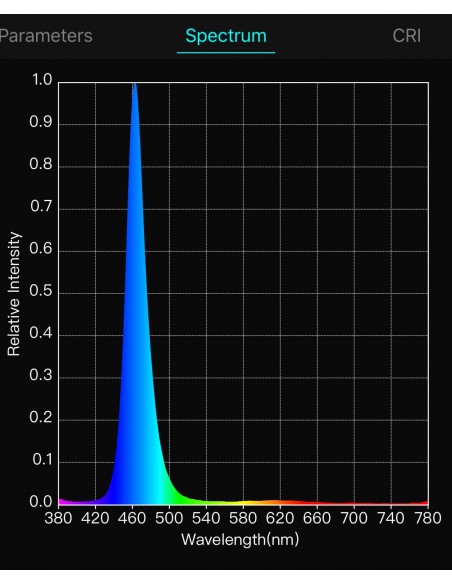

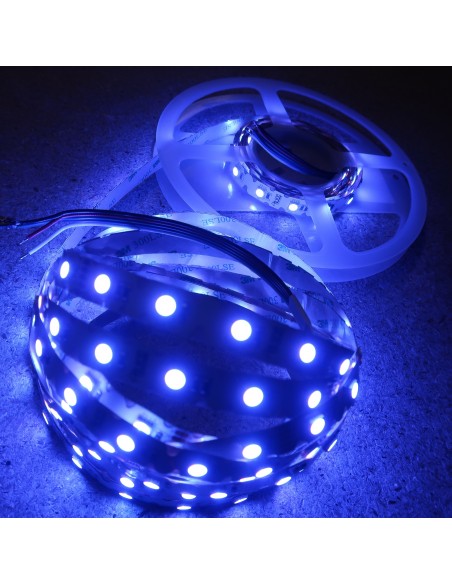

Blue LED channel: wavelength 470nm
For more information on RGB readings, please see our Wavelength Article.

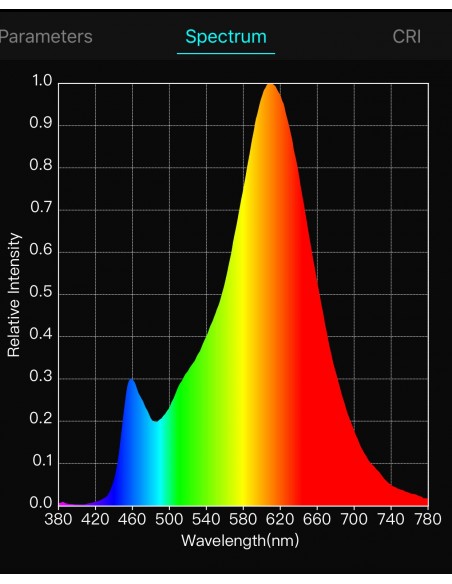

Excellent colour rendering index (CRI) – all white LED chips reach a value of Ra >80.

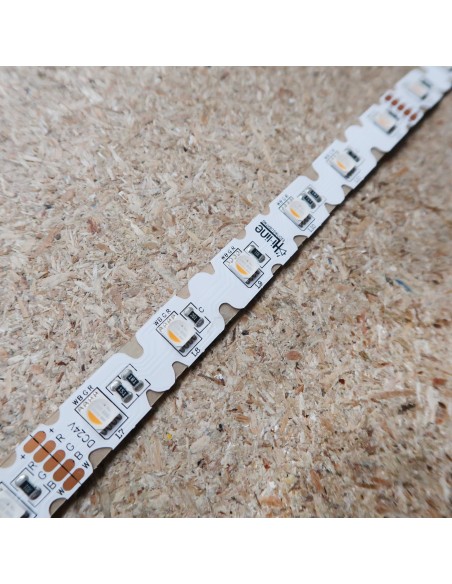

The strip can be cut every 6 LEDs (12.5 cm). The width of the LED strip is 12mm.

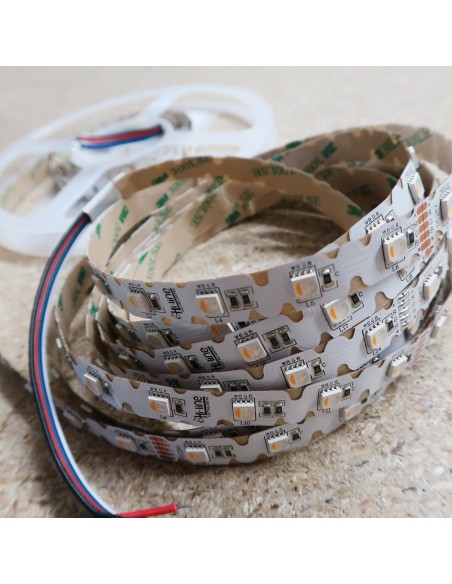

Fitted with an easy to install original 300LSE 3M adhesive tape with excellent adhesion.
*5-year warranty:
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
______________________________
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please avoid to run more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of LED strip are exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
_____________________________
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips.
______________________________
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
- CIE Colour Space
- 3 SDCM
- Voltage
- 24V DC
- Colour
- RGBW (RGB+WW)
- Power
- 11.5 w/m
- Number of LEDs per meter
- 48
- Rating
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- RGB+2700K
- Colour rendering (CRI in ra)
- 80
- Type
- Bendable LED strip
- Width of strip
- 12mm
- Cutting length
- Every 6 LEDs (12.5 cm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- Warranty
- 5 Years
- Brand
- Hi-Line
- LED Chip
- Quad colour SMD 5050
