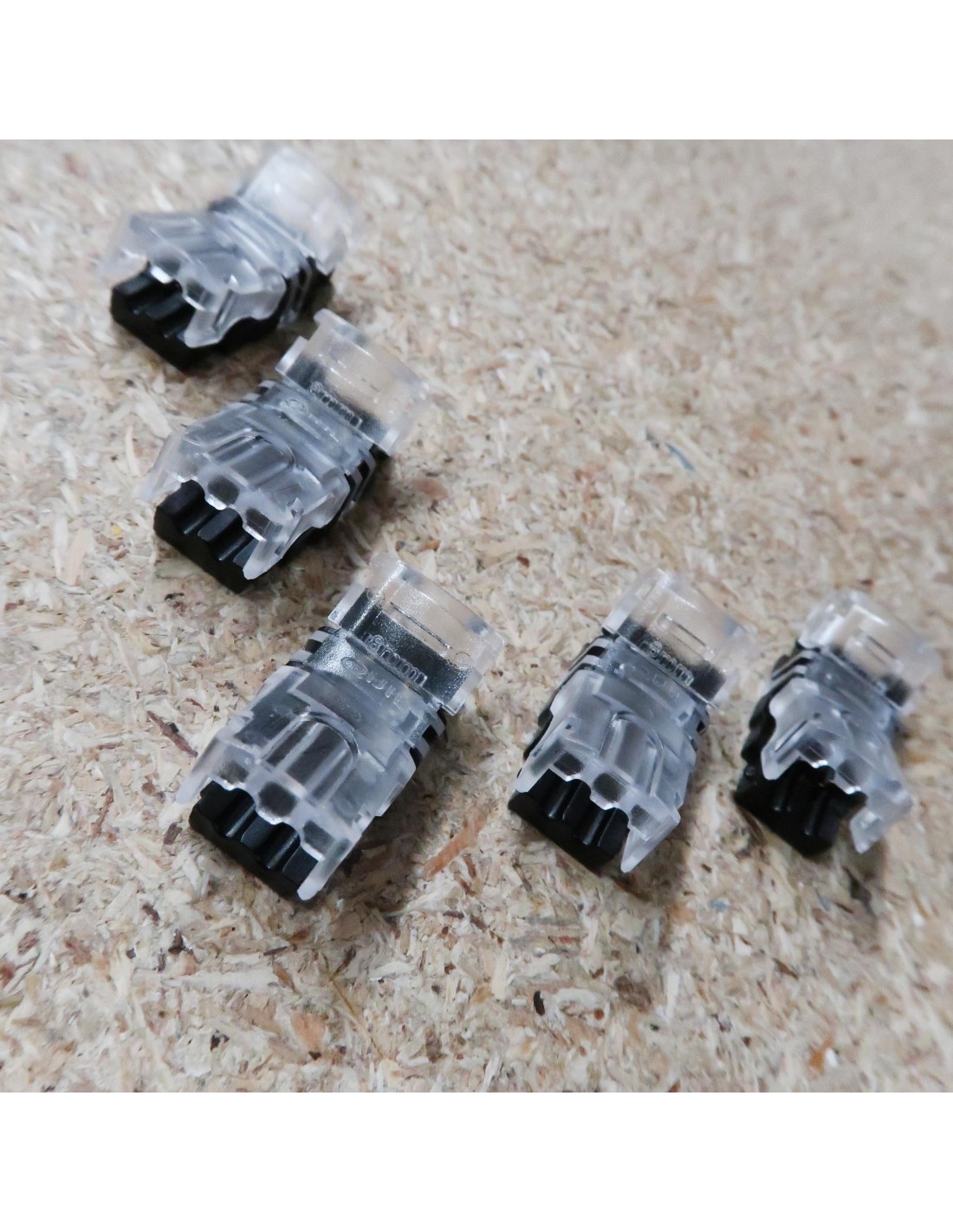

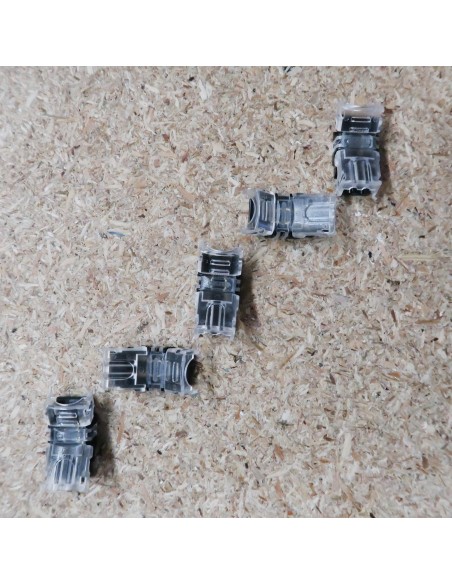

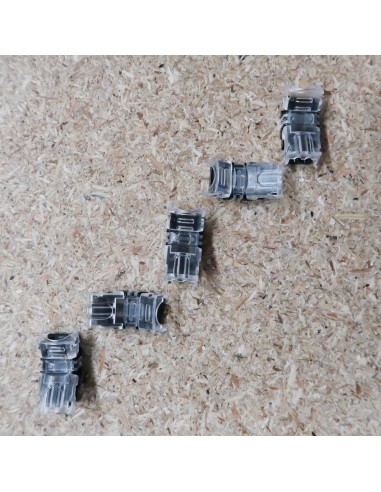

Strip to wire connector for 8mm IP65 single colour LED strip (pack of 5)
Key Features:
- 2 pin LED strip to power (wire) connector
- Supports high current LED strips
- For 8mm IP65 single colour LED strips
- Workable Wire Gauge: 22 ~18 AWG

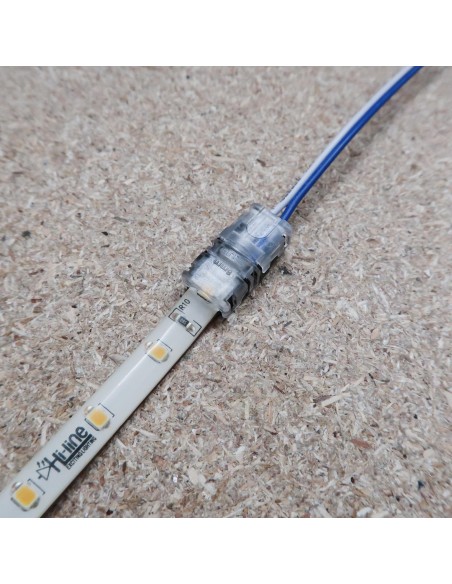

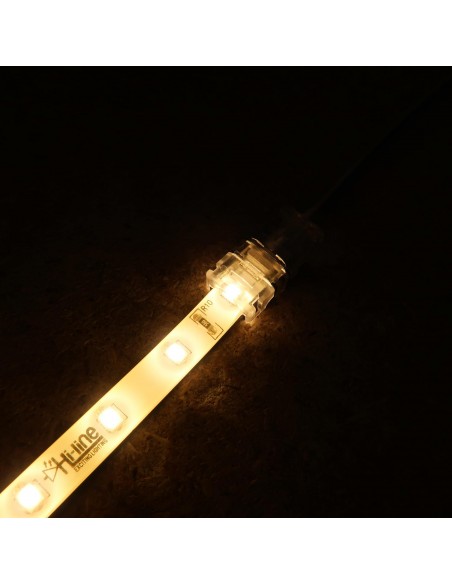

A LED strip connector (strip to power) designed for 8mm wide IP65 splashproof single colour LED strips
Connect IP65 splashproof / waterproof single colour LED strip without removing surface coating gel.
Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!
With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.
This is a very high quality strip to wire connector suitable only for IP65 single colour 8mm wide LED strips.
Compatible with 30-120 LEDs/m LED strips (8mm single colour). This connector is made of flame retardant material.
Supports high current LED strips!
The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).
Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!
Technical Data
Size: L27mm X W12.6mm X H7.7mm
Colour: Transparent with black base
Number of Pin: 2
Workable Wire Gauge: 22 ~18 AWG
Pin distance between them: 3.6mm
Cross Sectional Area for wire (not included): 0.33 - 0.82mm²
Wire type AWG: 18-22#
Applicable wire type: Solid wire / Stranded wire
Connection hardware: High precision brass(Cu)
Voltage range: 12-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating

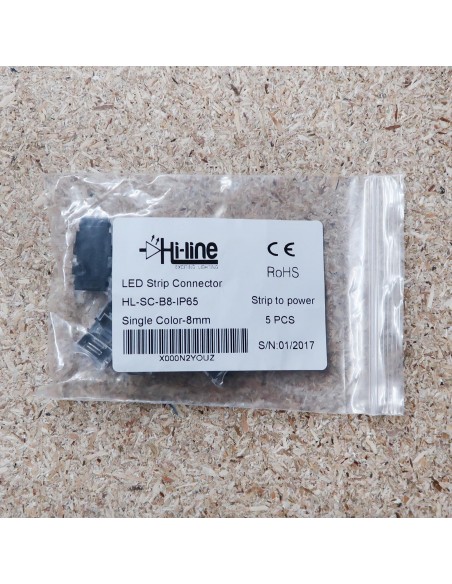

Standard Package: 5pcs/bag
- Brand
- Hi-Line
- Connector type
- strip to power connector
- Connector width
- For 8mm SMD strips
- Number of terminals
- 2 pin (single colour strips)
- IP Rating
- IP65 (Splashproof)
- Voltage
- 3-24V DC
