2 pin LED strip to strip connector

Supports high current LED strips

For 10mm IP00/IP20 single colour LED strips

Workable Wire Gauge: 22 ~18 AWG

HL-SC-A10-IP00
64 Items In stock
Same Day Dispatch
£8.20

(£1.64 each)

VAT excluded

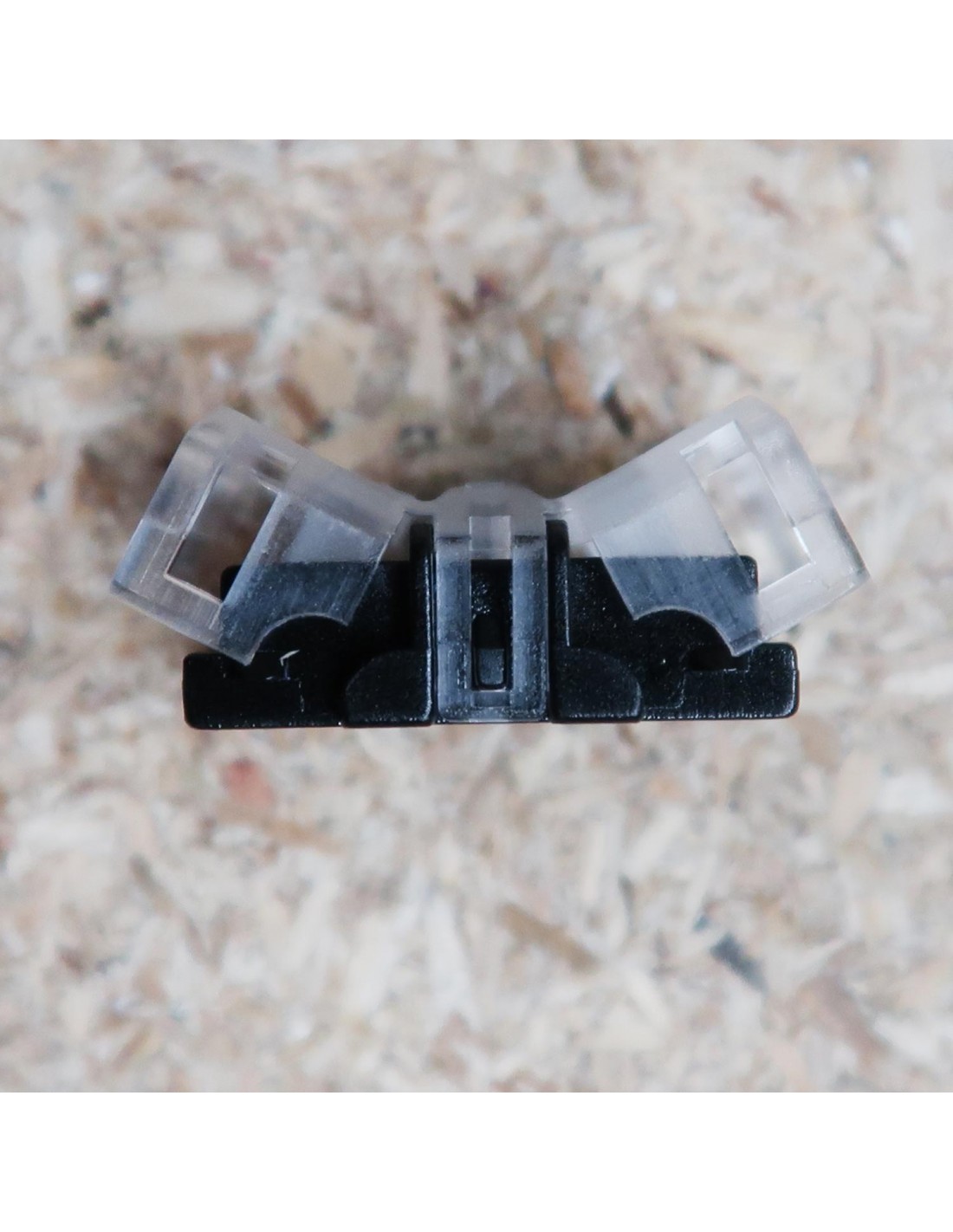

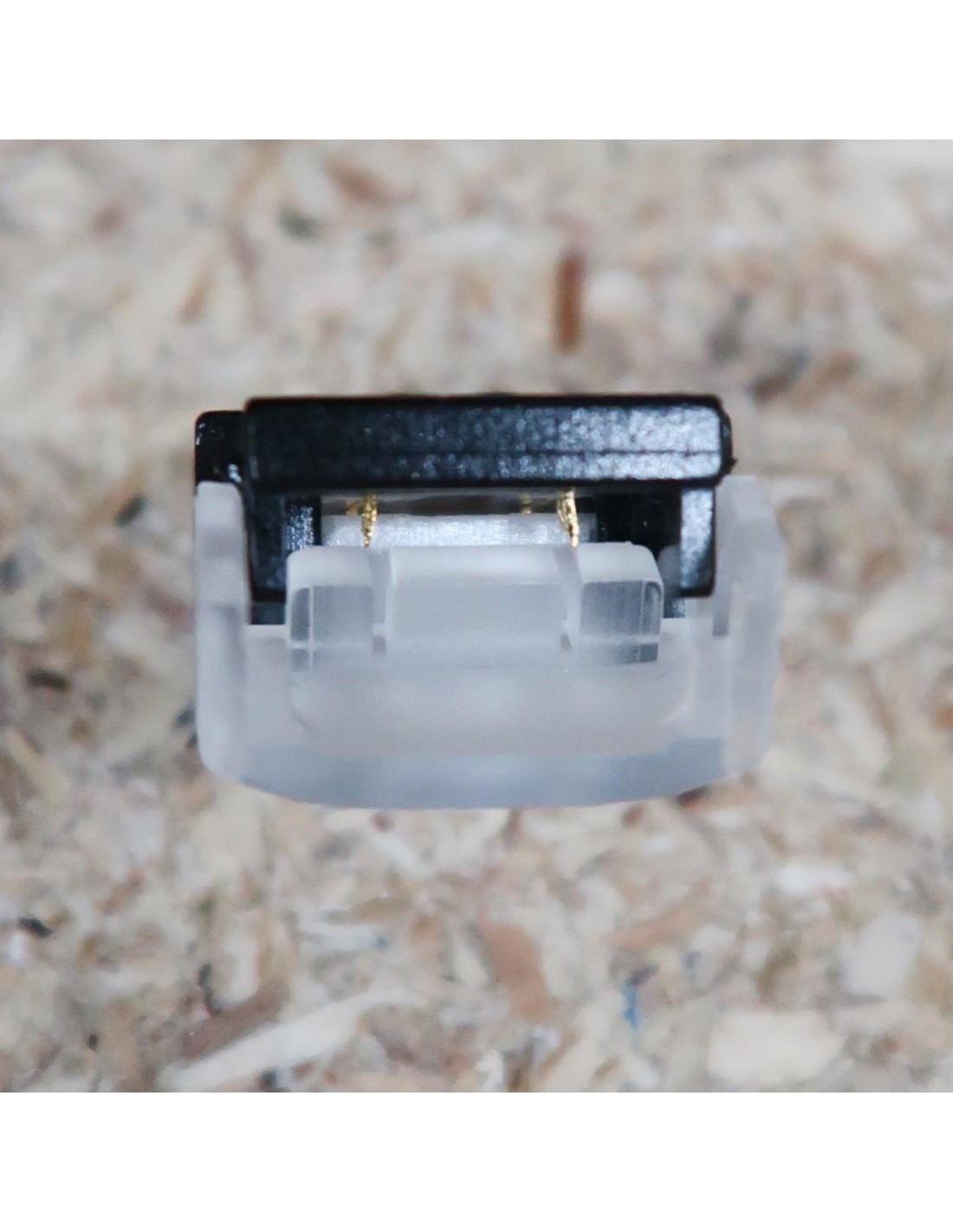

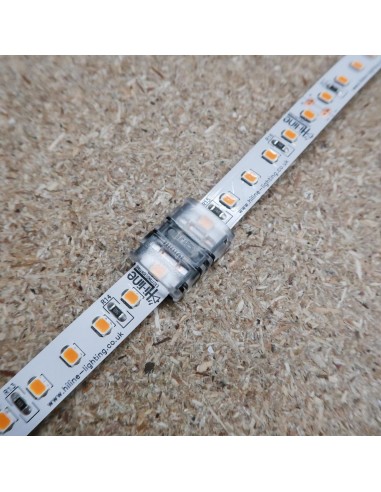

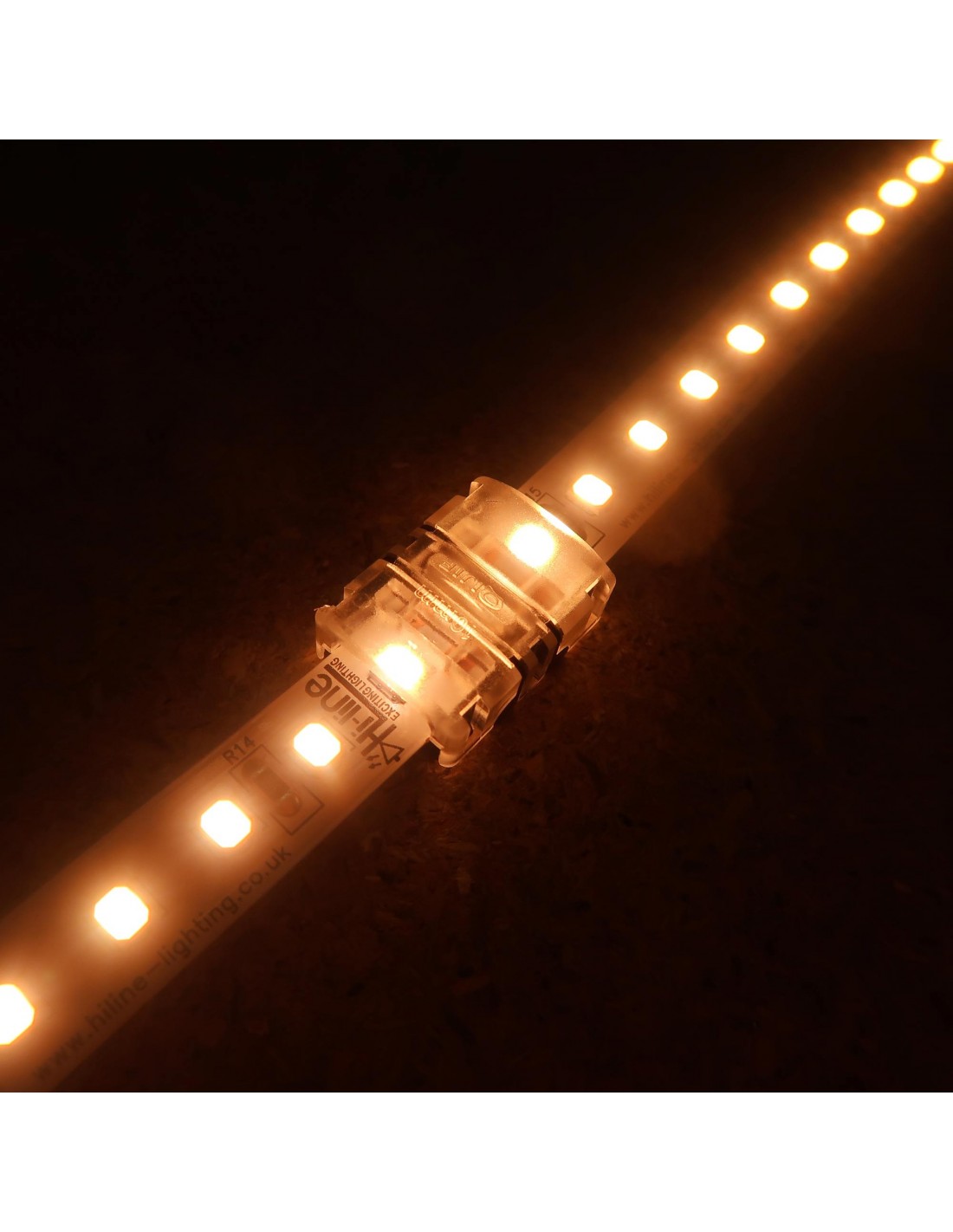

A LED strip connector designed for 10mm wide IP00/IP20 non-waterproof single colour LED strip

This is a very high quality strip to strip connector suitable only for IP00/IP20 single colour 10mm LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

Please note that this connector is not compatible with the gel coated (PU) IP65 LED strips.

­­­______________________________

Note: Please DO NOT close caps of the connector before placing the strip, as it is hard to open!

______________________________



Technical Data

Size: L25mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Workable Wire Gauge: 22 ~18 AWG

Pin distance between them: 5mm

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: 60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

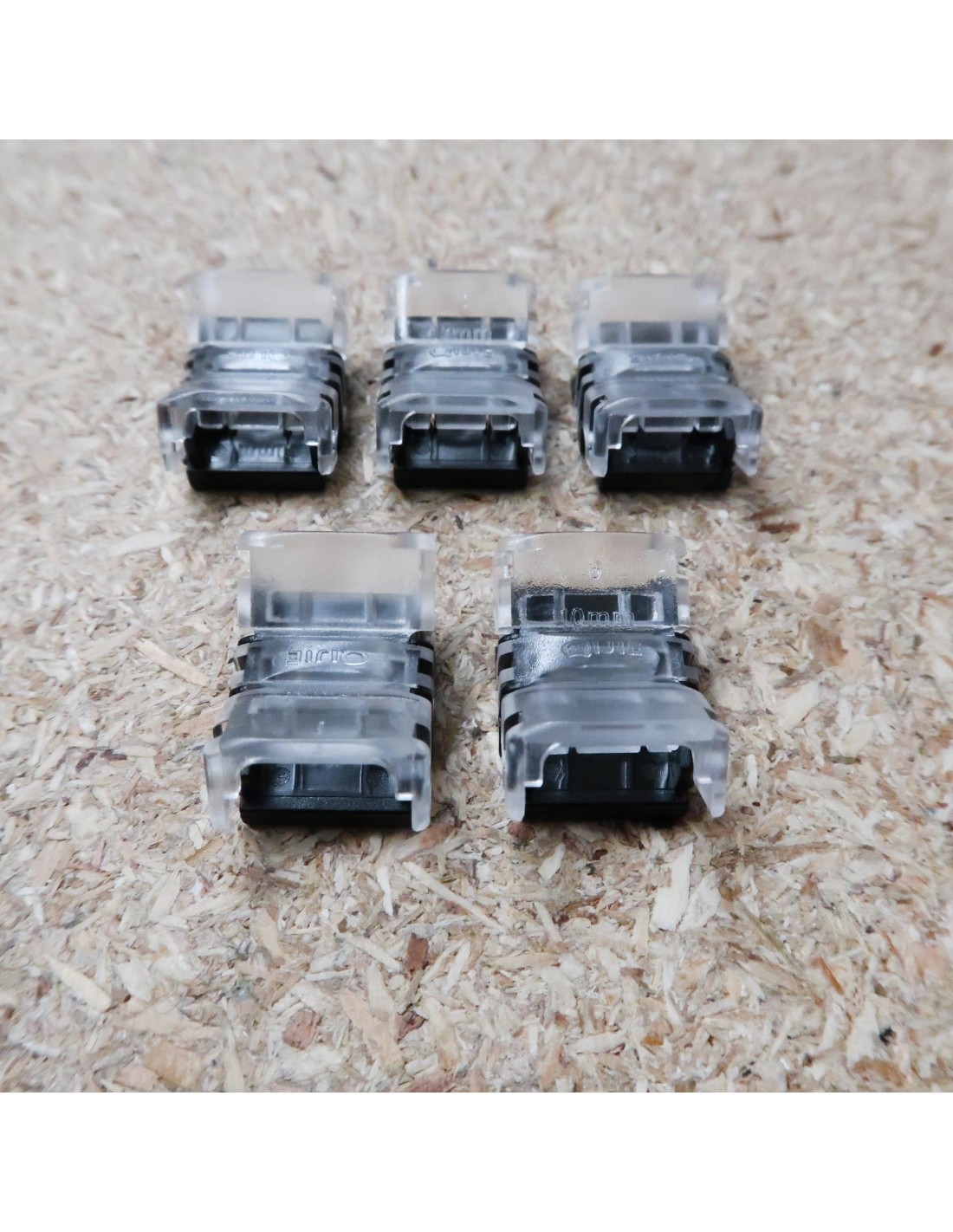

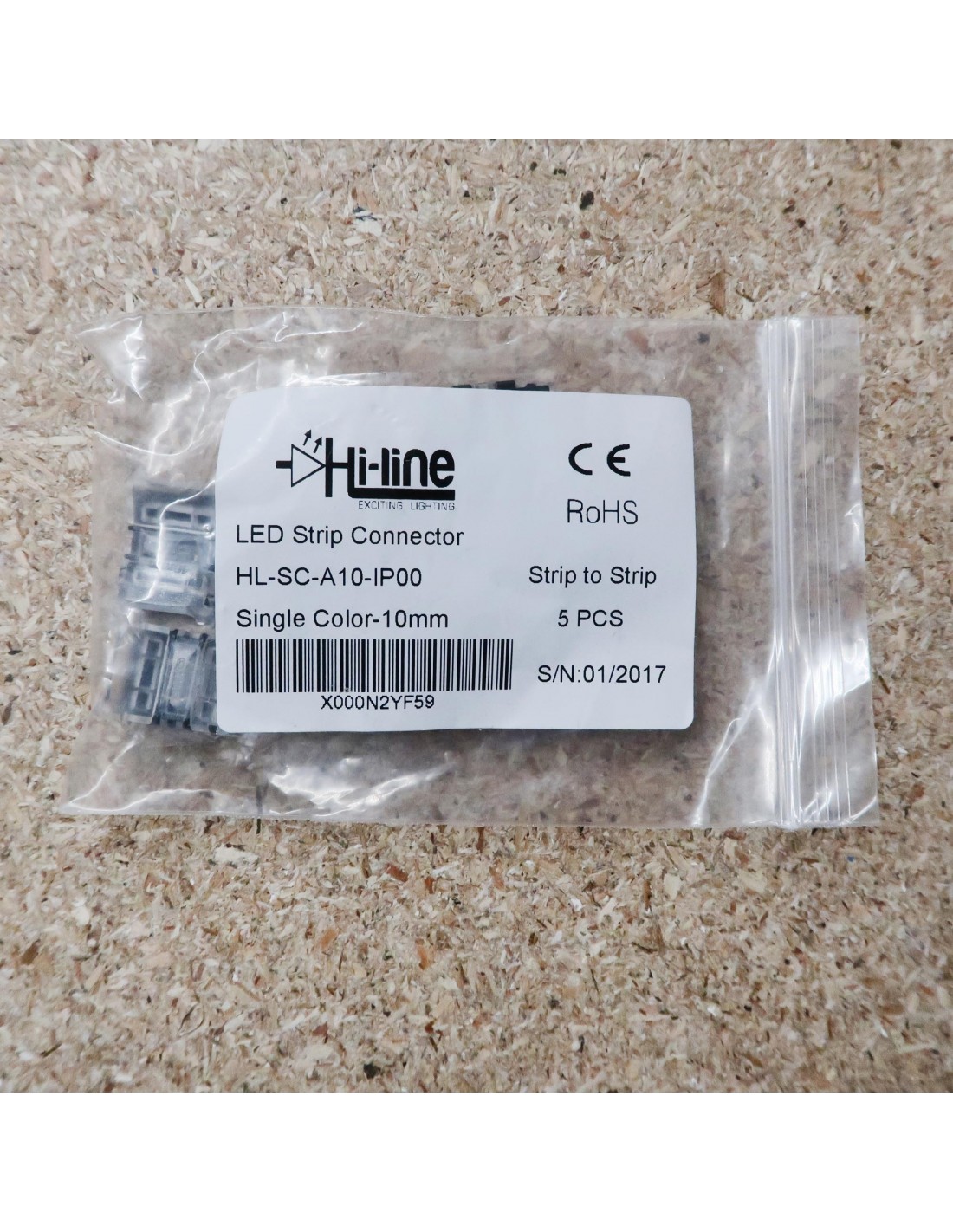

Standard Package: 5pcs/bag

Voltage
12-24V DC
Rating
IP00 (Non-waterproof)
Connector type
strip to strip connector
Connector width
For 10mm LED strips
Number of terminals
2 pin (for single colour strips)
Brand
Hi-Line
