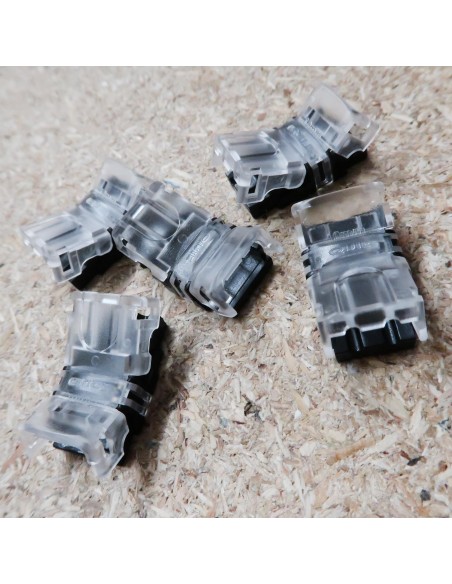

Strip to wire connector for 10mm IP00 single colour LED strip (pack of 5)
2 pin LED strip to power (wire) connector
Supports high current LED strips
For 10mm IP00/IP20 single colour LED strips
Workable Wire Gauge: 22 ~18 AWG

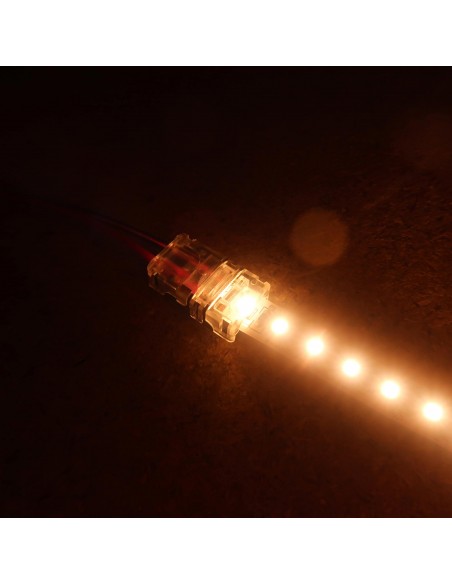

A LED strip connector (strip to power) designed for 10mm wide IP00/IP20 non-waterproof single colour LED strips
Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!
With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.
This is a very high quality strip to wire (power) connector suitable only for IP00/IP20 single colour 8mm wide LED strips.
Compatible with 30-120 LEDs/m LED strips (10mm single colour). This connector is made of flame retardant material.
Supports high current LED strips!
Please note that this connector is not compatible with the gel coated (PU) IP65 LED strips.
Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!
Size: L27mm X W14.6mm X H7.7mm
Colour: Transparent with black base

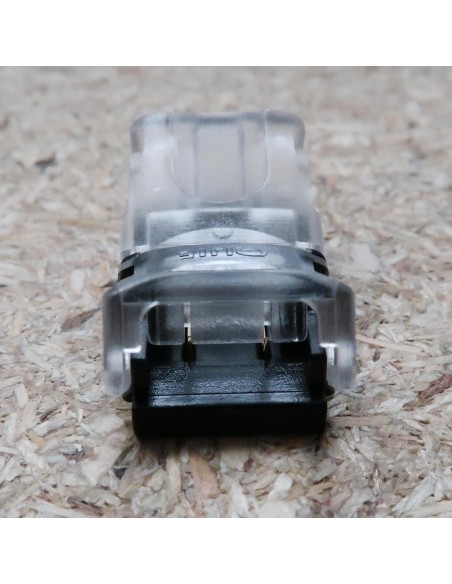

Number of Pin: 2
Pin distance between them: 5mm
Cross Sectional Area for wire (not included): 0.33 - 0.82mm²
Wire type AWG: 22-18#
Applicable wire type: Solid wire / Stranded wire
Connection hardware: High precision brass(Cu)
Voltage range: 12-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating

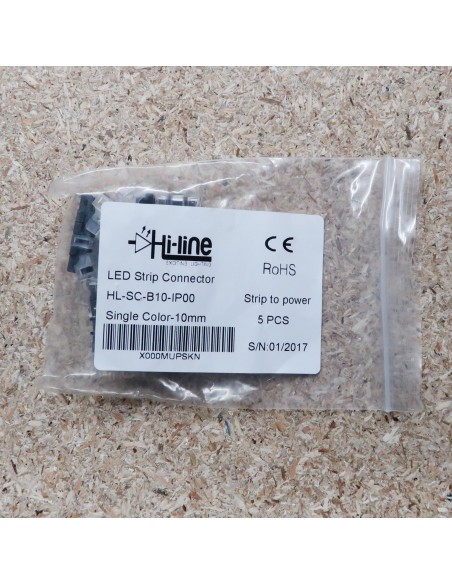

Standard Package: 5pcs/bag
- 12-24V DC
- IP00 (Non-waterproof)
- Connector type
- strip to power connector
- Connector width
- For 10mm LED strips
- Number of terminals
- 2 pin (for single colour strips)
