Warm White LED Strip 5-meter roll | 24V | 9.6W/m | CRI80 | SMD3528

Key Features:

  • Colour: Warm White
  • Colour Temperature (CCT) 2700K
  • Voltage: 24V DC
  • IP Rating: IP00 (Non-waterproof)
  • LEDs per meter: 120
  • Power: 9.6 Watts per Metre
  • Brightness: 720-840Lm/m
  • LED Strip Length: 5-meter roll
  • Width of strip: 10mm
  • CRI: Excellent - 80
  • Warranty: 3 Year Warranty
  • Energy Rating: Energy Rating G

Important Product Details

  • optional 250 char. max
HL-LS3528B-120WW-IP00-24V
PRE-ORDER
£30.00
36.00
with VAT)

(£6.00 meter)

VAT excluded

Quantity Unit price You Save
60 £28.50 £90.00
120 £27.00 £360.00
240 £24.00 £1,440.00


Commercial High-Grade Warm White LED Strip 2700K

9.6W/m – 24V DC – 5m roll – 120 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

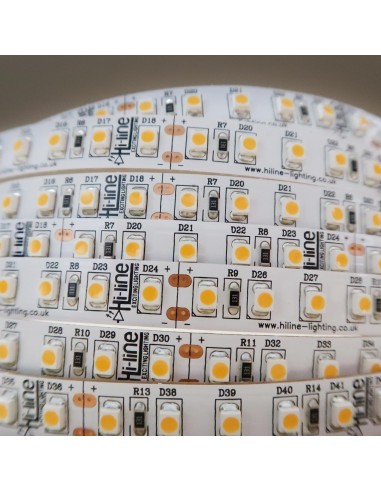

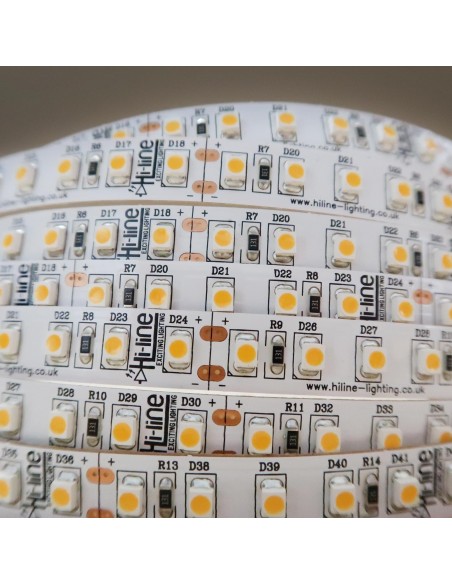

This LED strip is powered by high-quality Epistar SMD3528 LED chips which generate a brightness of 720-840Lm/m.

Note: Should a higher brightness and efficiency LED strip be required, please check Hi-Line's SMD2835 LED strip series.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.

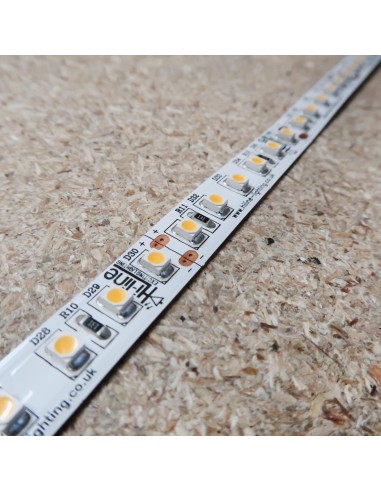

The strip can be cut every 6 LEDs (5cm). The width of the LED strip is 10mm.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

3-year warranty


The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded from the attachments tab section


The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.


All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.


The stated price is for 1 x 5-meter roll LED strip (Warm White) with 600 SMD3528 LEDs – IP00 (Non-Waterproof), 24V DC.


Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

9.6 W/m LED Drivers and LED Strip

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

24V Driver Controller Circuit

Brand
Hi-Line
Brightness
720-840 Lm/m
CIE Colour Space
3 SDCM
Colour
Warm White
Colour rendering (CRI in ra)
80
Colour Temperature (CCT)
2700K
Cutting length
Every 6 LEDs (50mm)
Energy Rating
F
LEDs per meter
120
LED Chip
SMD 3528
LED Strip Length
5 metres roll
Power
9.6 Watts per Metre
IP Rating
IP00 (Non-waterproof)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
Width of strip
10mm
