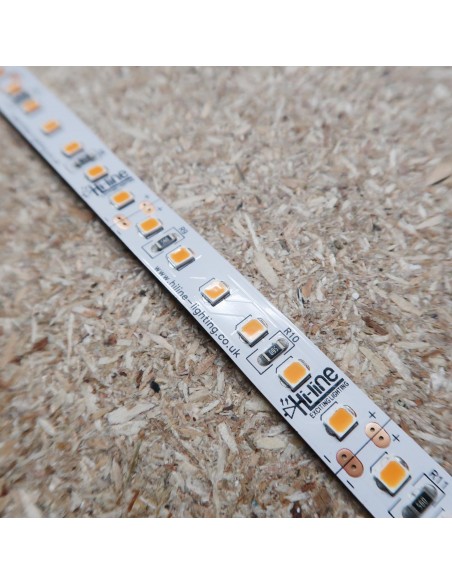

Warm White LED Strip 24V-28.8W/m- IP00-CRI90-SMD2835
Warm White LED strip, 2700K, 24V, IP00 (Non-Waterproof)
120 LEDs/m–28.8W/m–2640Lm/m
5m roll–10mm width
High CRI - Ra>90
5 year warranty
Commercial High-Grade Warm White LED Strip 2700K
28.8W/m – 24V DC – 5m roll – 120 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This is an ultra-high brightness LED strip powered by high-quality SMD2835 LED chips which generate a brightness of 2640Lm/m. Please note that 1.2 meters of this LED strip has the same or even higher brightness than a 4ft fluorescent tube.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

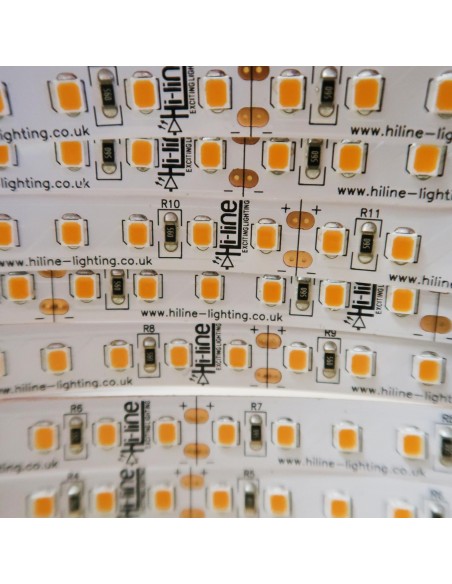

The strip can be cut every 6 LEDs (5cm). The width of the LED strip is 10mm.
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!
Great for sign makers, cove lighting or any application that requires high brightness LEDs.
Note: It is suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*5-year warranty:
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
______________________________
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when installing 5 meters or more of this LED strip it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable or to connect the strip to a power supply from both ends in parallel (ring) to avoid a voltage drop and a resulting slight brightness reduction from first to last LED.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
_____________________________

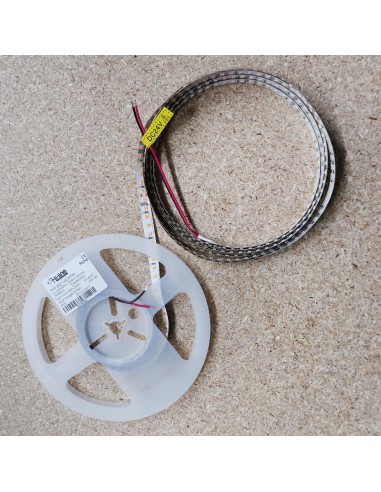

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
______________________________
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
______________________________

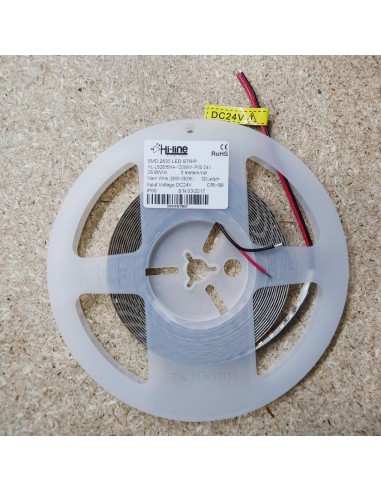

The stated price is for 1 x 5-meter roll LED strip (Warm White) with 600 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC.
______________________________
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- Voltage
- 24V DC
- Colour
- Warm White
- Power
- 28.8 W/m
- Brightness
- 2640 Lm/m
- Number of LEDs per meter
- 120
- LED Strip Efficiency
- 92 lm/w
- Rating
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- 2700K
- Colour rendering (CRI in ra)
- more than 90
- Width of strip
- 10mm
- Cutting length
- Every 6 LEDs (50mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- Warranty
- 3 Years
- Brand
- Hi-Line
- LED Chip
- SMD 2835
