High CRI, Ra >90
Extra Warm White 2400K
24 Volts DC, 28.8W per meter
Non waterproof IP00
5 meters roll (10mm)
80 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 15/03/19
|LED Chip||SMD 2835|
|CIE Colour Space||3 SDCM|
|Colour||Extra Warm White|
|Brightness||2520 lm per meter|
|Number of LEDs per meter||120|
|LED Strip Efficiency||90 lm/w|
|Colour Temperature (CCT)||2400K|
|Colour rendering (CRI in ra)||more than 90|
|Width of strip||10mm|
|Cutting length||Every 6 LEDs (50mm)|
|LED Strip Packing||5-meter roll|
|Voltage Type||Constant Voltage|

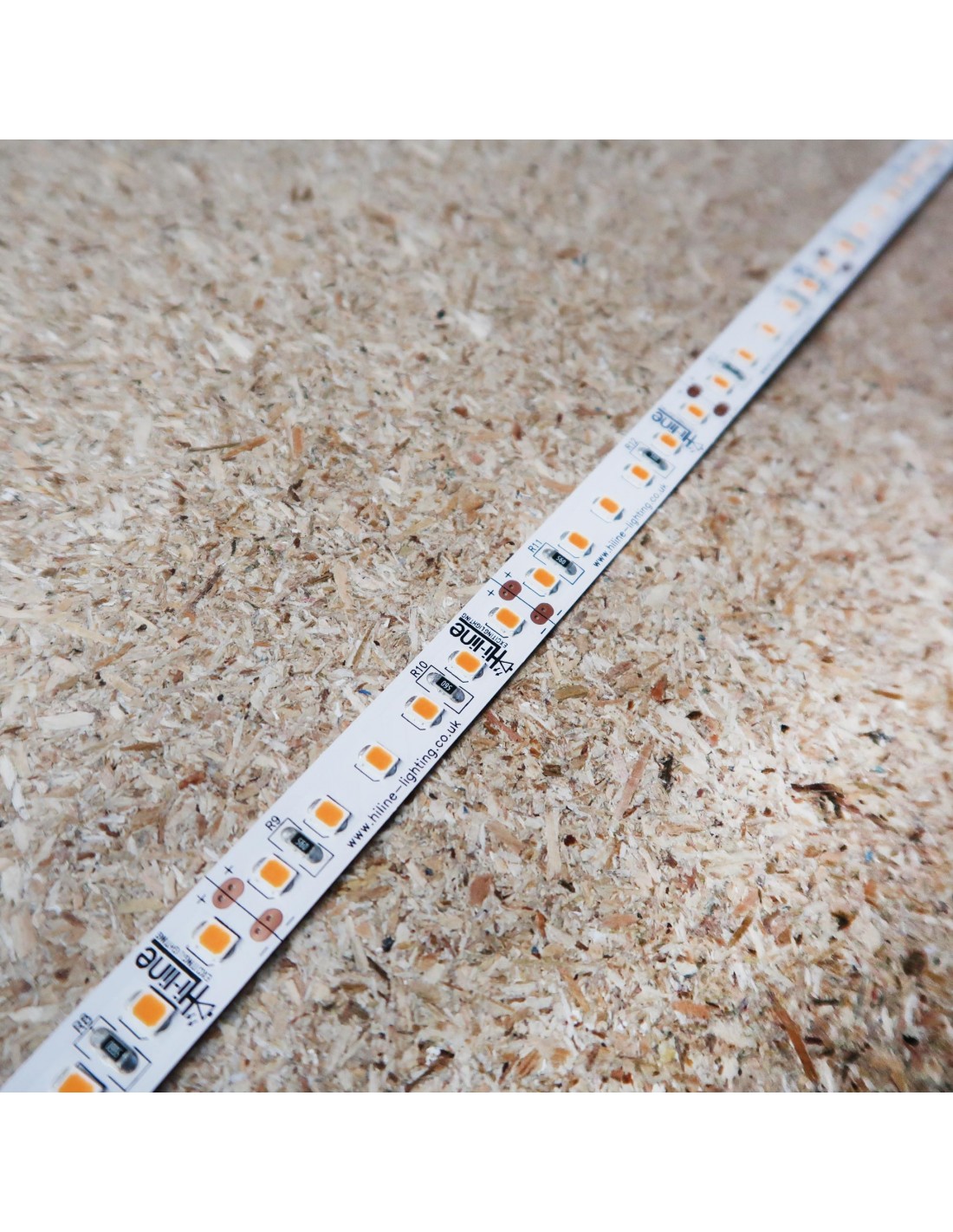

High CRI Ra >90 LED Strip Light, 28.8W per meter Extra Warm White 120 LEDs/m super high bright - 2400K
24V Commercial high grade LED Strip / Tape powered by SMD2835 LED chip (CCT: 2400K)

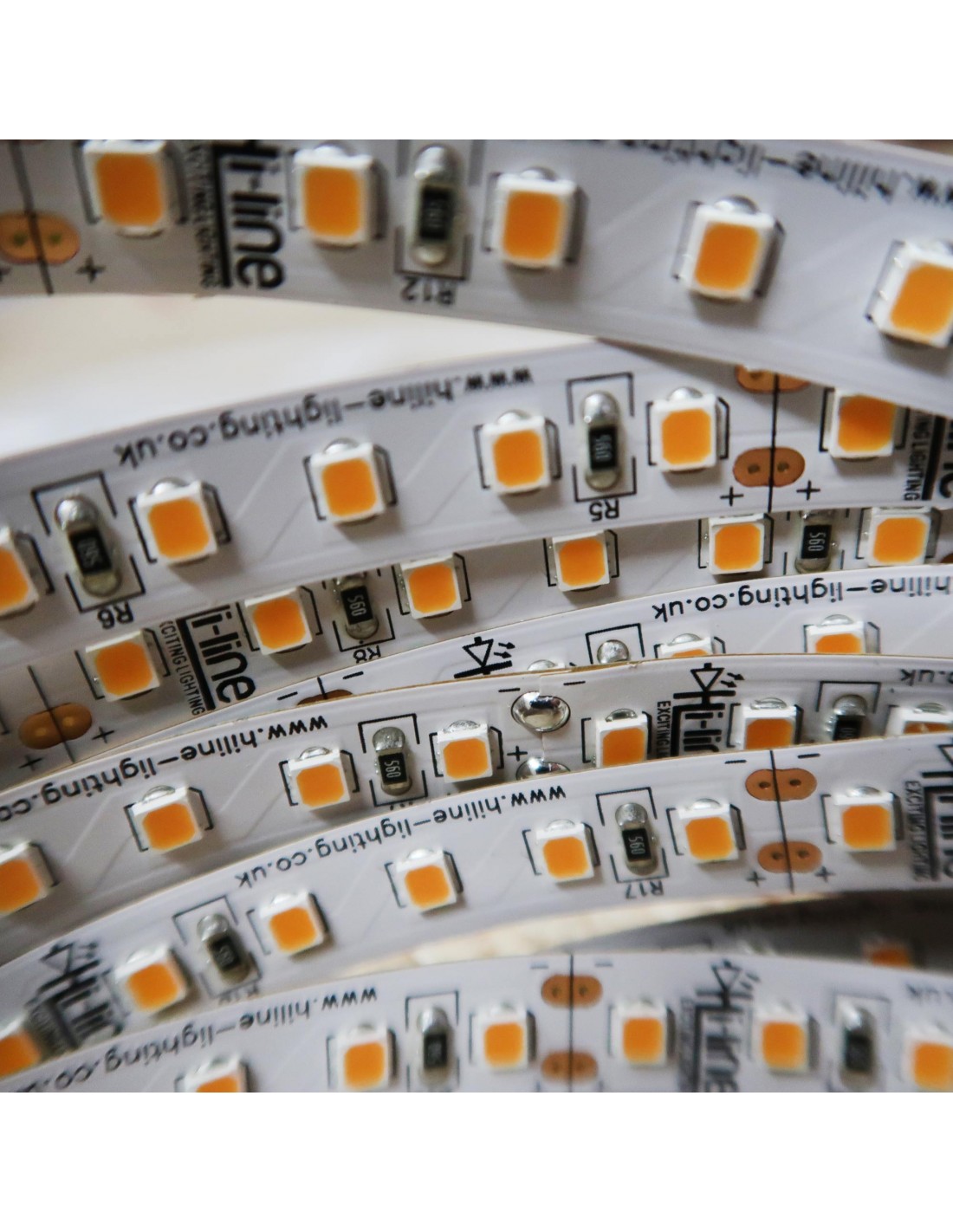

The width of this LED strip is 10mm, height 3mm and can be cut at every 6 LEDs (5cm)
Non-Waterproof IP00, 24 Volts constant voltage extra warm White Super High Bright LED Strip SMD2835 Chip, 120 LEDs 28.8W per meter, 5 meters roll with 3 years Warranty.
Very bright LED strip, powered by Epistar SMD2835 LED chips (2520 lm per meter).
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!
A meter piece of this LED strip has higher brightness than a 5ft fluorescent tube.
Great any application that high CRI & brightness LED strip is required.
For longer life it is suggested to be installed on a flat Aluminium bar for proper cooling.
3 Years Warranty
All our LED Strips are dimmable. Please select a suitable PWM LED dimmer/controller.
Please note that soldering is recommended for the connection of LED strips. However, if a solder free connection is preferred, Hi-Line’s solder free connectors offer the best solution currently available on the market.

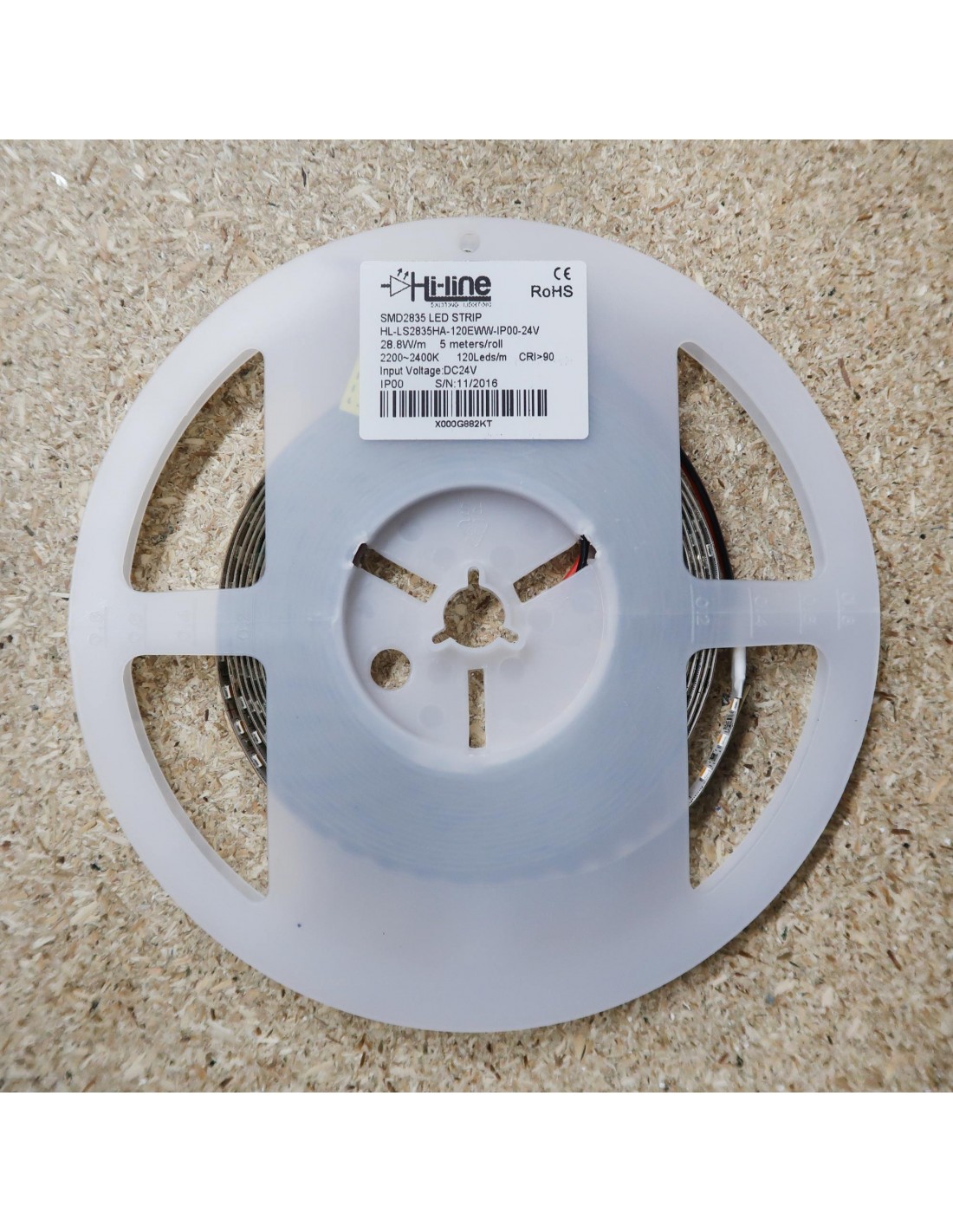

Price is for a 5 meters roll (600 LEDs), non waterproof (IP00), CRI Ra>90 LEDs extra warm white 2400K
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
For more information about the installation of LED Strips, you can download the above PDF file: “Installation of LED Strips”.
