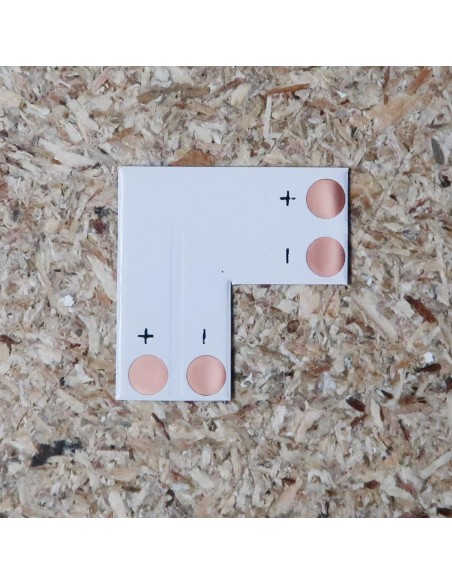

10mm L Shape LED strip PCB (single colour, 2 pin)

  • L Shape LED strip PCB
  • 10mm / 2 pin

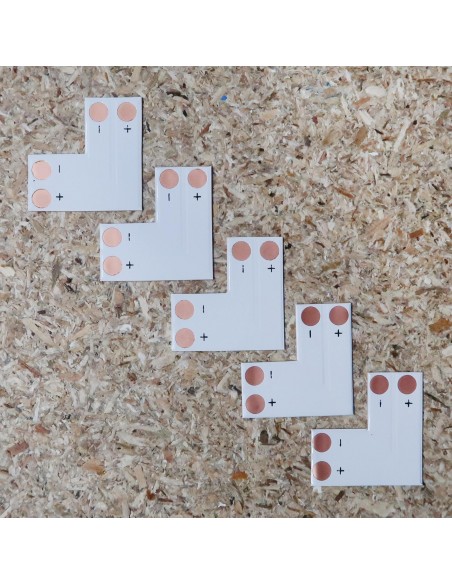

  • Pack of 5
20 Items In stock
Next working day delivery
with VAT)

(£0.76 piece)

VAT excluded

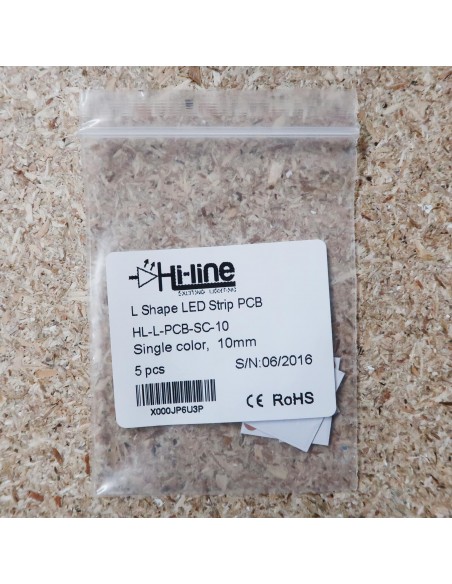

10mm L Shape LED strip PCB, single colour 2 pin (pack of 5)

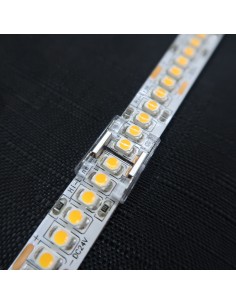

This connector is used in combination with 10mm strip to strip connector (sold separately) to connect two lengths of single colour LED strip together (in 90 degrees angle) without any soldering to be required.

Note that during installation might be convenient just to "fold" the LED tape around the corners without using any accessories but since every case is different we offer this L shape pcb as an option.

In order to use that with IP rated LED strips, waterproof coating (resin) must be removed from the end of both LED strips. You can use on the top of the connection heat shrinkable tubing to maintain IP rating.

Please ensure connector clips are aligned with the copper contacts of the LED Strip and notice the polarity. If connecting IP rated strips remove any gel coating from copper contacts completely. In some cases might be required to move the LED forward or backwards in order for connector contacts to be aligned properly. Then insert strip in the slot and before closing the connector cover ensure the teeth clamps will hold the circuit board of LED strip in place. If an LED chip is located near by the copper connection contacts of the strip the cover might not be able to close and you may try in such a case to use the other end of your LED strip and install the connector upside down in order to match the polarity.

We do suggest using this connector for powering up to 5m of LED strip. To power longer runs a soldered connection is suggested.

Can also be used with HL-SC-A10-IP00 and HL-SC-B10-IP00 connectors.

Looking for Related Products or Accessories?

Click the 'Related Products' tab below the product description to find compatible LED strips, drivers, and accessories. For technical data or installation guides, check out the 'Attachment' tab for available PDFs. To refine your search further, use our "REFINE BY" filter system available when browsing any product category.

Connector type
L Shape - Corner
Connector width
For 10mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP00 (Non-waterproof)
