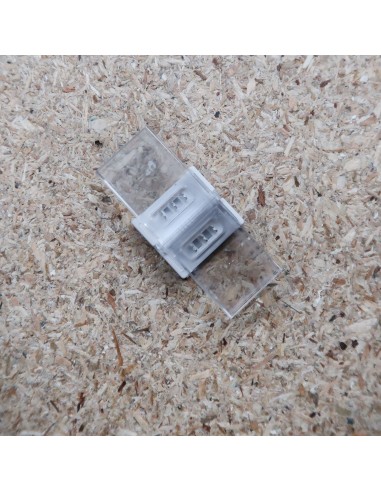

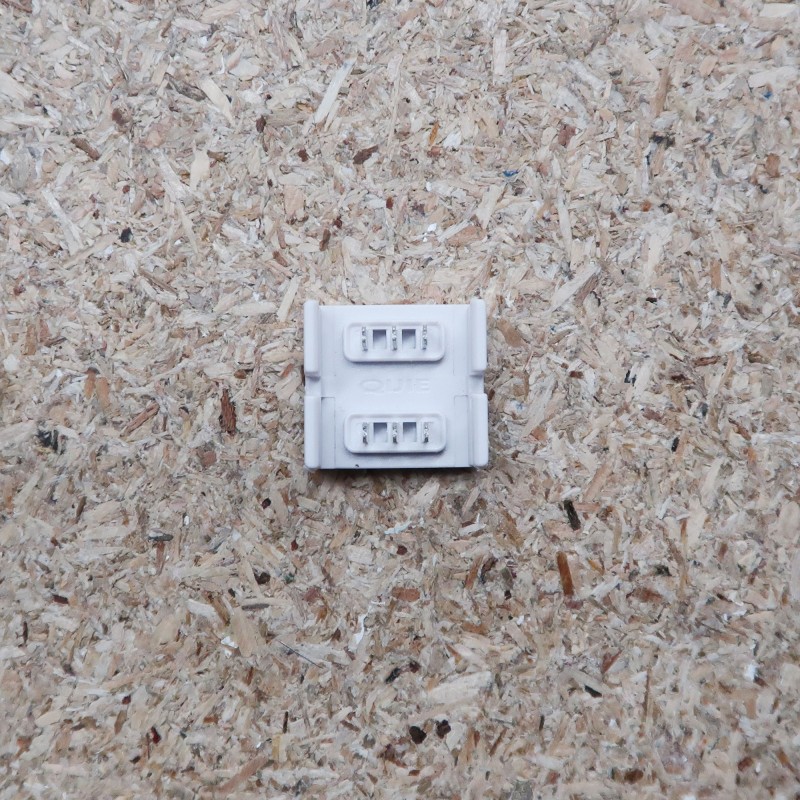

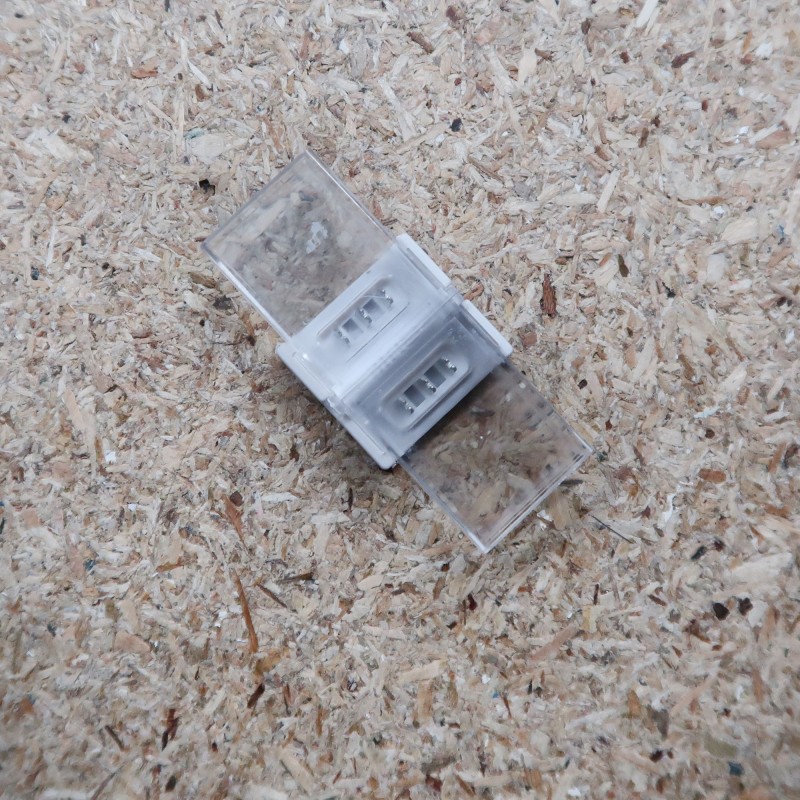

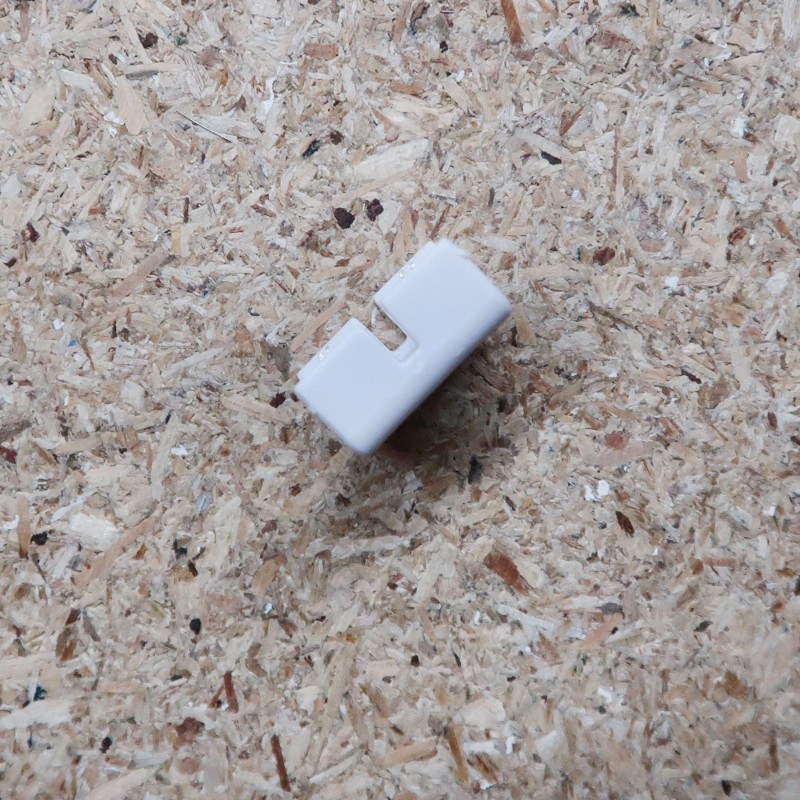

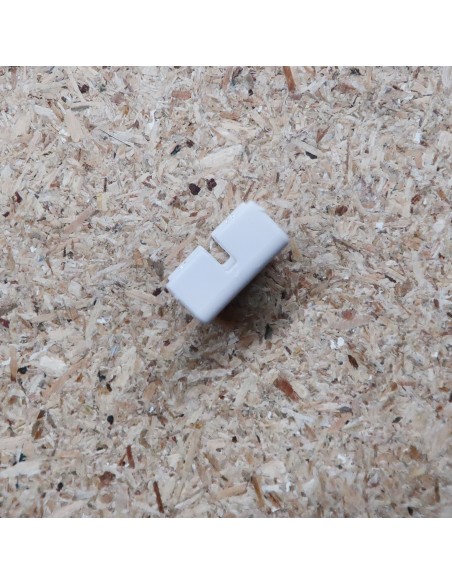

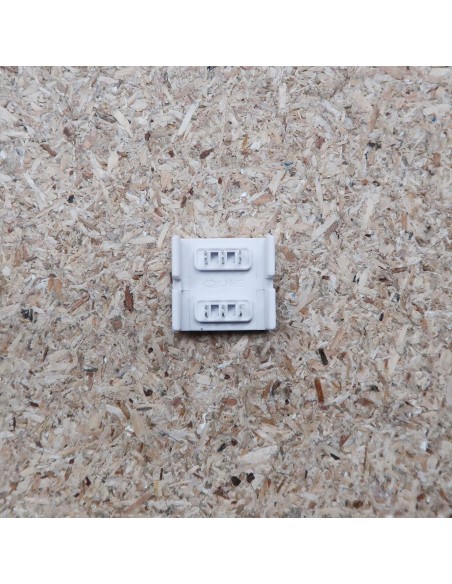

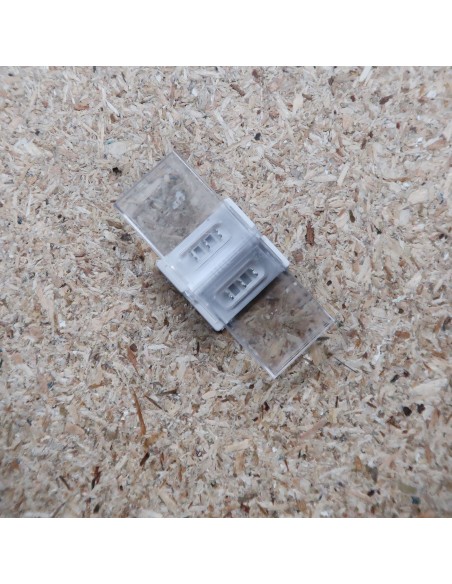

3 pin strip to strip connector for IP68 LED tape
Supports high current LED strips
For 12mm IP68 3 pin LED strips
100 Item Items
Same Day Dispatch
Warning: Last items in stock!
|Rating||IP68 (Underwater waterproof)|
|Width of PCB||10mm|
|Connector type||strip to strip connector|
|Connector width||For 12mm LED strips|
|Number of terminals||3 pin (for tunable white or pixel strips)|
Connect IP68 waterproof LED strip without removing surface coating gel
This is a very high quality 3 pin strip to strip connector suitable only for IP68 single colour 12mm LED strips.
Compatible with 30-120 LEDs/m IP68 single colour LED strips (10mm pcb strip width / 12mm total width).
This connector is made of flame retardant material and supports high current LED strips!
The IP68 connectors are suitable for use with the gel coated (PU) IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).
Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.
To find out more, please see our article HERE and refer to the video also included on this page.
Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!
Size: L16mm X W18mm X H8mm
Colour: Transparent with white base
Number of Pin: 3
Suitable for Hi-Line's IP68 12mm single colour strips
Connection hardware: High precision brass(Cu)
Voltage range: 12-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating
