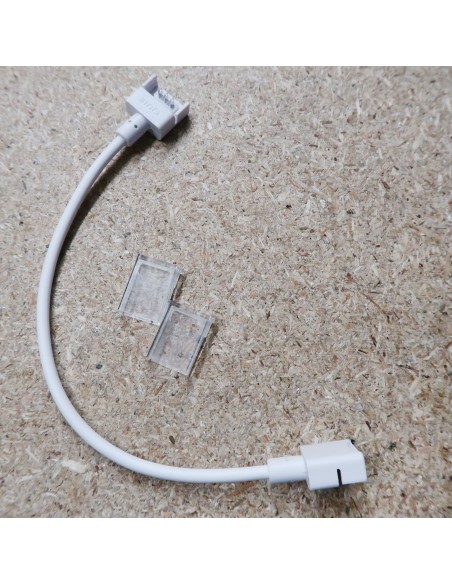

3 pin IP68 strip to strip 200mm extension bridge for 12mm-IP68 LED tape

HL-SC-3C12-IP68-200C

New product

3 pin strip to strip 200mm extension for IP68 LED tape

Supports high current LED strips

For 12mm IP68 single colour LED strips

More details

48 Items

Same Day Dispatch

£ 4,50

Add to wishlist

Data sheet

Voltage 12-24V DC
Rating IP68 (Underwater waterproof)
Width of PCB 10mm
Connector type strip to strip extension
Connector width For 12mm LED strips
Number of terminals 3 pin (for tunable white or pixel strips)
Brand Hi-Line

More info

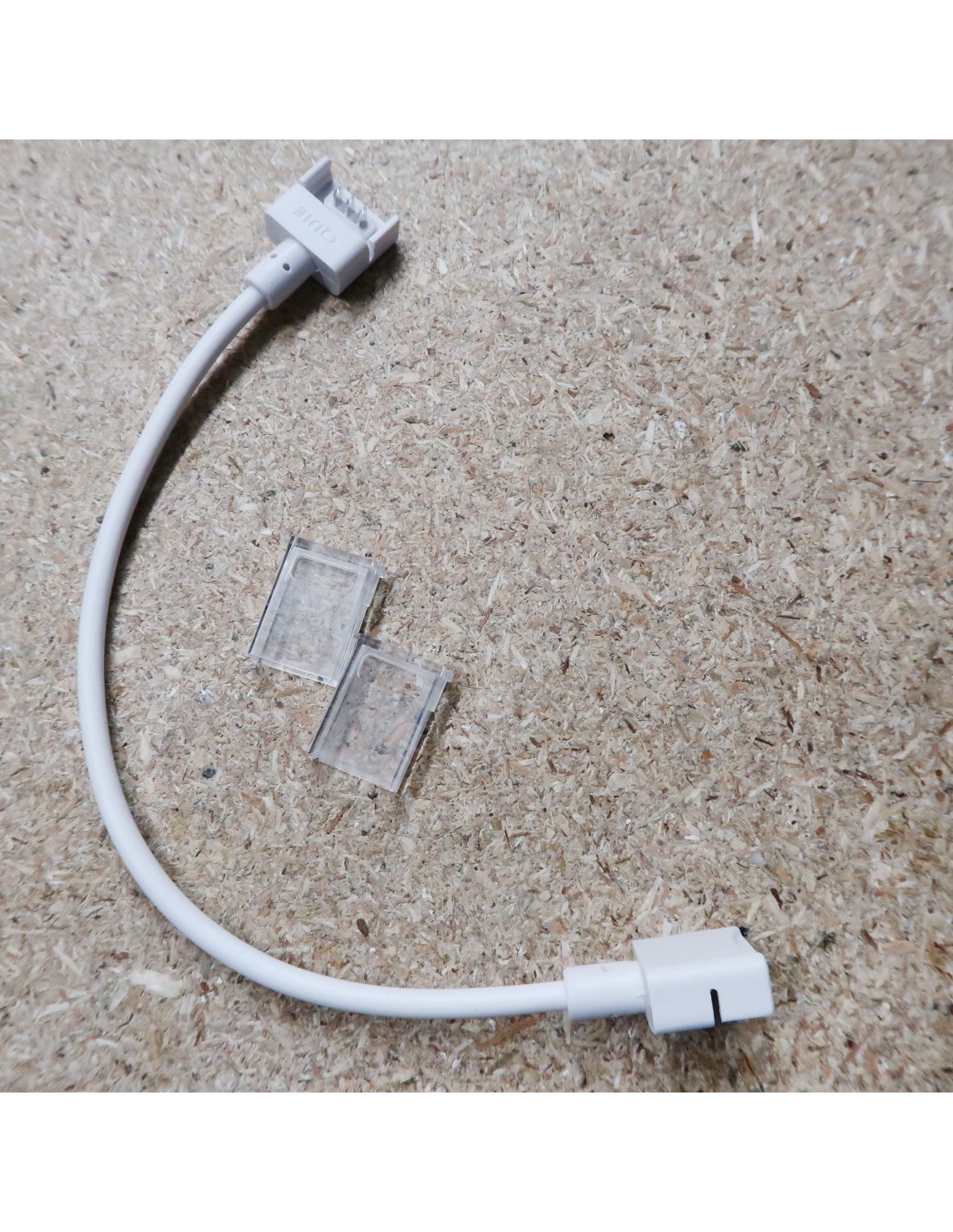

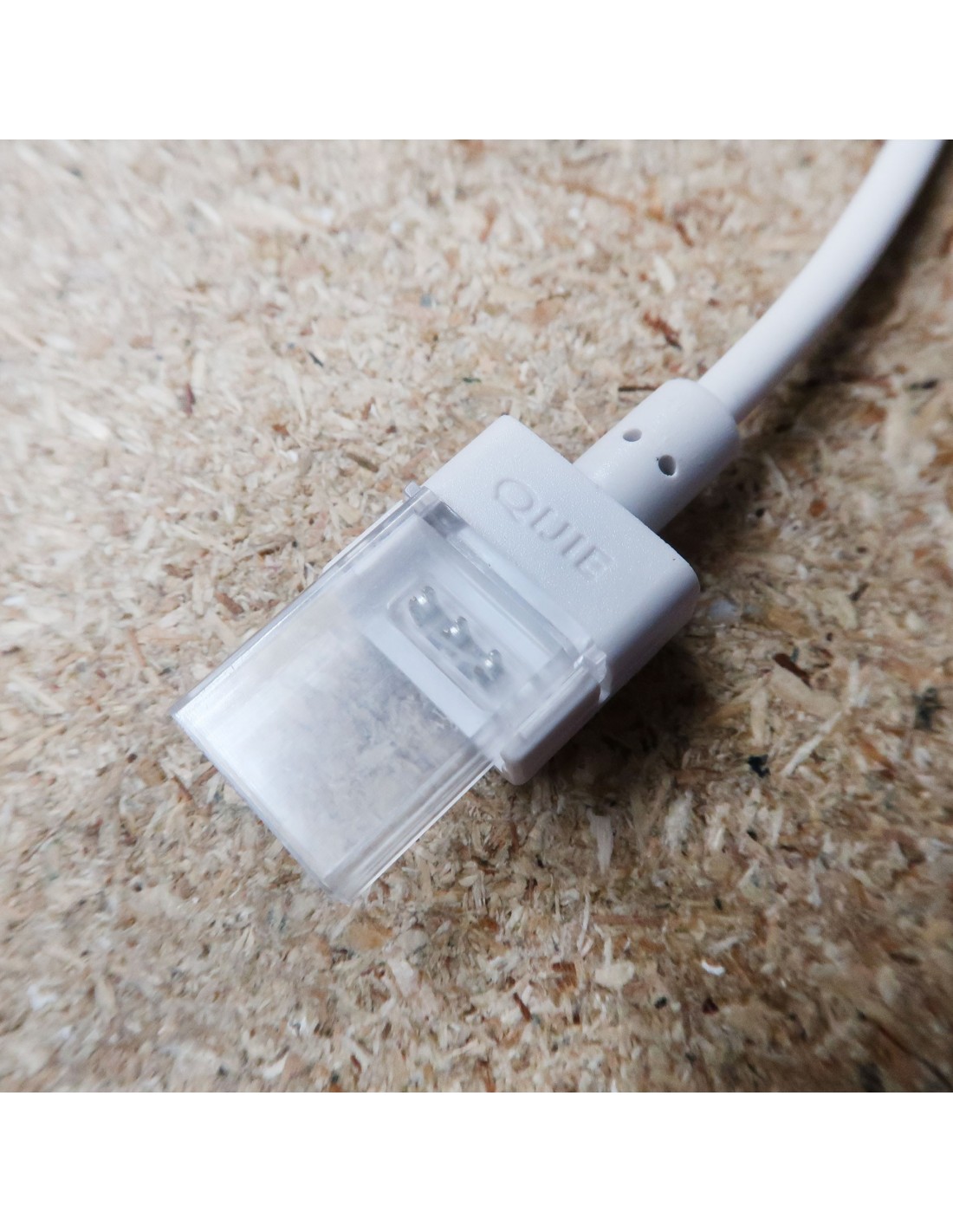

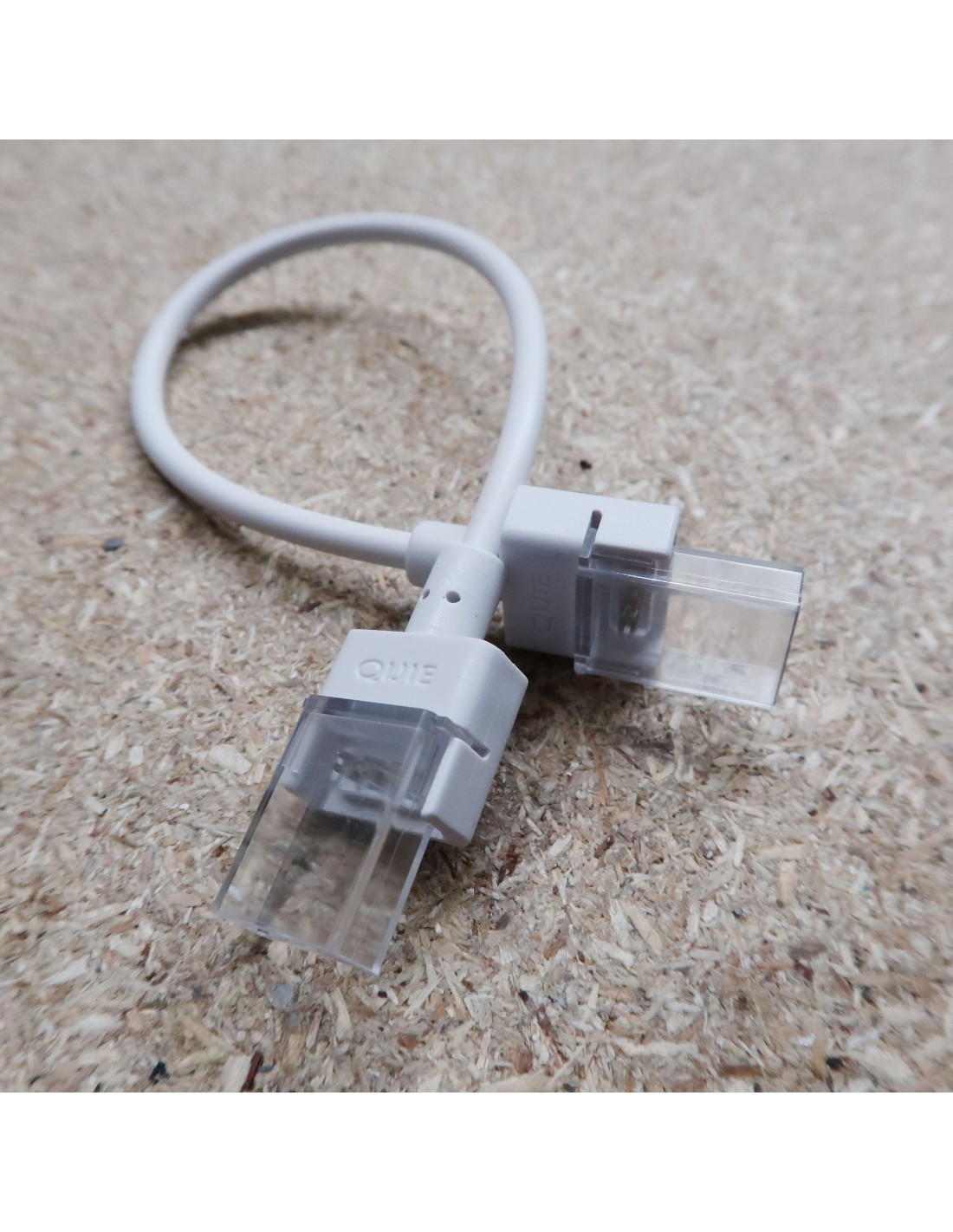

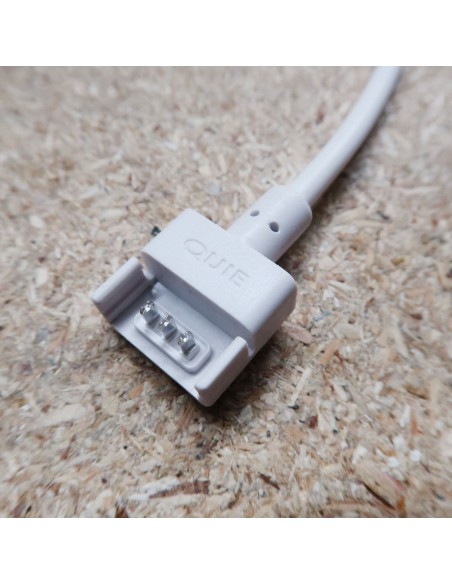

A strip to strip 200mm wire extension bridge designed for 12mm wide 3 pin IP68 LED strip lights

Cut and bridge IP68 waterproof LED strip without removing surface coating gel in seconds

This is a very high quality strip to strip 200mm wire bridge suitable only for 12mm wide IP68 tunable white or digital Pixel LED strips.

Compatible with 30-120 LEDs/m IP68 3 pin LED strips (10mm pcb strip width / 12mm total width).

Connectors made of flame retardant material and supports high current LED strips!

The IP68 connectors are suitable for use with the gel coated (PU) 12mm IP68 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP54/65 or IP67).

­­­

Take care: Although simple to use, IP68 connectors should still be carefully applied. We recommend that when you make a cut, you leave additional copper for the connection to be fully made. Failing to do this may cause the strip to not function correctly.

To find out more, please see our article HERE and refer to the video also included on this page.

______________________________

Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!

______________________________



Technical Data

Size: L16mm X W18mm X H6mm

Extension wire lead length: 200mm bridge (3*20AWG/0.52mm2)

Colour: Transparent with white base

Number of Pin: 3

Suitable for Hi-Line's IP68 12mm 3 pin strip lights

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Package: 1pcs
