Cut Anywhere Free-Cut COB LED Strip – 400 LEDs/m – 3000K Warm White 5m Reel

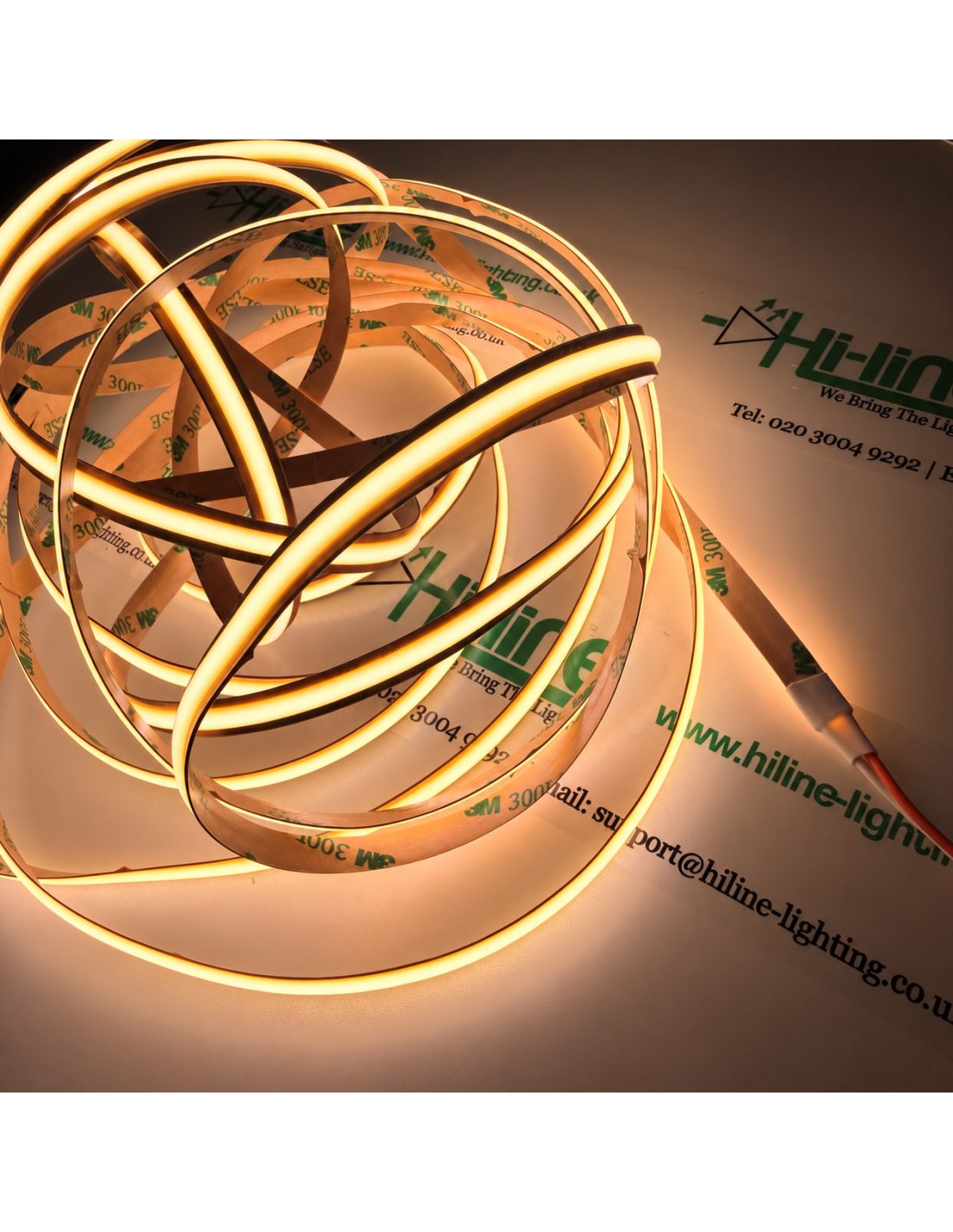

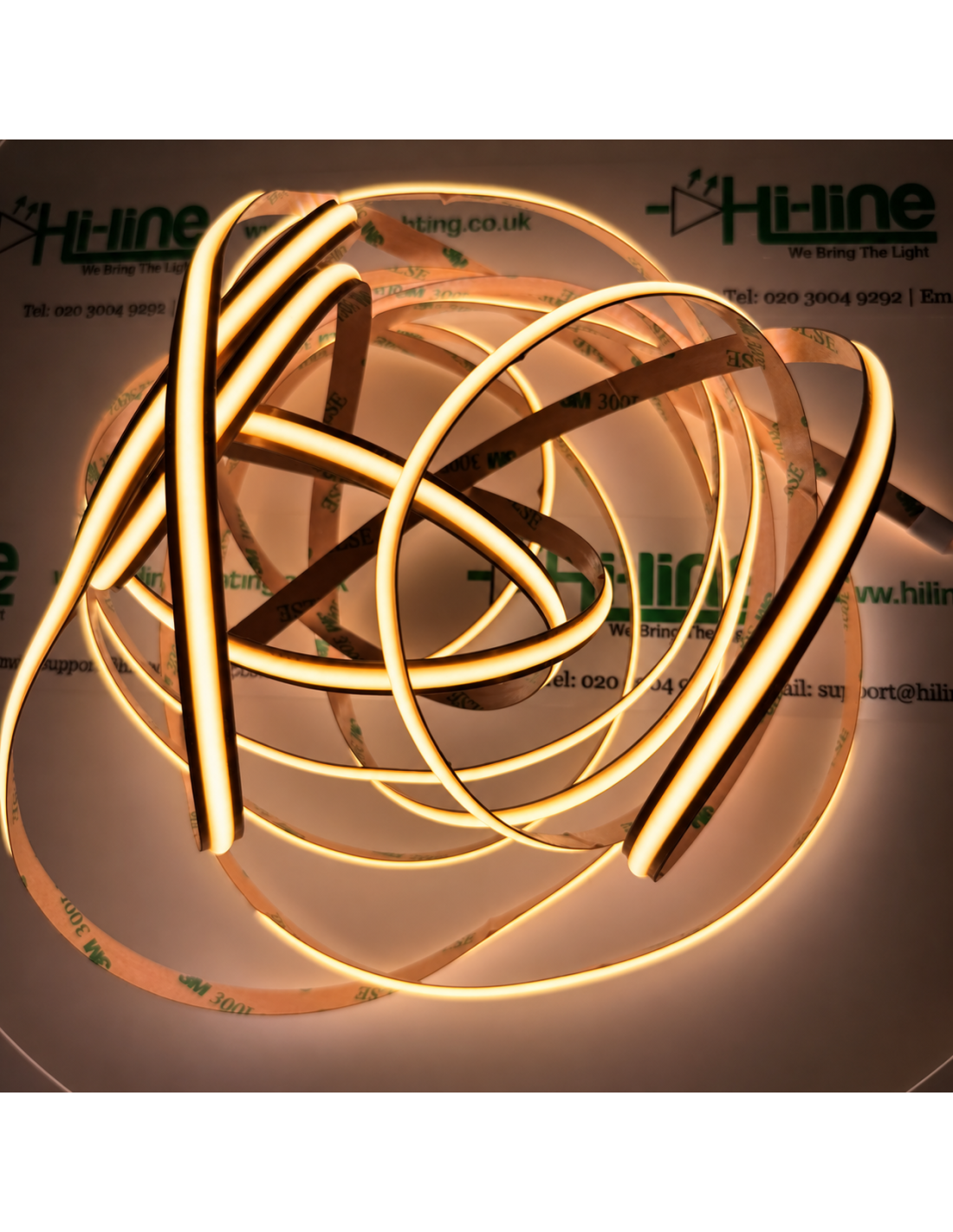

A 24 V COB LED strip with 400 LEDs per metre and Cut Anywhere / free-cut construction. The continuous phosphor layer lets you cut the reel at any point along its length. To the eye the lit line is one even band, without separate dots.
Key features
Cut Anywhere / free-cut – Cut at any point along the reel.
400 LEDs per metre – COB chips under a continuous phosphor layer.
3000K warm white – Warm white for indoor coves, shelves and joinery.
8 W per metre – The full 5 metre reel draws 40 W. Size the 24 V driver for the length you install.
24 V constant voltage – Run from a 24 V constant-voltage supply. It dims with a compatible 24 V low-voltage dimmer.

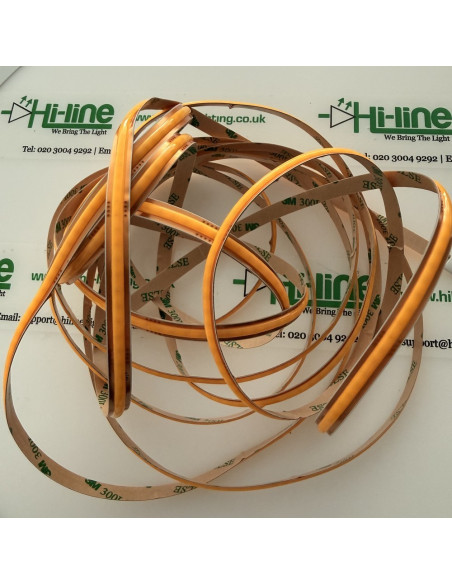

8 mm board with 3M adhesive backing. A 2-pin lead is fitted.
5 metre reel – A shorter reel for small runs.
IP00 – Indoor use. A driver is not included. Warranty 5 years.
Typical applications
Shelf, wardrobe and joinery lighting where the run has to finish on an exact length.
Cove and pelmet lighting on shorter walls.
Indoor display and feature runs.
Technical specifications
Voltage: 24 V DC, constant voltage.
LED density: 400 COB LEDs per metre.
Colour temperature: 3000K warm white.
Power: 8 W per metre. Full reel: 40 W.

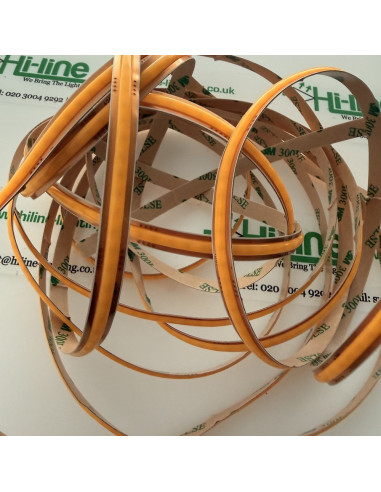

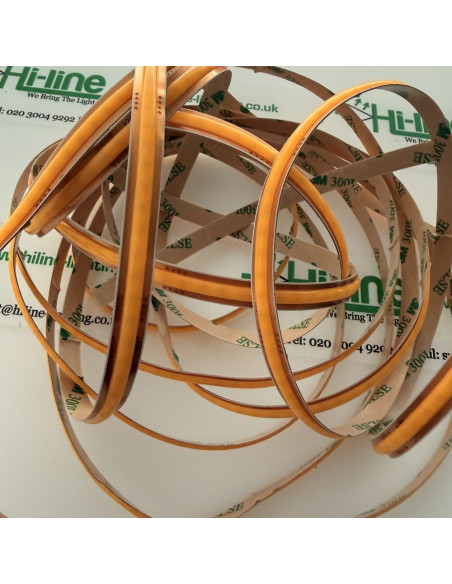

Board width: 8 mm, with 3M adhesive.
Cut: Cut Anywhere / free-cut, at any point along the reel.
Reel length: 5 metres.
Lead: 2-pin. Driver not included.
IP rating: IP00, indoor.
Warranty: 5 years.
Mounting: Fix the strip to an aluminium profile or flat bar so the board can shed heat.
The same 400 LED Cut Anywhere strip is also listed as a 20 metre 6000K cool white reel, HL-COB400CW6K-IP00-8MM-20M. That reel is a different colour, not a longer length of this warm white.
Matching 8 mm connectors (2-pin, single colour)
This strip is 8 mm wide and 2-wire / single colour. Use the 8 mm COB connectors in Related Products. Do not use 10 mm or RGB connectors.
- Strip to power: join the strip to a cable. Pre-wired 15 cm tail HL-COB8-SP-IP00, screw-to-wire HL-SMDCOBT2-SW-8MM, or universal kit HL-COB-CON-UNI-8 (also useful for mid-run power injection).
- Strip to strip (straight): join two cut ends. Seamless joint HL-COB8-SS-IP00, or screw join HL-COBSMD-A8-IP00.
- Strip to strip with a short cable: 150 mm bridge HL-COB8-SSW-IP00.
- Corners: L-shape clip HL-COB8-L2-IP00, or L/T screw block HL-LT2-COB8-IP00.
These connectors are for indoor use, as this IP00 strip is. Open Related Products to add them.
