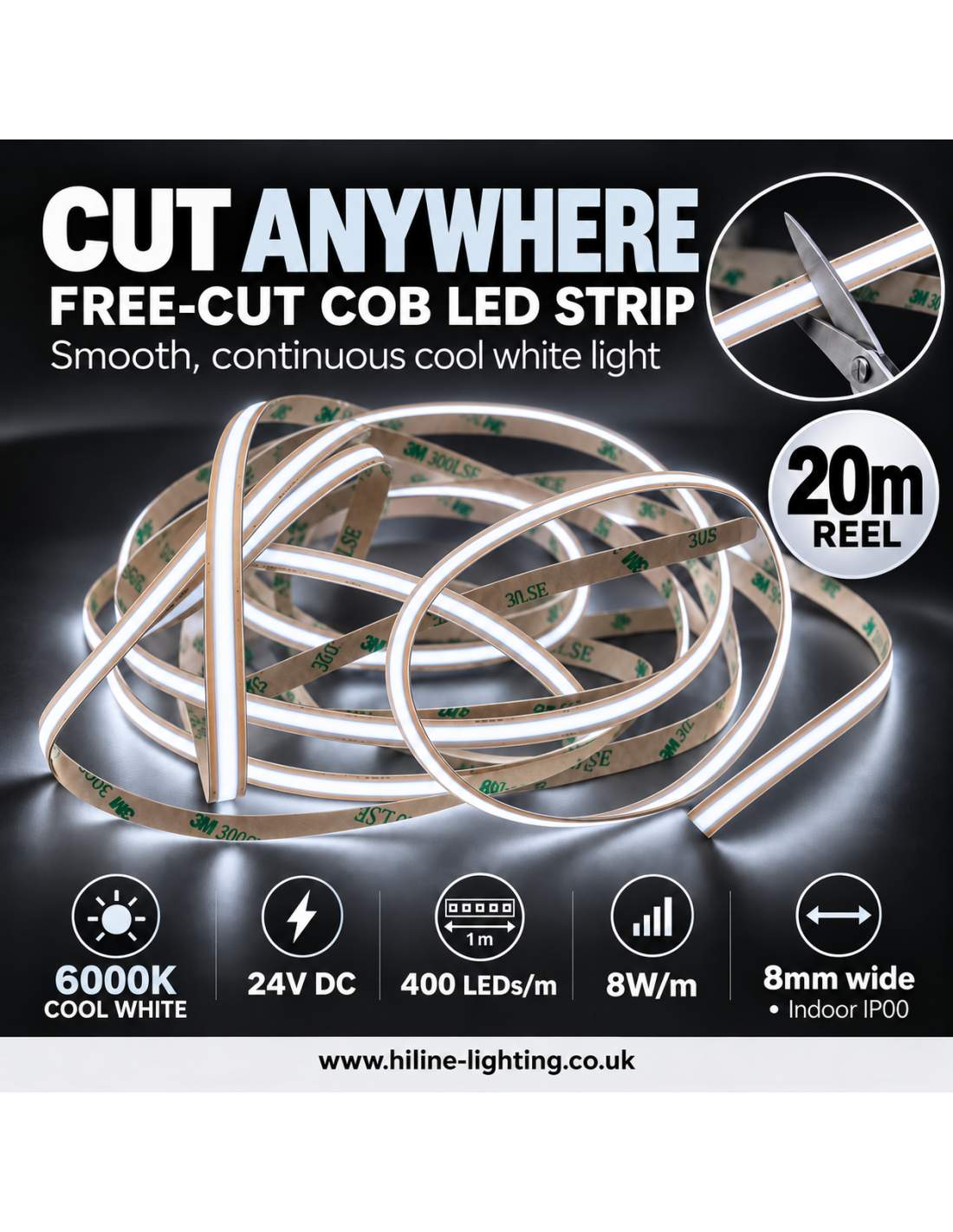

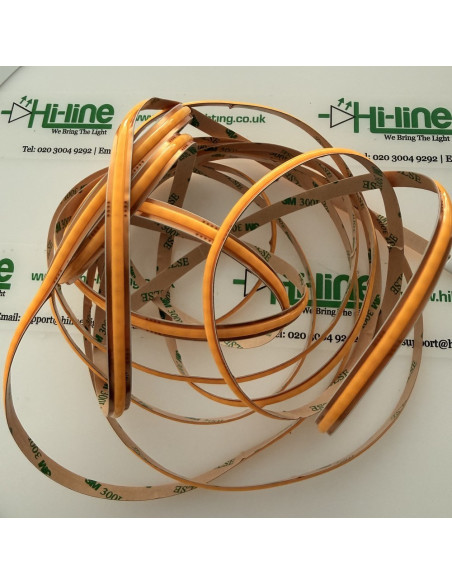

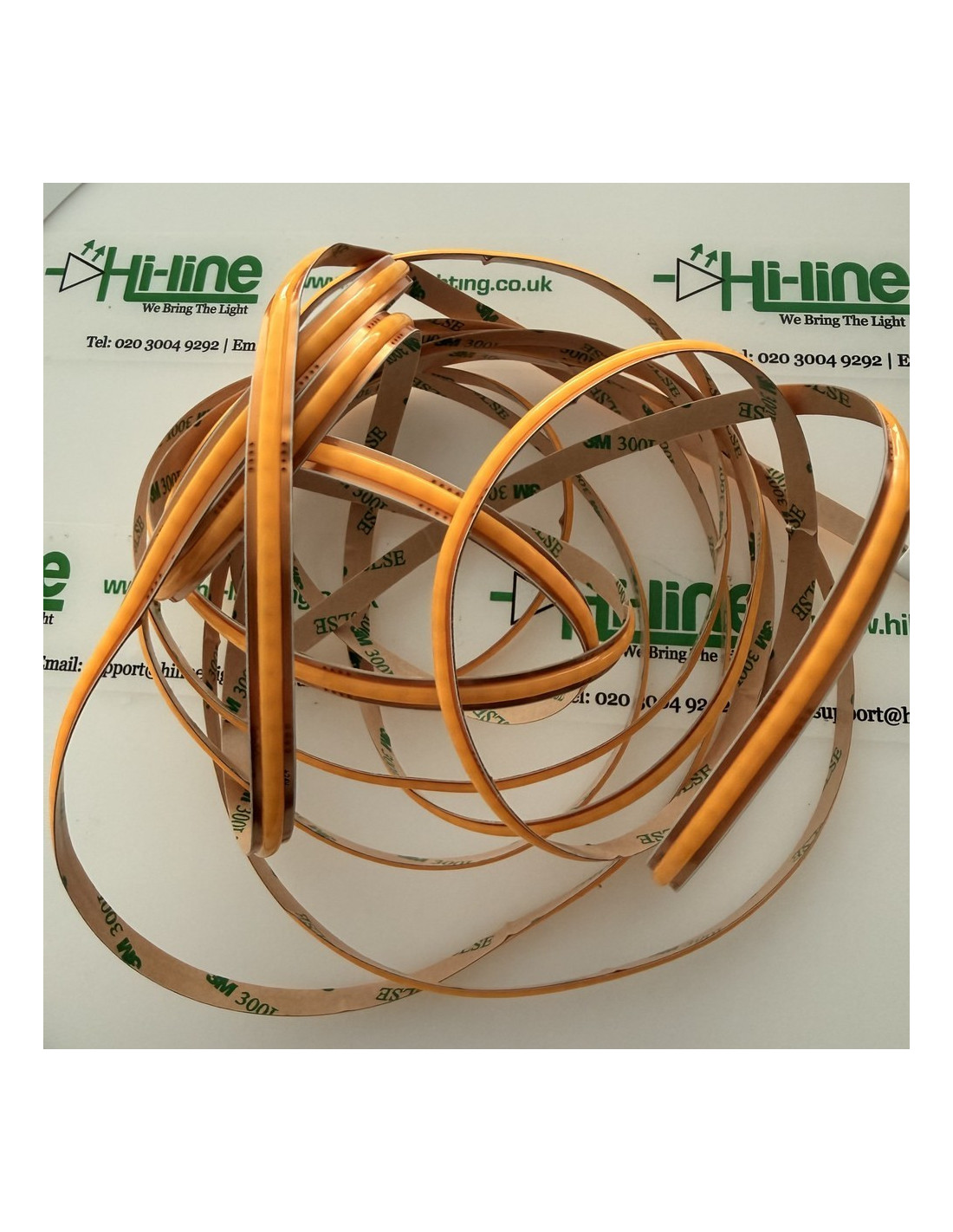

Cut Anywhere Free-Cut COB LED Strip – 400 LEDs/m – 6000K Cool White 20m Reel
A 24 V COB LED strip with 400 LEDs per metre and Cut Anywhere / free-cut construction. The continuous phosphor layer lets you cut the reel at any point along its length. To the eye the lit line is one even band, without separate dots.
Key features
Cut Anywhere / free-cut – Cut at any point along the reel.
400 LEDs per metre – COB chips under a continuous phosphor layer.
6000K cool white – Cool white for indoor task, display and joinery lighting.
8 W per metre – The full 20 metre reel draws 160 W. Size the 24 V driver for the length you install, and feed a long run from both ends if the far end falls away.
24 V constant voltage – Run from a 24 V constant-voltage supply. It dims with a compatible 24 V low-voltage dimmer.
8 mm board with 3M adhesive backing. A 2-pin lead is fitted.
20 metre reel – A long reel, so a straight run needs fewer joins.
IP00 – Indoor use. A driver is not included. Warranty 5 years.
Typical applications
Longer cove, pelmet and joinery runs where the strip has to finish on an exact length.
Continuous indoor lines that would otherwise need several short reels joined together.
Display and feature lighting on a cool white.
Technical specifications
Voltage: 24 V DC, constant voltage.
LED density: 400 COB LEDs per metre.
Colour temperature: 6000K cool white.
Power: 8 W per metre. Full reel: 160 W.
Board width: 8 mm, with 3M adhesive.
Cut: Cut Anywhere / free-cut, at any point along the reel.
Reel length: 20 metres.
Lead: 2-pin. Driver not included.
IP rating: IP00, indoor.
Warranty: 5 years.
Mounting: Fix the strip to an aluminium profile or flat bar so the board can shed heat. On a long run, feed power from both ends if the far end dims.
The same 400 LED Cut Anywhere strip is also listed as a 5 metre 3000K warm white reel, HL-COB400WW3K-IP00-8MM-5M. That reel is a different colour, not a shorter length of this cool white.
Matching 8 mm connectors (2-pin, single colour)
This strip is 8 mm wide and 2-wire / single colour. Use the 8 mm COB connectors in Related Products. Do not use 10 mm or RGB connectors.
- Strip to power: join the strip to a cable. Pre-wired 15 cm tail HL-COB8-SP-IP00, screw-to-wire HL-SMDCOBT2-SW-8MM, or universal kit HL-COB-CON-UNI-8 (also useful for mid-run power injection).
- Strip to strip (straight): join two cut ends. Seamless joint HL-COB8-SS-IP00, or screw join HL-COBSMD-A8-IP00.
- Strip to strip with a short cable: 150 mm bridge HL-COB8-SSW-IP00.
- Corners: L-shape clip HL-COB8-L2-IP00, or L/T screw block HL-LT2-COB8-IP00.
These connectors are for indoor use, as this IP00 strip is. Open Related Products to add them.
