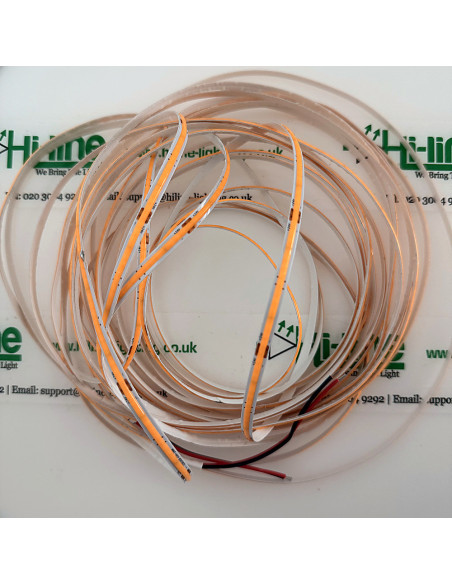

COB LED strip 6000K — 320 LEDs/m — 5 mm — 10 m roll — 24 V DC — IP00

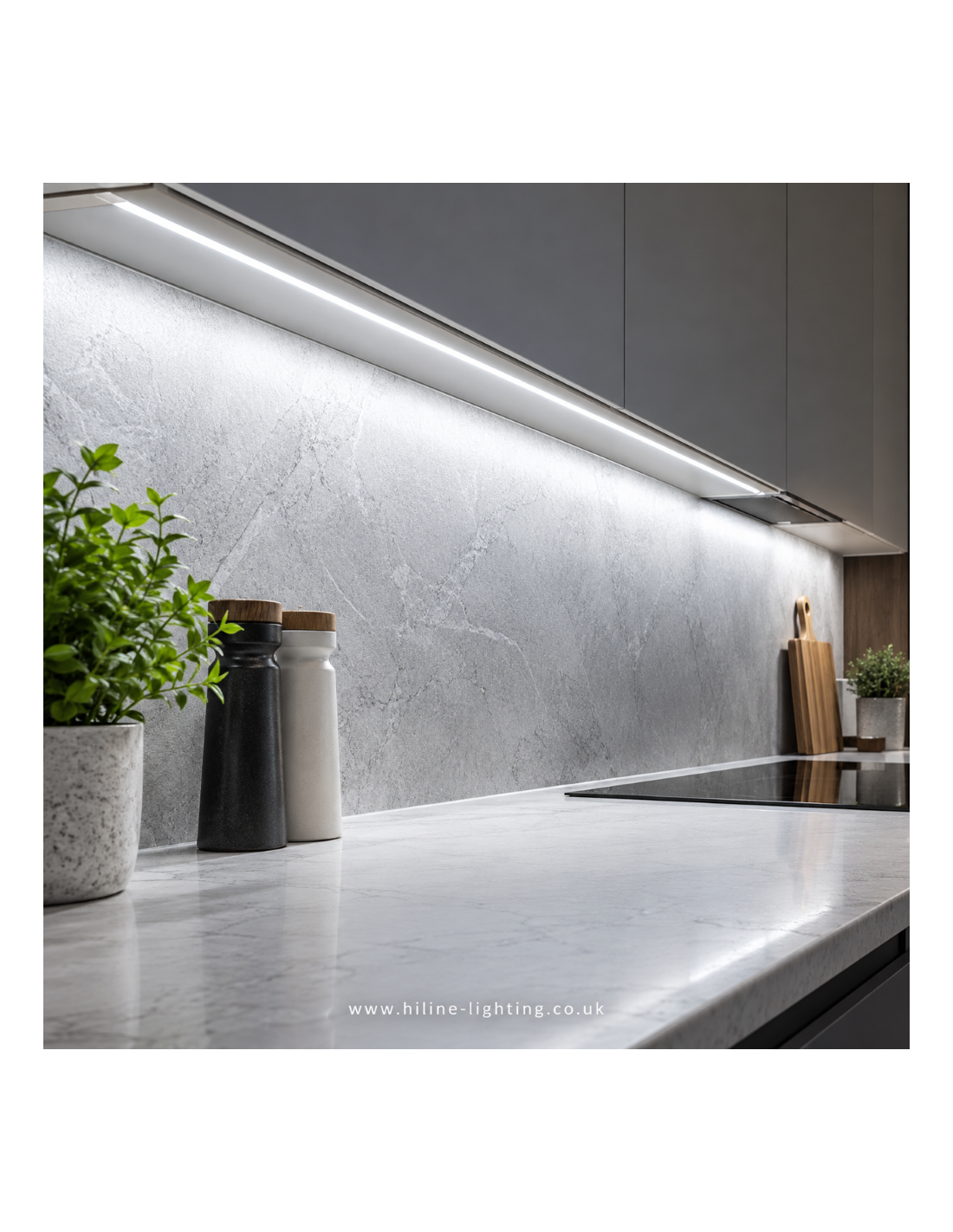

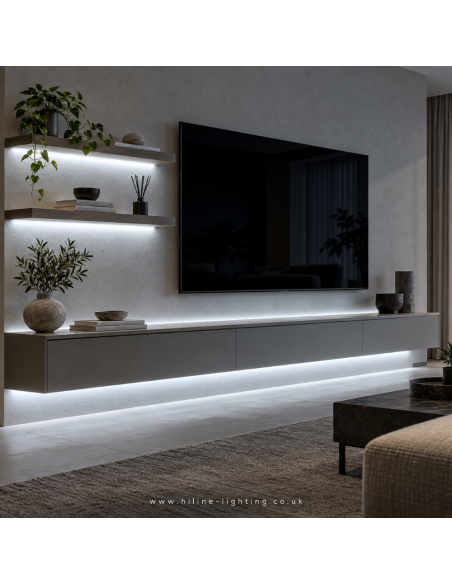

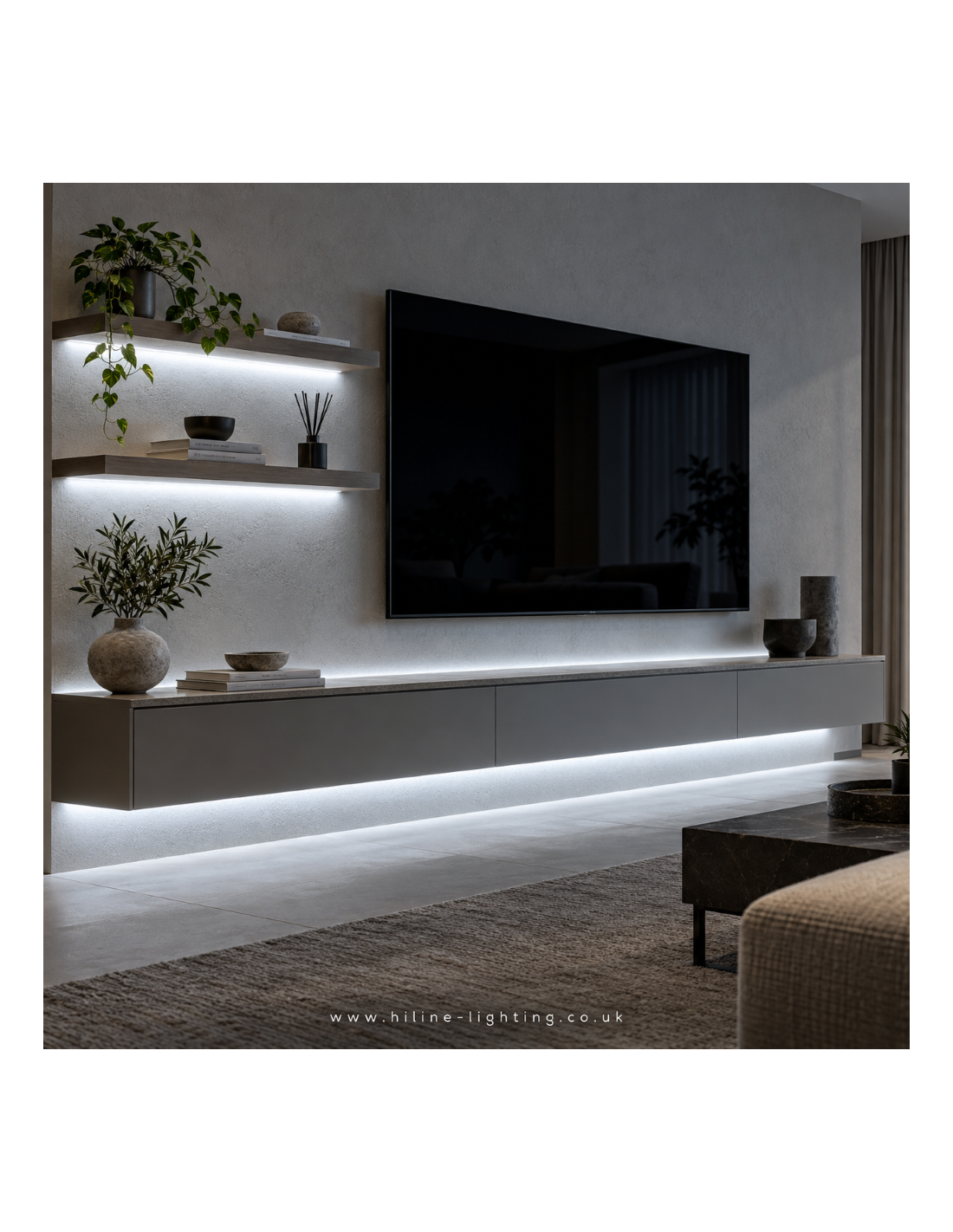

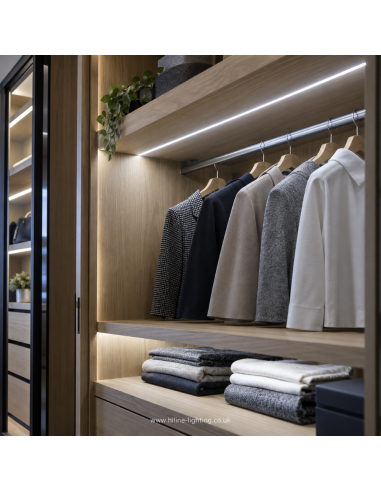

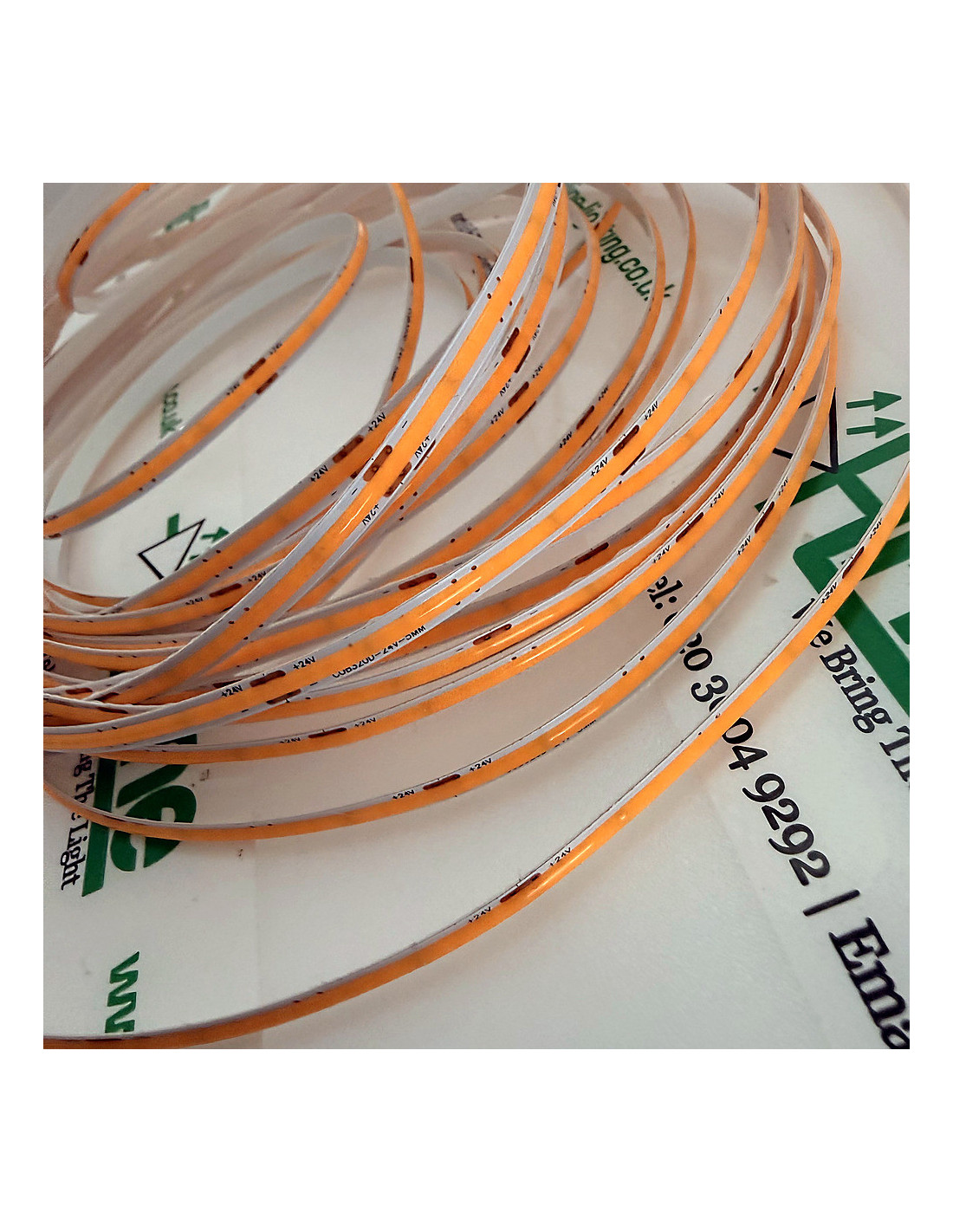

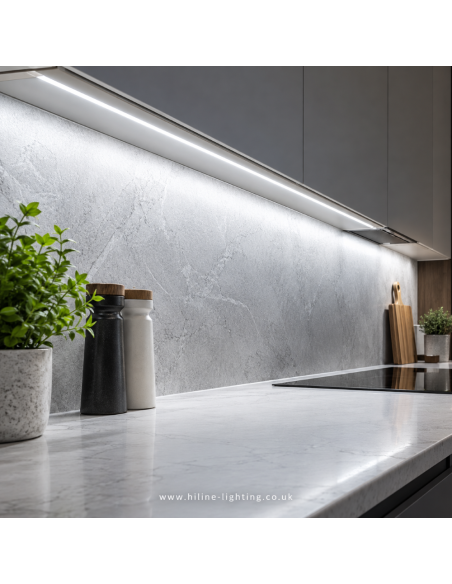

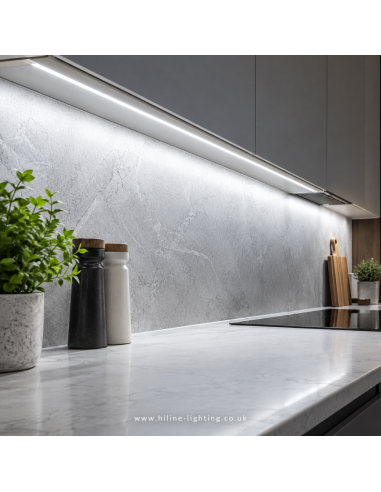

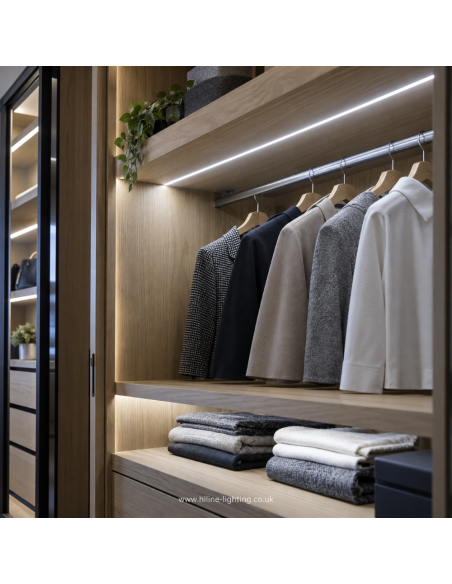

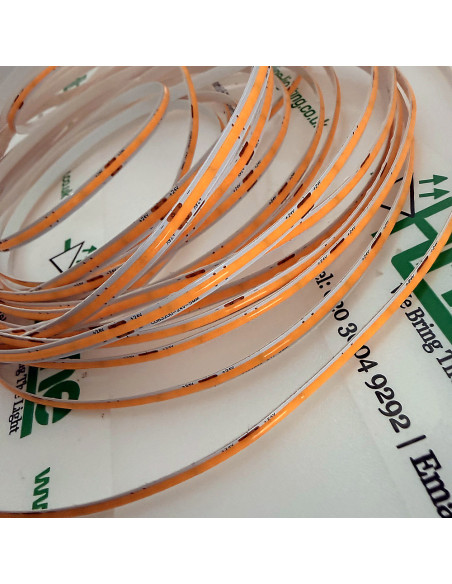

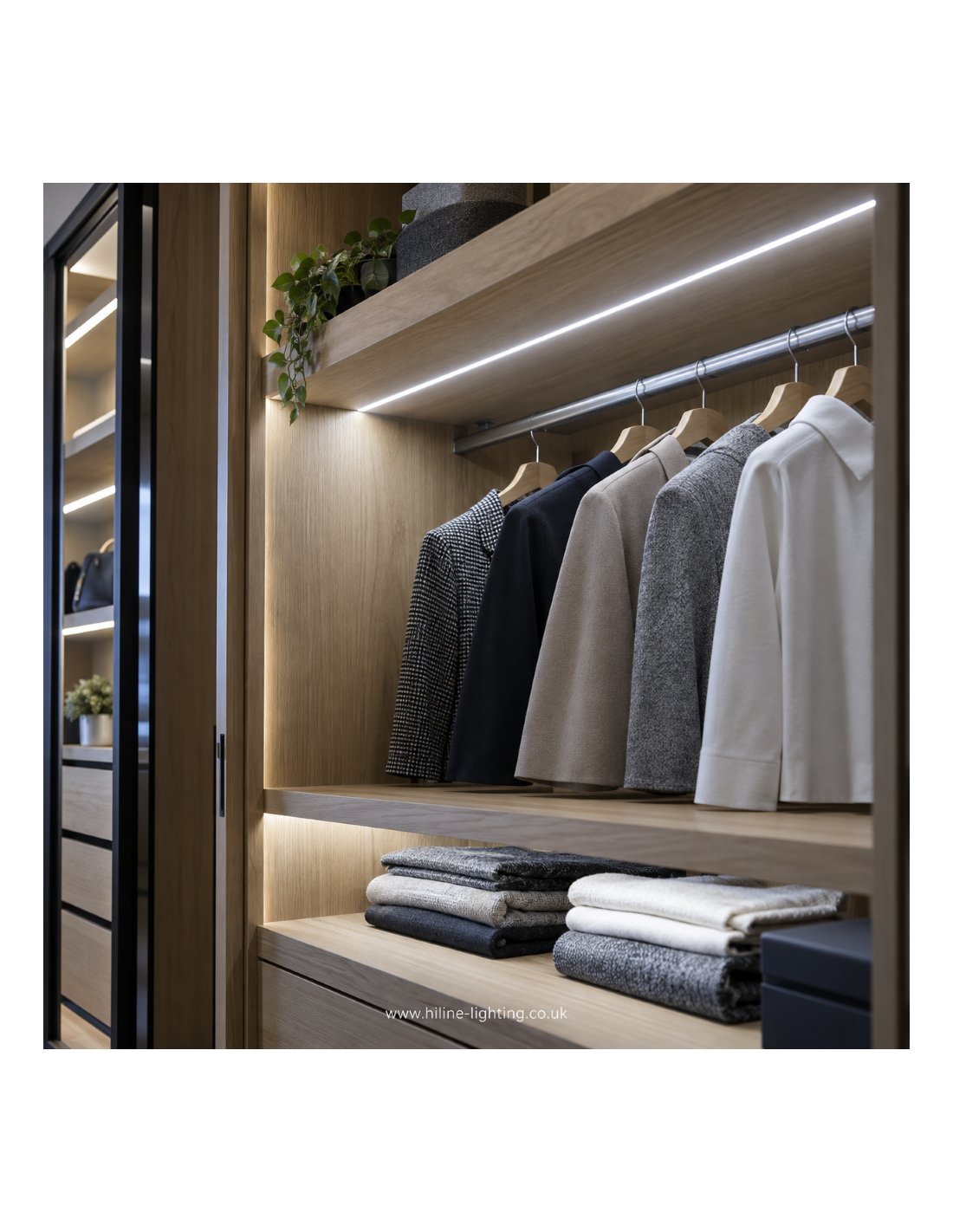

Chip-on-board tape with a continuous phosphor line. 320 LEDs per metre on a 5 mm PCB gives a single ribbon of light rather than a row of dots. The 5 mm width is intended for tight aluminium profiles, coving, shelves and other indoor runs where a standard 8–10 mm tape will not sit.
6000K cool white. 24 V DC constant voltage. 8 watts per metre for driver sizing (80 W for the full 10 m roll). A 24 V 100 W constant-voltage PSU is the usual match; 150 W if you want more headroom. PWM-dimmable with a 24 V single-colour controller — matching drivers and controllers are under Related Products.
Wattage. 8 W per metre is the most this strip can draw. We measure a short length at a full 24 V, before any voltage drop, and that is the figure for the driver and the cable. At 24 V it is 0.33 A per metre. A full reel, power from one end only, or cable that is too thin will draw less than 8 W per metre, and the far end will be dimmer. It will not draw more than this. Watts are not a brightness ranking between different strips: a high-efficiency strip can give more light from fewer watts.
The same 10 m reel is also sold in 3000K warm white: HL-COB320D-24-5MM-WW-10M.

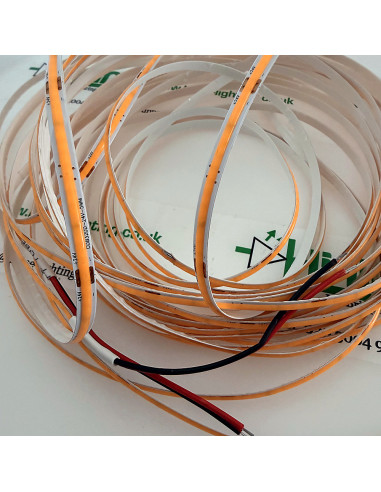

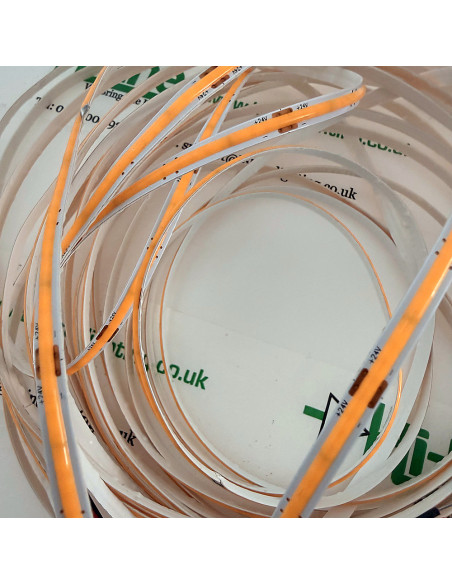

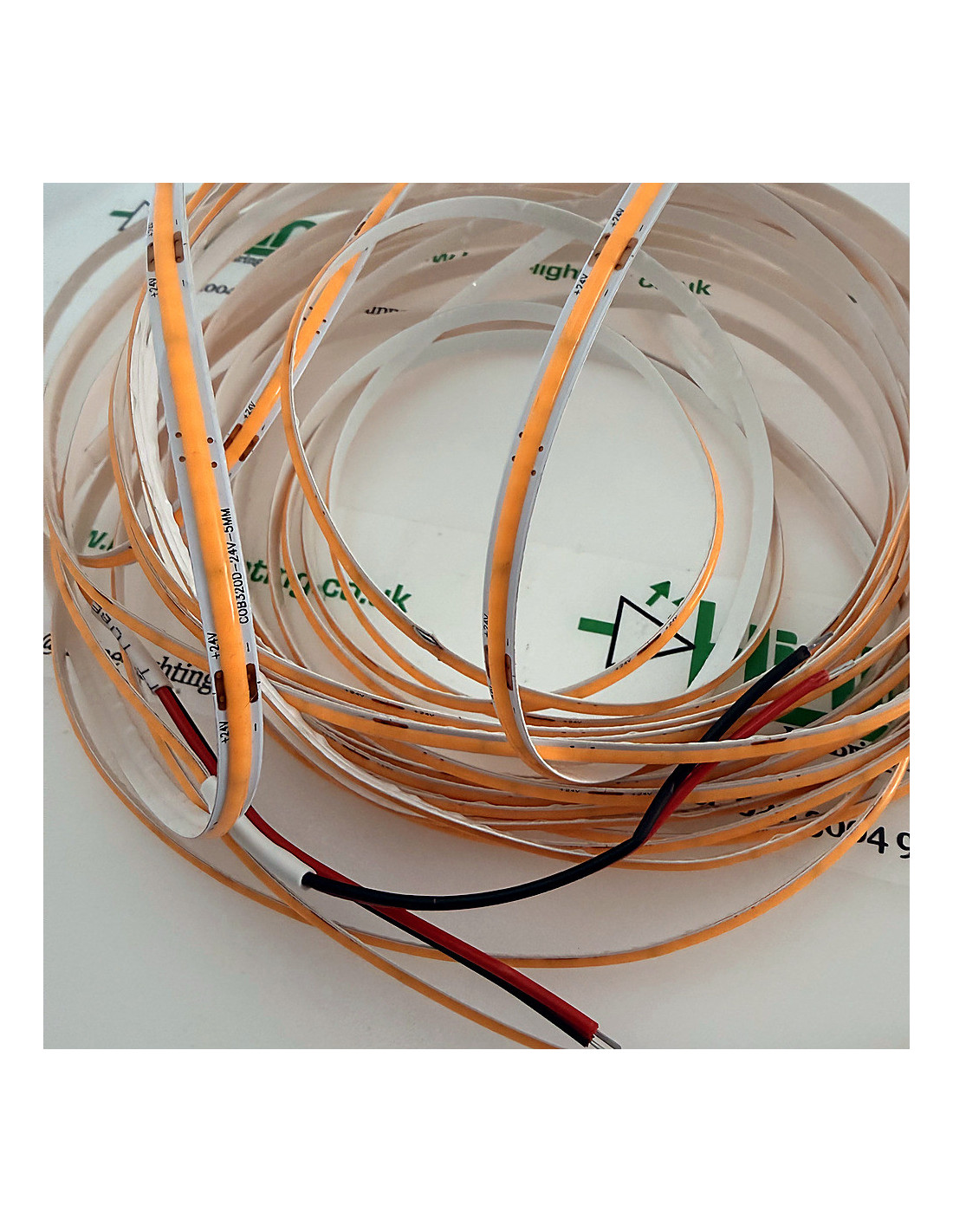

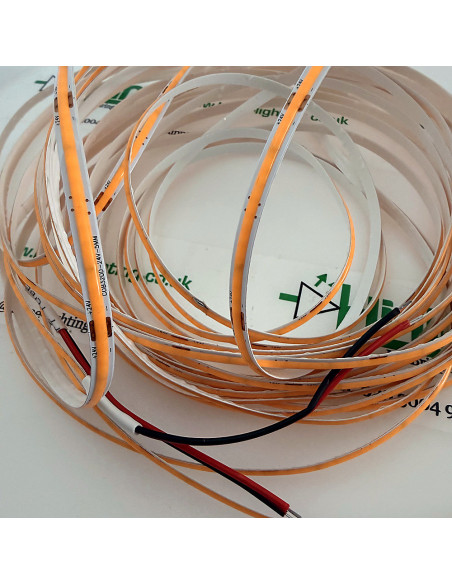

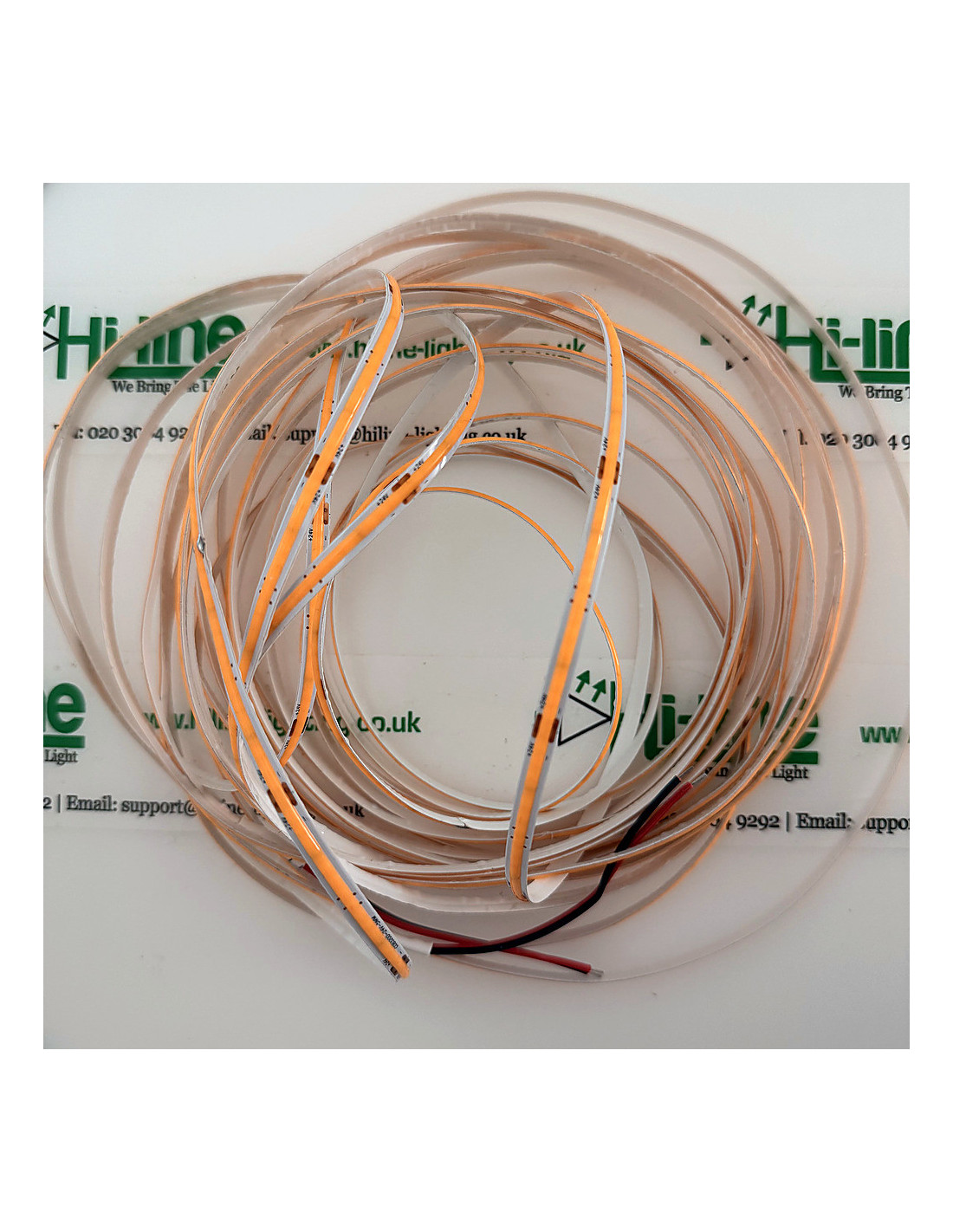

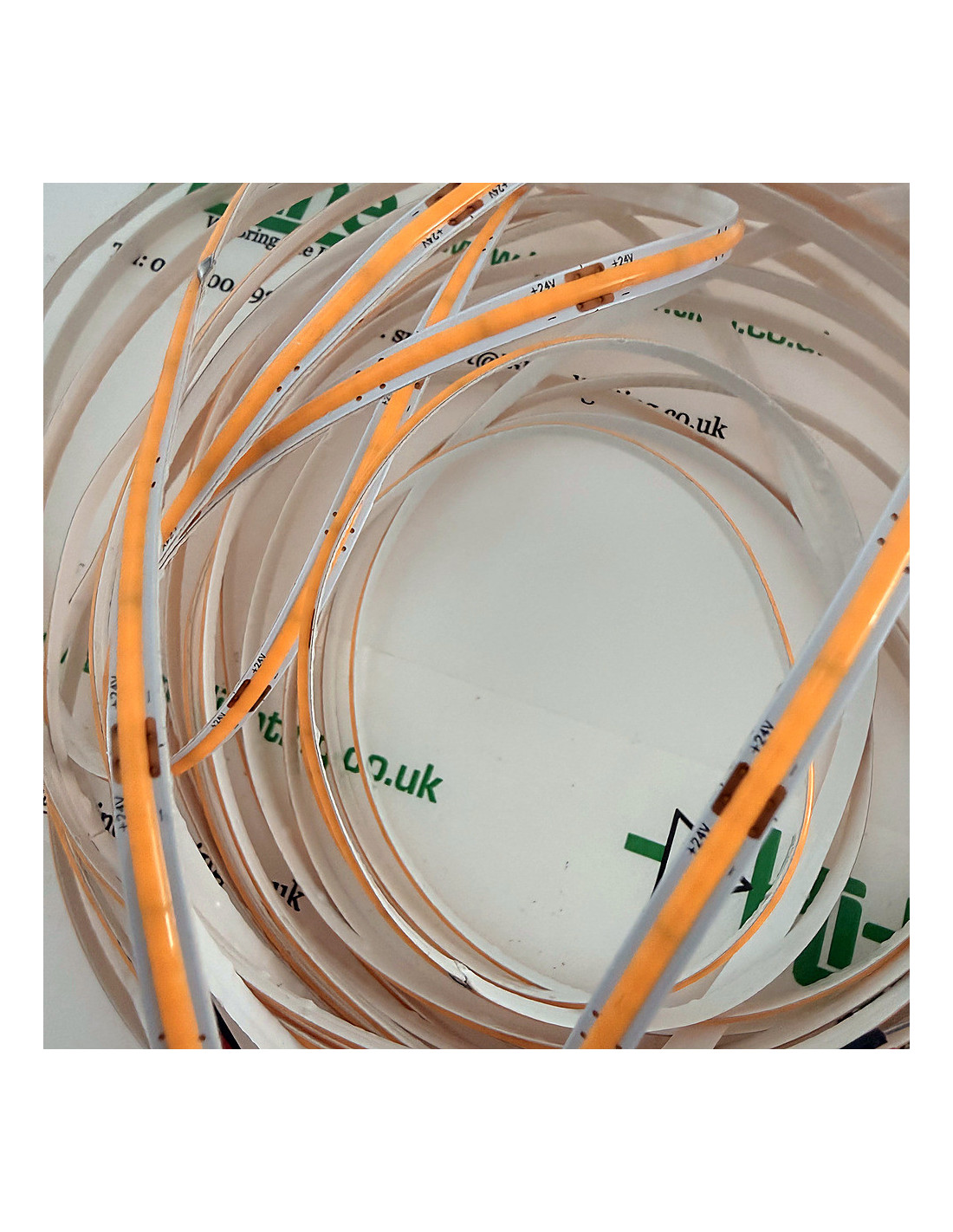

Cut on the marked pads every 50 mm. Tails are soldered red / black; the PCB is printed +24V. Self-adhesive backing. Indoor use only (IP00). Mount on aluminium where possible — 8 W/m still needs a heat path.
On a 10 m run, inject 24 V at both ends, or from the centre. One-end feed will run at this voltage and wattage; both-end injection is the correct practice for a full roll if you want even brightness end to end.
Technical specifications
Reference: HL-COB320D-24-5MM-CW-10M
Barcode: 5060440719790
LED type: COB (chip-on-board)
LED density: 320 LEDs per metre
Colour temperature: 6000K cool white
Voltage: 24 V DC constant voltage
Power: 8 W/m (PSU sizing)
Width: 5 mm
Length: 10 m roll
Cut interval: 50 mm
IP rating: IP00, indoor
Dimming: constant-voltage PWM
Warranty: 5 years — LED strip warranty guide
