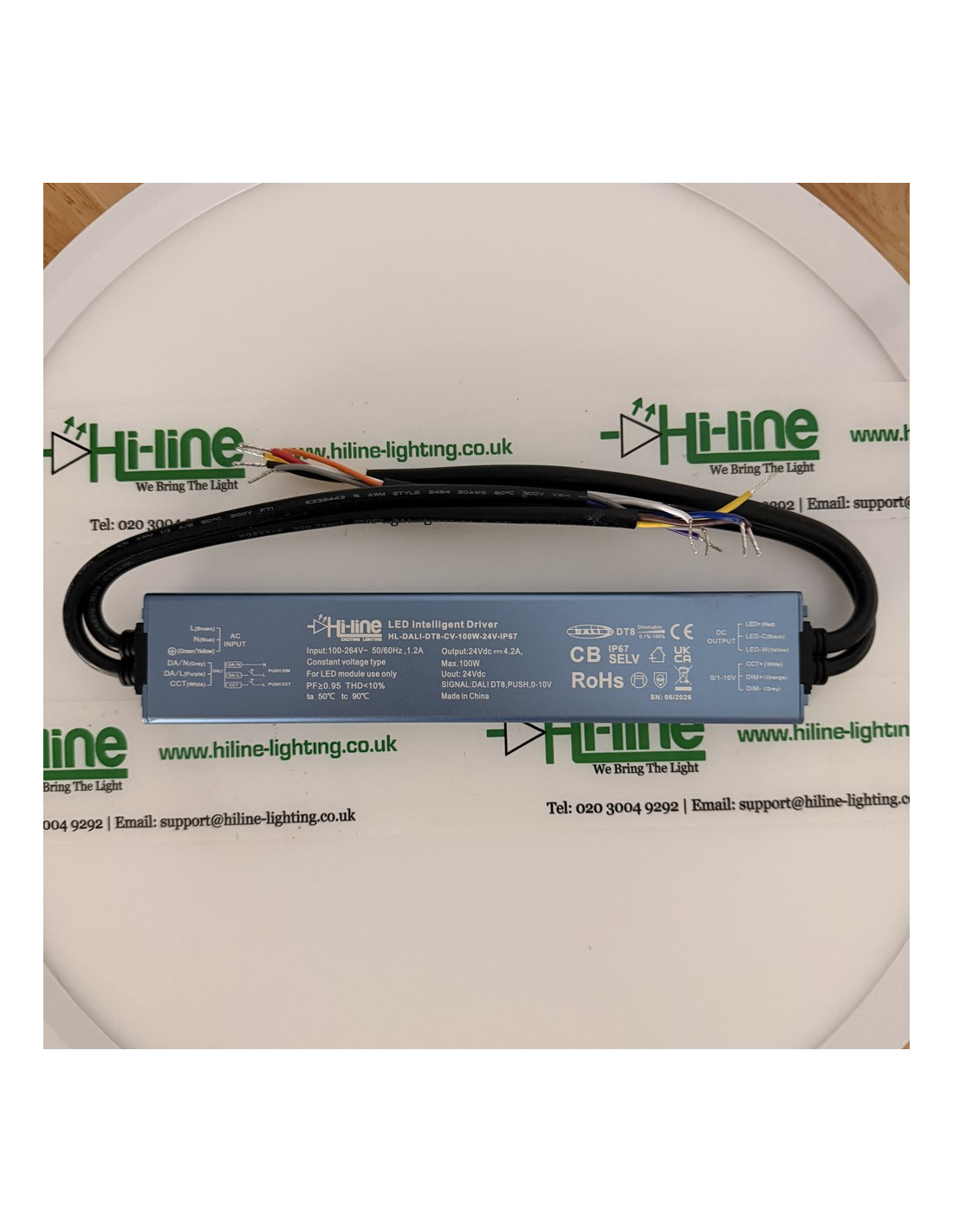

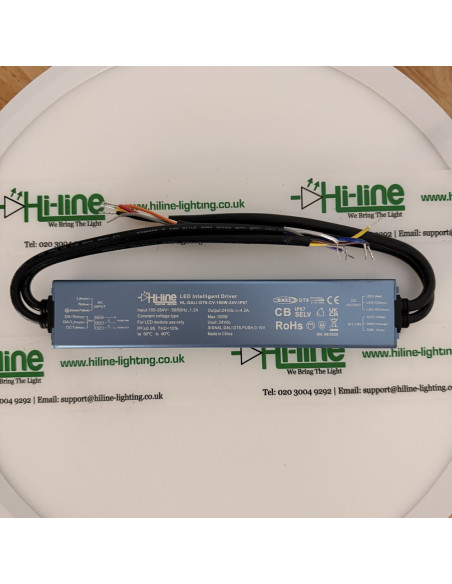

100 W DALI-2 DT6/DT8 constant-voltage driver, 24 V
HL-DALI-DT8-CV-100W-24V-IP67 is a 100 W constant-voltage LED driver for 24 V strip. The 24 V output is 24 V DC ± 0.6 V, 4.2 A maximum, 100 W maximum, and it can be loaded anywhere from 0 W to 100 W. Two independent SELV channels share one three-core LED lead, common anode. The housing is IP67, 317 × 35 × 18 mm, and the driver weighs 465 g ± 10 g.
DT6 is the dimming mode for a single-colour strip: the bus sets brightness. DT8 is the tunable-white mode: the same class of DALI-2 control sets brightness and colour temperature together. The colour-temperature range is 2700 K to 6500 K. The driver is a constant-power design, so a change of colour temperature holds the same brightness.
Control inputs
The driver accepts the following control inputs.
| DALI-2 DT6 | Brightness for a single-colour strip |
|---|
| DALI-2 DT8 | Brightness and colour temperature together, 2700 K to 6500 K |
|---|
| 0–10 V | Analogue voltage |
|---|
| 1–10 V | Analogue voltage |
|---|
| Push DIM and Push CCT | Retractive switch |
|---|
Where DALI and Push DIM/CCT are both connected, the driver reads DALI first, then Push DIM/CCT. 0–10 V and 1–10 V are not given a priority. Dimming does not operate when the supply is DC. The output is PWM at 4000 Hz, with no strobe. That 4000 Hz output sits in the high-frequency exemption region of IEEE 1789. The flicker chart marks the exemption from 3125 Hz, and the plotted point on the chart is 3500 Hz. Dimming is 0–100%, with a start level and a dimming depth of 0.1%.
This driver is not a mains phase-cut dimmer. Leading-edge and trailing-edge are not control inputs.
Push DIM and Push CCT
Each function uses a retractive switch.
Push DIM. A short press turns the light on or off. A long press dims steplessly. The next long press reverses the direction. When the light is turned on, it returns to the brightness that was set last.
Push CCT. A short press steps the colour temperature. A long press changes the colour temperature steplessly, and the next long press reverses the direction. A short press on the Push DIM switch returns both brightness and colour temperature to the values that were set last.
The number of colour-temperature steps is not stated, and separate Kelvin figures are not given. The working range remains 2700 K to 6500 K.
Output wiring

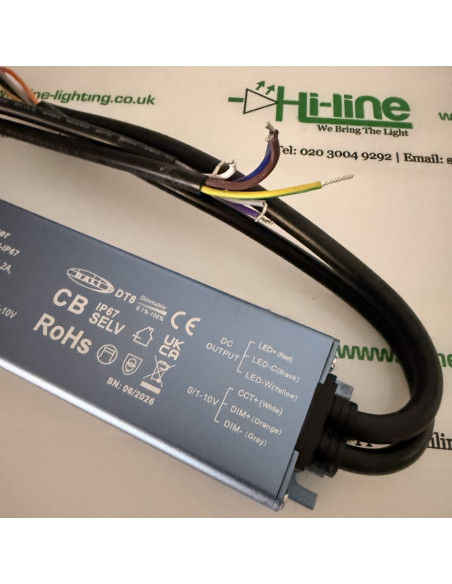

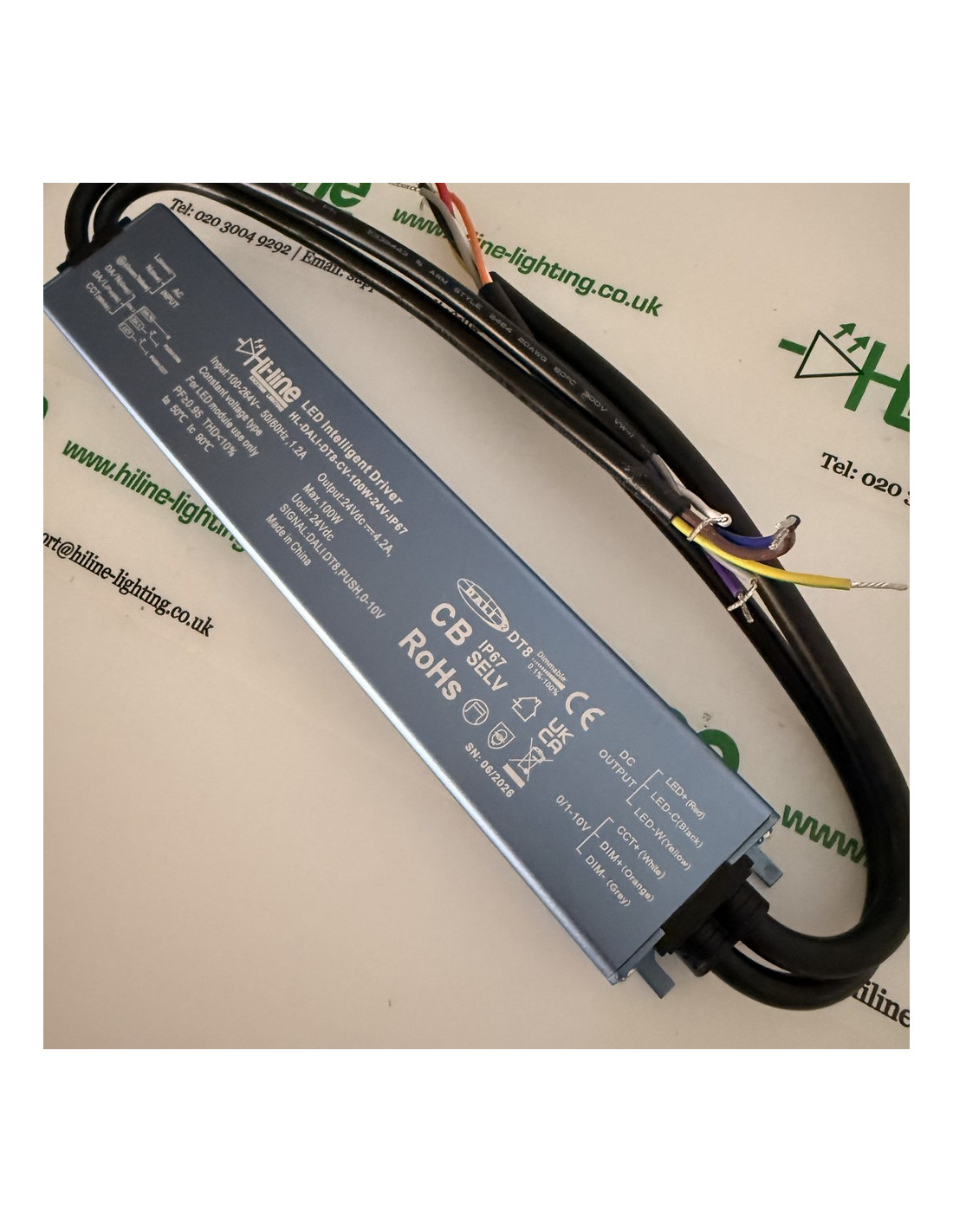

The LED lead is three-core, common anode, for a tunable-white strip. Warm and cool are the two SELV channels. Dimming runs 0–100%, and colour temperature runs 2700 K to 6500 K. The datasheet drawing shows an earlier lead arrangement. The colours printed on the housing are the ones to use.

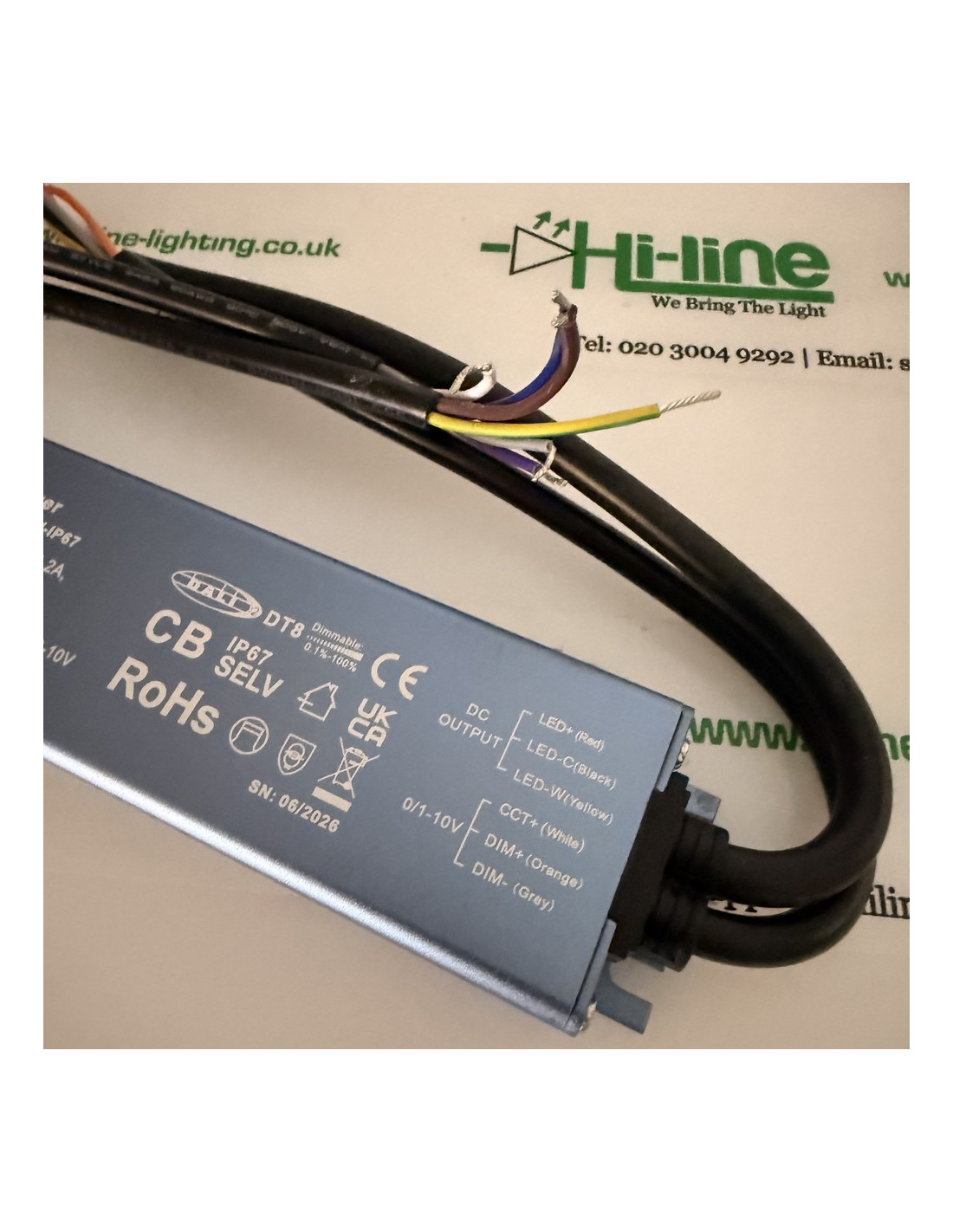

| LED+ | Red, common positive |
|---|
| LED− cool | Black, printed LED-C |
|---|
| LED− warm | Yellow, printed LED-W |
|---|

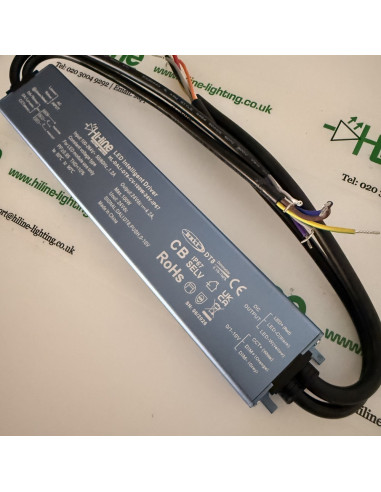

| 0–10 V / 1–10 V | CCT+ white, DIM+ orange, DIM− grey |
|---|
| LED lead | 0.75 mm², three-core, 250 mm |
|---|
Other leads

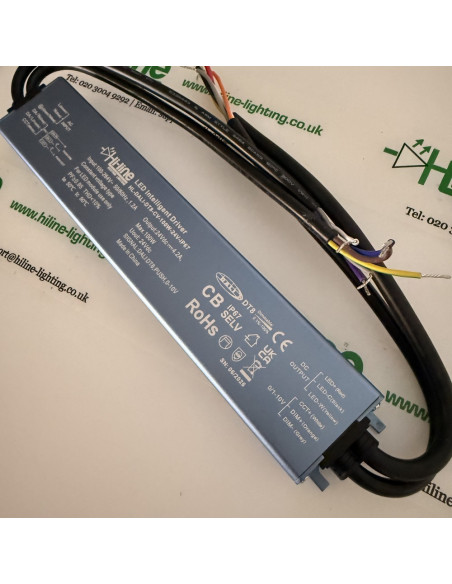

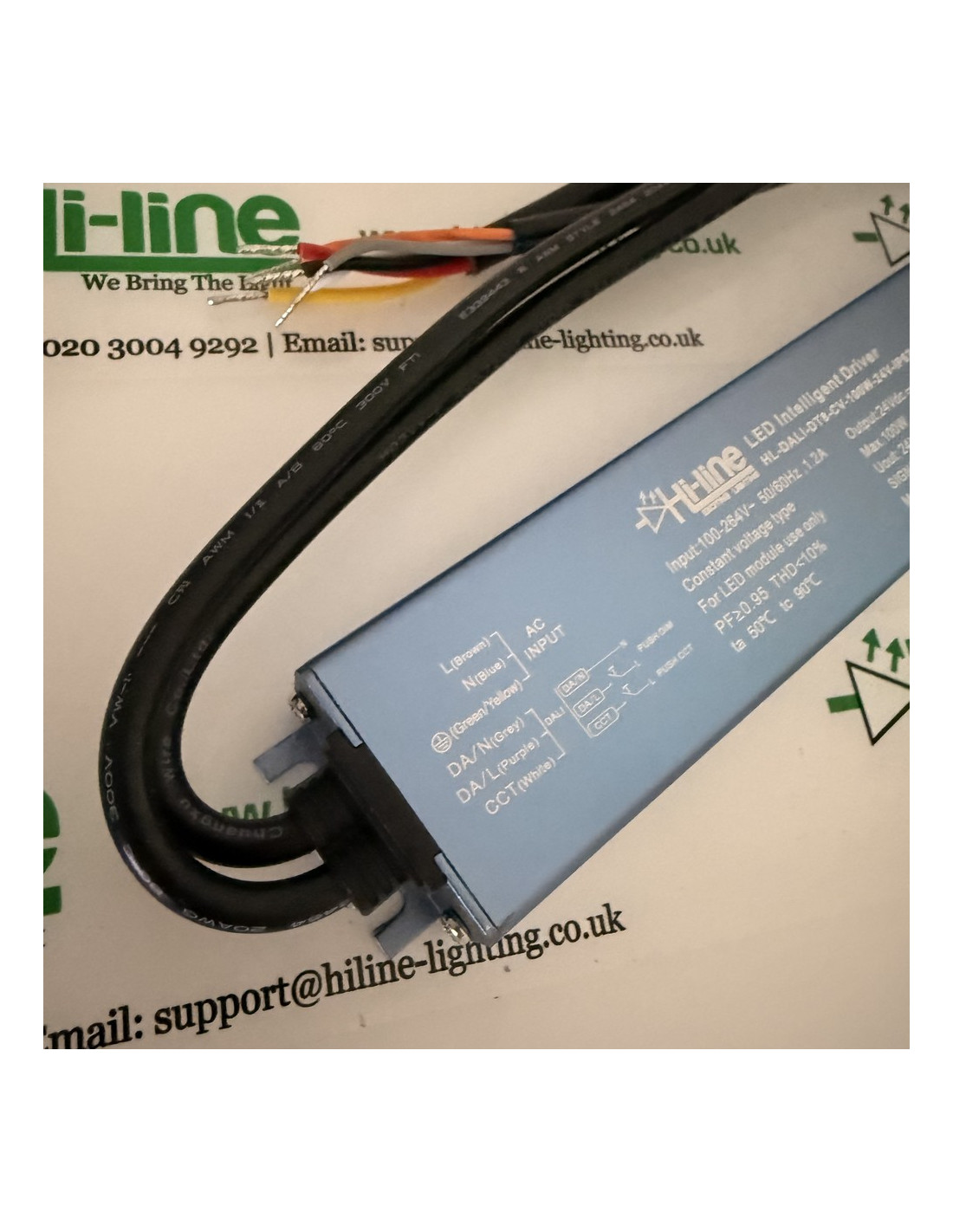

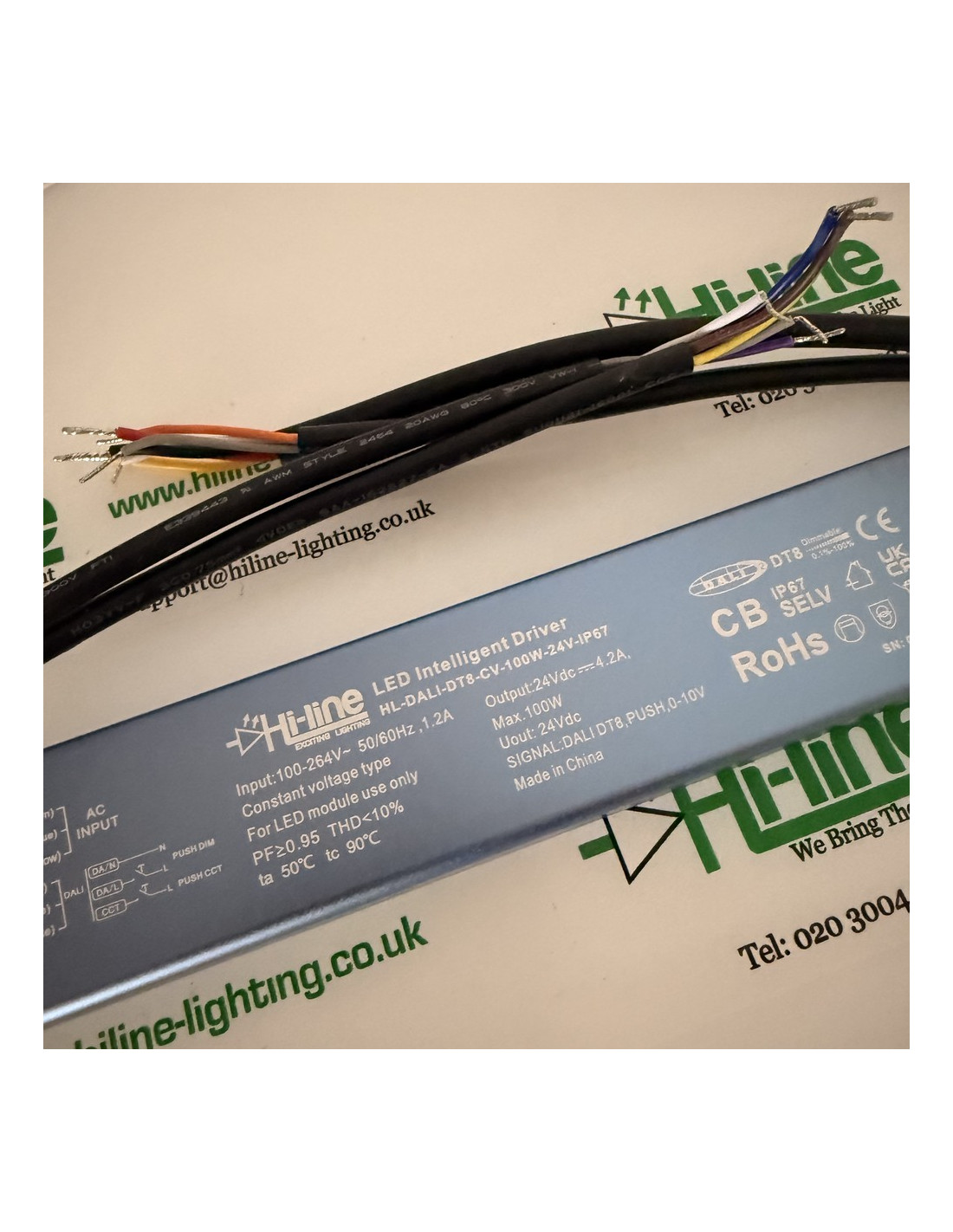

The mains lead, the DALI/DIM lead and the LED lead are each 0.75 mm², three-core, 250 mm. DALI leaves the input end. The 0–10 V and 1–10 V cores leave the output end, in the colours above.

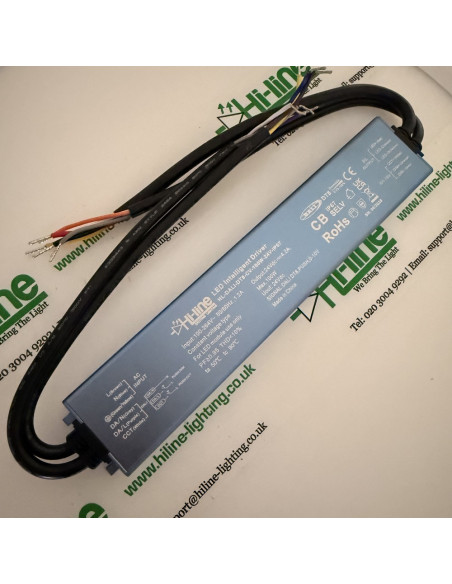

| Mains | 0.75 mm², three-core, 250 mm. Brown live, blue neutral, green/yellow earth. |
|---|

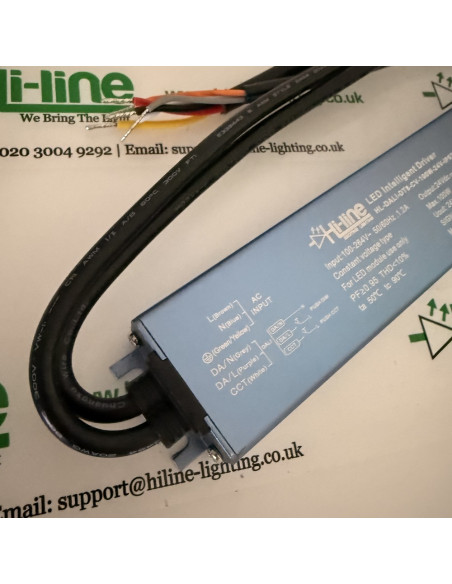

| DALI | 0.75 mm², three-core, 250 mm. DA/L purple, DA/N grey, CCT white. |
|---|

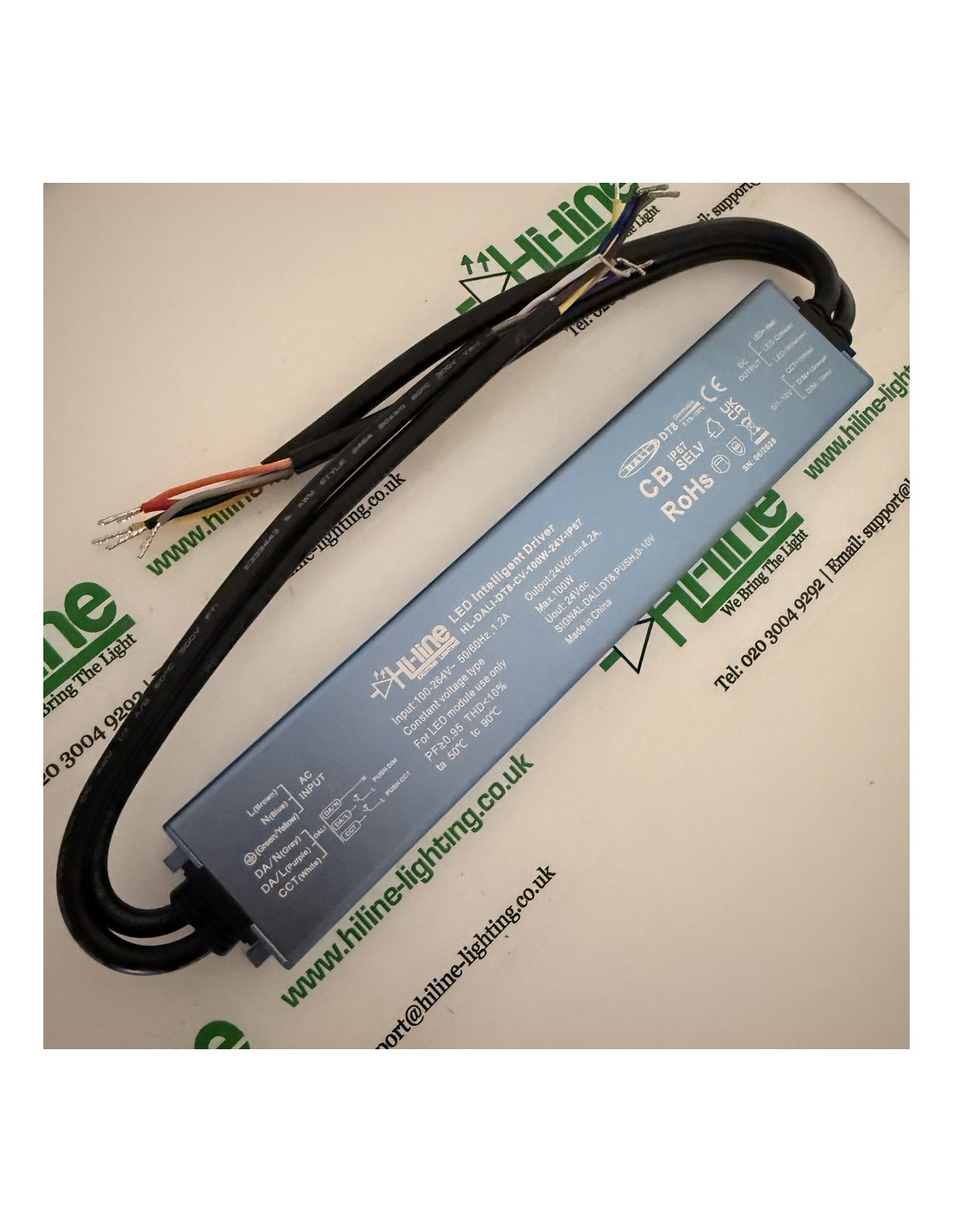

Connect live, neutral and earth to the supply. Use the DALI pair for a DALI line. The retractive switches use the Push DIM and Push CCT terminals on the input end. The 0–10 V and 1–10 V signal uses the white, orange and grey cores at the output end. The load and the control method belong to the installation.
Housing

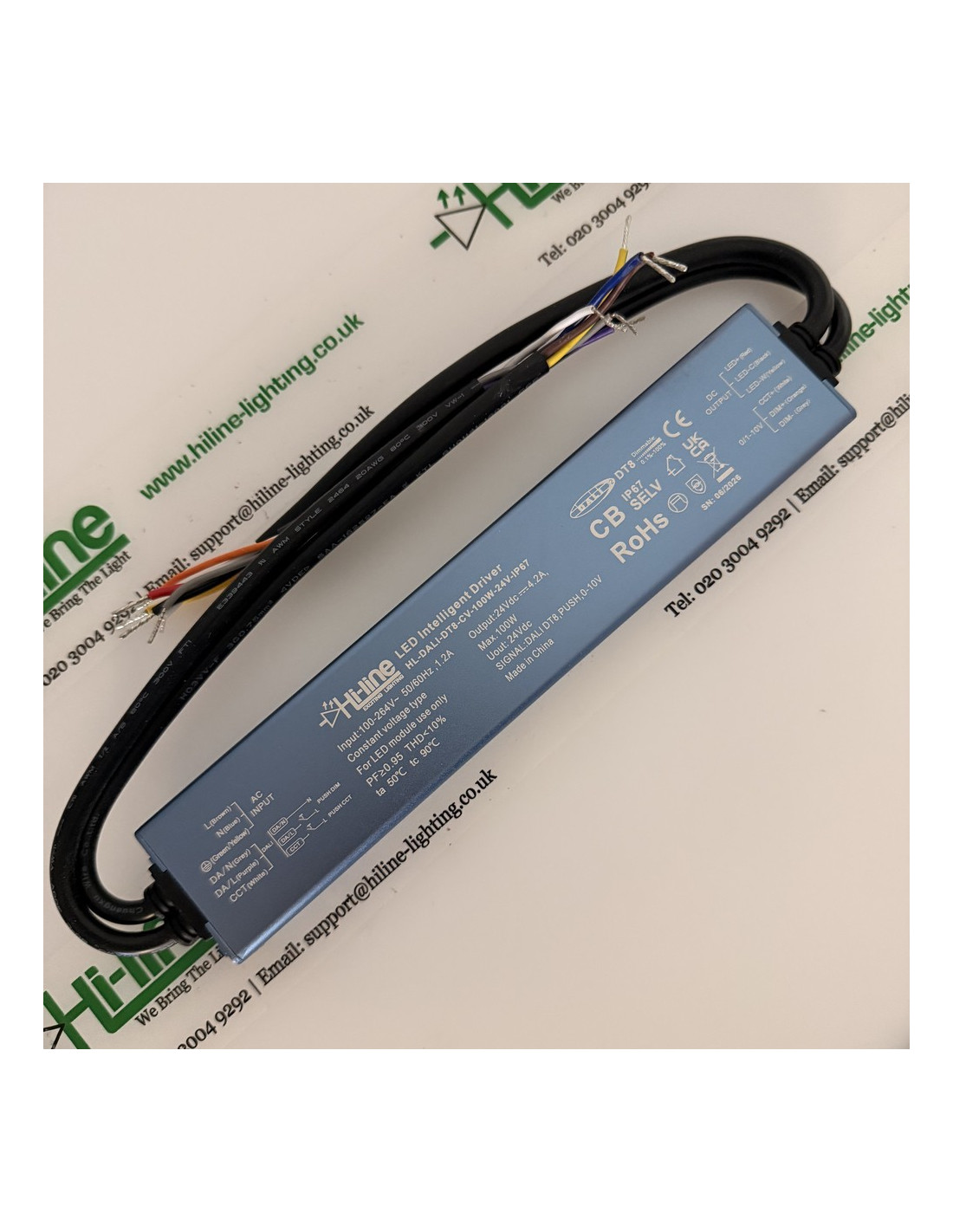

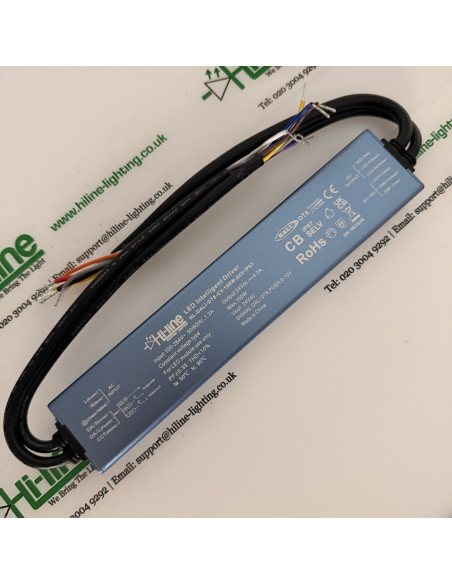

Overall size 317 × 35 × 18 mm (length × width × height). Fixing centres 295 mm. Weight 465 g ± 10 g.
The stated use is internal lighting in Class I, Class II and Class III luminaires. The enclosure rating is IP67.
Technical specification

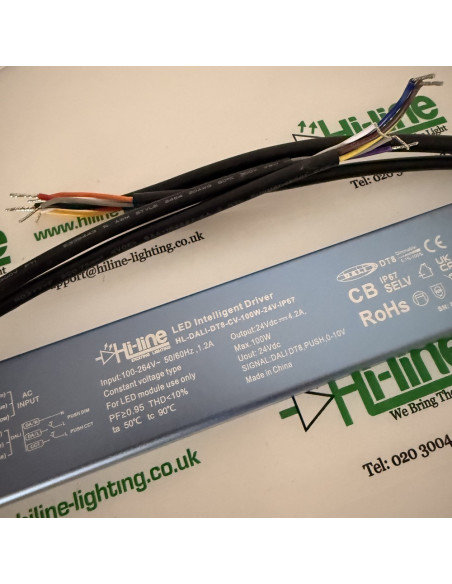

| Output voltage | 24 V DC ± 0.6 V |
|---|
| Output current | 4.2 A maximum |
|---|
| Output power | 100 W maximum, 0 W to 100 W |
|---|
| Channels | Two independent SELV constant-voltage channels, common anode |
|---|
| Ripple and noise | ≤ 240 mV |
|---|
| PWM frequency | 4000 Hz |
|---|
| Dimming | 0–100%, start and depth 0.1%, no strobe |
|---|
| Colour temperature | 2700 K to 6500 K, constant power |
|---|
| Mains input | 100–264 V AC, 50/60 Hz |
|---|
| Input current | 1.2 A to 0.4 A |
|---|
| Power factor | Greater than 0.96 at 230 V AC, full load |
|---|
| THD | 10% or below at 230 V AC, full load |
|---|
| Efficiency | 93% typical. The curve is drawn at 230 V AC, 50 Hz, from 50% load to 100% load |
|---|
| Standby | Below 0.5 W, ERP |
|---|
| Inrush current | Cold start 50 A typical at 230 V AC |
|---|
| Surge | Live to neutral, 2 kV |
|---|
| Leakage current | 0.5 mA maximum |
|---|
| Ambient temperature | ta −25 °C to 50 °C |
|---|
| Case temperature | tc 90 °C maximum |
|---|
| Temperature load | The 230 V curve holds full load up to 50 °C ambient. Above 50 °C the permitted load is reduced. The 115 V curve begins to reduce the permitted load at a lower ambient than the 230 V curve |
|---|
| Working humidity | 20–95% RH, non-condensing |
|---|
| Storage | −40 °C to 80 °C, 10–95% RH |
|---|
| Vibration | 10–500 Hz, 2 g, 12 minutes per cycle, 72 minutes along each of X, Y and Z |
|---|
| Withstand voltage | Input to output, 3750 V AC |
|---|
| Isolation resistance | Input to output, 100 MΩ at 500 V DC, 25 °C, 70% RH |
|---|
| Life | Up to 50,000 hours |
|---|
| Enclosure | IP67. Housing 317 × 35 × 18 mm. Fixing centres 295 mm. Weight 465 g ± 10 g |
|---|
Protection
| Over-temperature | Shuts down the output voltage. Recovers when the mains is switched off and on again. |
|---|
| Over-voltage | Shuts down the output when the unloaded voltage reaches 28 V or more. Recovers when the mains is switched off and on again after the fault has cleared. |
|---|
| Overload | Shuts down the output when the load current reaches 110% or more. Recovers by itself. |
|---|
| Short circuit | When short-circuit protection is triggered, the output is restored by itself after the fault has cleared. |
|---|
Safety and EMC
Safety: IEC/EN 61347-1 and IEC/EN 61347-2-13, and IS 15885 (Part 2/Sec 13). Emission: EN 55015, EN 61000-3-2 Class C, IEC 61000-3-3. Immunity: EN 61000-4-2, 3, 4, 5, 6, 8, 11 and EN 61547. Strobe test: IEEE 1789. The driver is marked CE, CB, SELV, RoHS and UKCA.
Installation is for a qualified electrician. Hi-Line supplies the driver. The circuit, the load and the choice of control input are part of the installation. The datasheet is on the Attachments tab.
