Tunable white LED strip 2in1 LEDs x 120 per meter 19.2W

HL-TW3527-120-IP00-24V

New product

Energy Efficient Dynamic White strip

Tunable CCT: 2700-6500K

24 Volts, 19.2W/m, IP00

120 SMD3527 per meter (2in1 LED chip)

CRI: Ra > 85

More details

65 Items

Same Day Dispatch

£ 85,00

£ 17,00 per meter

Add to wishlist

Data sheet

LED Chip SMD3527 (2in1)
CIE Colour Space 3 SDCM
Voltage 24V DC
Power 19.2 W/m
Brightness 2760 lm/m
Number of LEDs per meter 120
LED Strip Efficiency 143 lm/w
Rating IP00 (Non-waterproof)
Colour rendering (CRI in ra) 80
Width of strip 10mm
Cutting length Every 6 LEDs (50mm)
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

Energy Efficient Dynamic white LED strip powered by 2in1 LED chips (2 chips in 1 LED), designed to high specifications for professional installations.

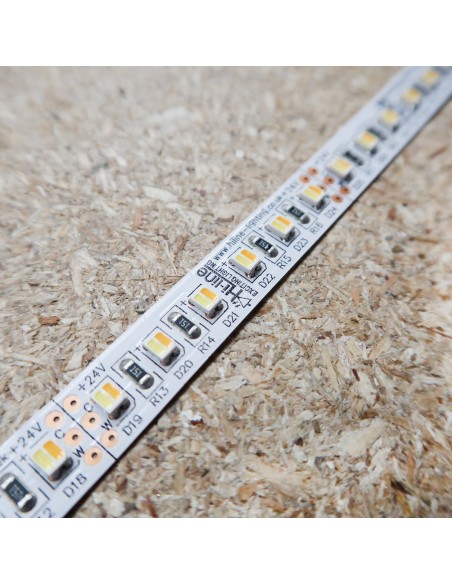

Flexible and cuttable tunable white LED strip powered by SMD3527

Adjustable colour temperature via tunable white from 2700 to 6500K

CRI Ra > 85 LED chips, 120 "2in1" LEDs per meter 24V 19.2W/m (120 warm and 120 cool white per meter)

Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!

Luminous flux: Up to 2760 lm/m (warm and cool white LED chips together)
Luminous flux for warm white LED chip: 11 lumens each
Luminous flux for cool white LED chip: 12 lumens each

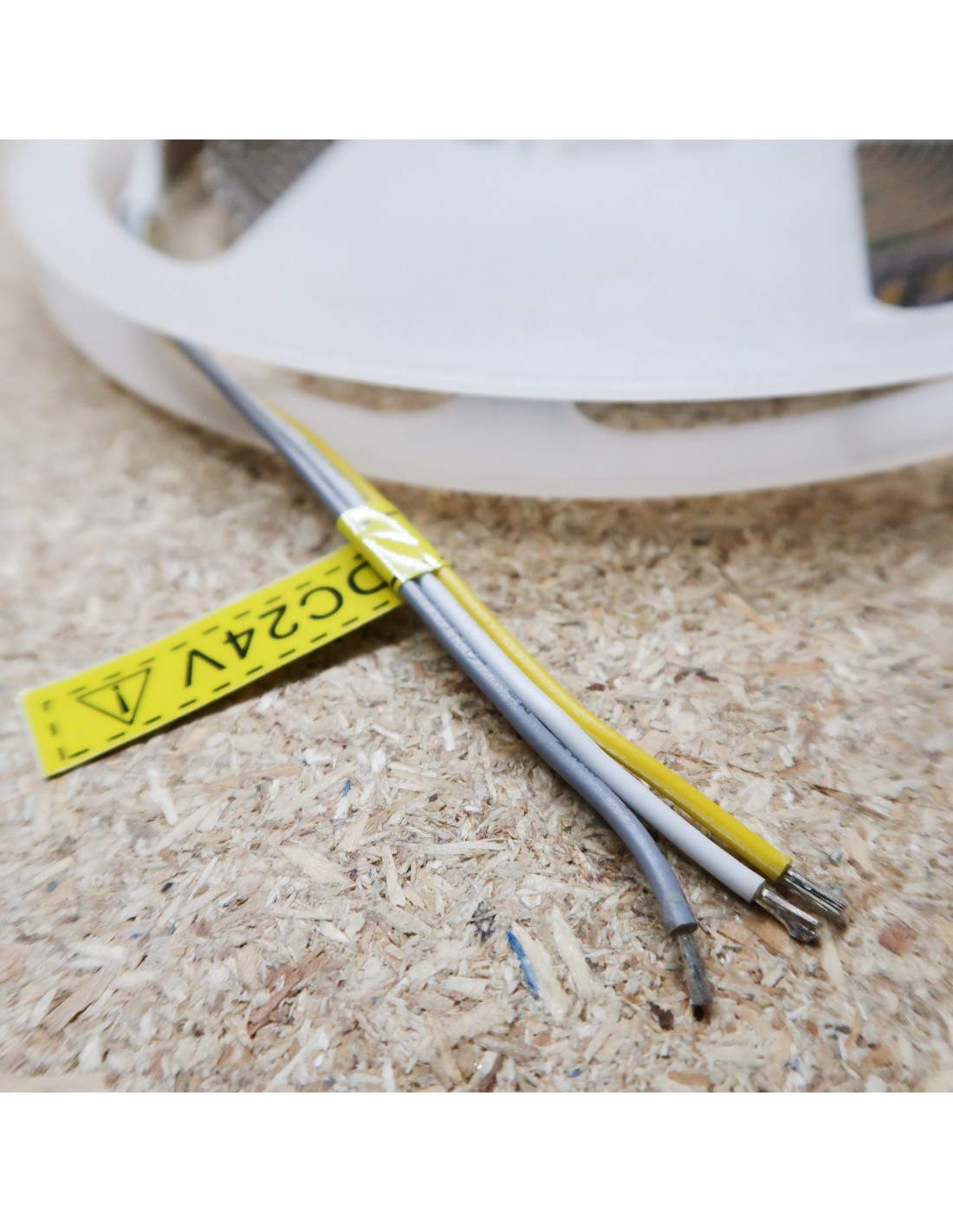

Grey = +, Yellow = Warm White, White = Cool White

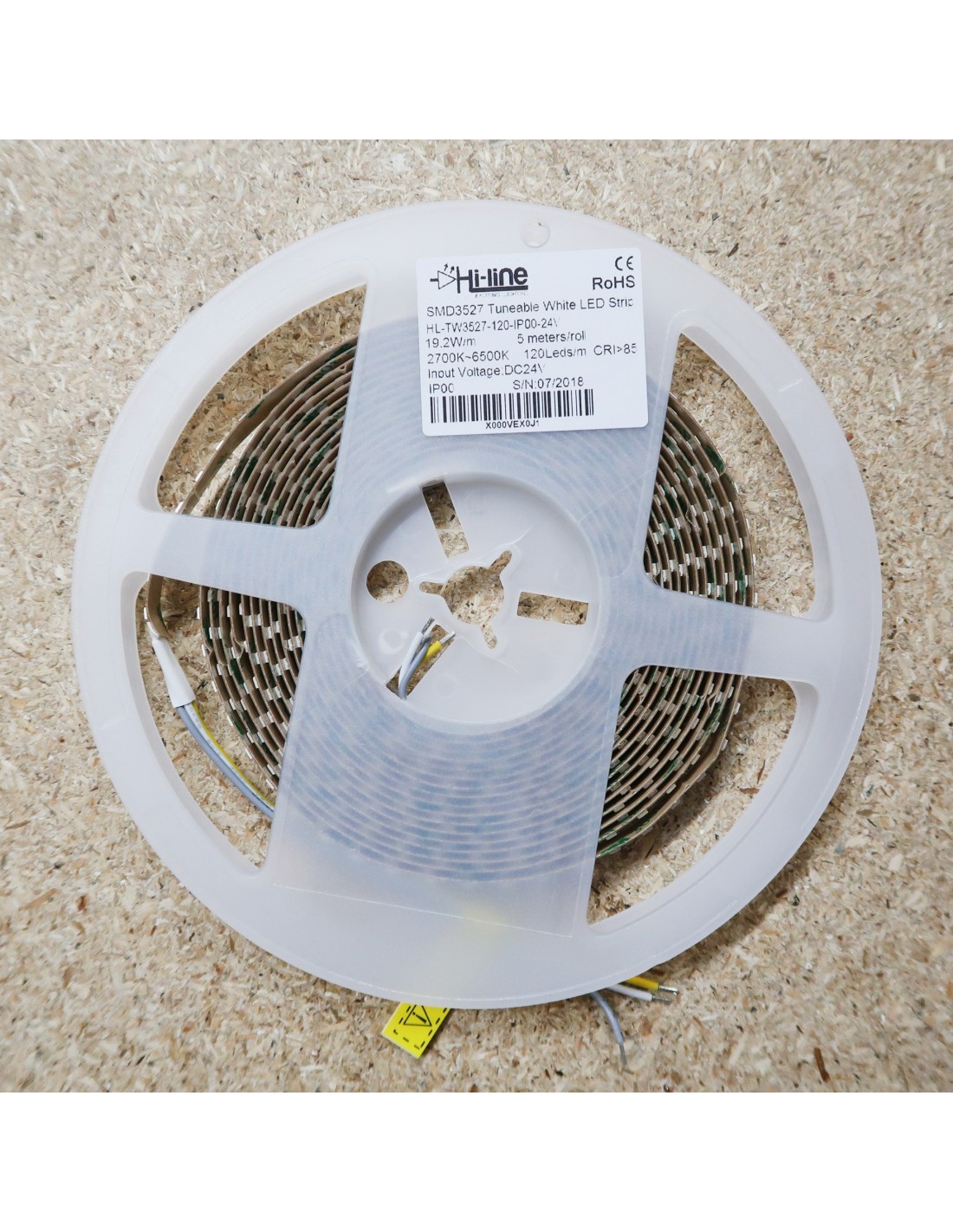

5m roll (10mm wide FPC - IP00)

Pre-soldered wires 15cm (both ends of the 5m roll)

3M self-adhesive tape at the back for easy mounting

Applications: Cove lighting, office lighting, shop lighting

3 Years Warranty
