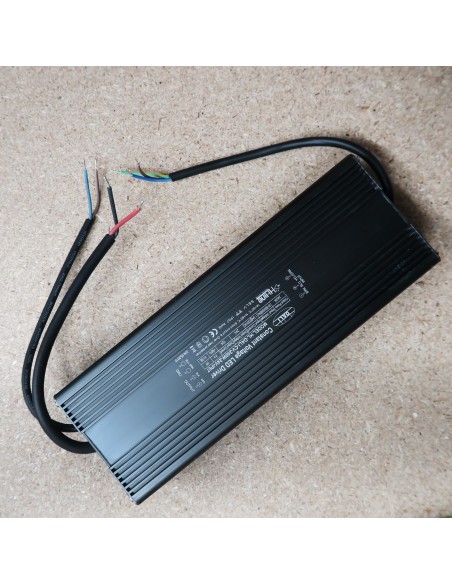

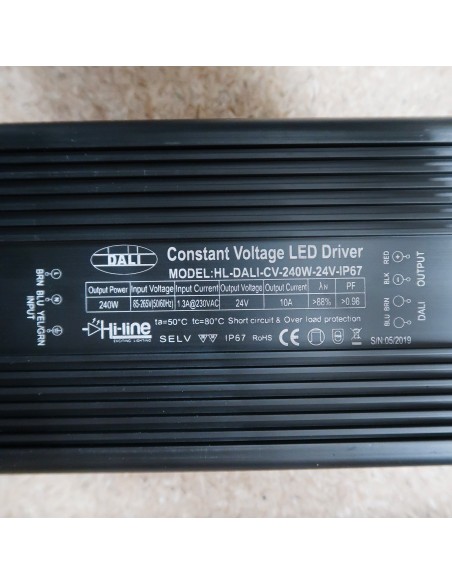

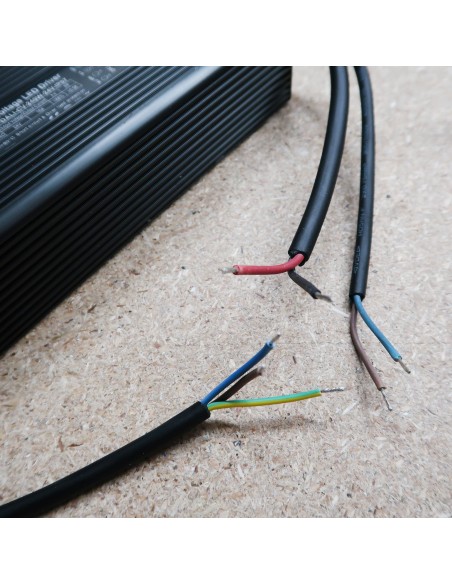

DALI LED Driver 24V 240W IP67
HL-DALI-CV-240W-24V-IP67
New product
DALI Dimmable LED Driver
24V PWM Output
240 Watt / 10A
Waterproof (IP67)
Warranty: 3 Years
2 Items
Same Day Dispatch
Warning: Last items in stock!
- Send to a friend
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Data sheet
| Voltage | 24V DC |
| Power | 240 W |
| Rating | IP67 (Waterproof) |
| Type | DALI dimmable |
| Voltage Type | Constant Voltage |
| Warranty | 3 Years |
| Brand | Hi-Line |
More info
Can also be used with smart home controllers as a part of a home automation to dim LED strip Lighting or other constant voltage LED products through a DALI gateway.
Characteristics:
Control: DALI
Input Voltage: 85~265V AC
Output Voltage: 24 Volts DC (PWM), 240W 10A
Dimensions: 260*70*40mm
IP Rating: IP67
Weight: 1.3Kg
Warranty: 3 Years
____________________________
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
____________________________
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
____________________________
For more information about the installation of LED Strips, you can download the above PDF file: “Installation of LED Strips”.
