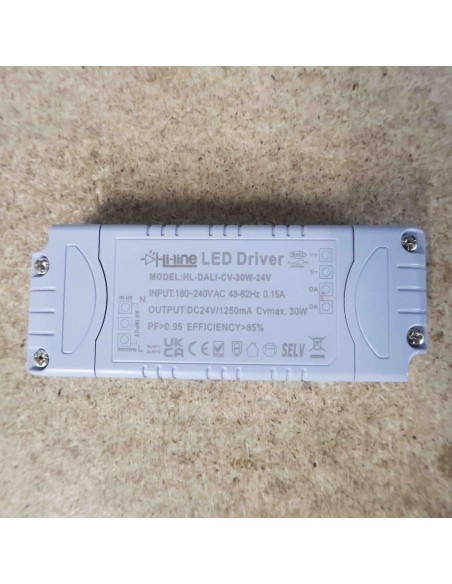

DALI LED Driver 24V 30W IP20

DALI Dimmable LED Driver

24V PWM Output

30 Watt / 1250mA

Warranty: 5 Years

HL-DALI-CV-30W-24V
Out of Stock
£31.50




DALI dimmable LED Driver constant Voltage 24V 30W

Can be used to DIM 24 Volts LED strips using DALI protocol.

Can also be used with smart home controllers as a part of a home automation to dim LED strip Lighting or other constant voltage LED products through a DALI gateway.

ITEM OUT OF STOCK - See  HL-4IN1-DIM as good an alternative.

Characteristics:

Control: DALI

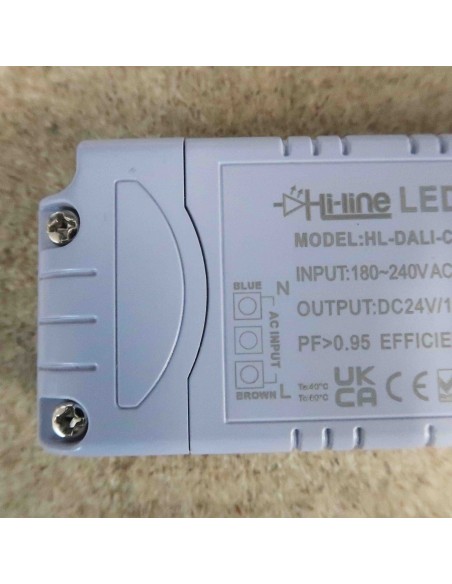

Input Voltage: 180~260V AC

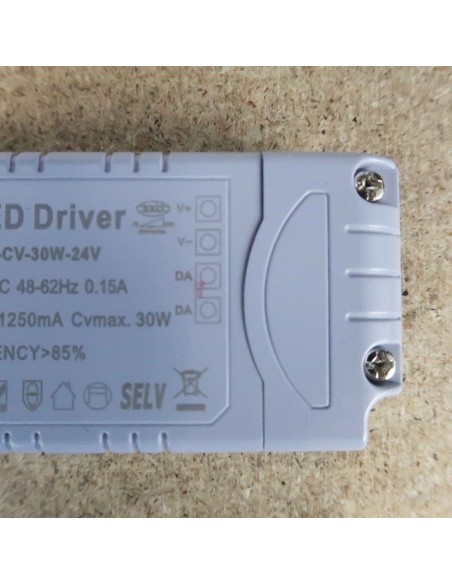

Output Voltage: 24 Volts DC (PWM), 30W 1250mA

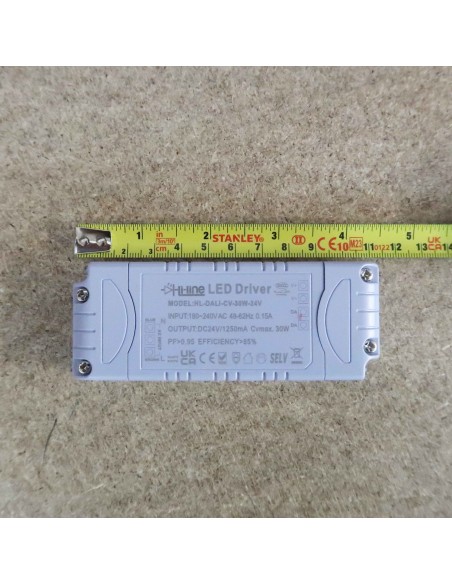

Dimensions: 155*53*30mm

Weight: 202g

Warranty: 5 Years

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the above PDF file: “Installation of LED Strips”.



Voltage
24V DC
Power
30 W
Rating
IP20 (Non-waterproof)
Type
DALI dimmable
Voltage Type
Constant Voltage
Warranty
5 Years
Brand
Hi-Line
