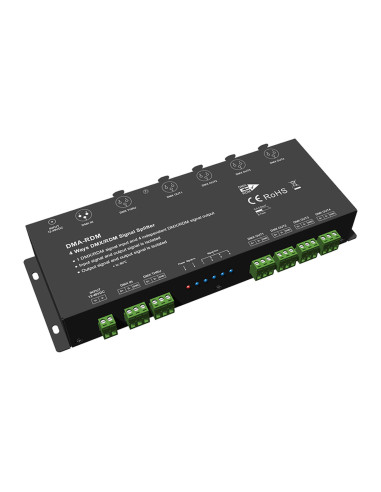

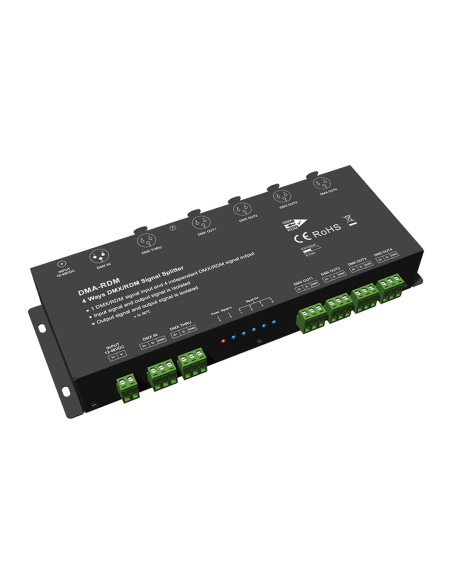

HL-DMA-RDM 4-Way DMX RDM Signal Splitter 12-48V Front

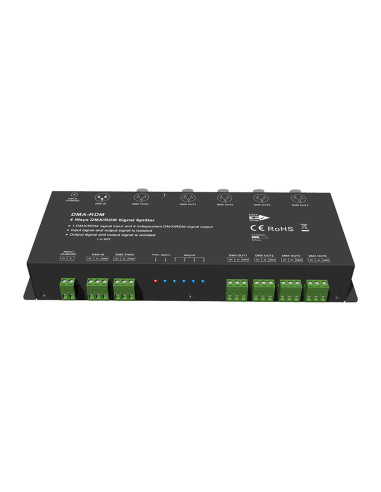

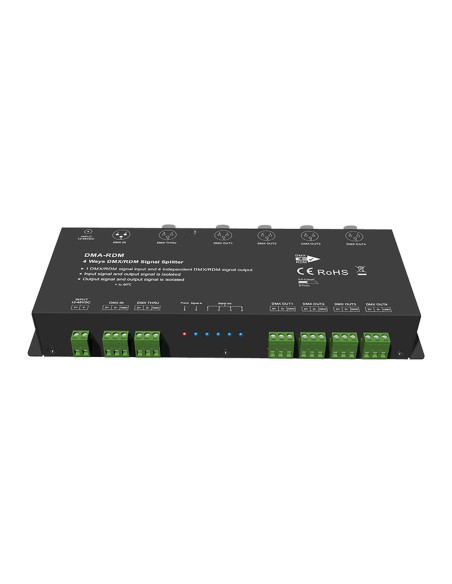

HL-DMA-RDM Screw Terminals In Thru and Four Isolated Outs

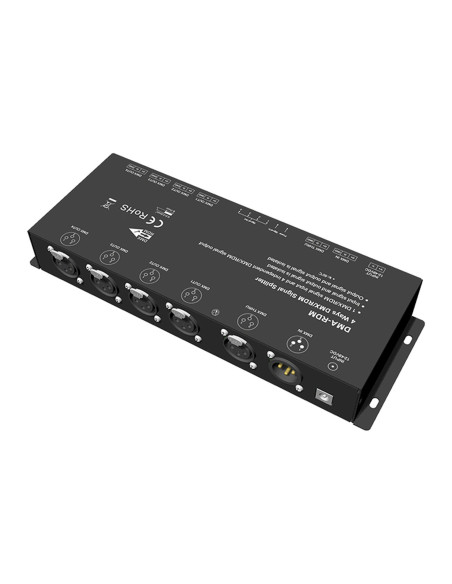

HL-DMA-RDM 3-Pin XLR In Thru and Four Isolated Outs
  • New
HL-DMA-RDM 4-Way DMX RDM Signal Splitter 12-48V Front
HL-DMA-RDM Screw Terminals In Thru and Four Isolated Outs
HL-DMA-RDM 3-Pin XLR In Thru and Four Isolated Outs

DMA-RDM 4-Way DMX RDM Signal Splitter 12-48V

HL-DMA-RDM is a 12–48 V four-way DMX512 and RDM splitter: one isolated input, DMX thru, four isolated outputs. Screw terminals and 3-pin XLR. Not the two-out DIN HL-DA-RDM, and not the mains 4-way HL-DMX512S-4.

HL-DMA-RDM

Need more than we have in stock?

We have 2 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
2 Items In stock
Last items in stock
£132.00
(£
158.40
with VAT)
VAT excluded

Tags:


HL-DMA-RDM — 12–48 V 4-way DMX512 / RDM signal splitter

Use this when one DMX or RDM line must feed four isolated spurs. One optically isolated input, a DMX thru, and four optically isolated outputs (isolated from each other). RDM stays bidirectional. 12–48 V DC, 0.17 A class. Screw terminals and 3-pin XLR on every port. It does not decode DMX into LED output.

Why installers buy it

  • Four independent isolated outs plus thru. Up to 32 devices per out, with a terminator on the last fixture of each spur.
  • Six LEDs: power, signal in, signal out.
  • IP20, about 260 × 112 × 43 mm, 750 g. Rack / surface lugs.

What you are wiring

  • Power in 12–48 V DC (screw or DC socket)
  • DMX/RDM in and thru (terminate thru if unused)
  • DMX/RDM out 1–4, screw or XLR

Terminator 90–120 Ω at the end of each used spur. Unused outs do not need a terminator. The user manual PDF is on the Attachments tab.

Technical summary

  • SKU: HL-DMA-RDM
  • 12–48 V DC, 0.17 A max, 1× DMX512/RDM in, thru, 4× isolated DMX512/RDM out
  • Optical isolation in/out and between outputs. Reverse-polarity protection
  • IP20, about 260 × 112 × 43 mm, 750 g
  • Warranty: 5 years

Must be installed by a qualified electrician. Indoor, dry location only.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Voltage
12-48V DC
Type of control
DMX512
Warranty
5 Years
