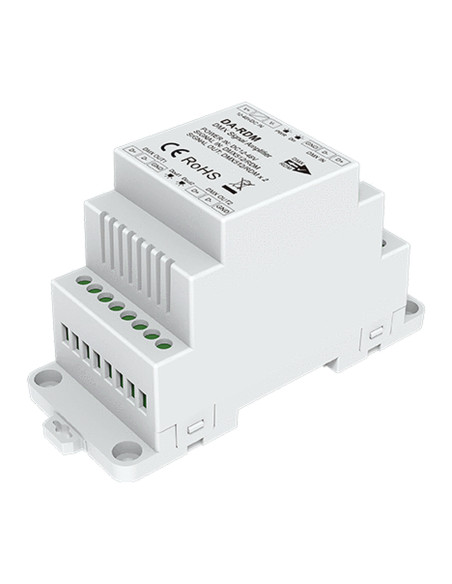

HL-DA-RDM White DIN-Rail DMX RDM Amplifier 12-48V

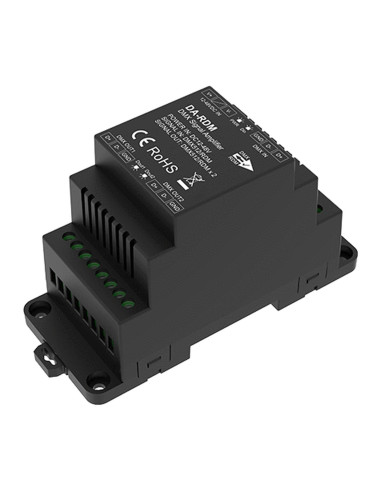

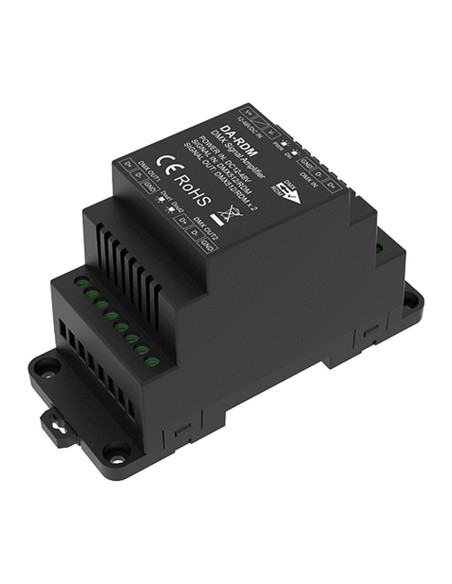

HL-DA-RDM Black DIN-Rail DMX RDM Amplifier 12-48V

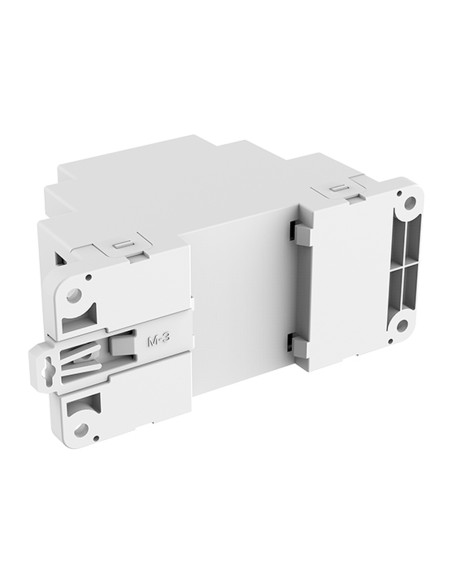

HL-DA-RDM DIN Rail Clip TS-35 Rear
  • New
HL-DA-RDM White DIN-Rail DMX RDM Amplifier 12-48V
HL-DA-RDM Black DIN-Rail DMX RDM Amplifier 12-48V
HL-DA-RDM DIN Rail Clip TS-35 Rear

DA-RDM DIN-Rail DMX RDM Signal Amplifier 12-48V 2-Out

HL-DA-RDM is a DIN-rail 12–48 V DMX512 and RDM amplifier: one isolated input, two isolated outputs. Same job as HL-DA-L-RDM, in a DIN housing (white or black). Not a decoder and not the 4-way HL-DMA-RDM.

HL-DA-RDM

Need more than we have in stock?

We have 2 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
2 Items In stock
Last items in stock
£58.00
(£
69.60
with VAT)
VAT excluded

Tags:


HL-DA-RDM — DIN-rail 12–48 V DMX512 / RDM amplifier, 1 in / 2 out

Use this when a DMX or RDM bus is too long, has more than about 32 devices, or needs a clean split, and you want a DIN-rail module rather than the long DA-L-RDM box. One optically isolated input, two optically isolated outputs (isolated from each other). RDM stays bidirectional. 12–48 V DC, 0.5 A class. It does not decode DMX into LED output.

Supplied in white or black DIN housing (same SKU). TS-35 rail.

Why installers buy it

  • Optical isolation on in and both outs.
  • Power, DMX in, out 1 and out 2 LEDs.
  • IP20, about 120 × 78 × 55 mm, 127 g. DIN TS-35/7.5 or TS-35/15.

What you are wiring

  • Power in + / −, 12–48 V DC
  • DMX/RDM in D+ / D− / GND
  • DMX/RDM out 1 and out 2

Do not cascade more than five amplifiers. Fit a 90–120 Ω terminator at the end of each long line. The user manual PDF is on the Attachments tab.

Technical summary

  • SKU: HL-DA-RDM
  • 12–48 V DC, 0.5 A max, 1× DMX512/RDM in, 2× DMX512/RDM out
  • Optical isolation in/out and between outputs. Reverse-polarity protection
  • DIN rail, IP20, about 120 × 78 × 55 mm, 127 g
  • Warranty: 5 years

Must be installed by a qualified electrician. Indoor, dry location only.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Voltage
12-48V DC
Type of control
DMX512
Warranty
5 Years
