Introducing the Hi-Line Lighting 4-Pin L Shape Corner Connector, designed for clean and flexible corner connections with 10mm COB LED strips.
This upgraded connector replaces the older 3-pin style and provides improved installation flexibility. Although Tunable White / CCT COB strips normally use only 3 electrical connections, the 4-pin layout gives the installer more physical alignment options when turning corners.

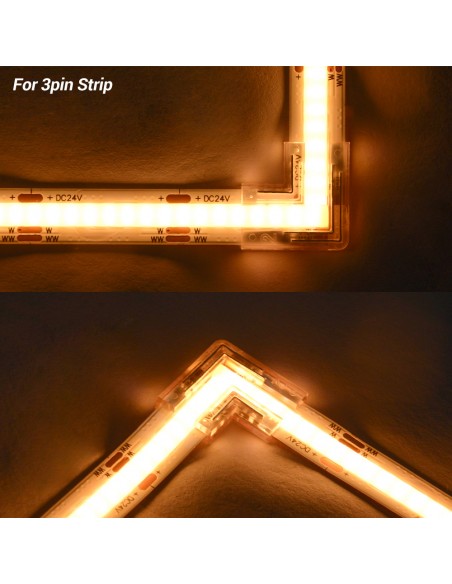

This helps with left-hand turns, right-hand turns, repeated same-direction turns, square layouts, rectangular layouts and zig-zag installations.
The connector can also be used with compatible 10mm RGB COB LED strips, provided the strip width, pin spacing and polarity layout match.
Key Features
Compatible Strip Types: 10mm COB CCT, RGB and compatible 3-pin pixel COB LED strips
Upgraded 4-Pin Layout: Improves corner direction flexibility compared with older 3-pin connectors

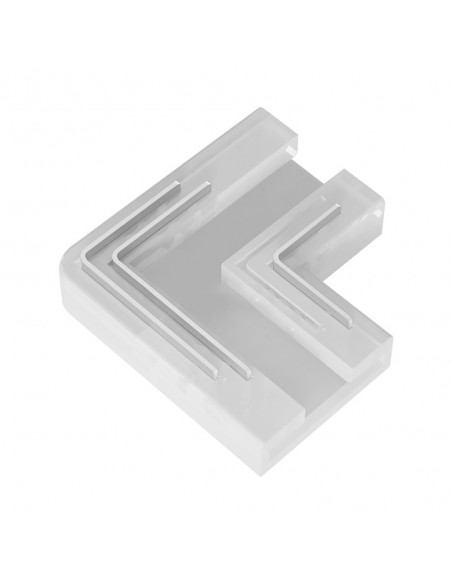

L Shape Corner Design: Suitable for clean 90-degree corner installations
Supports Left and Right Turns: Allows more flexible layout planning
Suitable for Repeated Turns: Helps with squares, rectangles and repeated same-direction corners
Polarity Alignment Flexibility: The next cut strip section can be rotated or reversed where needed to match polarity
IP00 / IP20 Type: Non-waterproof connector for indoor or protected installations
Sold Individually
Technical Specifications
Brand: Hi-Line
Connector Type: L Shape - Corner
Connector Width: For 10mm COB LED strips
Number of Terminals: 4-pin mechanical layout
Compatible Strip Types: Tunable White (CCT), RGB and compatible 3-pin pixel COB strips
Working Voltage: DC3-24V
Max Current: 4A
IP Rating: IP00 / Non-waterproof
PCB Thickness: 0.25-0.35mm
Dimensions: L19mm x W19mm x H3mm
Materials: Polycarbonate, copper
Housing Colour: Transparent
Temperature Resistance: 105°C
Environmental Working Temperature: -10°C to 45°C

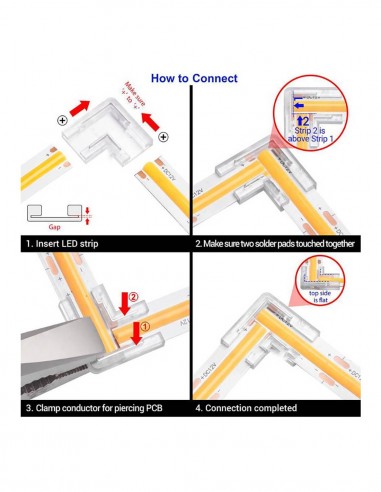

Important Installation Note
The 4-pin layout does not make polarity automatic. The installer must always check the polarity markings on the LED strip before connection.
Depending on the corner direction, the next cut strip section may need to be rotated or reversed so the polarity pads align correctly with the connector contacts.
For CCT strips, check markings such as +, WW and W.
For RGB strips, check markings such as +, R, G and B.
This connector should only be used where the strip width, pin spacing and polarity arrangement are compatible.
