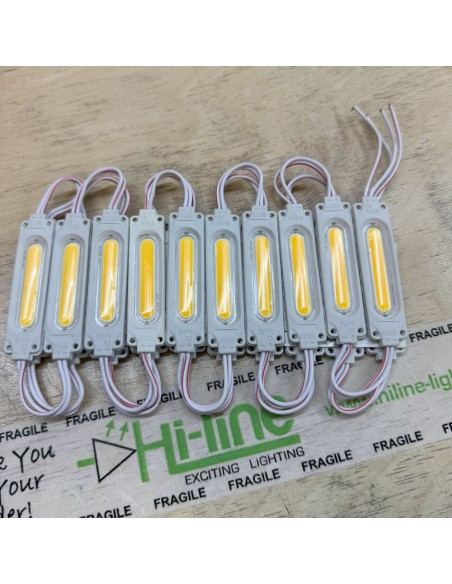

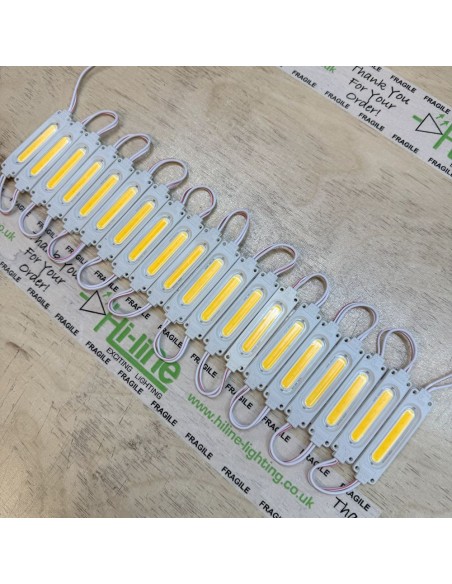

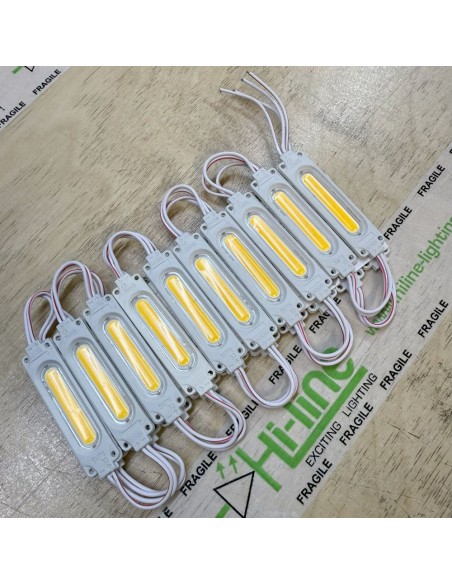

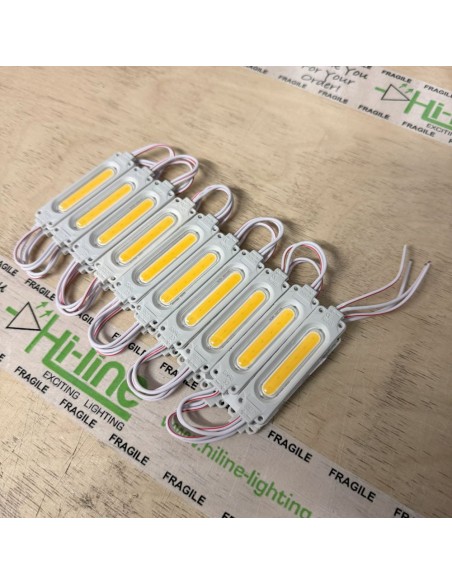

This Warm White 12V COB LED module set is intended for simple and cost-focused installations. Supplied as a chain of 20 compact, waterproof modules, each unit delivers a 3000K soft glow with a 160° wide beam, ensuring dot-free illumination suitable for basic signage and lighting projects.
The modules are IP67-rated for indoor and outdoor use and come with standard adhesive backing (Budget Series brand) and screw holes for flexible mounting.
This product is part of our Budget Series, offered specifically for cases where budget is the main concern and advanced lighting specifications are not required. It allows us to support a wider range of customers while clearly distinguishing this from our high-performance ranges.
Technical Specifications:
Voltage: 12V DC
Colour Temperature: 3000K (Warm White)
Power Consumption: 1.5W per module
Modules per Set: 20 pcs
Total Power Consumption: 30W
Beam Angle: 160°
Module Dimensions: 70mm x 18mm x 5mm
Waterproof Rating: IP67
Total Chain Length: Approx. 240cm per 20 modules
Mounting: Standard adhesive backing (Budget Series) and screw holes
Warranty: 3 years standard, extendable to 5 years on request
Key Features:
Warm 3000K output with a wide beam for even illumination
Durable IP67 construction for indoor and outdoor use
COB technology for smooth lighting with no visible points
Quick and flexible installation using adhesive or screws
Modular chain can be extended in parallel as needed
Best Suited For:
Channel letter signage and lightboxes
Temporary or price-sensitive display lighting
Basic over-shelf or under-counter lighting
Vehicle and caravan applications
General-purpose lighting where visual precision is not a priority
Series Information:
This module belongs to our Budget Series, developed for installations where functionality and affordability come before premium-grade lighting specifications. It is suitable for applications where minor variation in colour or CRI is acceptable.
If you're working on a project where batch consistency, colour accuracy, or refined LED performance is important, we recommend selecting from our Premium Series instead.
As a simple rule, if the product clearly states “Budget Series,” it is not part of our premium range. Our Premium Series often doesn't need labelling, as this level of quality is our standard unless stated otherwise.
