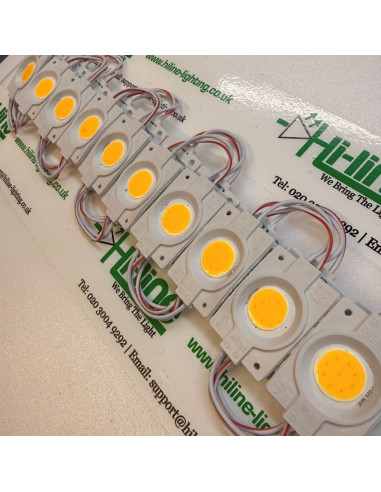

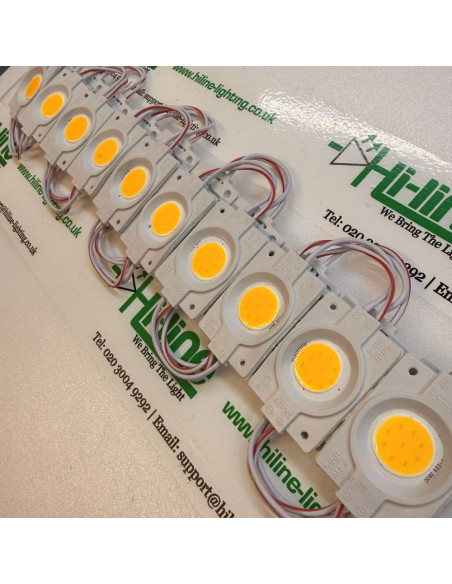

Explore Advanced Lighting Solutions with Our Warm White 3000K 12V 2.4W Round COB LED Modules
Maximise your lighting potential with this 12V 2.4W Round COB LED Module chain, supplied as a 20-pack. Part of the Value Series, these modules offer a reliable and cost-effective solution for signage and backlighting applications.
Product Features and Advantages:
Consistent Light Output: Each module is rated at 2.4W; however, actual light output will vary depending on installation conditions such as cable length, voltage drop, and power feed configuration. When powered individually or with minimal voltage drop, higher efficiency and brightness can be achieved.
Wide Beam Angle: A 160-degree beam angle ensures broad and even light distribution, ideal for consistent backlighting across signage and light boxes.
Durable and Robust: Rated IP65, these modules are suitable for both indoor and outdoor environments, offering protection against dust and water splashes.
Versatile Use: Designed primarily for sign backlighting and channel letters, but also suitable for light boxes and general backlighting applications where a warm white tone is required.
Easy Installation: Supplied pre-wired and ready to install, with integrated adhesive backing for quick and straightforward fitting. Recommended for lightbox depths from approximately 8cm up to 15cm for optimal light diffusion.

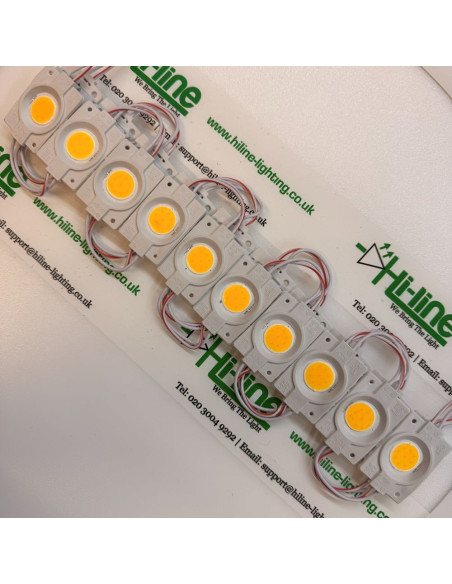

Total Chain Configuration: Supplied as 2 chains of 10 modules (20 modules total), allowing flexible installation across different layouts.
Technical Specifications:
Voltage: 12V
Power Consumption: 2.4W per module
Colour Temperature: 3000K Warm White
Beam Angle: 160°
IP Rating: IP65

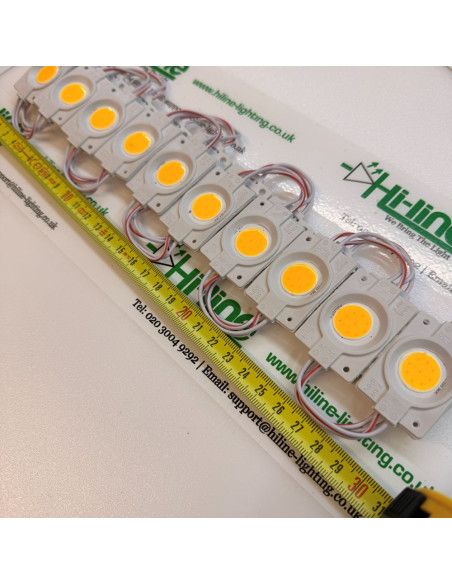

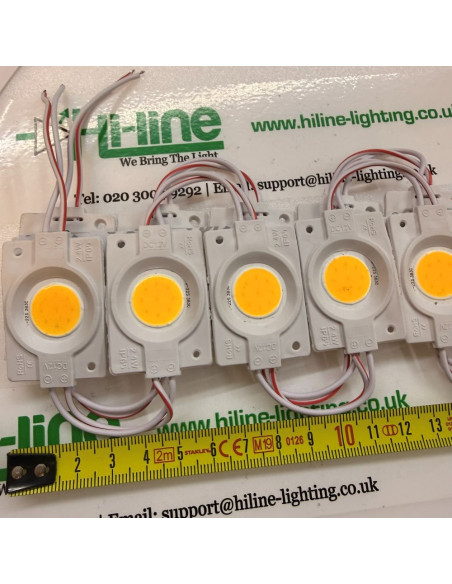

Module Size: 4.5cm x 3cm x 0.5cm
Inter-Module Cable Length: 6.5cm between modules, allowing flexible positioning and spacing.
Effortless Integration:
The compact round design allows for clean and discreet installation, making these modules suitable for a wide range of signage and backlighting projects. The chain format simplifies wiring and reduces installation time.
We also offer this same module in Cool White, which typically delivers a higher perceived brightness. If you require the Cool White version or any compatible accessories, please click the “Related Products” tab to view all matching options.
