Osram LED Edge lightbox module | 24V | 9W | 7000K | 15°*45° | IP65

Key Features:

  • Ideal for single or double sided light box
  • Suitable for tension graphics and bespoke light boxes
  • 10-20cm single sided light box
  • 12-40cm double sided light box
  • Accessories must be purchased separately
  • Power: 24V DC / 9W
  • Module Power Consumption: 9W
  • Colour Temperature (CCT): 7000K
  • Elliptical lens beam angle 15x45°
  • IP Rating: IP65
HL-EL004
Out of Stock
£56.38
67.66
with VAT)

(£11.28 module)

VAT excluded



9 Watt Osram LED edge lightbox module with special elliptical lens suitable for single or double sided sign light box depth 10-20cm for single sided and 12-40cm for double sided light box. Modules should be installed on the edges of the sign box, any length with maximum 3m width.

15/45° asymmetric optics design with constant current technology provide uniform and stable performance.

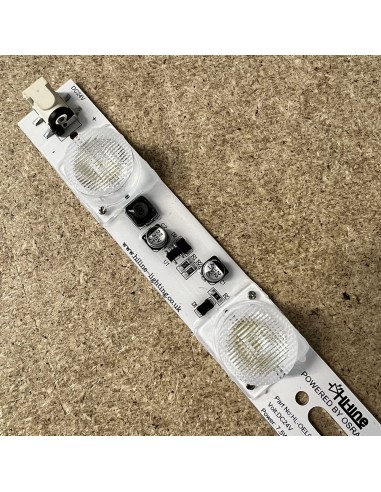

Each module is powered by 3 high output and efficiency Osram LED chips, elliptical asymmetric lens design 15/45° degrees offers excellent colour uniformity and no hot spots.  This beam angle also allows for the LEDs to act as a wall washer.

Wall Washing: Our Edge Lighting module can also be used to achieve a wash effect when mounted within proximity to a wall. The produce an effect known as “Graze Lighting” and is particularly effective on textured walls.

Maximum series connection is 20 modules

Please note that the displayed price is for one module only. Any necessary accessories must be purchased separately and are not included in the listed price. To find related products and accessories, please click on the "related products" tab.

Features:

Ideal for single or double sided light boxes:
10-20cm single sided lightbox
12-40cm double sided lightbox
Any length with maximum of 3m wide.

Special asymmetric optics design for elliptical 15/45° degrees beam angle, excellent colour uniformity and no hot spots.

Powered by high efficiency Osram LED chips

Chips are 99.99% gold threaded, pure copper bracket coated with silver

SDCM less than 3 (BIN)

IP65 mould: anti-dust, anti-moisture, waterproof, anti-shock

Certification: CE, RoHS, UL

5 Years Warranty

Please note: This light module does not include double-sided 3M tape. If you require this, you can purchase rolls in 8mm and 12mm widths directly from us HERE

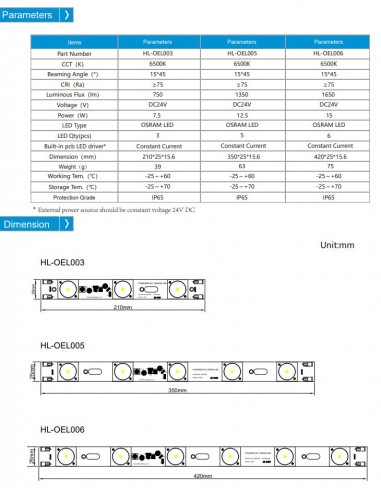

Best for lightbox/letter Depth
Single Sided 10-20cm - Double sided 12-40cm
Brand
Hi-Line
Colour
Pure White
Colour rendering (CRI in ra)
75
Colour Temperature (CCT)
7000K
LED Chip
Osram LED Chip

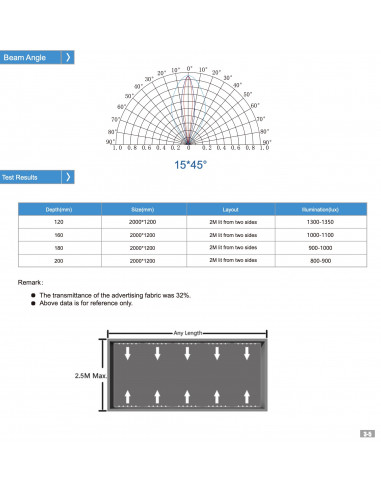

LED Module Beam Angle
Elliptical 15/45°
LED Module Controllability
Constant Voltage driver
Max. No. of Modules in series
20 modules
Module Power Consumption
9 Watt
Module built-in driving method
Constant Current
Module Luminous Flux / Efficacy
810lm (90 Lm/W)
Modules in pack qty
5
Module Dimension (mm)
295*27.5*15.6
IP Rating
IP65 (Splashproof)
Voltage
24V DC
Warranty
5 Years
No reviews
