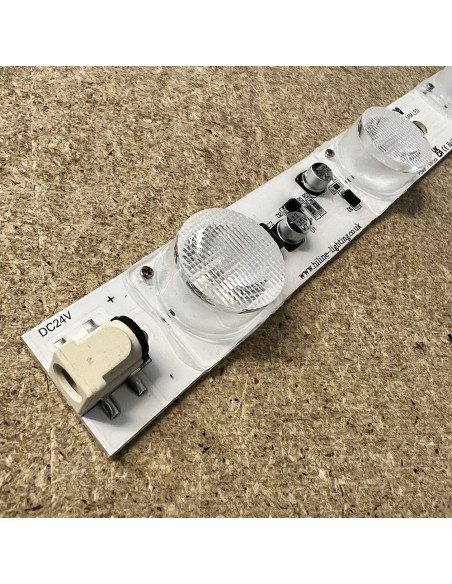

Osram LED Edge lightbox module 24V 7.5W 6500K 15°*45° IP65
Ideal for light box, signage or wall washer
8-30cm depth single or 15-30cm double sided light box

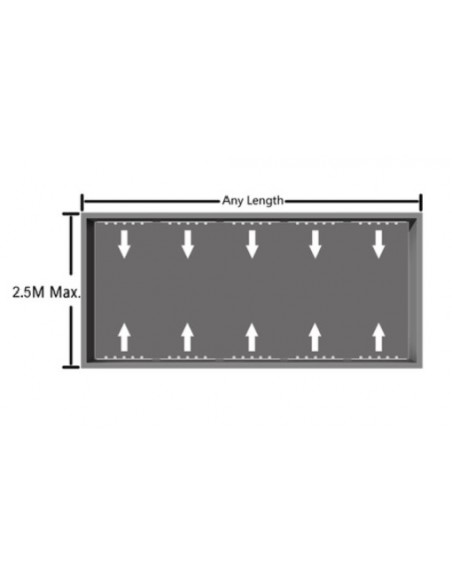

Maximum lightbox height for optimum results 2.5-3m
24V 7.5W 6500K

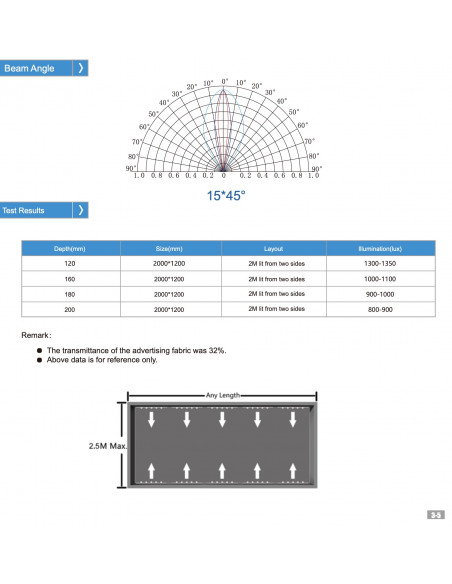

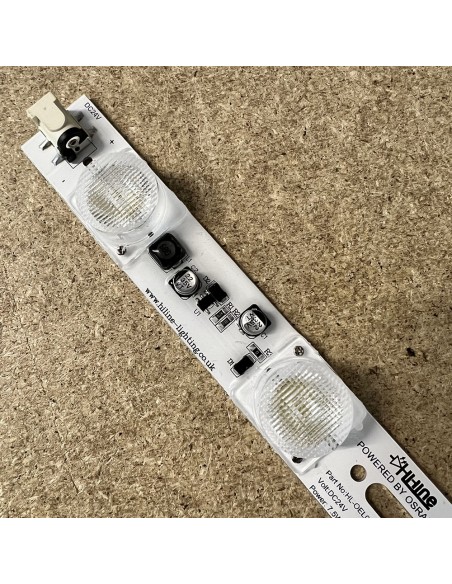

Elliptical lens, beam angle 15x45°
7.5 Watt Osram powered LED edge lightbox module 24 Volts DC with special elliptical lens suitable for single sided 8-30cm or double sided 15-30cm sign light box depth. Modules should be installed on the edges of the sign box, any length with maximum 3m width (optimum 2.5m).
The optimum high of light box that this module can be used is between 2.5-3 meters. Can also work for sign/light boxes with a height >3 meters but light box depth should be more than 30cm.
15/45° asymmetric optics design with constant current technology provide uniform and stable performance.

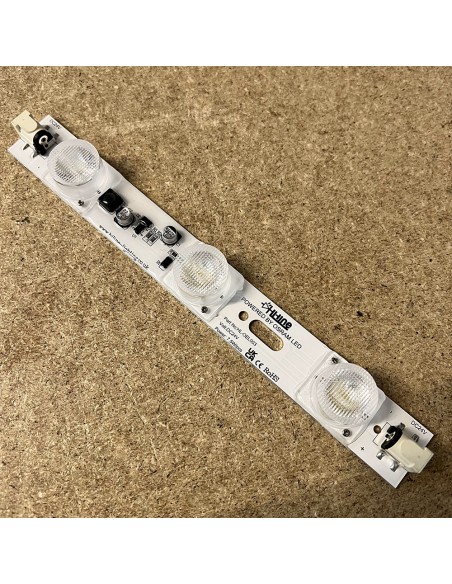

Each module is powered by 3 high output and efficiency Osram LED chips, elliptical asymmetric lens design 15/45° degrees offers excellent colour uniformity and no hot spots. This beam angle also allows for the LEDs to act as a wall washer.
Wall Washing: Our Edge Lighting module can also be used to achieve a wash effect when mounted within proximity to a wall. The produce an effect known as “Graze Lighting” and is particularly effective on textured walls.
Maximum series connection is 15 modules
Price is for 1 x IP65 LED modules (7.5W / 750lm)

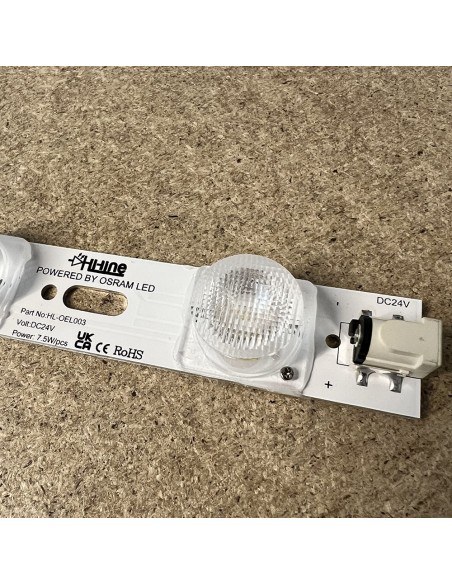

Powered by high efficiency Osram LED chips

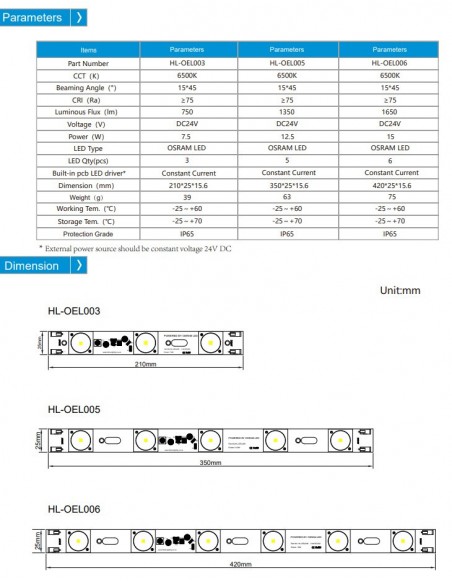

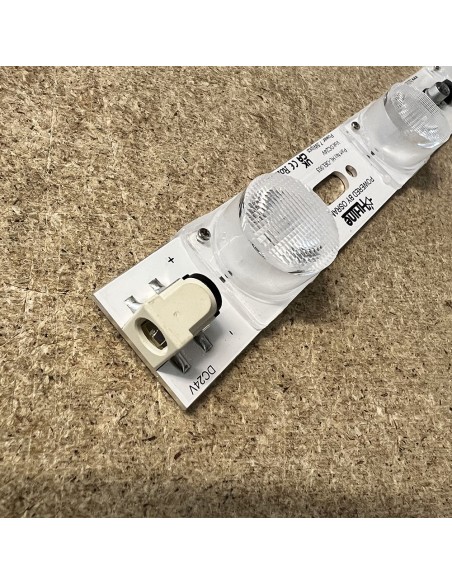

Dimension: 210x25x15.6 mm
Ideal for single or double sided light boxes:
8-30cm single sided lightbox - 15-30cm double sided lightbox.
Any length with maximum of 3m wide (optimum 2.5m).
Special asymmetric optics design for elliptical 15/45° degrees beam angle, excellent colour uniformity and no hot spots.
Chips are 99.99% gold threaded, pure copper bracket coated with silver
SDCM less than 3 (BIN)
IP65 mould: anti-dust, anti-moisture, waterproof, anti-shock
Certification: CE, RoHS
5 Years Warranty
Connectors and other accessories sold separately.
Download Datasheet here or at the bottom of this page
- 24V DC
- Pure White
- IP65 (Splashproof)
- Colour Temperature (CCT)
- Colour rendering (CRI in ra)
- Best for lightbox/letter Depth
- Single or double sided 8-30cm
- Module Power Consumption
- 7.5 Watt
- Module Luminous Flux / Efficacy
- 750lm (100 Lm/W)
- LED Module Beam Angle
- Elliptical 15/45°
- Module built-in driving method
- Constant Current
- LED Module Controllability
- Constant Voltage driver
- Max. No. of Modules in series
- 15 modules
- Module Dimension (mm)
- Modules in pack qty
- 5 Years
- LED Chip
- Osram LED Chip
