Osram LED Edge lightbox module 24V 12.5W 6500K 15°*45° IP65

HL-OEL005

New product

Ideal for light box, signage or wall washer
8-30cm depth single or double sided light box
Maximum lightbox height for optimum results 2.5-3m

24V 12.5W 6500K
Elliptical lens, beam angle 15x45°
Rating: IP65

More details

99 Items

Same Day Dispatch

£ 18,00

Add to wishlist

Data sheet

LED Chip Osram LED Chip
Voltage 24V DC
Colour Pure White
Rating IP65 (Splashproof)
Colour Temperature (CCT) 6500K
Colour rendering (CRI in ra) 75
Best for lightbox/letter Depth Single or double sided 8-30cm
Module Power Consumption 12.5 Watt
Module Luminous Flux / Efficacy 1350lm (108 Lm/W)

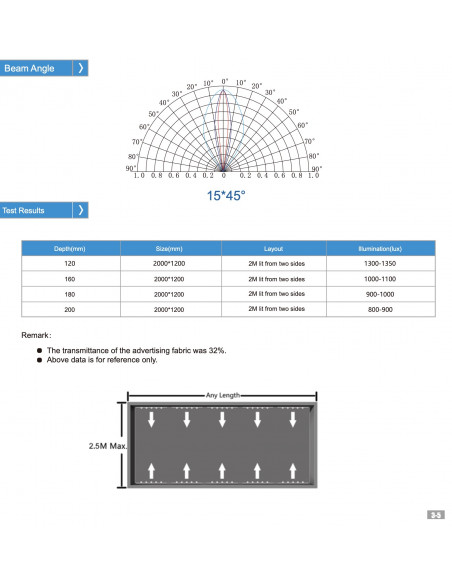

LED Module Beam Angle Elliptical 15/45°
Module built-in driving method Constant Current
LED Module Controllability Constant Voltage driver
Max. No. of Modules in series 10 modules

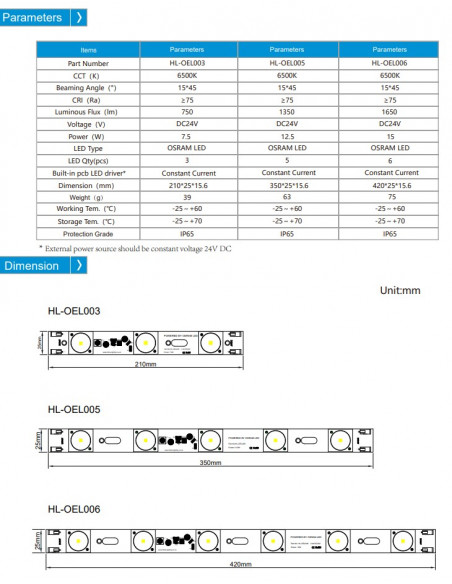

Module Dimension (mm) 350*25*15.6
Modules in pack qty 1
Warranty 5 Years
Brand Hi-Line

More info

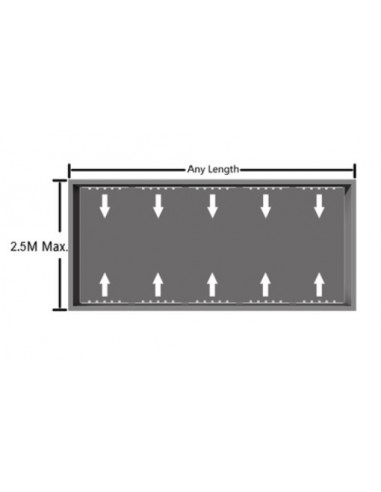

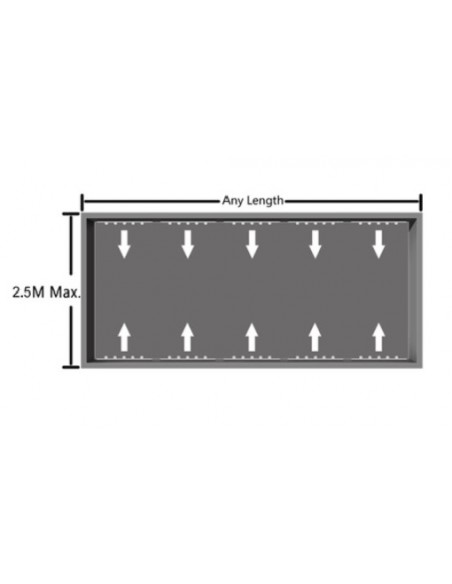

12.5 Watt Osram powered LED edge lightbox module 24 Volts DC with special elliptical lens suitable for single or double sided sign light box depth 8-30cm. Modules should be installed on the edges of the sign box, any length with maximum 3m width (optimum 2.5m)

15/45° asymmetric optics design with constant current technology provide uniform and stable performance.

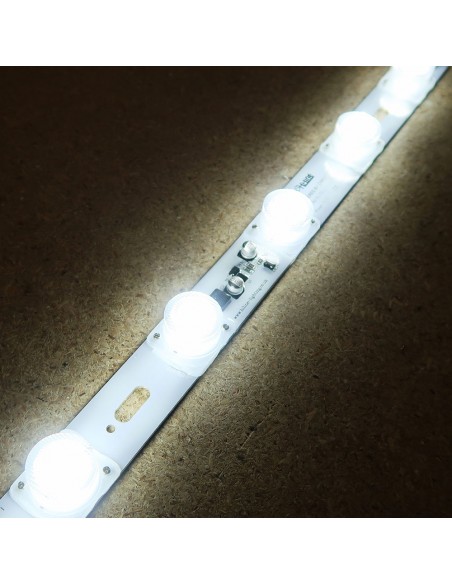

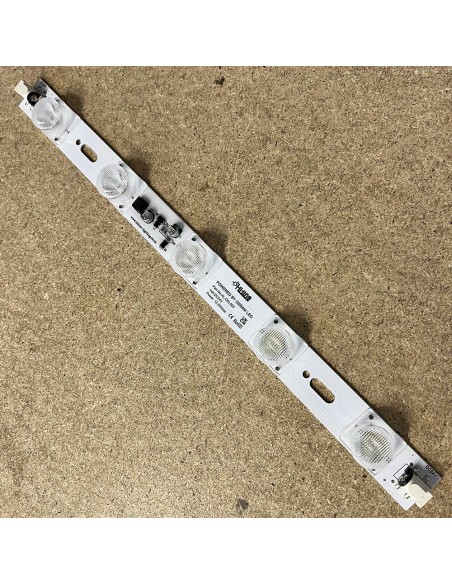

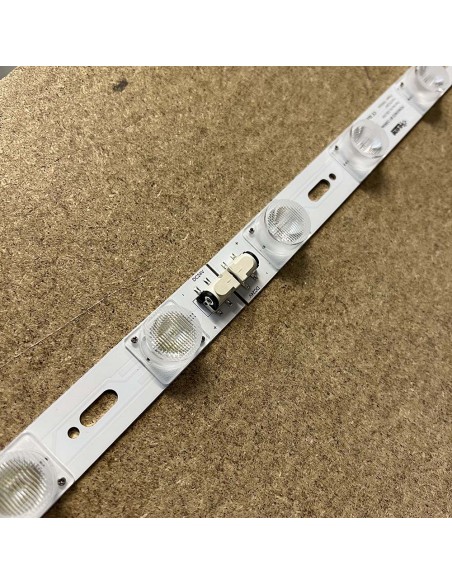

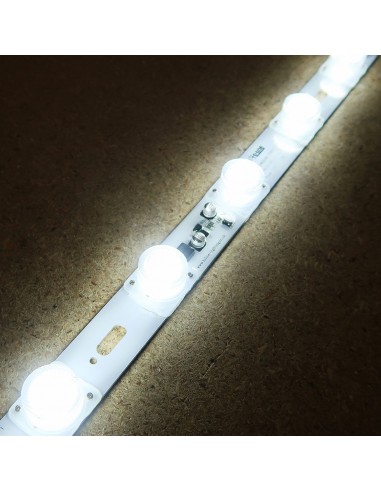

Each module is powered by 5 high output and efficiency Osram LED chips, elliptical asymmetric lens design 15/45° degrees offers excellent colour uniformity and no hot spots.  This beam angle also allows for the LEDs to act as a wall washer.

Wall Washing: Our Edge Lighting module can also be used to achieve a wash effect when mounted within proximity to a wall. The produce an effect known as “Graze Lighting” and is particularly effective on textured walls.

Maximum series connection is 10 modules

Price is for 1 x IP65 LED modules (12.5W / 1350lm)

Features:

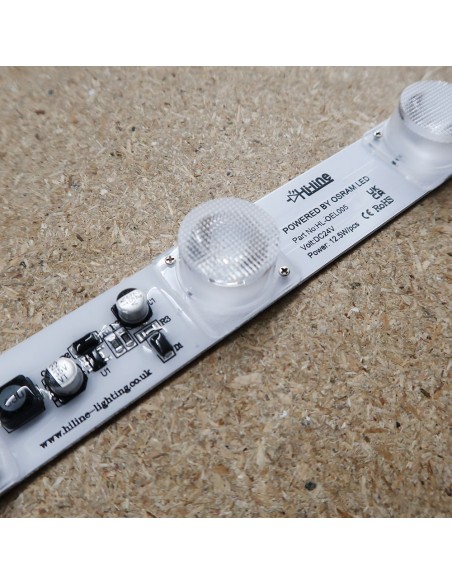

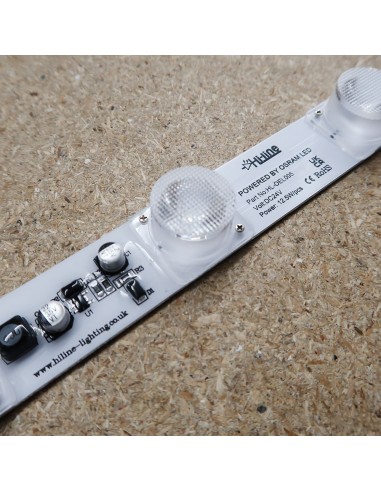

Powered by high efficiency Osram LED chips

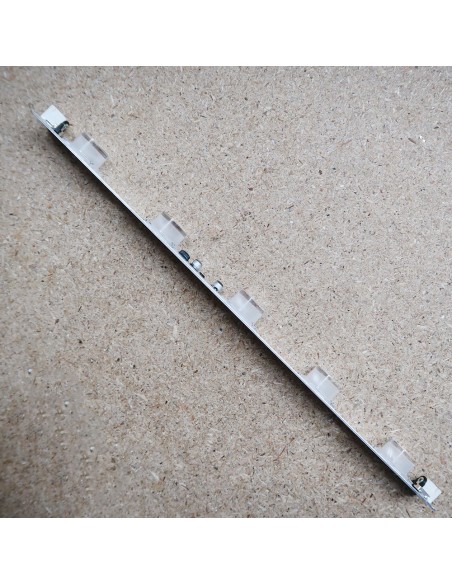

Dimension: 350x25x15.6 mm

Ideal for single or double sided light boxes:
8-30cm single sided lightbox

Any length with maximum of 3m wide (optimum 2.5m).

Special asymmetric optics design for elliptical 15/45° degrees beam angle, excellent colour uniformity and no hot spots.

Chips are 99.99% gold threaded, pure copper bracket coated with silver

SDCM less than 3 (BIN)

IP65 mould: anti-dust, anti-moisture, waterproof, anti-shock

Certification: CE, RoHS

5 Years Warranty

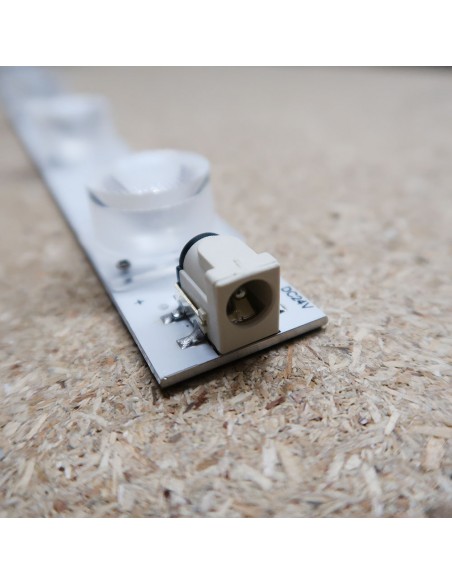

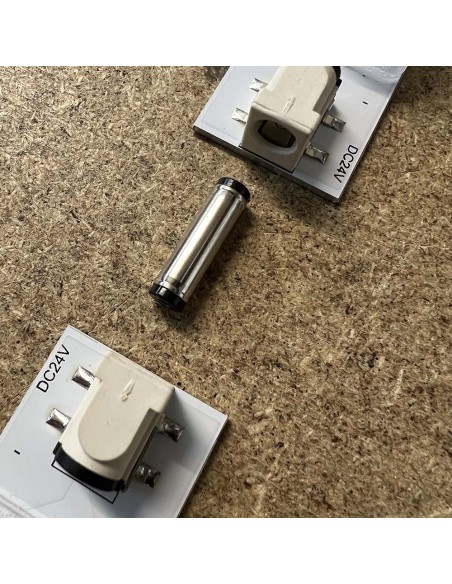

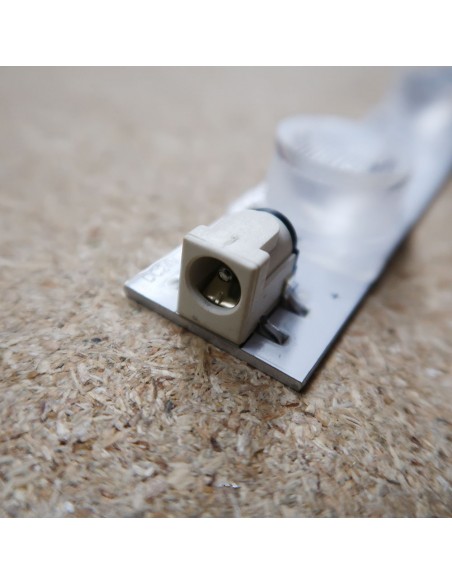

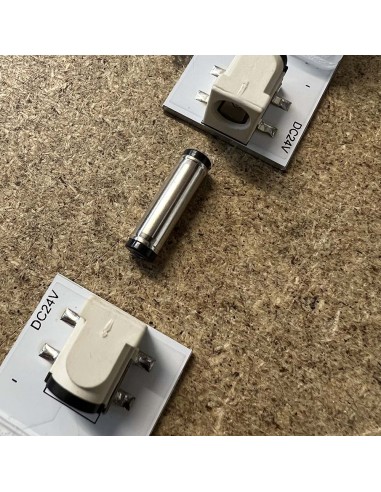

Connectors and other accessories sold separately.

Download Datasheet here or at the bottom of this page
