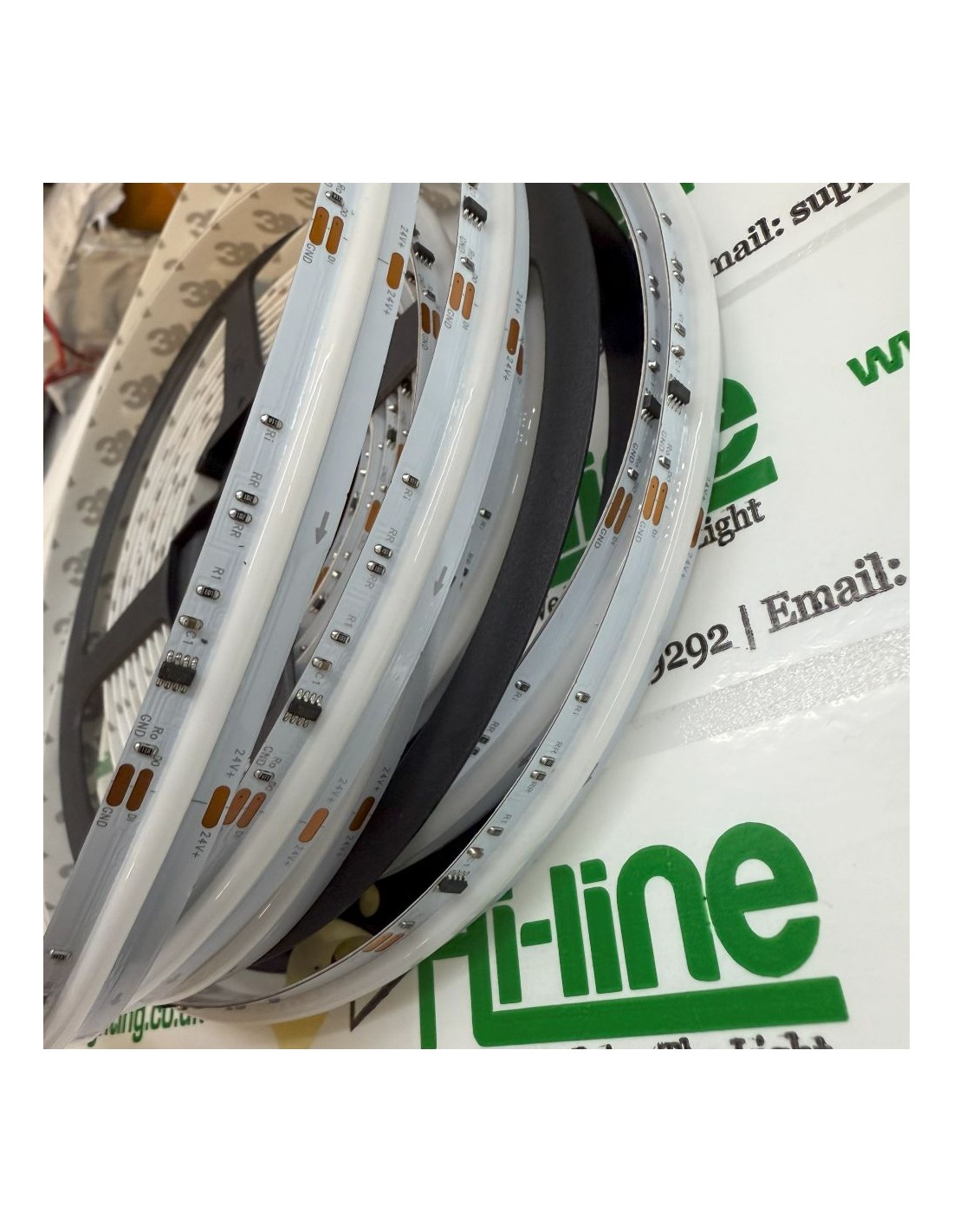

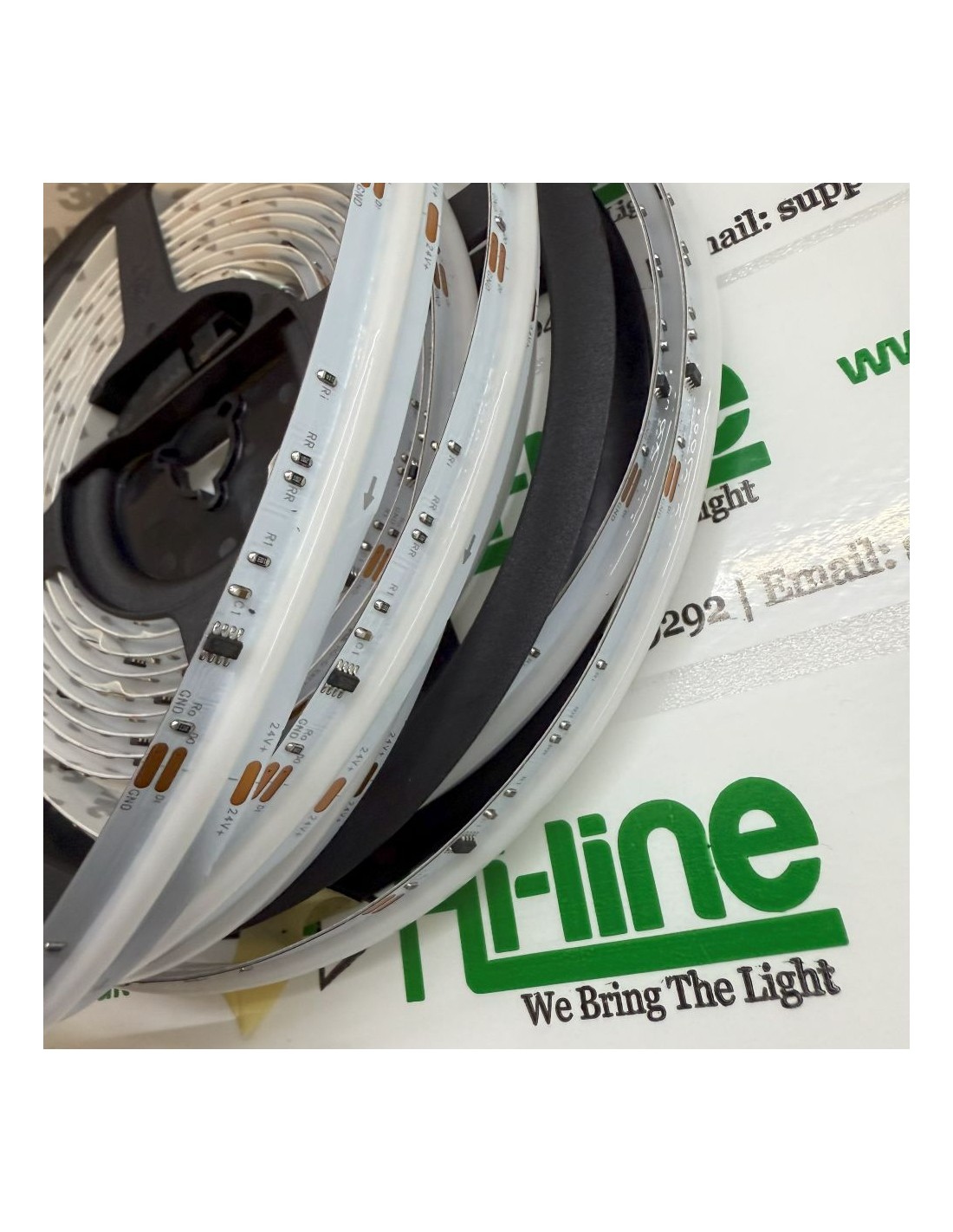

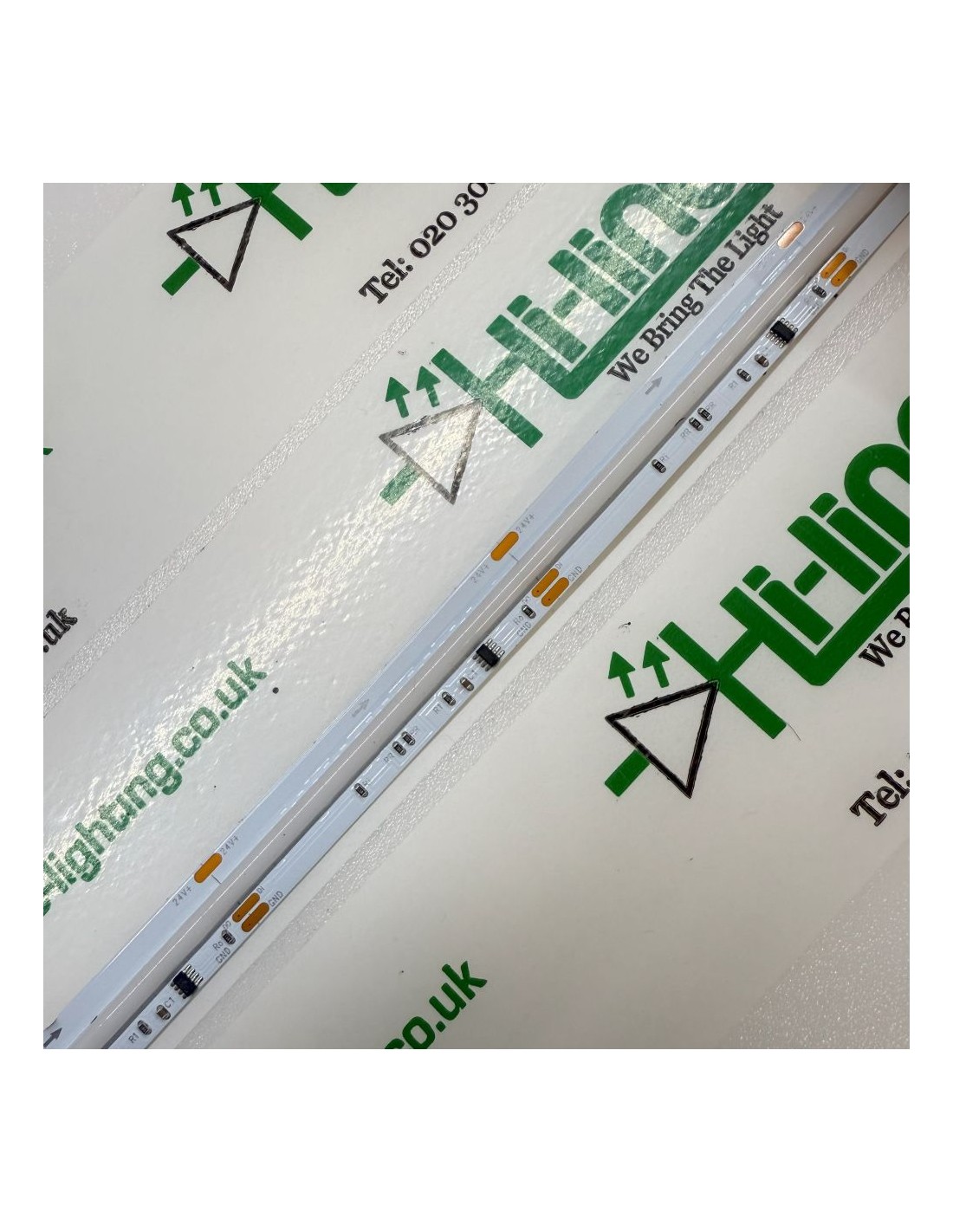

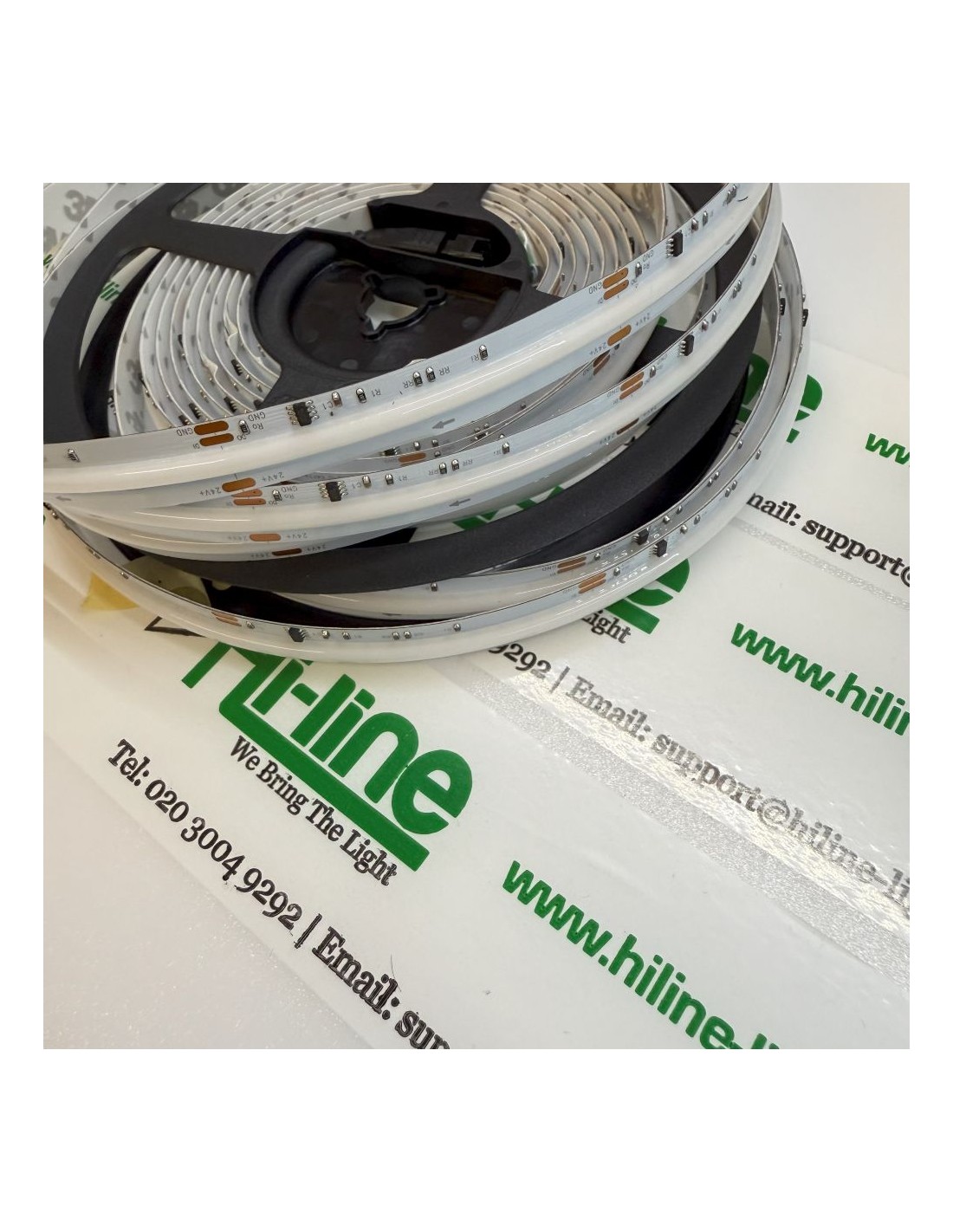

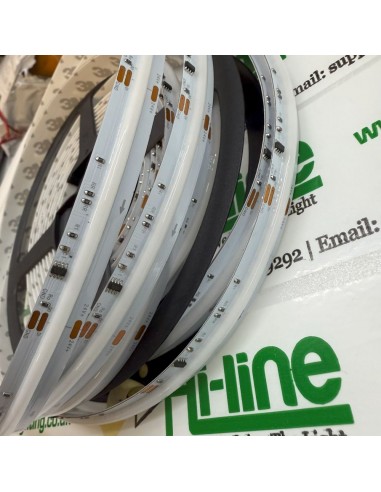

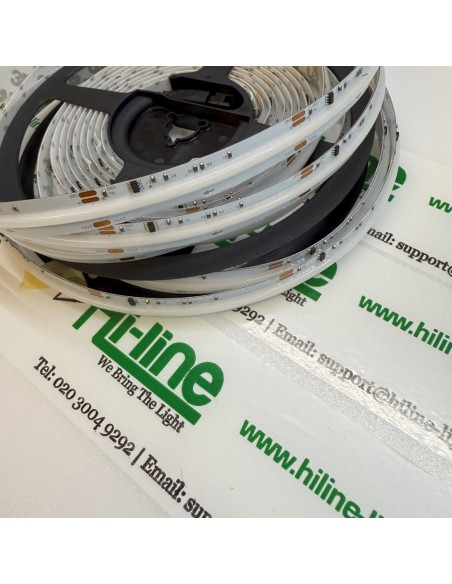

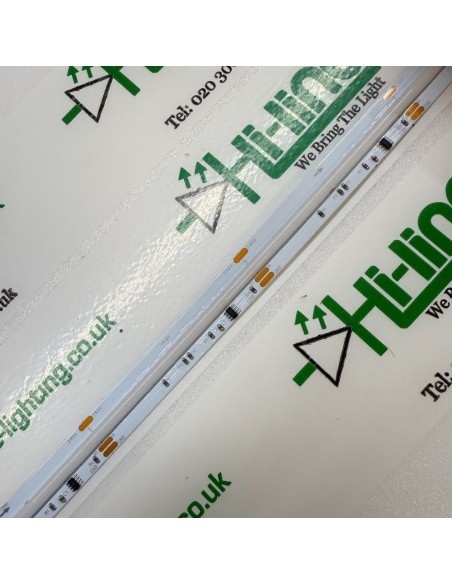

24V COB Addressable RGBW LED Strip – 5m Roll, WS2814 IC, 896 LEDs/m, 16 Pixels/m
Product Description
24V COB Addressable RGBW LED Strip – WS2814 IC
This advanced COB LED strip delivers pixel-level control with smooth RGB plus Warm White output, ideal for creative and decorative installations.

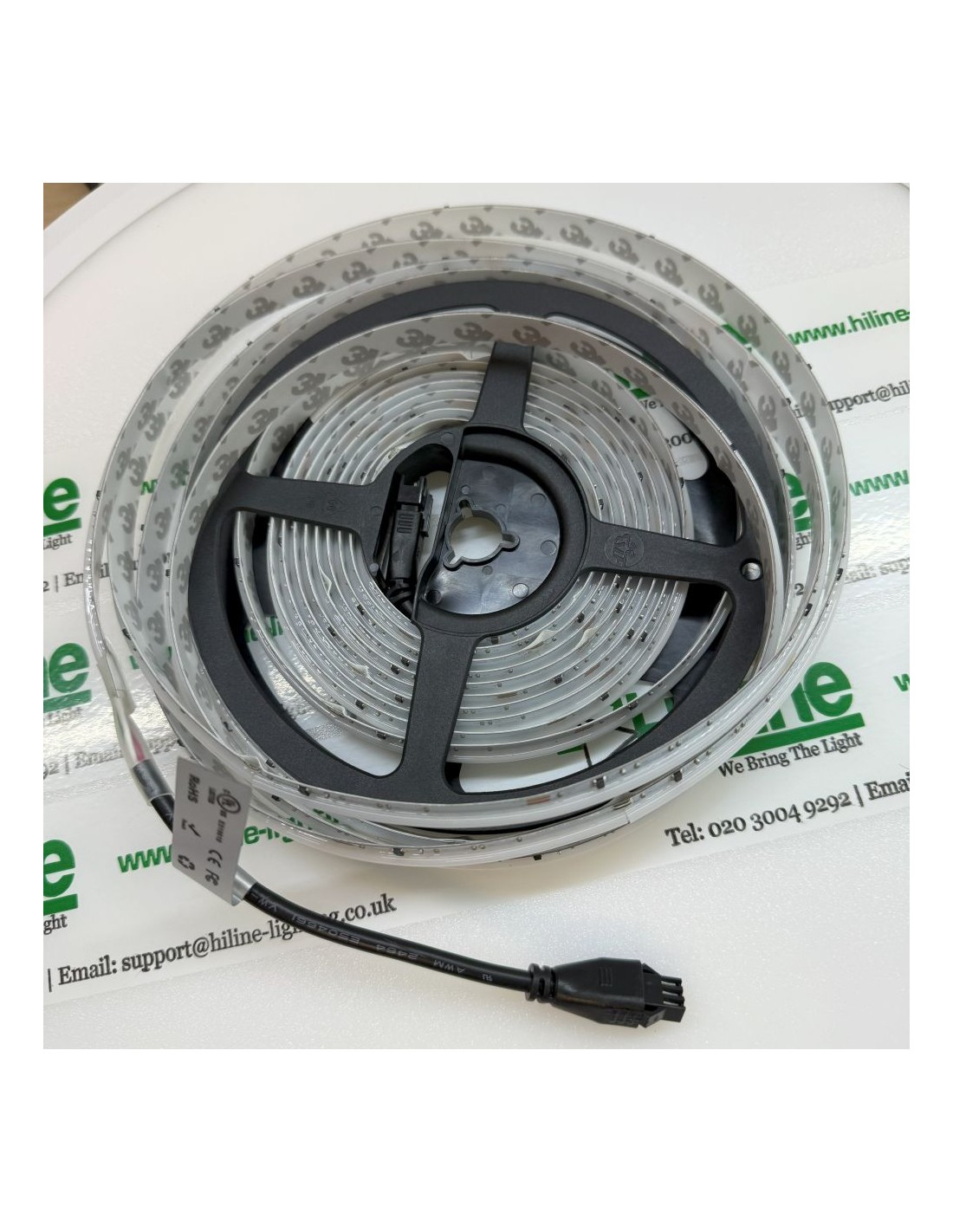

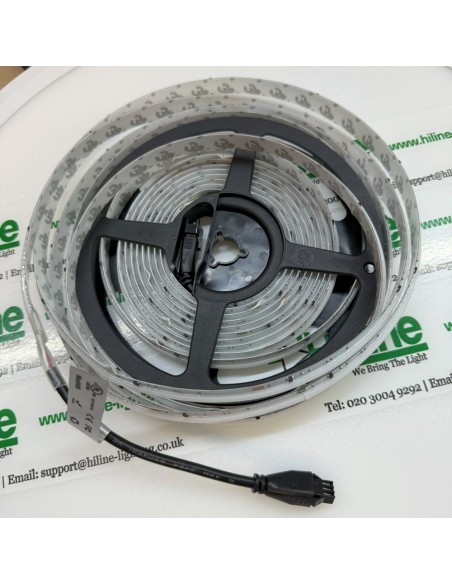

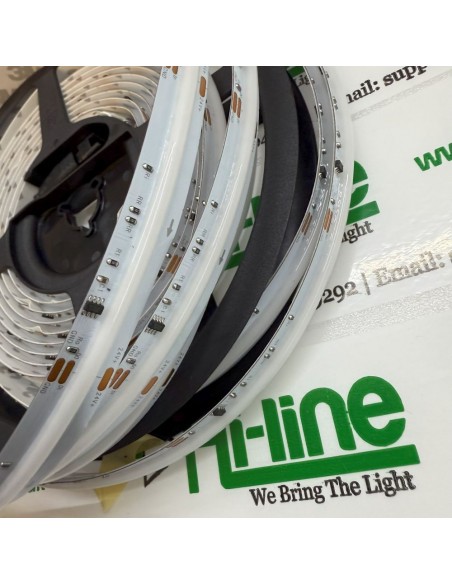

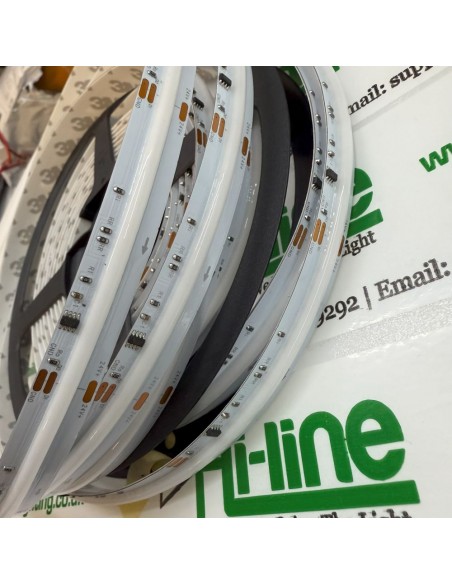

Length: 5m roll (supplied with 2 tails and plugs at both ends)
Voltage: DC24V
Power: 21W/m (estimate at 21W per metre for design safety; actual may be lower over long runs due to voltage drop)
LED Density: 896 LEDs per metre (4480 LEDs per 5m roll)
Pixel Control: 16 pixels per metre (1 pixel = 56 LEDs: 14R, 14G, 14B, 14W)
Cutting Length: 62.5mm (each cut = 1 pixel section)
Chip Type: WS2814 IC (individually addressable control)
LED Composition: 224 Red, 224 Green, 224 Blue, 224 White per metre
CRI: Ra > 90
Width: 12mm
Wire Code: Red = VCC, White = GND, Green = Data
Understanding Pixels
Each pixel on this strip is a group of 56 LEDs (14 each of Red, Green, Blue, and White). When controlled, all LEDs in that pixel respond together. For example, setting one pixel to purple will mix red and blue across the whole 62.5mm section, ensuring smooth, even colour.
Technical Example – DMX512 Control
If you want to run this strip using our SPI-to-DMX controller (Reference: HL-DS-L), keep in mind that one pixel = 4 DMX channels (R, G, B, W). With 16 pixels per metre, this equals 64 DMX channels per metre. A 5m roll therefore requires 320 DMX channels in total.
For larger installations, you can simply use one controller and one power supply per 5m roll. For example, four 5m rolls can be run with four controllers, all set to the same DMX start address. This way, you achieve 20 metres of addressable RGBW control, split into four independent circuits, but behaving as one extended system.
There are also advanced system setups that allow virtually unlimited DMX channels, giving full flexibility for large-scale projects.
Simpler Installations – RF Remote Option
For projects where DMX512 isn’t required, the same controller (HL-DS-L) also supports RF wireless control. You can pair it directly with the HL-R9 handheld remote, making it easy to operate without any DMX knowledge. This lets you run pre-programmed effects, adjust brightness, and control speed quickly and easily.
3-Channel DMX Emulation Mode
The HL-DS-L controller can also be set to a simplified mode where it only uses 3 DMX addresses: one channel selects the effect, one controls brightness, and one adjusts speed. This provides a quick and easy way to run dynamic effects without addressing every pixel individually. Please refer to the controller manual for setup instructions.
Series Information
This strip is part of our Value Series, designed to deliver strong performance for most standard applications. If your project requires maximum brightness, the most efficient LED chips, or very precise control in demanding matrix-style installations, our Premium Series is the recommended choice. Our support team is also available to guide you with tailored advice for complex projects.
Warranty: 3 years standard (extendable to 5 years upon request)
Notes:
This strip provides RGB plus Warm White for richer colour mixing and accurate whites. Sold per 5m roll. Power supply and controller are not included. Click the Related Products tab to find matching items such as the HL-DS-L controller, HL-R9 remote, and other accessories.
