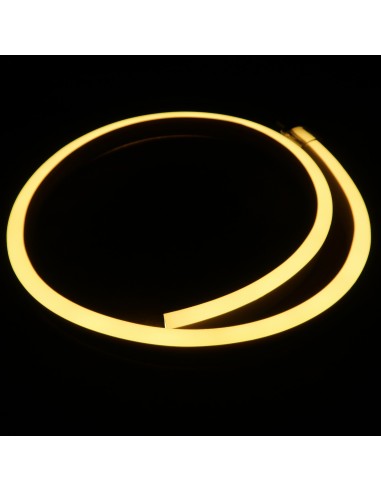

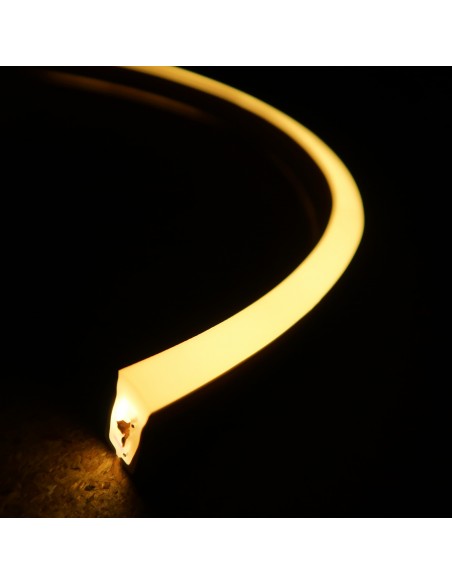

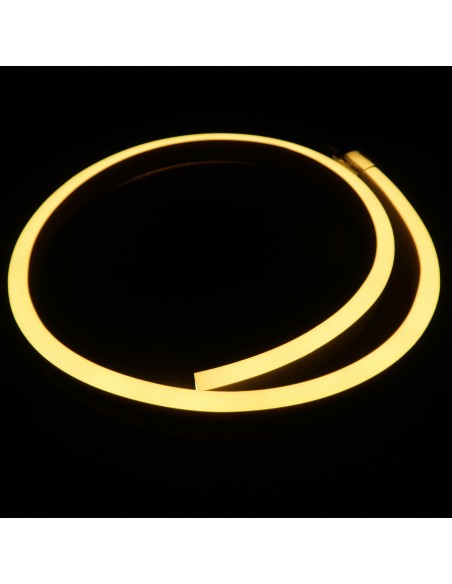

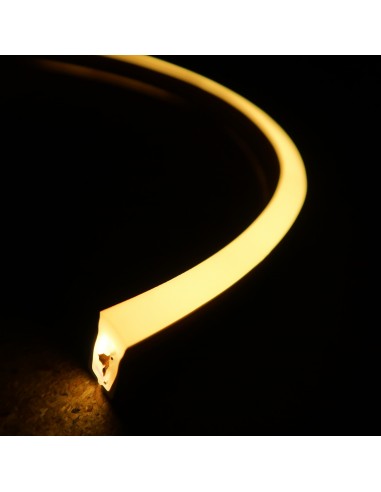

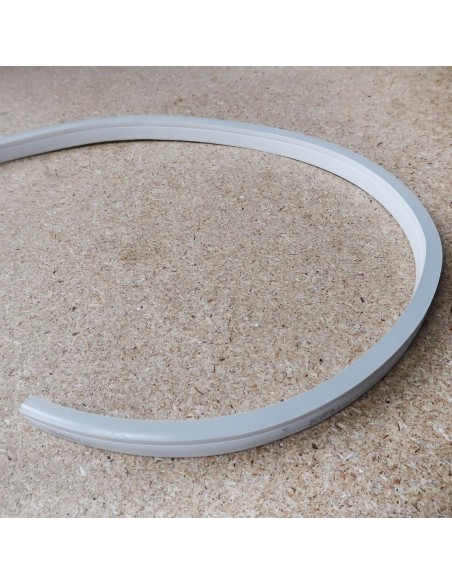

Warm White LED NEON FLEX 2800K 24V IP65/IP67 10x20mm (Sold Per Metre)


New product

Warm White 2800K Neon Flex 24V

96 LEDs/m – 5.5 W/m

Flex width: 10mm

3 year warranty

More details

434 Items

Same Day Dispatch

£ 10,50

£ 10,50 per meter

Add to wishlist

Data sheet

LED Chip SMD 2835
Voltage 24V DC
Colour Warm White
Power 5.5 Watt per meter
Brightness 250 lm/m
Number of LEDs per meter 96
Rating IP65 / IP67
Width of strip 10mm
Height of strip 20mm
Cutting length Every 12.5 cm

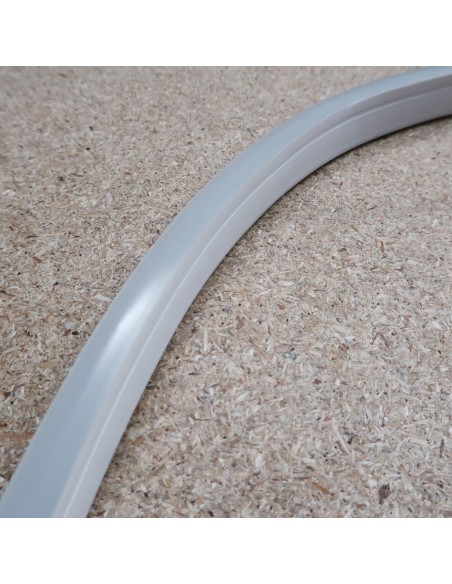

Minimum Bend Diameter (Horizontal) 20mm
LED Neon Flex Type Flat Surface - Horizontal Bending
Voltage Type Constant Voltage
LED Neon Flex Beam Angle 160 Degrees
Warranty 3 Years
Brand Hi-Line

More info

Warm White LED neon flex 2800K 24V IP65/IP67 horizontally bendable 10mm wide x 20mm height (Sold per meter)

LED Neon flex powered by white colour SMD2835 LED chips

10mm wide x 20mm height

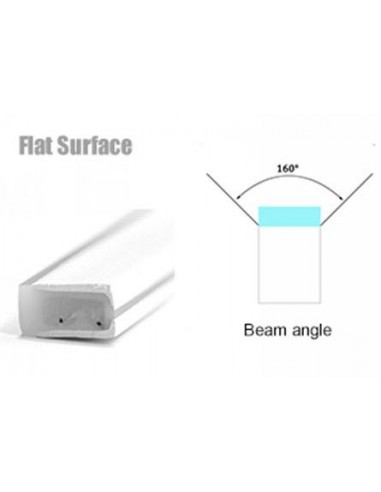

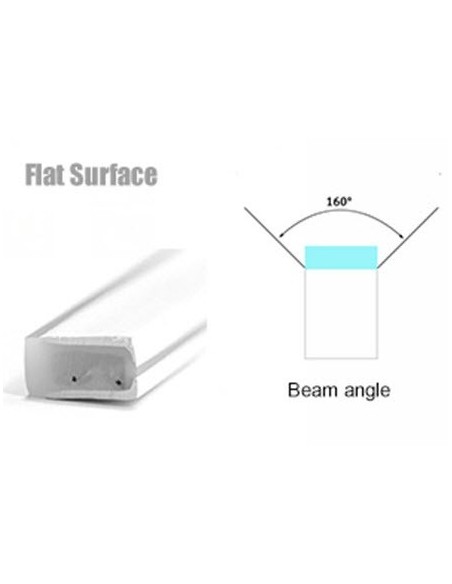

Flat design for architectural lighting. Sits flush along edges and provides a 160 degree beam angle.

5.50 W/m – 24V DC – 96 LEDs/m – IP65/IP67 – 2 wire

CCT 2800K, light output 250 lm/m

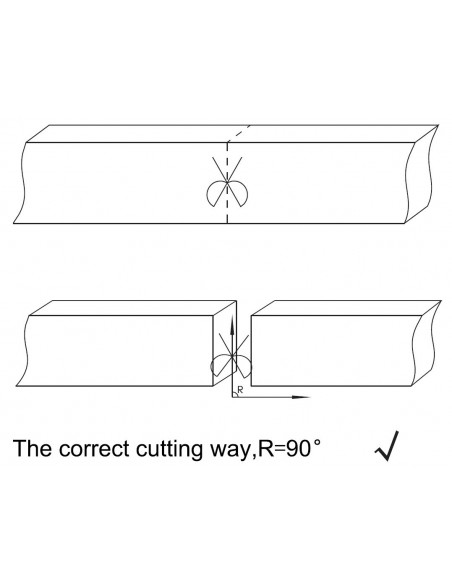

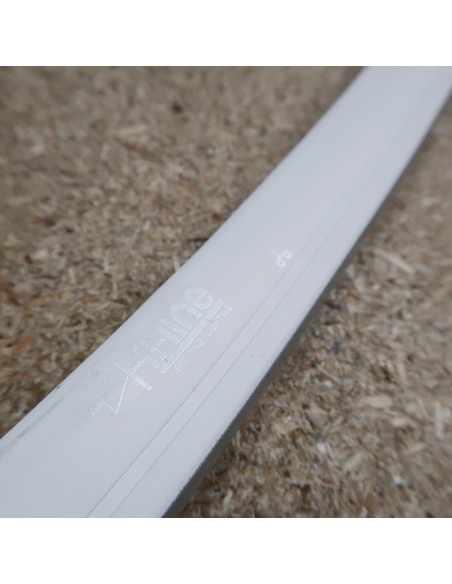

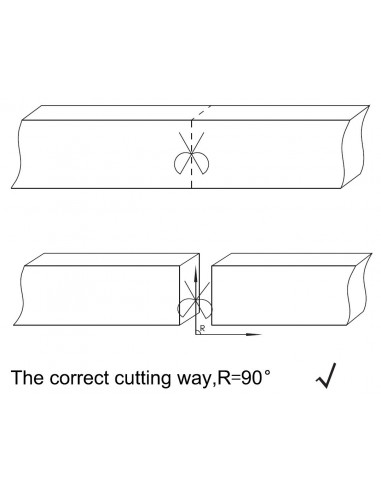

LED Neon flex can be cut at every 12.5 cm

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Returns are not accepted, due to specialised lengths being cut, unless it's a complete 50m reels). Faulty returns will be accepted.

Also, if connectors are required, these need to be purchased separately. You will only receive tail ends when you purchase a 50m roll.

If purchasing a 50 metre roll, please avoid testing the entire length for long periods - you will risk burning out the chips.

3 year warranty

Saunas and Steam Rooms:

If you require LEDs for saunas and steam rooms, please refer to our range of IP68 LED strips, designed to withstand temperatures of up to 110 degrees Celsius.



The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

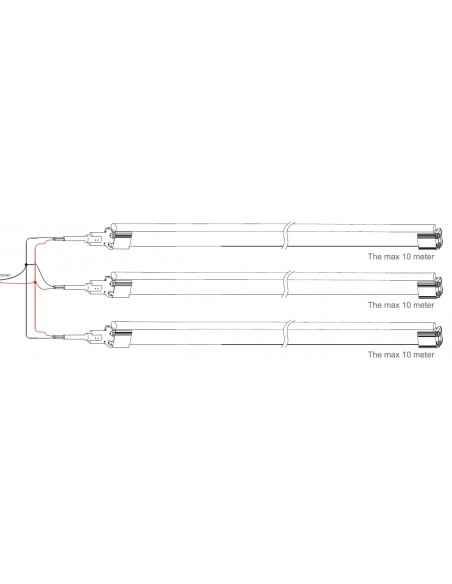

Please do NOT connect more than 10 meters of LED flex in series. A LED flex of more than 10 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.

Please note that 20m of this product can be installed in a single run only with 24V power fed from both sides in parallel. Alternatively you may power RGBW LED Neon flex (24V DC) in the middle of the run (leaving 10 meters LED flex to the left and 10 meters to the right).


All Hi-Line LED neon flex are PWM dimmable.
Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.

LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.


The stated price is for 1m LED Flex in warm white (2800K) powered by 96 x SMD2835 LEDs – IP65/IP67, 24V DC.



Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length

To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.

Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.

For further assistance, please visit out support page or contact us.
