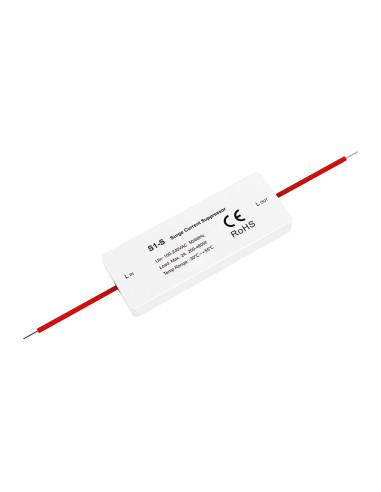

HL-S1-S 2A AC Inrush Suppressor L In L Out 100-240V

S1-S 2A AC Inrush Suppressor for Triac LED 100-240V

HL-S1-S is a 100–240 V AC inrush suppressor for triac-dimmed LED loads. Max 2 A / 480 W. Wire it in series with the dimmer (L in / L out) so GU10s and small drivers do not trip the breaker. Not a dimmer. The 8 A version is HL-S1-SX.

HL-S1-S

Need more than we have in stock?

We have 11 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
11 Items In stock
Next working day delivery
£12.00
(£
14.40
with VAT)
VAT excluded

Tags:


HL-S1-S — 2 A AC inrush suppressor for triac-dimmed LED

A small NTC module in series with the switched live. At switch-on it is a high resistance, so the inrush from GU10s or compact triac-dimmable drivers is knocked down. As it warms, resistance falls and it barely wastes power. 100–240 V AC, max 2 A / 480 W. It is not a dimmer and it does not replace a surge protector on the whole board.

The 8 A / 800–1920 W sister is HL-S1-SX.

Why installers buy it

  • Stops nuisance breaker trips on a handful of GU10s or one small driver behind S1-F / S1-B.
  • Flying L in / L out leads. Fit in front of or after the triac dimmer.
  • IP20, about 76 × 24 × 9 mm, 21 g.

What you are wiring

  • L in from the dimmer (or supply), L out to the dimmable load
  • Neutral does not go through the module

Several modules can be cascaded for a harder inrush. The user manual PDF is on the Attachments tab. Related: S1-SX and typical triac dimmers.

Technical summary

  • SKU: HL-S1-S
  • 100–240 V AC, 50/60 Hz, max 2 A, 200–480 W
  • NTC inrush suppressor, IP20, about 76 × 24 × 9 mm, 21 g
  • Warranty: 5 years

Must be installed by a qualified electrician. Indoor, dry location only.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Voltage
110-240V AC
Warranty
5 Years
