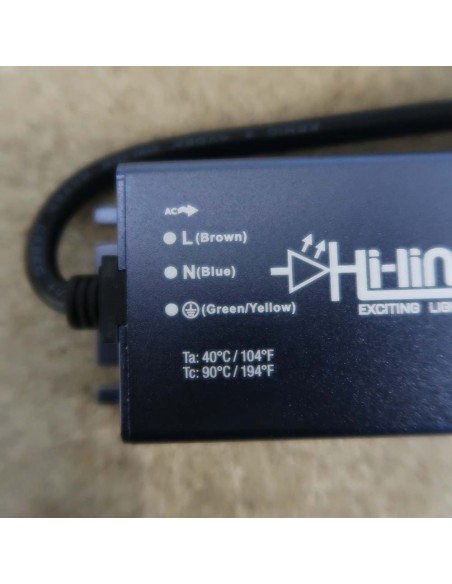

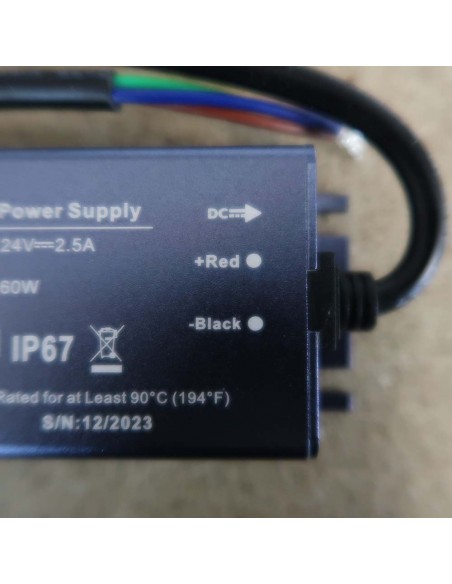

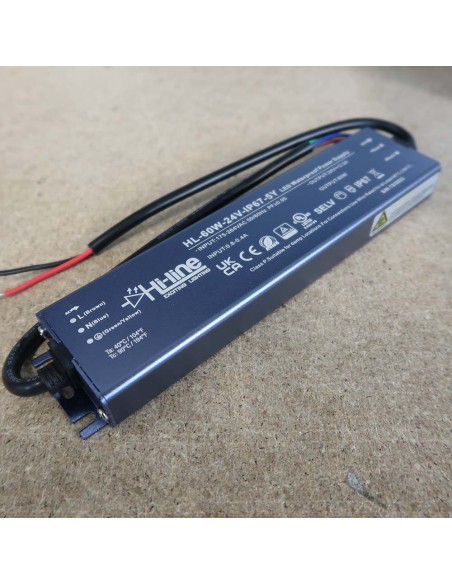

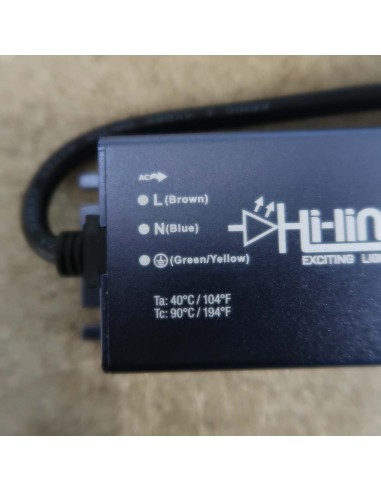

LED Driver "Premium Series" 60W 24V IP67
Premium Series LED Driver 60W
Input: 85-265V AC
Output: 24V / 2.5A
Constant Voltage Type
Suitable for LED Strips
5 years Warranty
60W / 24V Premium Series of constant voltage LED drivers with high power factor & efficiency.
This is a highly specified switch mode power supply using the best electronic components in the market.
Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 60W.
It is recommended to calculate 20% more than the tape power consumption.
As an example this LED Driver can be used for up to 3.40 meters of high power single colour or RGBW LED strip (14.4W per meter X 1.20 load factor).
LED Driver 60W/24V
Input: 85~265V AC (50/60Hz)
Output: 24V / 2.5 Amps
Suitable for LED Strips
Rating: IP67 (Waterproof)
Power factor: >0.98
Efficiency: >88%
Ripple: <2%
Dimensions: L165*W57*H36 mm
Weight: 500g
Warranty offered for the LED driver is 5 years
___________________________
Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller.
____________________________
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
____________________________
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the best performance for the power supply, 20% was deducted from the maximum strip length in the table below.
____________________________
For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
