This listing is the 10 metre roll — reference HL-RGBCW-896COB-IP00-24V-10M.
Also available as a 5 metre roll. The same RGB+Cool White 6000K COB strip is sold as a 5 m reel — HL-RGBCW-896COB-IP00-24V. Open that page, or scroll to Related Products below. The two lengths are separate products, so the size in your basket is always clear.
The watts per metre on this page are the total for every channel together. The common positive, usually the black wire, carries that whole current. Each colour return carries only its own share. Connector length, and the cross-section of any long feed, are set by the common wire. The calculation for RGB, RGBW, tunable white and RGB+CCT is in our guide to common anode current on colour-changing LED strip.
What you are buying

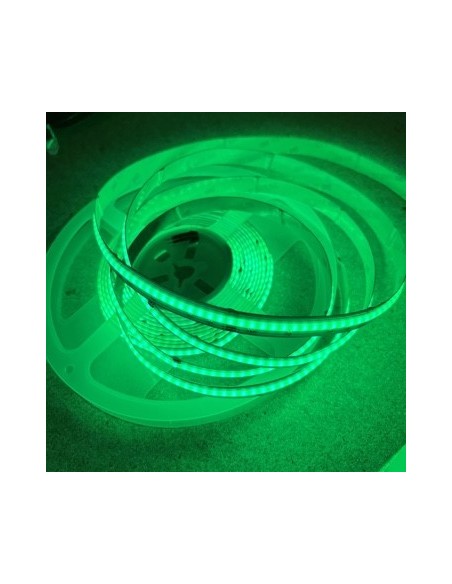

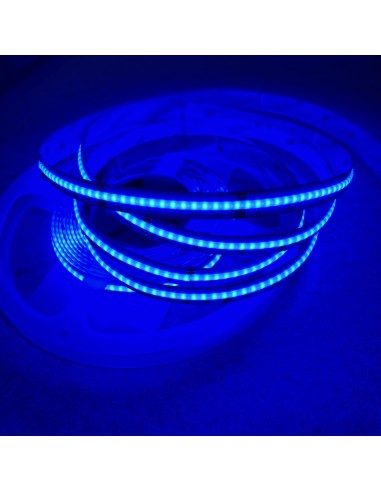

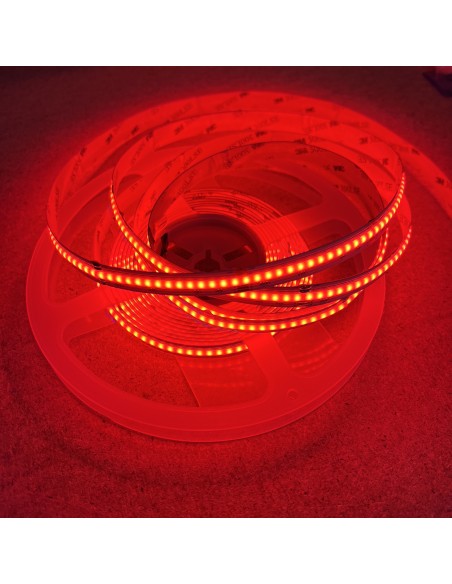

A premium Hi-Line COB (chip-on-board) RGBW LED strip for colour-changing and high-quality white light in a continuous 10 m tape. The white channel is cool white 6000K (RGB+CW) - crisp daylight-style white plus full RGB colour, with smooth, dot-free illumination for coves, retail, hospitality, display and professional DIY.
Key technical specifications (see also the Product Specifications tab)
- Type: COB / COF RGBW (RGB + Cool White)

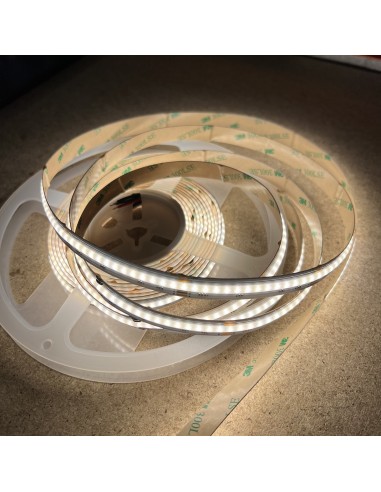

- CCT / colour: RGB + 6000K CW
- Density: 896 LEDs per metre (dotless appearance)
- Power: 15 W per metre
- Voltage: 24V DC constant voltage
- CRI: more than 90
- PCB width: 12 mm (use matching 5-pin / 4-channel COB RGBW connectors)
- IP rating: IP00 - indoor / dry locations (not waterproof)
- Cut points: about every 62.5 mm
- Roll length on this page: 10 metres
- Warranty: 3 years
For installers and engineers
- Load: budget about 15 W x metres (plus ~20% PSU headroom). Example: full 10 m roll ~150 W continuous strip load; size 24V drivers accordingly (often split feeds or multiple PSUs).
- Power injection: on a 10 m reel, plan injection / zone splits so voltage drop does not dull the far end or shift colour.
- Wiring: RGBW needs four channels + common (5-core). Keep polarity consistent (R/G/B/W + V+).
- Profiles: 12 mm COB tape in aluminium profile with diffuser for professional, even results.
- Controllers: constant-voltage RGBW (4-channel) at 24V. Match total channel current to the load of each zone.
For DIY and simple projects
This is the longer reel of the same strip as our 5 m listing - useful when you want fewer joins on a longer run. Still cut only on marked lines, use a suitable 24V supply and an RGBW controller, and prefer an aluminium channel for heat and appearance. If you only need half that length, consider the 5 m product instead.
How to control this strip
Wireless (most popular for homes, shops and multi-zone RF): scroll to Related Products below for matching Hi-Line wireless options - including popular 5-in-1 WiFi/RF controllers such as HL-WT5 and HL-V5-L(WT), waterproof RF receiver HL-V4-WPS, remotes such as HL-R8, HL-R8-1, HL-RS4 and HL-RS10-RGBCCT, wall panels such as HL-T14, and automation options like HL-EH-M(WZ).
Pro wired DMX512: for venues, stages and fixed wired systems we stock a large DMX512 range here: DMX512 LED controllers collection.
Related products and accessories
Use Related Products below for the 5m sibling roll, COB RGBW connectors, and recommended controllers/remotes. Use Product Specifications for the full data list, and Attachments for guides where available.
