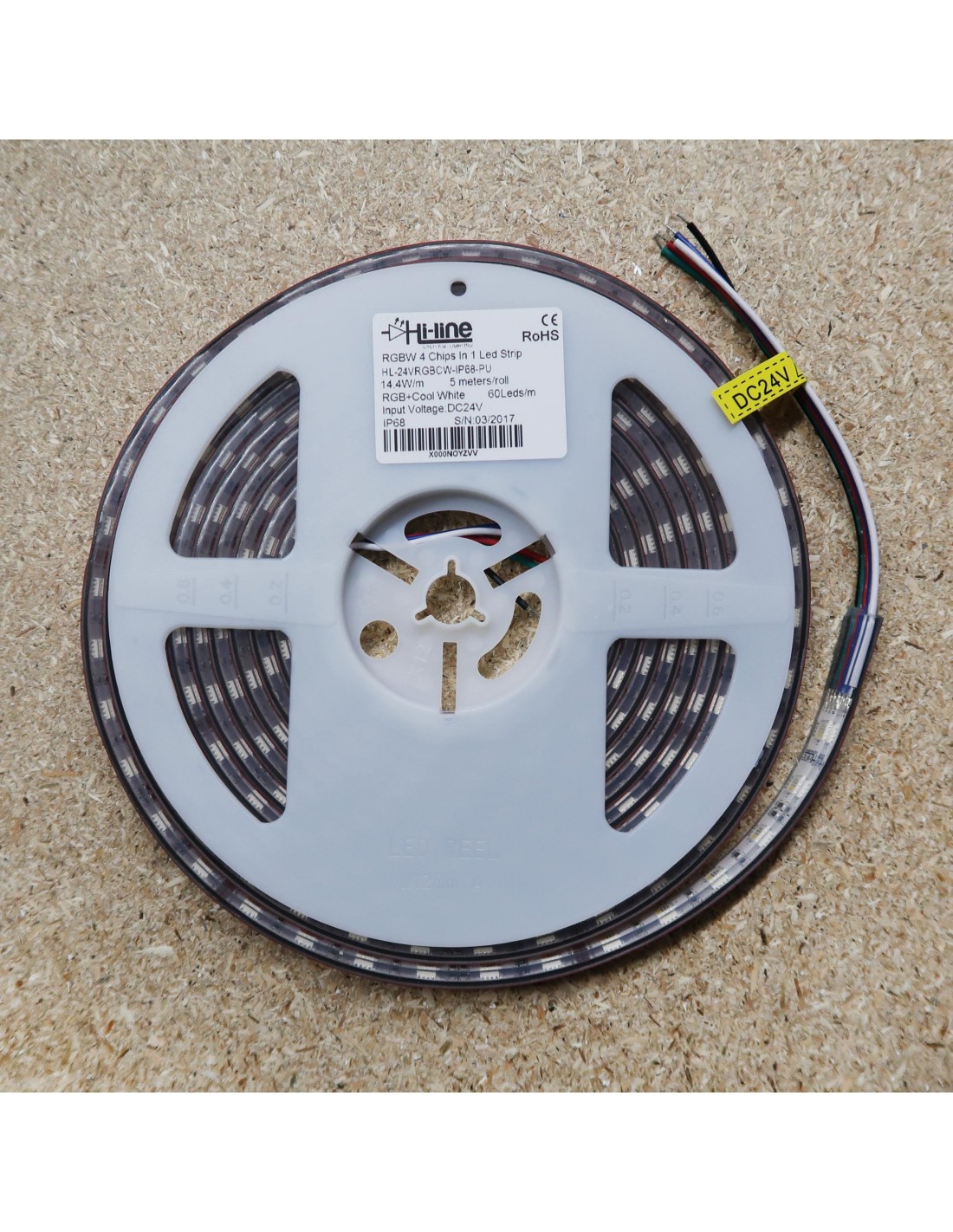

No 3M tape. This silicone sleeve is supplied without double-sided adhesive. A bare reel is not a missing part. Installers often want 3M because it is quick to fit. On this cover, acrylic tape sticks to the wall and lets go of the silicone, which is why the reel is supplied this way. If a red liner is still on the reel, peel it off. It is not the mount, and glue on that liner does not fix it. Mount the sleeve with DOWSIL 7091, white, 310 ml. The 45 g tube HL-706TM only seals a cut end and its cap. The steps, and when a clip should carry the run, are in how to mount an IP67 or IP68 silicone sleeve.
The watts per metre on this page are the total for every channel together. The common positive, usually the black wire, carries that whole current. Each colour return carries only its own share. Connector length, and the cross-section of any long feed, are set by the common wire. The calculation for RGB, RGBW, tunable white and RGB+CCT is in our guide to common anode current on colour-changing LED strip.

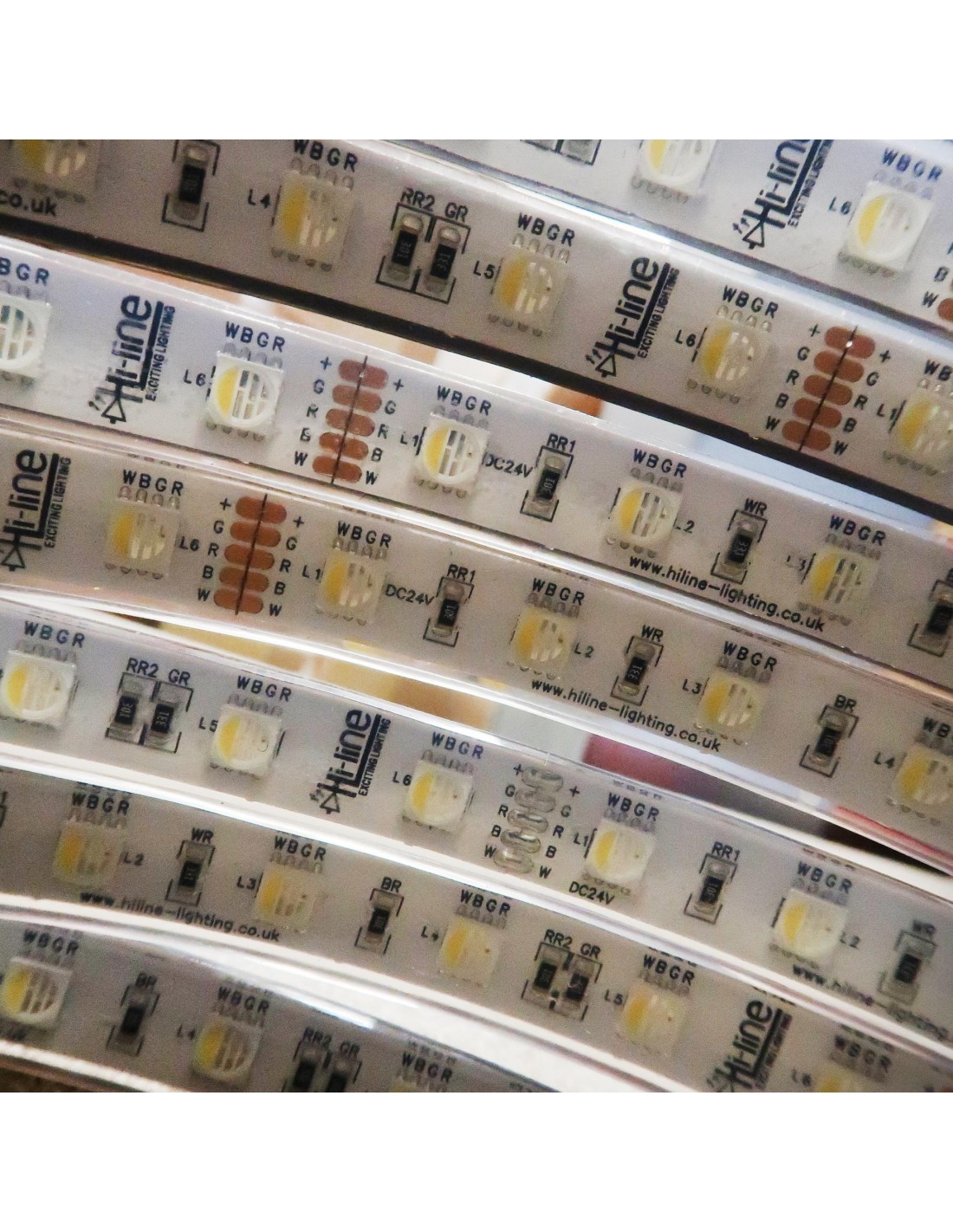

The silicone jacket hides the cut marks. Hold the strip to a good light and cut only on the copper pads. The spacing on this reel, and what a cut between the pads does, is in our guide to cutting an IP68 LED strip.

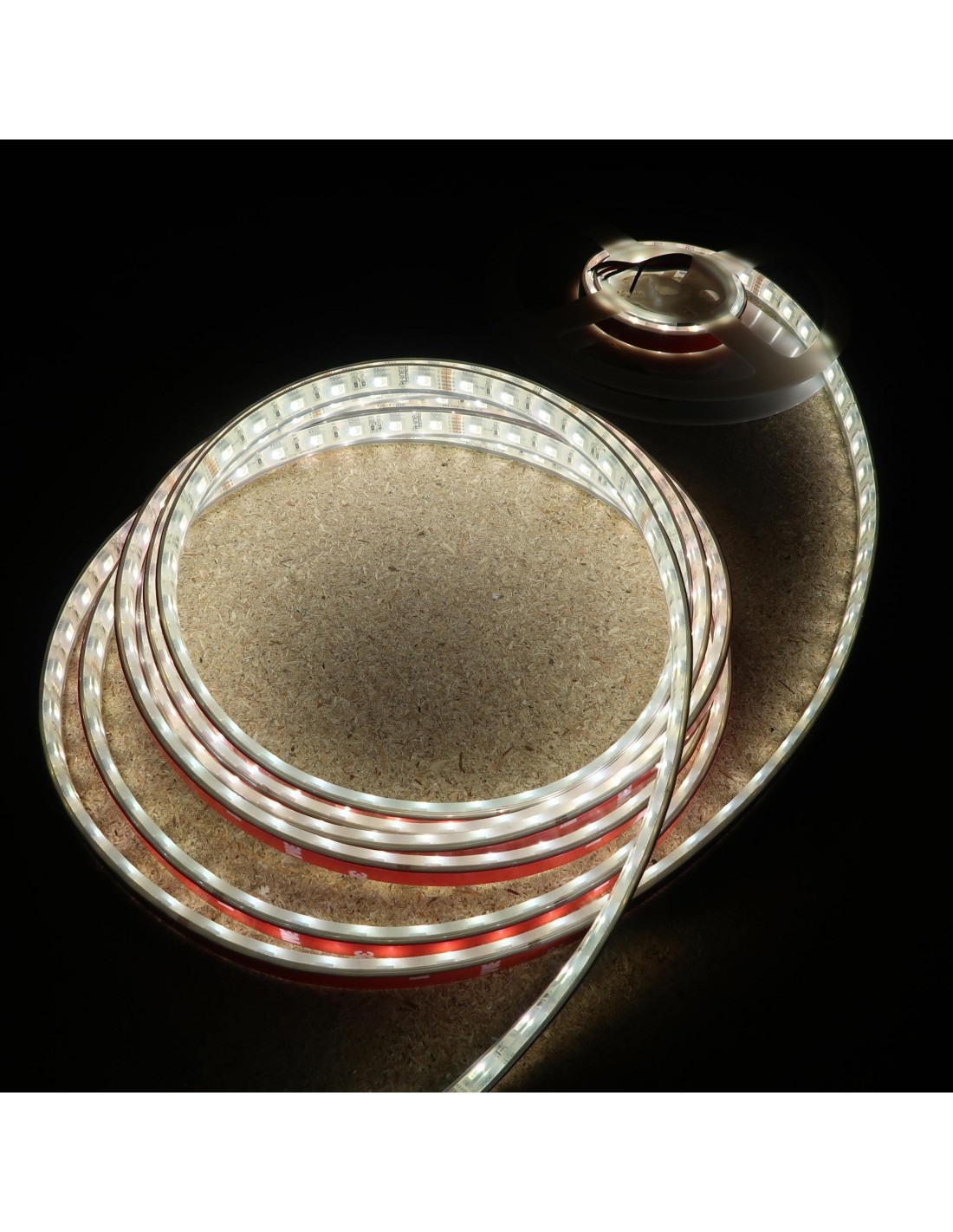

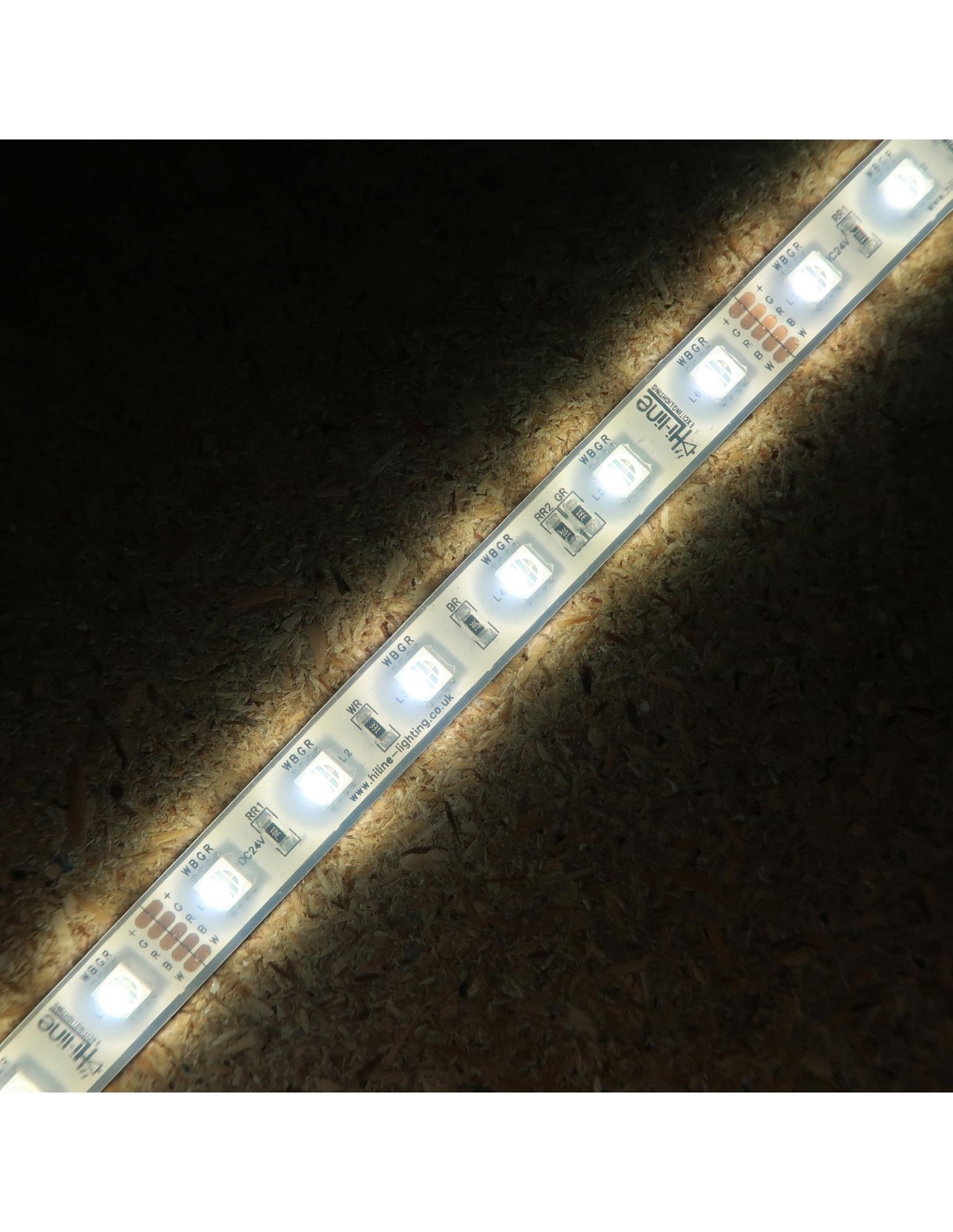

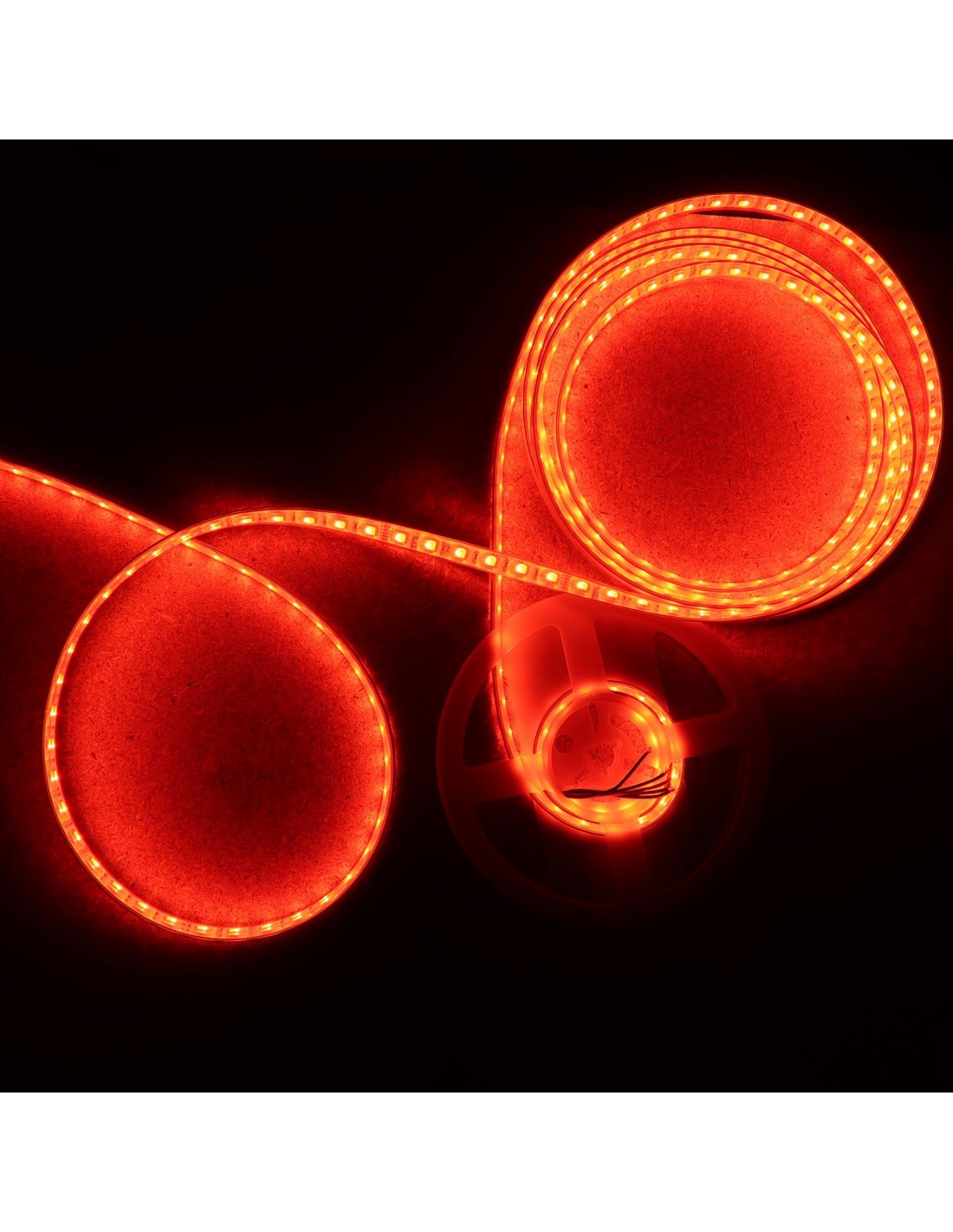

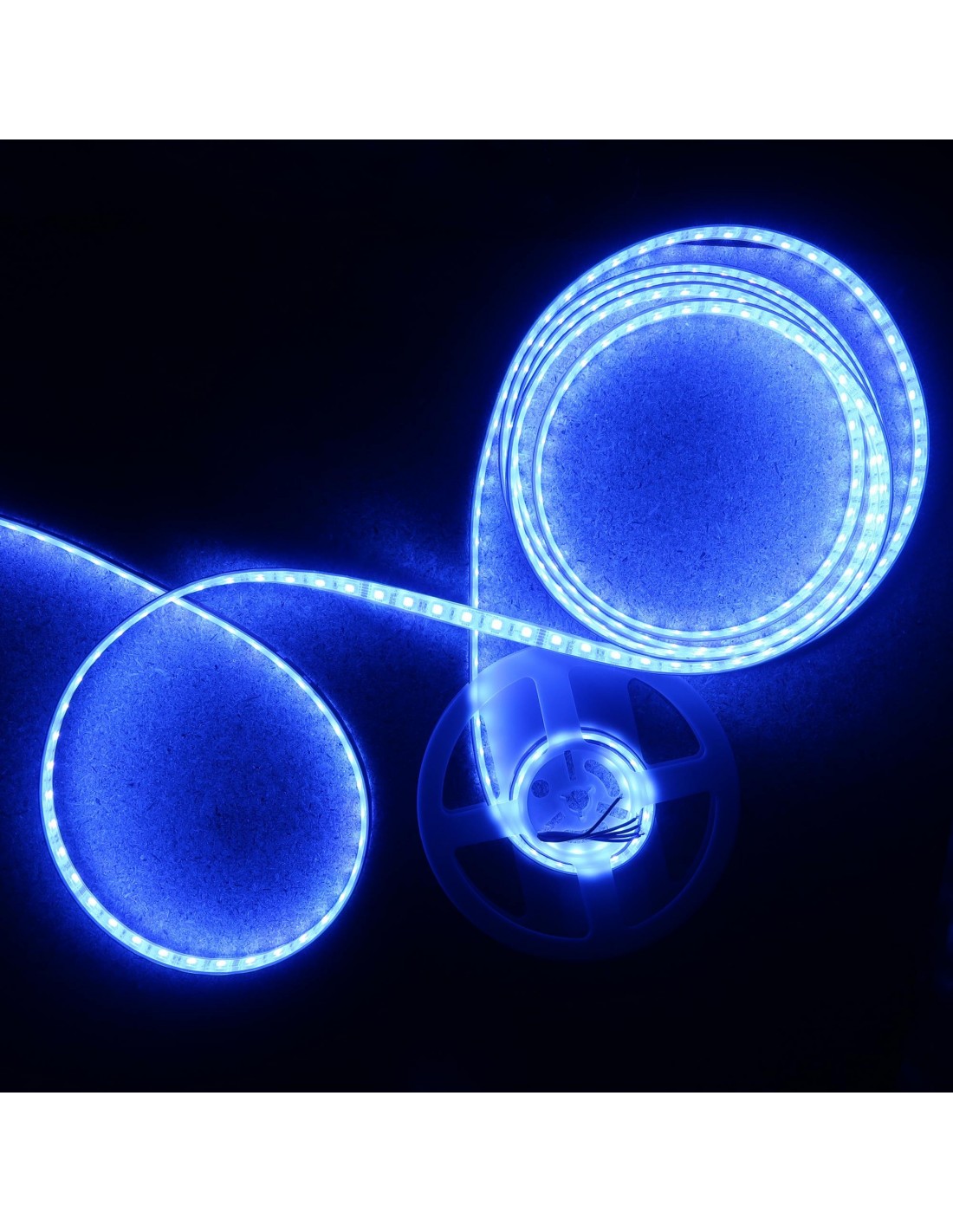

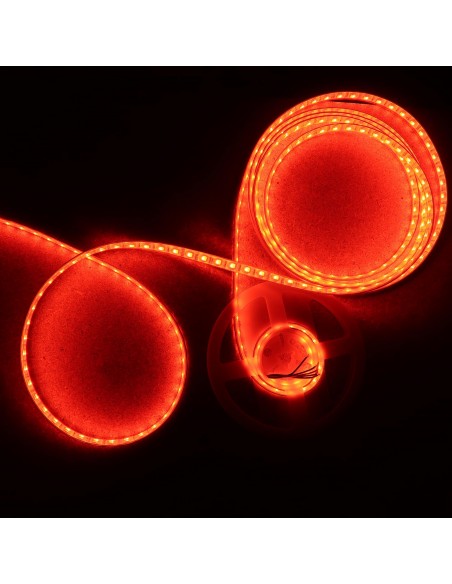

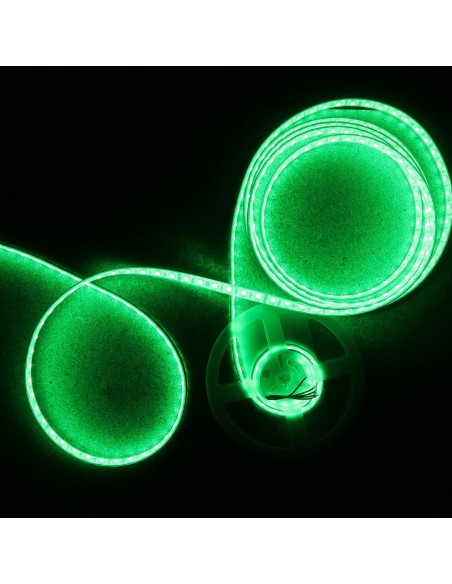

Experience vibrant and versatile lighting with our 10-metre RGB + Cool White LED strip. Featuring high-quality Quad/4-in-1 SMD5050 LED chips, this strip seamlessly combines RGB colours with a crisp 6000K cool white, all within a single chip. Operating at 24V DC and consuming 14.4W per metre, it delivers a brightness of 1200 lumens per metre, making it ideal for both residential and commercial applications.

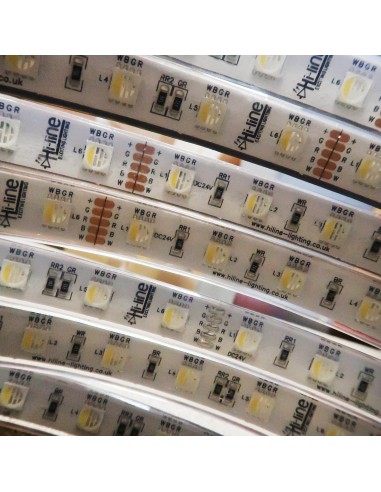

LED Chip: Quad/4-in-1 SMD5050 (RGB + Cool White)
Colour Temperature (CCT): 6000K
Voltage: 24V DC
Power Consumption: 14.4 Watts per metre
Brightness: 1200 Lm/m
LEDs per metre: 60
Strip Length: 10 metres
Width: 12mm
Height: 5mm
IP Rating: IP68 (Waterproof)
Cutting Interval: Every 10cm (6 LEDs)

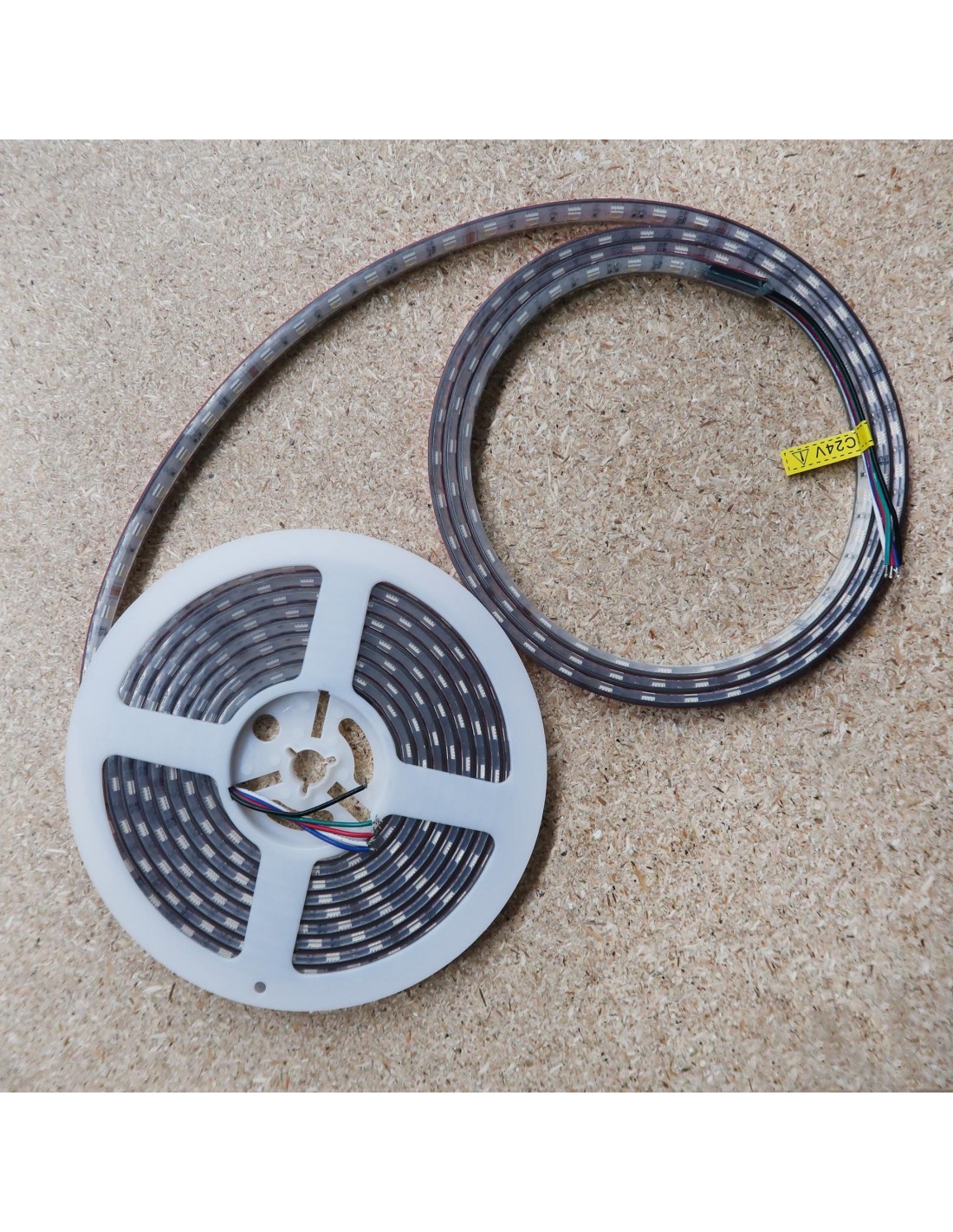

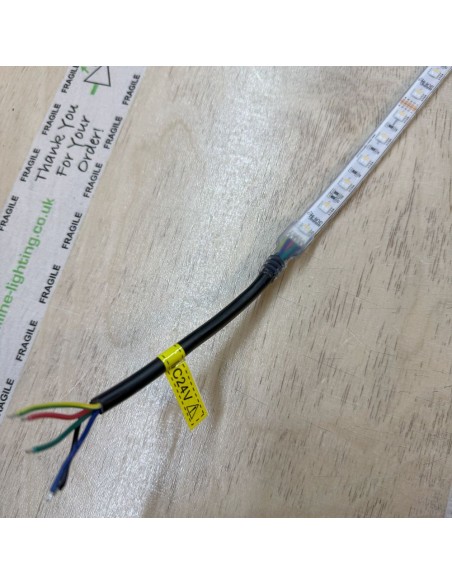

Cable Length: 15cm on each end
Warranty: 3 years standard; 1 year for challenging environments (e.g. saunas, steam rooms)
Installation Recommendations:
For optimal performance and to prevent voltage drop over the 10-metre length, we recommend powering both ends of the strip in parallel. This ensures consistent brightness throughout. The strip is compatible with most RGBW controllers, including those by Fibaro and Rako. For installations in high-temperature areas such as saunas or steam rooms, it is recommended to mount the strip on an aluminium flat bar or directly on a solid surface like concrete to improve heat dissipation and extend the LED lifespan.
Durability and Flexibility:
Encased in a durable polyurethane coating, this LED strip is rated IP68, making it suitable for both indoor and outdoor applications, including wet or dusty environments. The coating offers excellent protection and flexibility while preventing yellowing over time. When installed correctly, clarity and performance are maintained for over 5 years.
Whether you're illuminating architectural details, creating ambient lighting effects, or enhancing outdoor environments, this 10-metre RGB + Cool White LED strip offers a reliable, high-performance solution.
