RGBW LED Strip (RGB+NW) 24V-14.4W/m- IP65-CRI80-12mm/2oz PCB-5m Roll

HL-24VRGBNW12-IP65

New product

RGB+Natural White LED strip (Quad/4 in 1 Chip), 4000K, 24V, IP65 (Splash waterproof)

60 LEDs/m–14.4W/m–1200Lm/m

5m roll–12mm width–2oz PCB

3 year warranty

More details

25 Items

£ 67,00 excl. VAT

£ 13,40 per meter

Add to wishlist

Data sheet

LED Chip SMD5050
Voltage 24V DC
Colour RGB+Natural White
Power 14.4 W/m
Brightness 1200 Lm/m
Number of LEDs per meter 60
Rating IP65 (Splashproof)
Colour Temperature (CCT) 4000K
Colour rendering (CRI in ra) 80
Width of strip 12mm
Cutting length Every 6 LEDs (100mm)

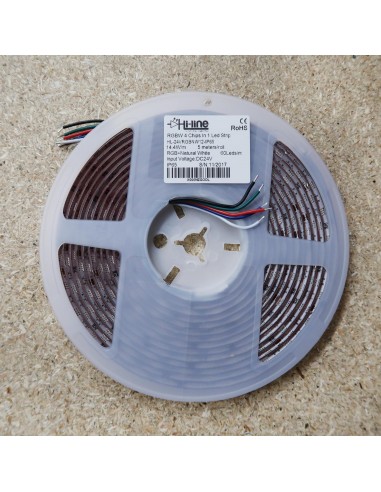

LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Cable length 15cm
Warranty 3 Years
Brand Hi-Line

More info

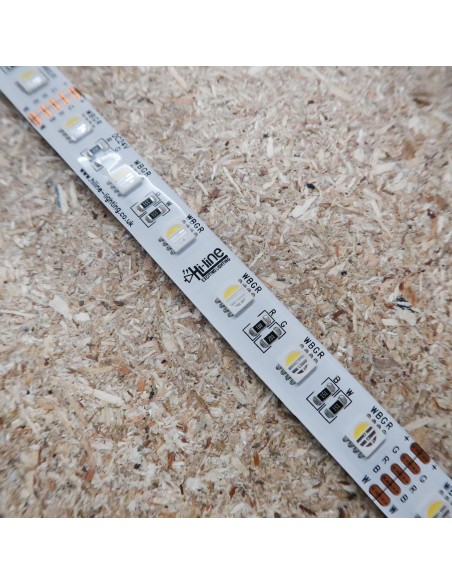

Commercial high grade RGB + Natural White LED strip with quad chip (4 colours in 1 chip)

This LED strip is based on a 12mm/2oz flexible PCB, which makes it possible to maintain a low operating temperature despite very high brightness. This results in a longer lifespan of the LED strip and a consistent performance.

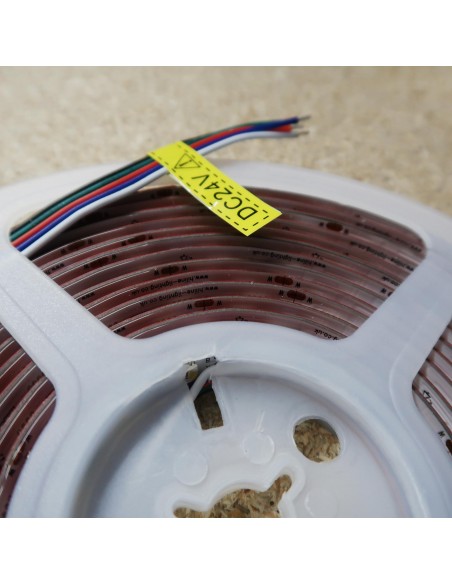

14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP65 (Splash waterproof) – 5-wire cable (15cm on each side of the strip roll)

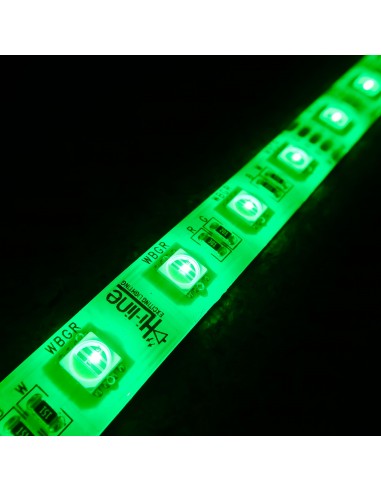

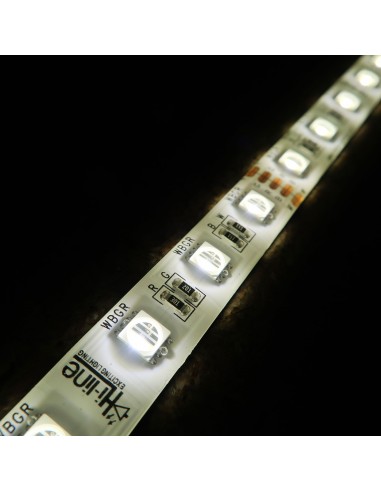

This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Natural White in a single chip. Due to this innovative design (4 in 1 chip) the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.

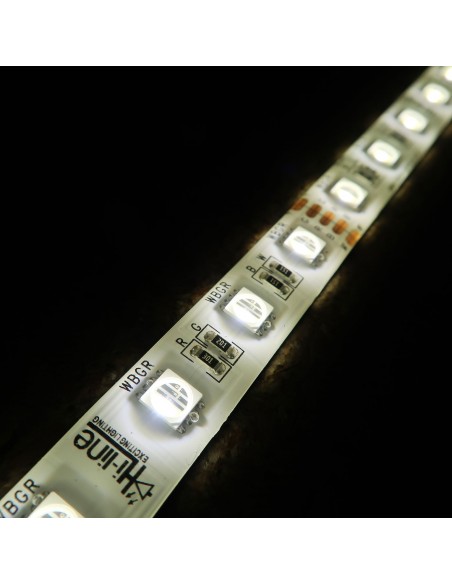

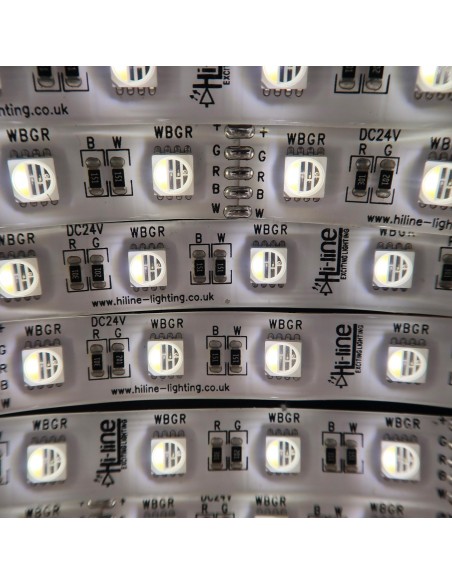

The RGBW LED strips are powered by high quality quad SMD5050 LED chips. The brightness of each chip is 20 lumens.

The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.

Excellent colour rendering quality (CRI) – all LED chips reach a value of Ra >80.

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 12mm.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

3 year warranty

______________________________



The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Please note that 10m of this product can be installed in a single run with power only fed from one side. Thus, when 10 meters of LED strip are exceeded (for up to 20m), it is suggested to connect the strip to a 24V DC power supply in the middle of the run (leaving 10 meters of LED strip to the left and 10 meters to the right).

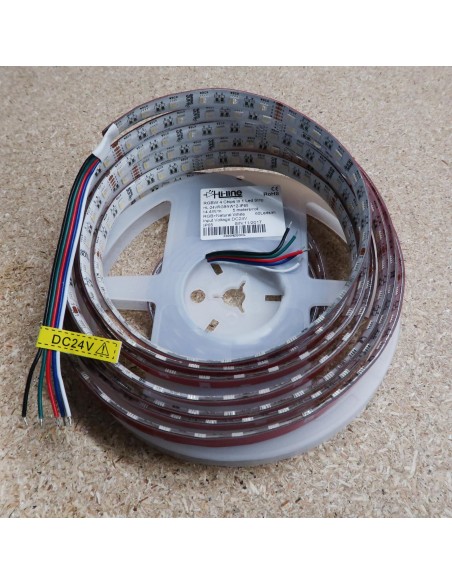

The RGBW LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.

Please note that this data is based on the average readings for a 5-meter long LED strip. If the length of the strip is 1 meter the power consumption will be higher as there is almost no voltage drop. For comparison, the test result for 1m RGBW LED strip with 14.4W and 60 LEDs showed a power consumption of 18.48W or 0.77A.

_____________________________

IP65-PU Splash-waterproof Protection is achieved by providing the LED strip with a very thin, bright, polyurethane-spray layer.

The great advantage of this protective layer is that the luminosity of the LED strip is not affected and the LED strip can be easily cut and soldered. But the most important advantage of this Polyurethane layer is that it makes it possible to the strip to be used inside enclosed spaces such as signs, while temperature is not an issue since PU acts also as a coolant for the chips.

Moreover, the LED strip remains extremely flexible, very clear, soft and well splashproof-protected throughout its life time.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY conventional anode LED controller available on the market.

______________________________

The stated price is for 1 x 5-meter roll RGBW LED strip (RGB+ Natural White) with 600 SMD5050 RGBW LEDs – IP65 (Splash-Waterproof), 24V DC.

______________________________



Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% were deducted from the maximum strip length in the table below.

Note that, for driving RGBW LED Strips, you will have to combine the LED-Driver with a RGB/RGBW LED Controller.

In such case, LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
