Cool White LED Strip 4.8 W/m 24V IP68

HL-LS3528B-60CW-24V-IP68

New product

Cool White LED strip, 6000K, 24V, IP68 (Fully Waterproof)

60 LEDs/m–4.8W/m–360-420Lm/m

5m roll–10mm width (5mm height)

Excellent CRI - Ra>80

3 year warranty

More details

9 Items

Same Day Dispatch

£ 37,50

£ 7,50 per meter

Add to wishlist

Data sheet

LED Chip SMD 3528
CIE Colour Space 3 SDCM
Colour Cool White
Voltage 24V DC
Power 4.8 W/m
Brightness 360~420 Lm/m
Number of LEDs per meter 60
Rating IP68 (Underwater waterproof)
Colour Temperature (CCT) 6000K
Colour rendering (CRI in ra) 80
Width of strip 10mm
Height of strip 5mm
Cutting length Every 6 LEDs (100mm)

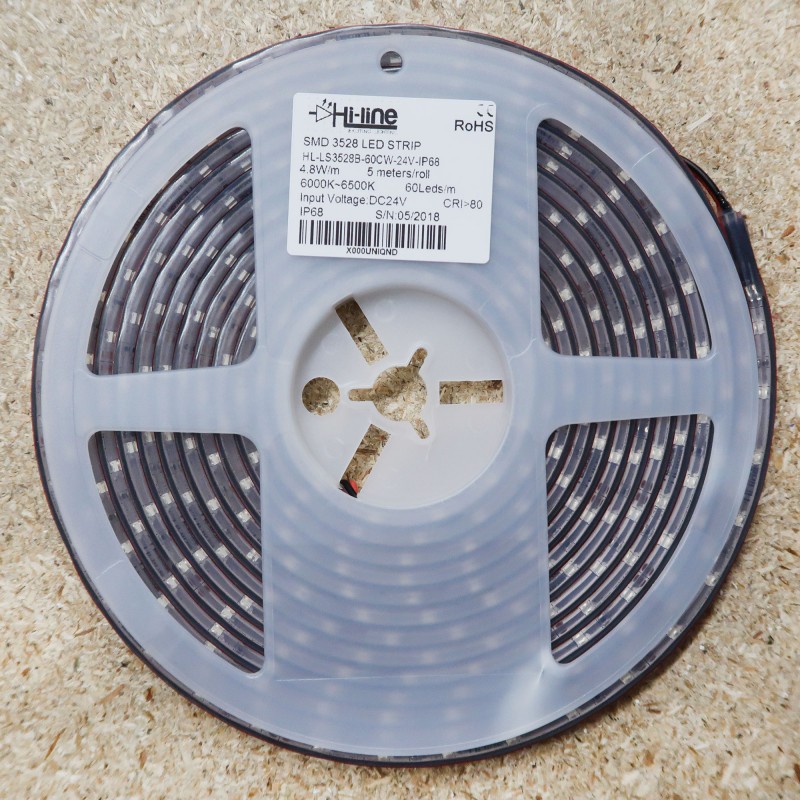

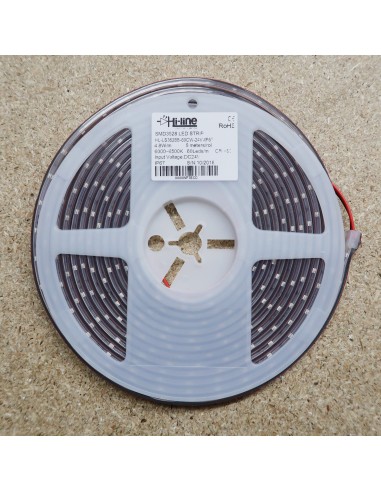

LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

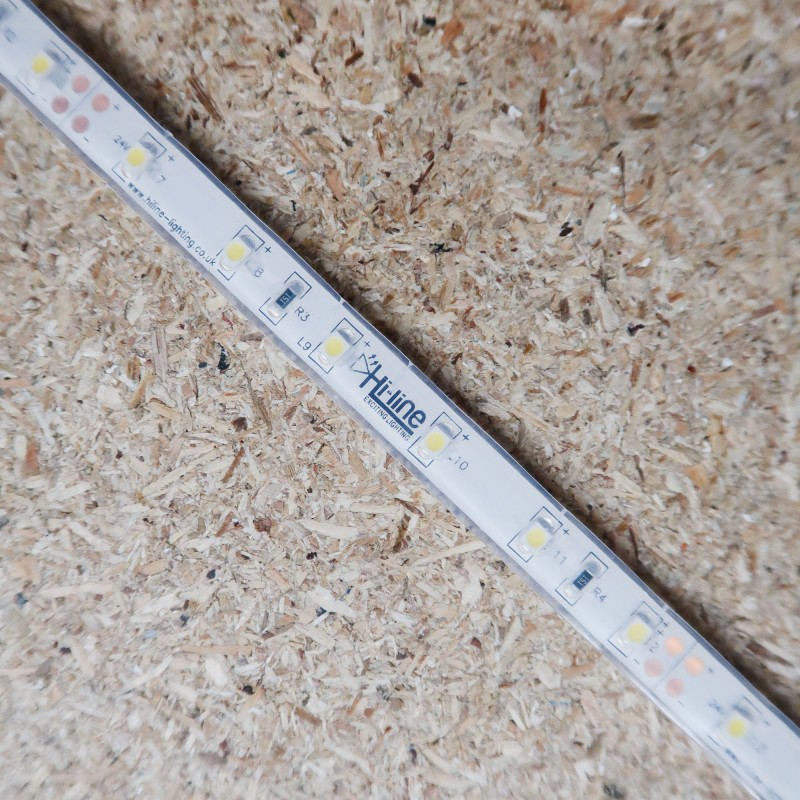

High grade IP68 Cool White LED Strip 6000K fully waterproof, powered by SMD3528

4.8W/m – 24V DC – 5m roll – 60 LEDs/m – IP68 (waterproof) – 2-wire cable (15cm on each side of the strip roll)

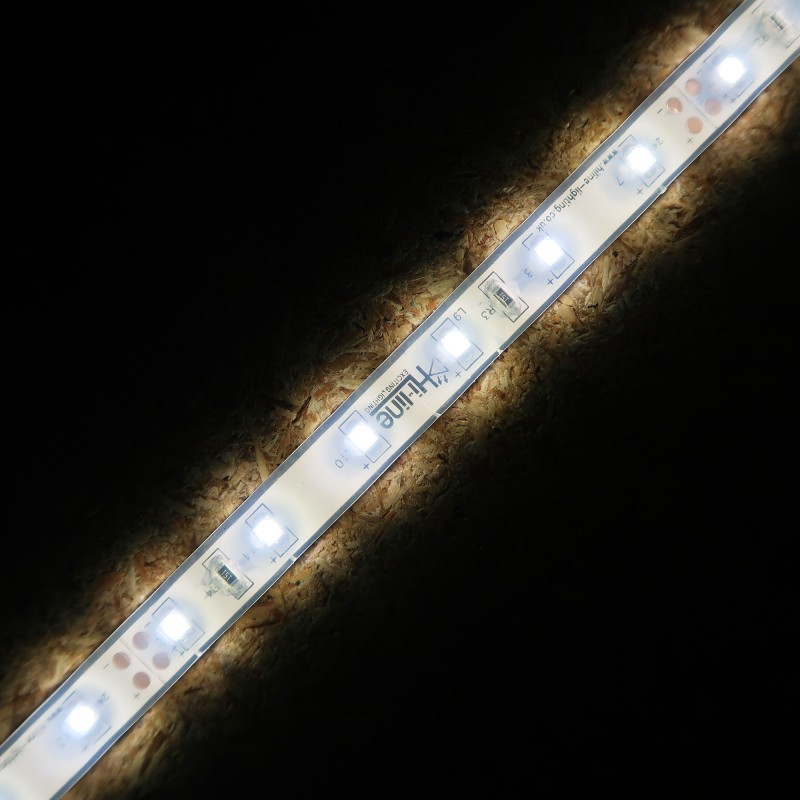

High-quality SMD3528 LED chips, which generate a brightness of 360-420Lm/m.
If higher light output is required please use our website refine by filter and locate strips powered by SMD2835 LED chip.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80. Please note that this LED strip is also available with even higher CRI - Ra>90. Please contact Hi-Line for more information.

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 10mm and height is 5mm.

Great for cove lighting or any application that does not require high brightness.

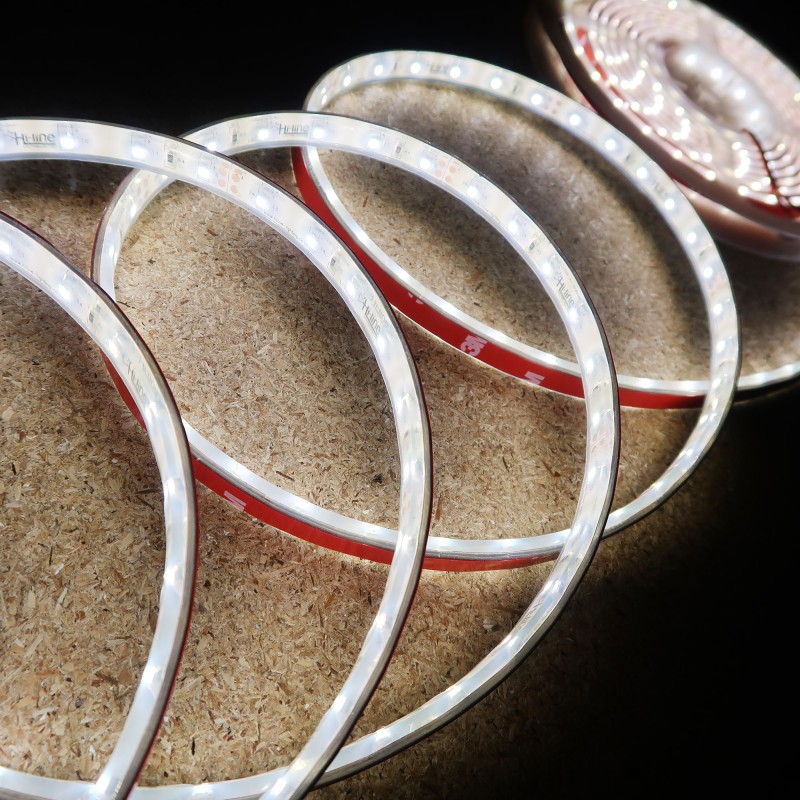

Fitted with an easy to install original 3M adhesive tape with excellent adhesion also under water (identified by a red protective strip on the adhesive side).

IP68 Waterproof Protection is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can keep its IP68 rating for more than 5 years if installed properly. Please note that IP00 rated LED strips are recommended wherever rating is not required (e.g. in indoor spaces) as these are easier to handle and install.

All Hi-Line's IP68 strips can be used in steam rooms and saunas (LED drivers and controllers should be installed remotely).

The LED chip without the IP68 coating can operate at temperatures between -25 to 60 degrees Celsius. Using Hi-Line's special coating which also acts as a coolant for the LED chips can make the final end product to stand temperatures of up to 110 Celsius. For Sauna and steam room applications it is suggested to install IP68 LED strips on aluminium flat bar, LED profile or directly on concrete walls for additional cooling, this will prolong LED chip operating time and lumen-maintenance. Please note that warranty offered for IP68 LED tape installed in Saunas, steam rooms or underwater is limited to one year.

______________________________

The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

_____________________________

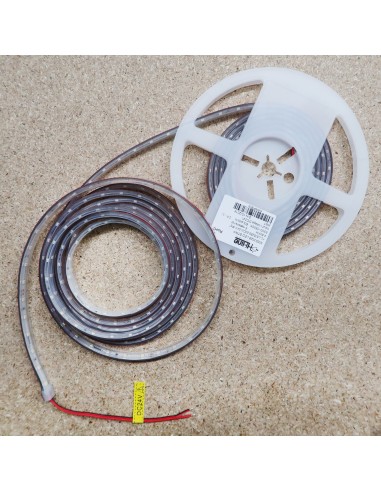

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note that soldering is recommended for the connection of IP68 LED strips. When soldering, please remember to maintain a waterproof connection by using liquid electrical tape or waterproof heat shrink sleeving.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

______________________________

The stated price is for 1 x 5-meter roll LED strip (Cool White 6000K) with 300 SMD3528 LEDs – IP68 24V DC.

______________________________

Selection of the LED driver depending on the maximum LED strip length

To consider best power supply performance, 20% must be deducted from the maximum strip length.

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
