Strip to wire connector for 10mm IP65 RGB LED strip (pack of 5)

4 pin LED strip to power (wire) connector

Supports high current LED strips

For 10mm IP65 RGB LED strips

HL-RGB-B10-IP65
207 Items In stock
Same Day Dispatch
£9.20

(£1.84 each)

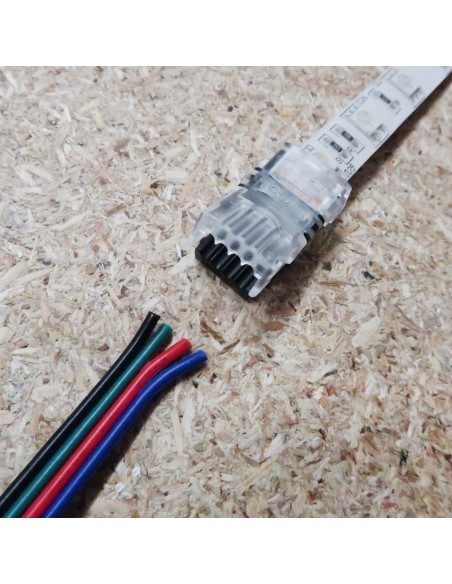

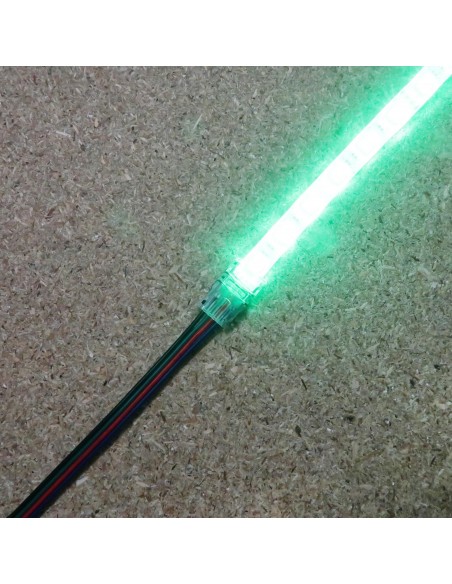

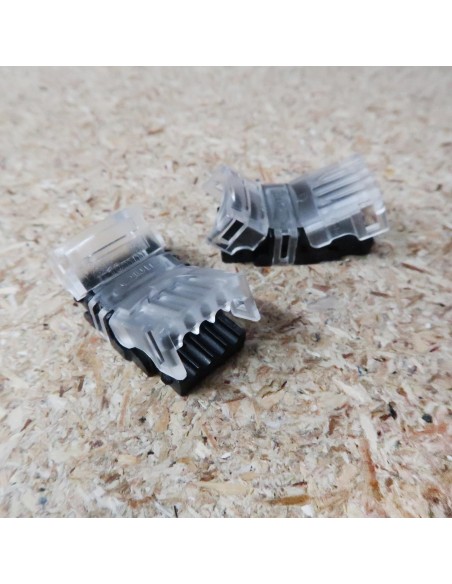

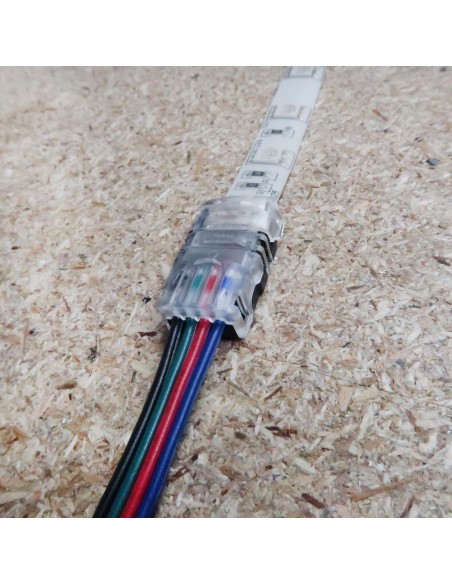

A LED strip connector (strip to power) designed for 10mm wide IP65 splashproof RGB LED strips

Connect IP65 splashproof / waterproof RGB LED strip without removing surface coating gel.

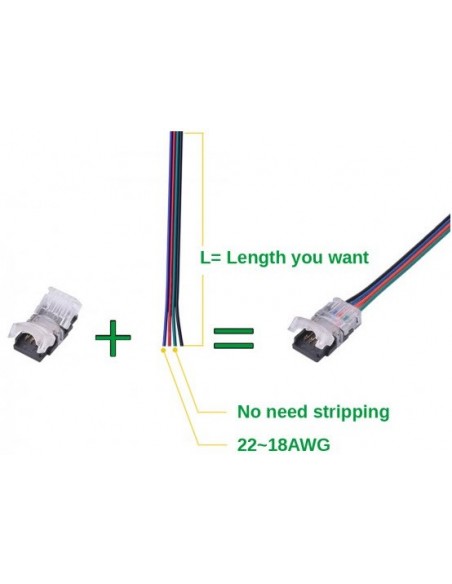

Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!

With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.

This is a very high quality strip to wire connector suitable only for IP65 10mm wide RGB LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm RGB). This connector is made of flame retardant material.

Supports high current LED strips!

The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).

­­­______________________________

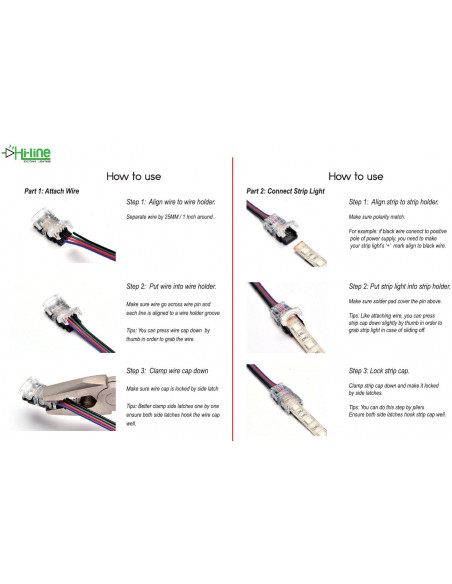

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L27mm X W14.7mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 4

Pin distance between them: 2.4mm

Cross Sectional Area for wire (not included): 0.3255 - 0.8230mm²

Wire type AWG: 18-22#

Applicable wire type: Solid wire / Stranded wire

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

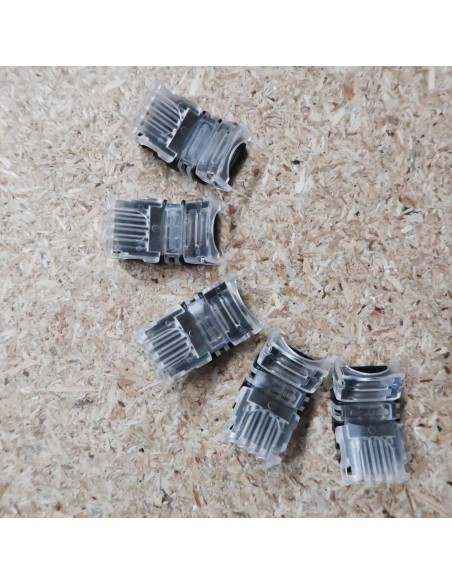

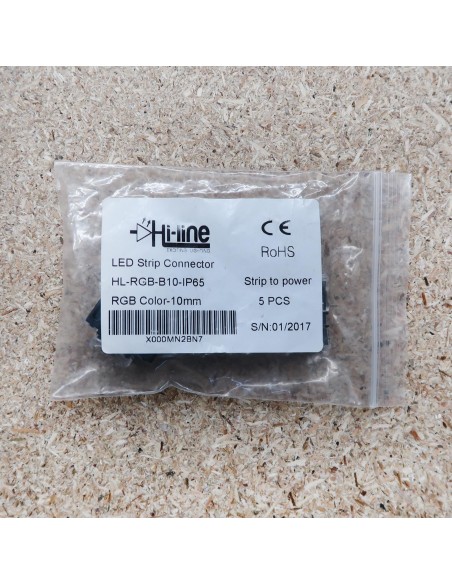

Standard Package: 5pcs/bag

Voltage
12-24V DC
Rating
IP65 (Splashproof)
Connector type
strip to power connector
Connector width
For 10mm LED strips
Number of terminals
4 pin (for RGB strips)
Brand
Hi-Line
