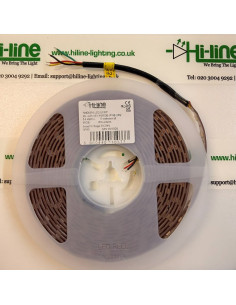

RGB LED Strip 24V-7.2W/m-IP54/65-5m roll
RGB LED strip, 24V, IP54/65 (Waterproof)
5m roll–10mm width
3 year warranty
Commercial high-grade RGB LED strip
7.2W/m – 24V DC – 5m roll – 30 LEDs/m – IP54/65 (Waterproof) – 4-wire cable (15cm on each side of the strip roll)

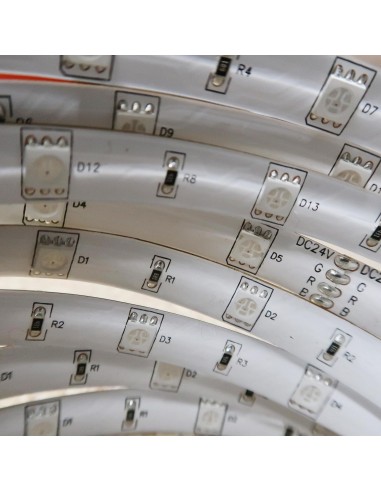

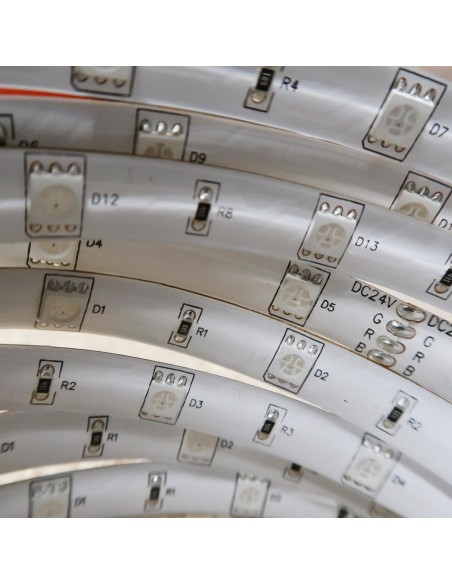

The RGB LED strips are powered by high-quality quad SMD5050 LED chips which generate a brightness of 540Lm/m and vivid colours.
The strip can be cut every 5 LEDs (168mm). The width of the LED strip is 10mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion (identified by a red protective strip on the adhesive side).
IP54/65 Waterproof Protection (IP54/65 = Splashproof) is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as it happens with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can keep its IP54/65 rating for more than 5 years if installed using an aluminium LED profile (to run at lower temperatures). Please note that IP00 rated LED strips are recommended wherever IP54/65 rating is not required (e.g. in indoor spaces) as these are easier to handle and install.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 10 meters of a LED strip in series. A LED strip of more than 10 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 10 meters of the LED strip is exceeded, it is suggested to connect both ends of the strip directly to the LED controller using a 4-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

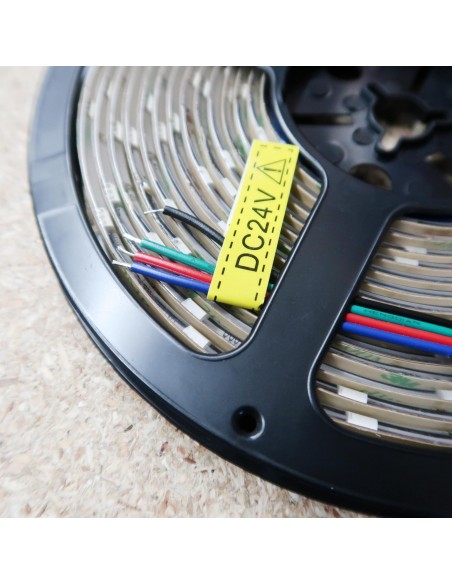

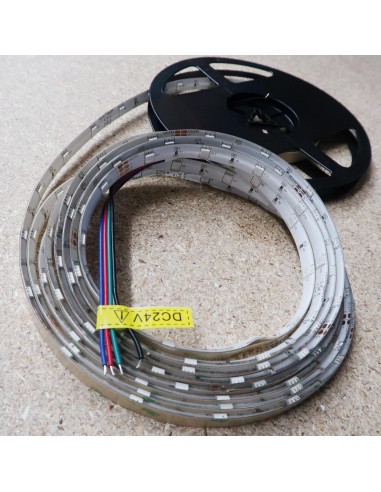

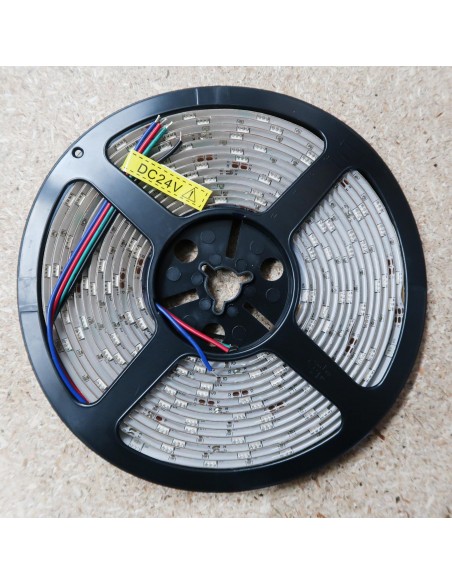

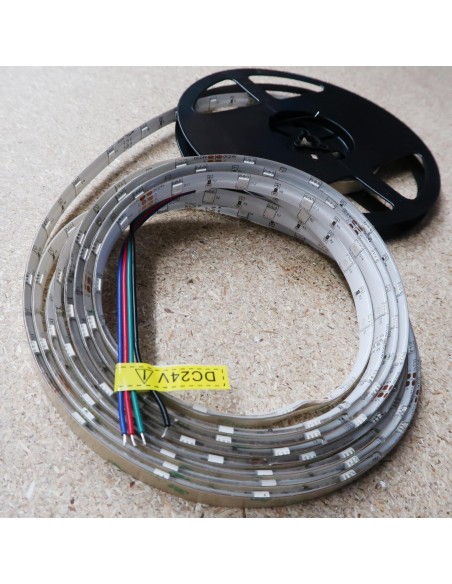

The RGB LED strip comes with a 15cm wire ending (4-core) on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
All Hi-Line RGB and RGBW LED strips are fully compatible with Fibaro RGBW LED Controller, Rako or ANY common anode LED controller available on the market.

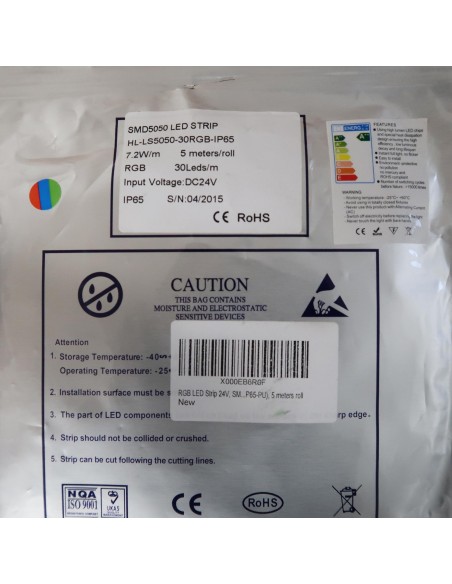

The stated price is for 1 x 5-meter roll RGB LED strip with 150 SMD5050 LEDs – IP54/65 (Waterproof), 24V DC.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that, for driving RGB LED Strips, you will have to combine the LED Driver with an RGB/RGBW LED Controller.
In such case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- 24V DC
- 7.2 W/m
- 540 Lm/m
- Number of LEDs per meter
- IP65 (Splashproof)
- Width of strip
- FCP copper content
- 2 ounce double layer
- Cutting length
- Every 5 LEDs (168mm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- 3 Years
- LED Chip
- SMD 5050
