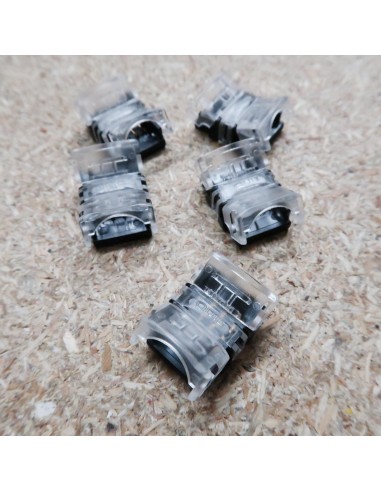

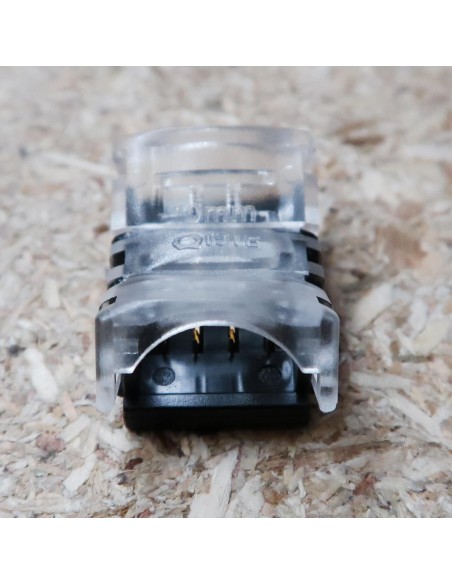

4 pin LED strip to strip connector

Supports high current LED strips

For 10mm IP65 RGB LED strips

HL-RGB-A10-IP65
86 Items In stock
Same Day Dispatch
£9.20

(£1.84 each)

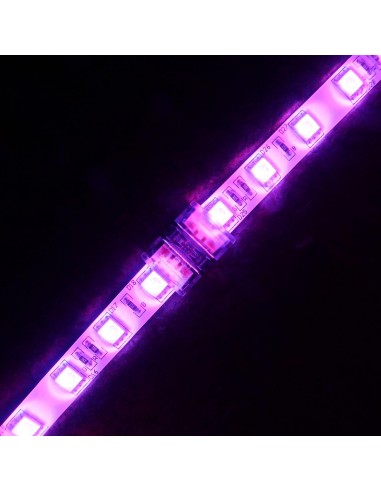

A LED strip connector designed for 10mm wide IP65 splashproof RGB LED strip lights

Connect IP65 splashproof / waterproof LED strip without removing surface coating gel.

This is a very high quality strip to strip connector suitable only for IP65 10mm RGB LED strips.

Compatible with 30-120 LEDs/m LED strips (10mm wide). This connector is made of flame retardant material.

Supports high current LED strips!

The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).

­­­______________________________

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L25mm X W14.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 4

Pin distance between them: 2.4mm

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: 60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

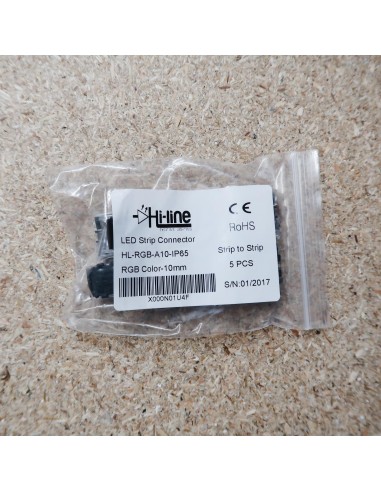

Standard Package: 5pcs/bag

Voltage
12-24V DC
Rating
IP65 (Splashproof)
Connector type
strip to strip connector
Connector width
For 10mm LED strips
Number of terminals
4 pin (for RGB strips)
Brand
Hi-Line
