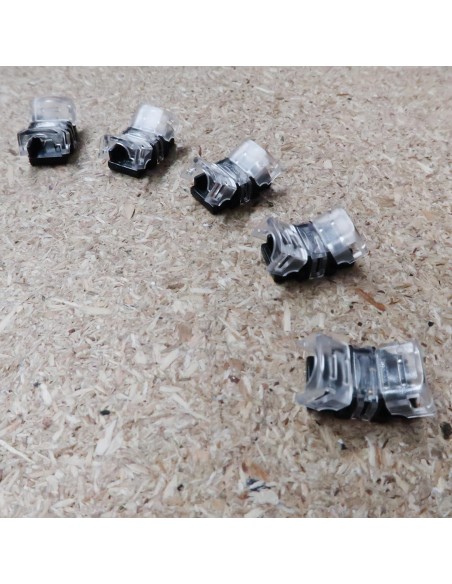

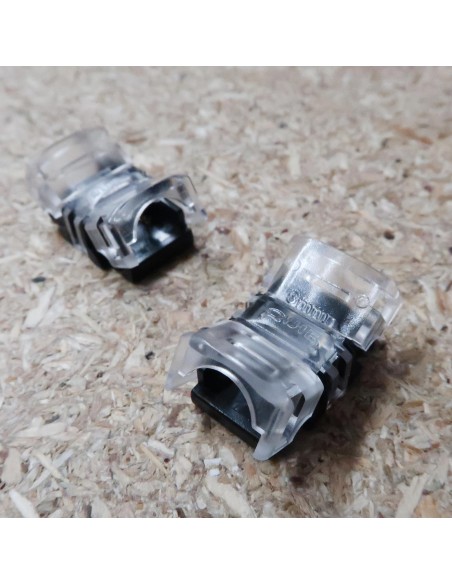

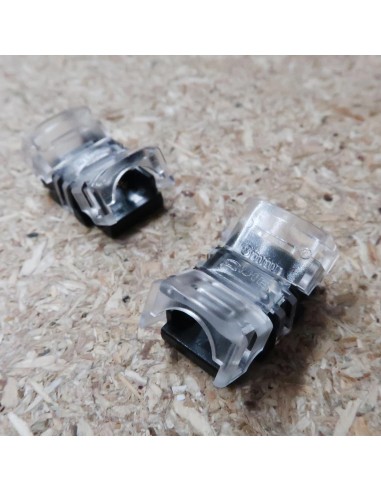

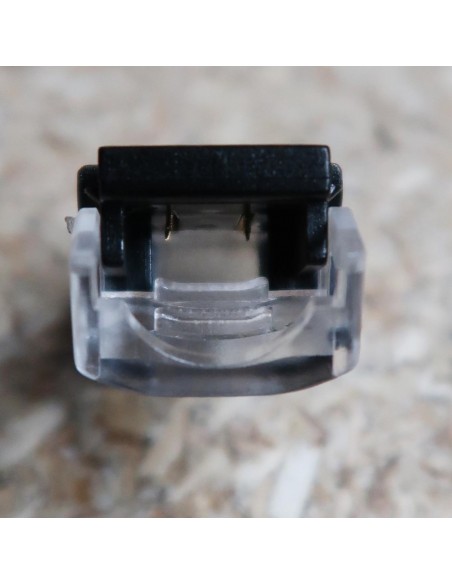

Strip to strip connector for 8mm IP65 LED tape single colour (pack of 5)

A strip to strip connector designed for 8mm wide IP65 single colour LED strip

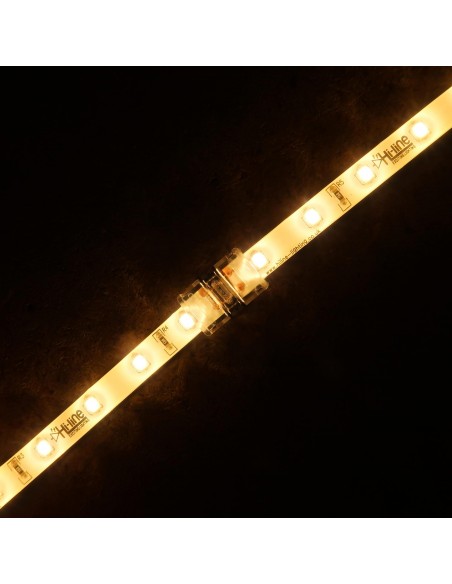

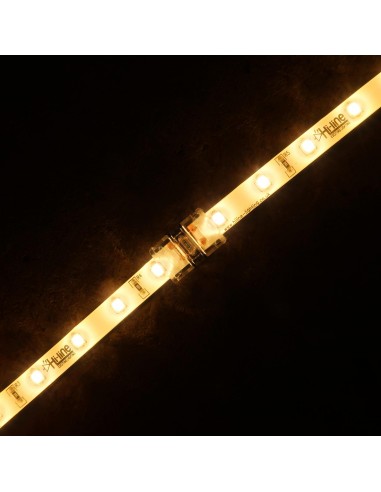

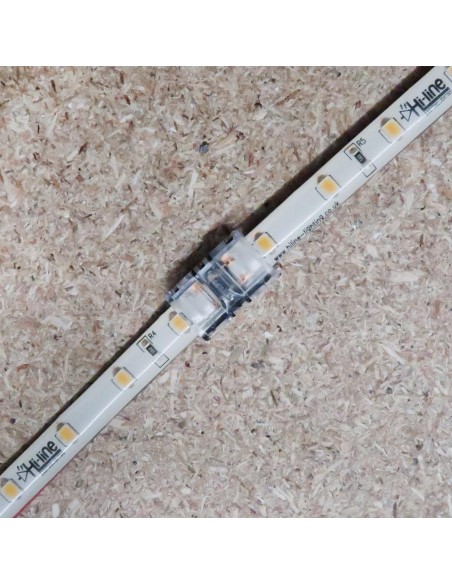

Connect IP65 splashproof / waterproof LED strip without removing surface coating gel.

This is a very high quality strip to strip connector suitable only for IP65 single colour 8mm LED strips.

Compatible with 30-120 LEDs/m LED strips (8mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

The IP65 connectors are suitable for use with the gel coated (PU) IP65 LED strips (please note that this connector is not compatible with the IP00, nano or nano PU LED strips).

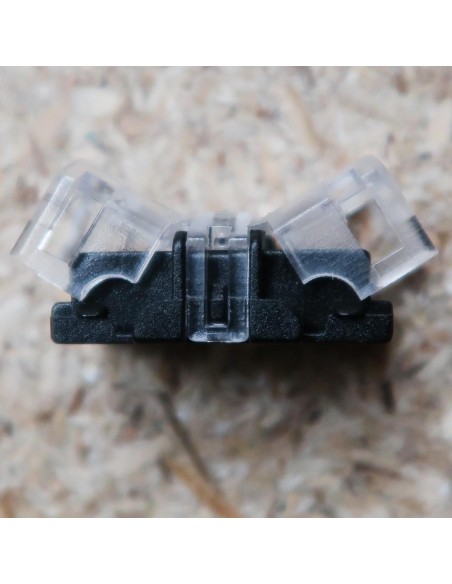

Note: Please DO NOT close caps of the connector before strip to be in place, as it is hard to open!

Technical Data

Size: L25mm X W12.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Workable Wire Gauge: 22 ~18 AWG

Pin distance between them: 3.6mm

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

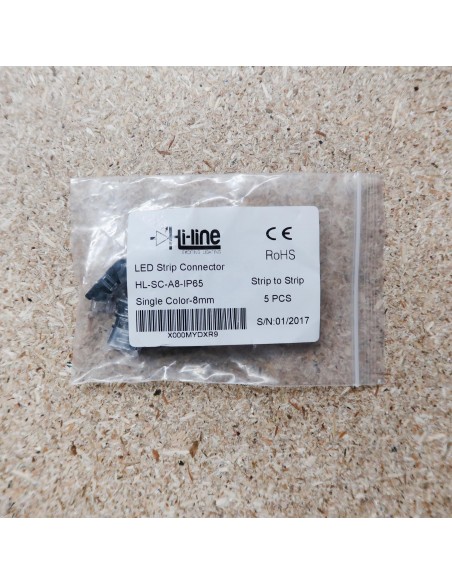

Standard Package: 5pcs/bag
