Red LED Strip 24V-4.8W/m- IP54/65

HL-LS3528-60R-IP65-24V

New product

Red LED Strip, IP54/65 (splash proof)

60 LEDs /m - 4.8 w/m

5m roll - 8mm width (3.5mm height)

3 Year warranty

More details

20 Items

Same Day Dispatch

£ 35,00

£ 7,00 per Meter

Add to wishlist

Data sheet

LED Chip SMD 3528
CIE Colour Space 3 SDCM
Voltage 24V DC
Colour Red
Power 4.8 W/m
Wavelength 625nm
Number of LEDs per meter 60
Rating IP65 (Splashproof)
Width of strip 8mm
Height of strip 3.5mm
FCP copper content 2 ounce double layer
Cutting length Every 6 LEDs (100mm)
LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 3 Years
Brand Hi-Line

More info

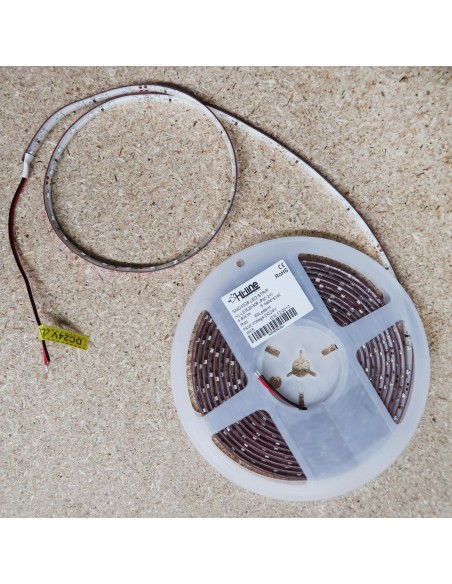

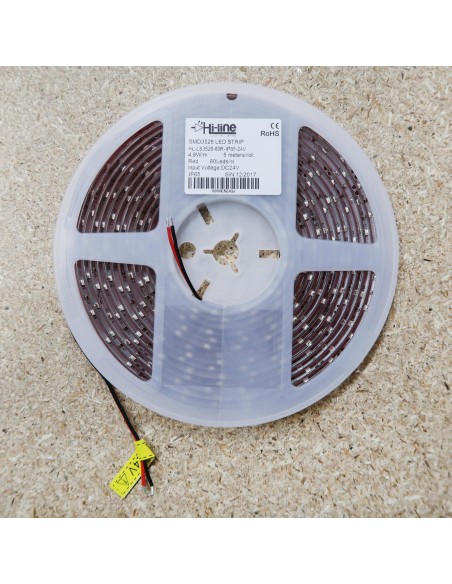

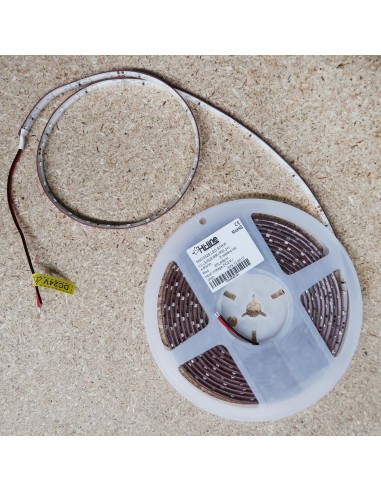

Red LED strip, 5-meter roll.

Can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm

The LED strip has 4 wires and is powered by high-quality SMD3528 LED chips.

Great for cove lighting or any application that does not require high brightness.

Due to the high quality of our LED strips, there is very low decay, which increases the LED strip's lifetime and ensures that a high level of the brightness is kept constant throughout.

IP54/65 Waterproof Protection (IP54/65 = Splashproof) is achieved with polyurethane and silicon, which is the most expensive and best method that can be used on LED strips. This waterproof protection is very durable and does not become "yellowish" as can happen with most LED strips within 3 months of installation. Moreover, the LED strip remains extremely flexible, very clear, soft and well-protected throughout its lifetime and can maintain its IP54/65 rating for more than 5 years, if installed using an aluminium LED profile (to run at lower temperatures). Please note: IP00 rated LED strips are recommended wherever an IP54/65 rating is not required (e.g. in indoor spaces) as these are easier to handle and install.

The product should be connected to a constant voltage driver - 24Volts - and with any 24 Volts PWM controller (analogue or DMX Dimming) as with all conventional LED strips.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion (identified by a red protective strip on the adhesive side).

All our LED strips are dimmable. Please select a suitable PWM LED dimmer/controller. The LED strip cannot be dimmed in any other way!

______________________________

Please note that soldering is recommended for the connection of LED strips. However, if a solder free connection is preferred, Hi-Line’s solder free connectors offer the best solution currently available on the market.

______________________________

Our price is for 1 x 5 meter roll single colour (RED) LED strip IP54/65 - 24 Volts

______________________________

Selection of the LED driver depending on the maximum LED strip length:

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider performance drop, which occurs in the power supply cable, and to maximize the efficiency of the LED Driver, 20% is deducted from the maximum strip length in the table below.

Note: LED strip dimming is possible if the driver is used in combination with an LED controller. In such cases, the LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
