Red LED Strip 5m roll | 24V | 9.6W/m | IP65 | SMD3528

  • Voltage: 24V DC
  • IP Rating: IP65 (Splashproof)
  • Powered by: SMD3528 LED chip
  • LEDs per meter: 120
  • Power: 9.6 Watts per Metre
  • Width of strip: 10mm
  • Height of strip: 3.5mm
  • LED Strip Length: 5-meter roll
  • Colour: Red
HL-LS3528-120R-IP65-24V
28 Items In stock
Next working day delivery
£45.00
54.00
with VAT)

(£9.00 Meter)



Commercial high grade LED Strip / Tape

5 METER WATERPROOF IP65 SMD 3528 LED STRIP LIGHT WITH 600 LEDS IN RED

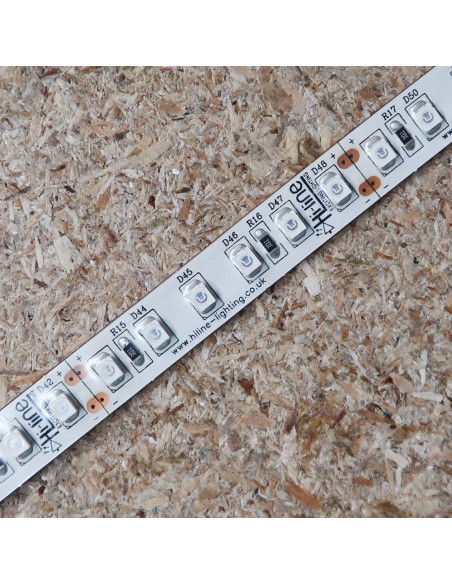

Can be cut at every 6 LEDs (5cm), Width of the LED strip is 10mm.

24 Volts DC, Splashproof (IP65) LED strip powered by SMD3528 LED chip, 120LEDs/m, 9.6W/m, 5 meter roll, colour: red

The quality of this product is superior!

Due to the very thin coating on NPU strips, it is not possible to use IP65 connectors. This is because of the connector’s concave design, which won’t clamp onto the strip when closed. As such, it is recommended to use the equivalent IP00 connectors, such as the IP00 10mm Strip-to-Wire Connectors and the IP00 10mm Strip-to-Strip Connectors.

All our LED strips are dimmable. Please select a suitable PWM LED dimmer/controller. The LED strip cannot be dimmed in any other way!

Fitted with an easy to install original 3M adhesive tape with excellent adhesion (identified by a red protective strip on the adhesive side).

Please note that soldering is recommended for the connection of LED strips. However, if a solder free connection is preferred, Hi-Line’s solder free connectors offer the best solution currently available on the market


Our price is for 1 x 5 meters roll (600 LEDS) single colour LED Strip (Red) - IP65 Splashproof


Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider performance drop, which occurs in the power supply cable, and to consider the efficiency of the LED Driver, 20% is deducted from the maximum strip length in the table below.

9.6 W/m LED Drivers and LED Strip

Note that LED strip dimming is possible if the driver is used in combination with an LED controller. In such a case, the LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

24V Driver Controller Circuit


For more information about the installation of LED Strips, you can download the above PDF file: “Installation of LED Strips”.

Brand
Hi-Line
CIE Colour Space
3 SDCM
Colour
Red
Cutting length
Every 6 LEDs (50mm)
Height of strip
3.5mm
LEDs per meter
120 (SMD)
LED Chip
SMD 3528
LED Strip Length
5 metres roll
Power
9.6 Watts per Metre
IP Rating
IP65 (Splashproof)
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
Wavelength
625nm
Width of strip
10mm
