COB LED Strip IP68 3000K CRI90 – 528 LEDs/m – Premium Series – Clip Fixing Version
This product is a specialised installation version of our COB IP68 LED strip, designed for professional installers, furniture manufacturers, and trade applications where mechanical fixing is preferred over adhesive mounting.
Unlike the standard version (Reference HL-COB528WW3K-R90-IP68), this model is supplied without rear adhesive tape. Instead, it is intended to be installed using mounting clips, providing a clean, secure, and long-term fixing method.

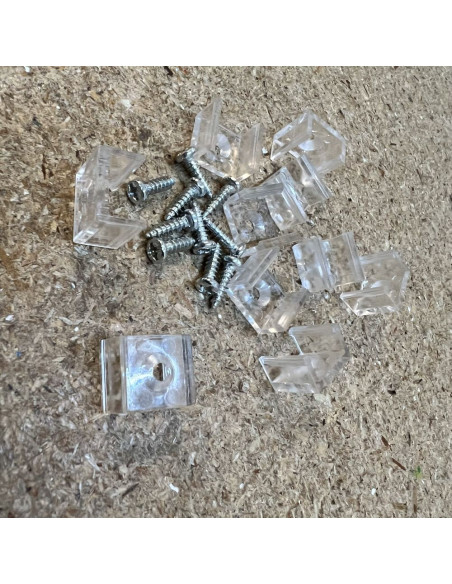

Each 5 metre roll is supplied with fixing clips, allowing the strip to be securely mounted along the installation path. Typical installations use approximately 2 clips per metre, depending on the surface and application.
Additional clips, connectors, and sealing accessories are available in the Related Products tab.
Important notice:
This version does not include adhesive backing and is designed for installation using mounting clips.
Why Choose the Clip Fixing Version
In many professional installations, adhesive backing is not required and can sometimes be unsuitable.
This version is ideal for:
Installations inside routed furniture channels or CNC grooves where precise fitting is required
Applications where mechanical fixing provides better long-term stability
Surfaces where adhesive bonding is unreliable or not suitable
Installations requiring future access, servicing, or replacement
By removing the adhesive layer, the strip maintains a consistent profile and fits more accurately into tight or machined spaces.
Premium COB LED Chips – High Brightness Performance
This product uses Hi-Line Premium COB LED technology, designed to deliver higher brightness and improved efficiency compared to standard COB strips.
Although many COB strips specify 528 LEDs per metre, actual performance depends on chip quality and internal construction. Hi-Line uses selected high-grade components, resulting in strong light output at 15W per metre.
Alternative options are also available:
Premium version at 10W per metre using the same high-quality chips with reduced output
Value Series version (528 LEDs/m, 10W/m), offering a more economical solution with different internal components
This listing refers to the Premium high-brightness version.
Alternative Versions and Installation Flexibility
The same COB LED strip is also available with adhesive backing in both 5 metre and 10 metre rolls.
Both versions provide identical lighting performance, with the only difference being the installation method.
If required, installers can use fixing clips with the adhesive version, allowing flexibility depending on the project requirements.
All compatible options can be found in the Related Products tab.
Suitability for Sauna and High-Humidity Environments
This LED strip features a fully encapsulated IP68 silicone construction, making it suitable for high-humidity environments such as bathrooms, wet areas, and certain sauna or steam room installations.
The encapsulation provides strong protection against moisture and allows the strip to operate reliably when installed correctly.
However, sauna environments can vary significantly in temperature and operating conditions. For best results:
The strip should be installed outside direct extreme heat zones
Adequate heat management and positioning should be considered
Installation must be carried out by a qualified professional
In many real-world applications, this type of IP68 strip has been successfully used in sauna environments when installed correctly, delivering stable long-term performance.
Due to variations in installation conditions, warranty coverage may be limited in high-temperature applications.
Stock Availability
Live stock levels are displayed in a green box above the product price on the product page and update in real time.
If your required quantity exceeds available stock, the remaining units will be placed on backorder.
If the product shows PRE-ORDER, it is temporarily out of stock but available to reserve from the next incoming batch.
Other Lengths and Accessories
By selecting this product, you can access the Related Products tab to find:
5 metre and 10 metre versions with adhesive backing
Additional fixing clips if required
Compatible connectors
Silicone end caps for resealing after cutting
When LED strips are cut, end caps may be required to maintain IP68 protection depending on the installation.
Key Features

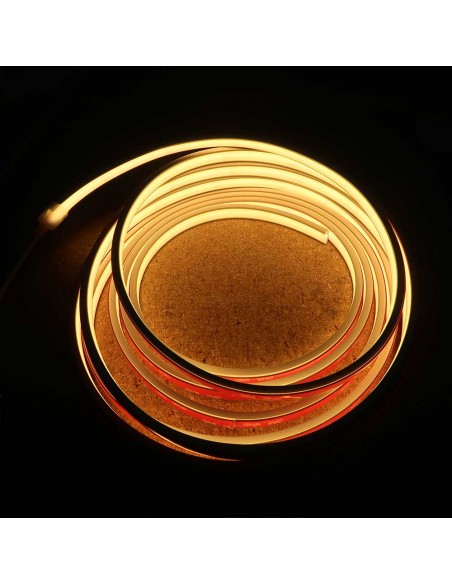

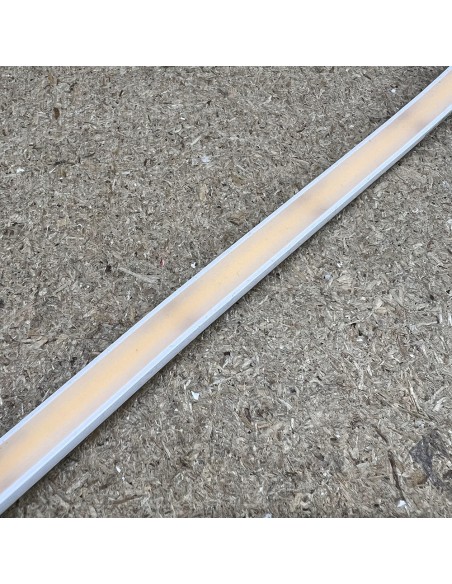

COB LED technology producing a smooth, continuous dot-free light line
528 LED chips per metre for uniform illumination
Fully encapsulated IP68 silicone waterproof construction
Designed for mechanical fixing using mounting clips
Supplied with fixing clips for installation
Suitable for professional and architectural lighting applications
Installation Notes

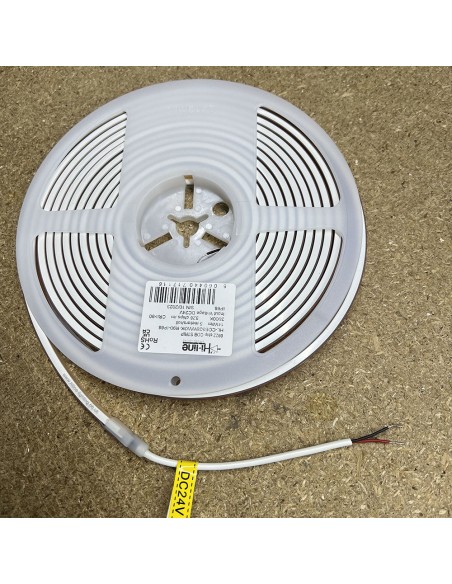

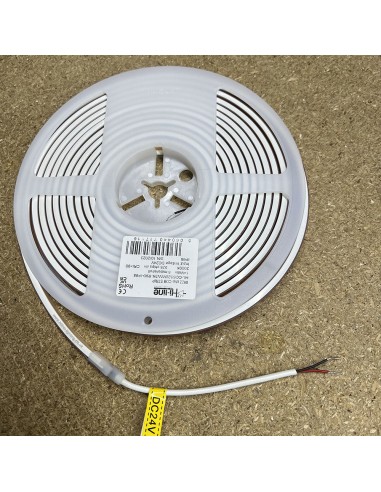

The strip is supplied as a 5 metre roll and can be cut at marked intervals.
Typical installations use approximately 2 fixing clips per metre, although this may vary depending on the mounting surface and layout.
For runs exceeding 5 metres, it is recommended to power both ends in parallel to reduce voltage drop and maintain consistent brightness.
Pre-soldered tails or parallel cable feeds should be considered for longer runs.
Technical Specifications
Brand: Hi-Line
LED Chip Type: COB
LED Density: 528 LEDs per metre
Brightness: approx. 1500 lumens per metre
Colour Temperature (CCT): 3000K Warm White
Colour Rendering Index (CRI): >90
Input Voltage: 24V DC
Power Consumption: 15W per metre
IP Rating: IP68 Waterproof
Cutting Interval: every 45mm (4.5cm)
Strip Height: 4mm
PCB Width: 8mm
Overall Strip Width: 10mm
Roll Length: 5 metres
Warranty
Standard Warranty: 3 Years
Extended Warranty:
Any coverage beyond 3 years is considered Extended Warranty and is only valid with an official Hi-Line certificate. Extended cover is a paid upgrade and is granted only after Hi-Line engineers have reviewed all aspects of the project, including technical design, installation method, environment, and installer credentials. In selected cases, warranty cover may be extended up to 7 Years.
